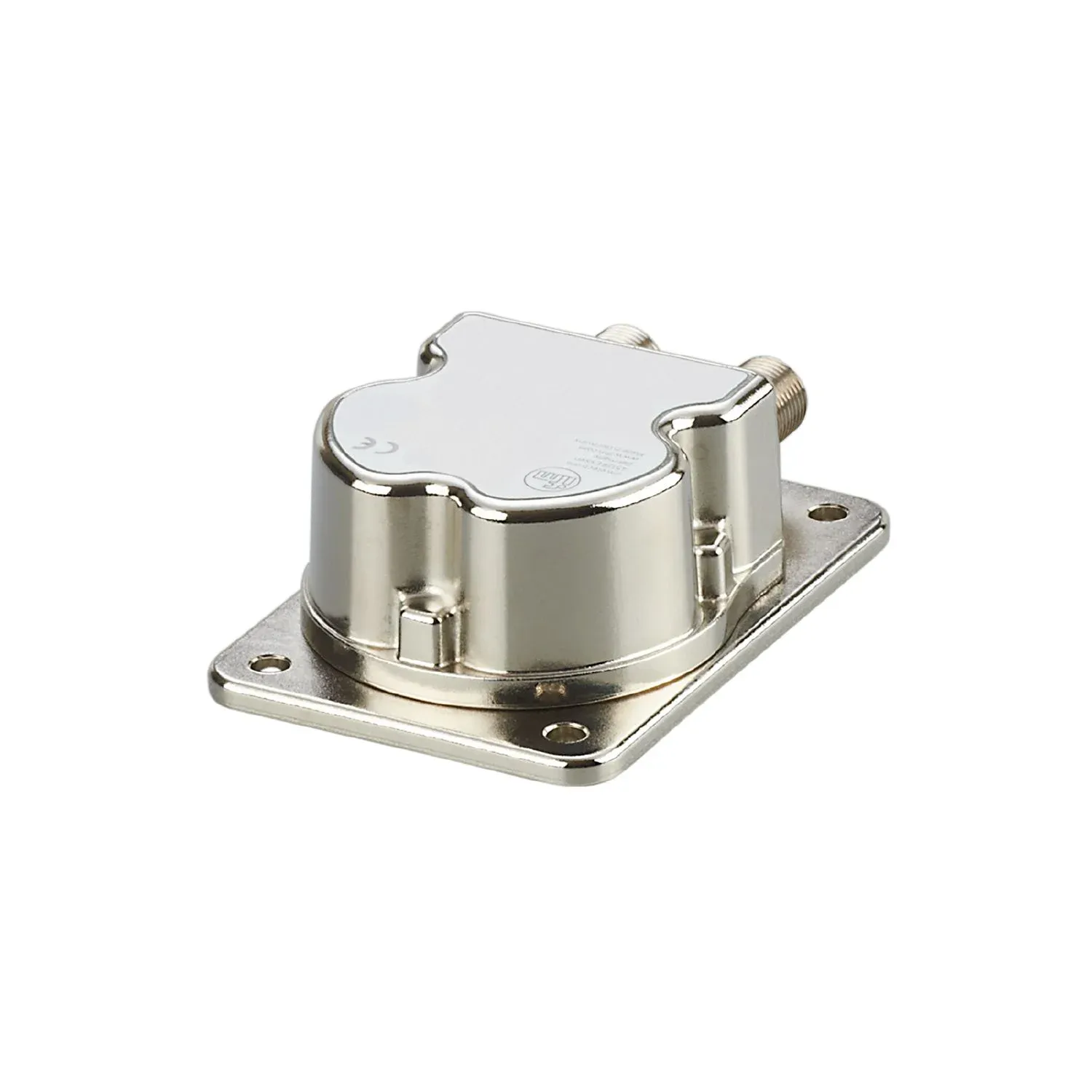

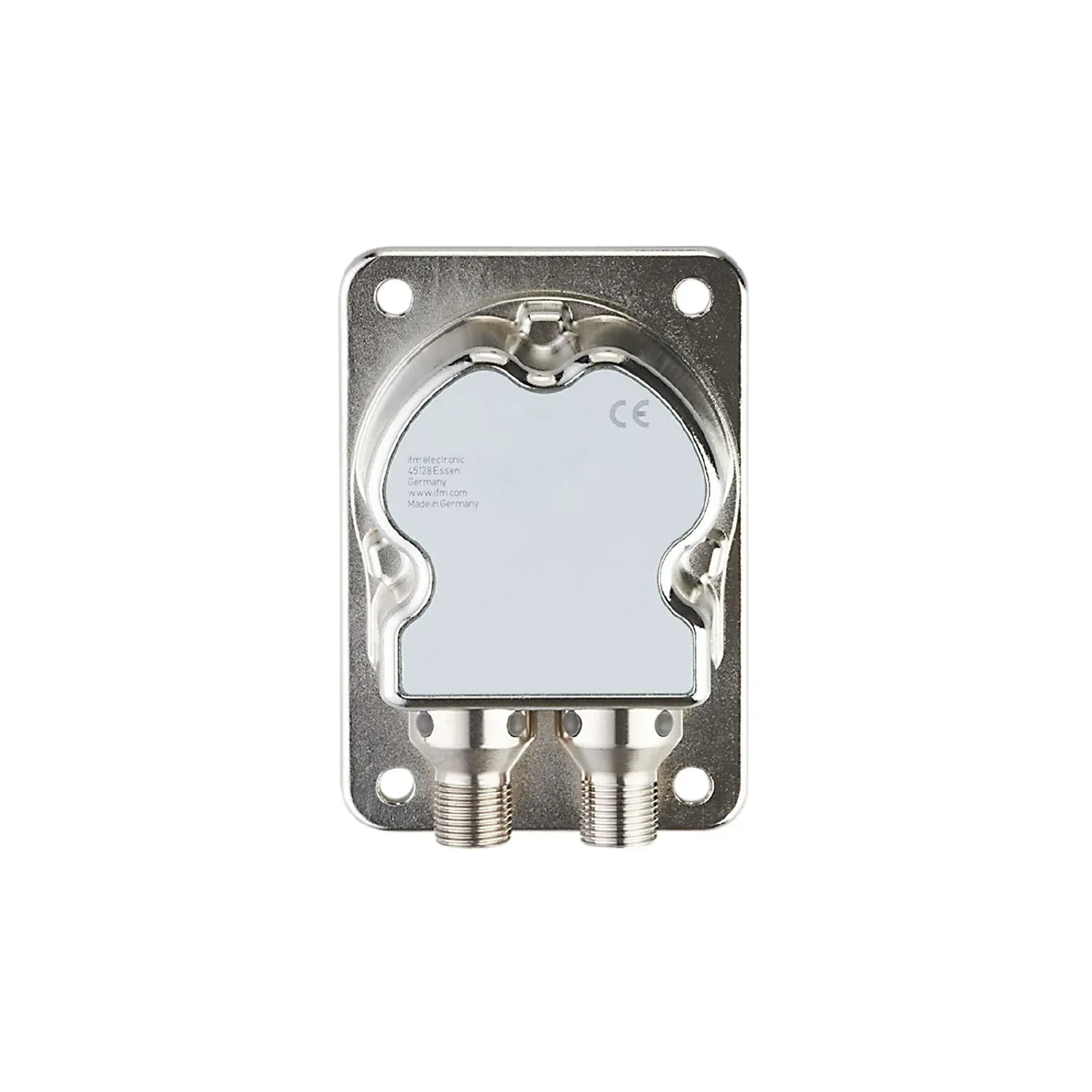

IFM JN2200

JN2200

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of angles of inclination on X and Y axes
High measurement accuracy across the total angular range in two axes
With two programmable switching outputs, two scalable analogue outputs and IO-Link
Compact and robust housing
High protection rating for the requirements of harsh industrial environments
User-friendly communication and parameterisation via IO-Link

Specification

Product characteristics

Measuring principleMEMS capacitive
Communication interfaceIO-Link
Number of measurement axes2
Angular range[°] [°]± 180

Application

Function principlestatic
ApplicationHigh-precision inclination measurement in 2 axes for mobile and industrial applications

Electrical data

Operating voltage[V] [V]9.2...30 DC; (voltage output: 12...30 DC; IO-Link: 18...30 DC)
Current consumption[mA] [mA]90; (24 V DC, 25 °C)
Max. current consumption[mA] [mA]330; (9,2 V DC; -40 °C)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]300; (warm-up time; Max. initialisation time: 1000 ms)

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 2

Outputs

Total number of outputs4
Output signalanalogue signal; switching signal
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (programmable)
Max. voltage drop switching output DC[V] [V]2.5
Permanent current rating of switching output DC[mA] [mA]125; (125 mA (85° C); 200 mA (60° C); 250 mA (40° C))
Number of analogue outputs2
Analogue current output[mA] [mA]4...20; (in case of a fault: 2 mA)
Max. load[Ω] [Ω]220; (220 (9,2…15 V) / 500 (15…30 V))
Analogue voltage output[V] [V]2...10; (in case of a fault: 1 V)
Min. load resistance[Ω] [Ω]1000; (10000 (12...13,5 V) / 1000 (13,5...30 V))
Precision analogue output[%] [%]≤ 1
Short-circuit protectionyes
Overload protectionyes

Measuring/setting range

Measuring principleMEMS capacitive
Number of measurement axesX/Y/Z parameterisable
Angular range[°] [°]± 180
Limit frequency[Hz] [Hz]0.5...10; (parameterisable)
Measuring range of vibration[g] [g]16; (± 2; ± 4; ±8 g parameterisable)
Measuring range of vibration[mm/s] [mm/s]3200
Frequency range[Hz] [Hz]0.1...400

Accuracy / deviations

Accuracy[°] [°]≤ ± 0,5; (absolute)
Hysteresis[°] [°]≤ ± 0,05
Repeatability[°] [°]≤ ± 0,1
Resolution[°] [°]0.05
Temperature coefficient[1/K] [1/K]≤ ± 0,02 °

Software / programming

Parameter setting optionsangle (X/Y) / vibration (Veff / aPeak); hysteresis / window; switch points; switching logic; fault indication; self-test; current/voltage output

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9 CDV
ProfilesSmart Sensor - SSP 0
Generic Profiled Sensor
Function
Device identification
Function
Process data variable
Function
Device diagnosis
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice diagnosis
SIO modeyes
Required master port typeA
Process data analogue2
Process data binary2
Min. process cycle time[ms] [ms]5
Supported DeviceIDsdefault
416
default416

Operating conditions

Ambient temperature[°C] [°C]-40...85
Storage temperature[°C] [°C]-40...85
ProtectionIP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMCDIN EN 61000-4-2 ESD
4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated
10 V/m
DIN EN 61000-4-4 Burst
2 kV
DIN EN 61000-4-6 HF conducted
10 V
DIN EN 55022 class B / CISPR 16-2-3
30 - 1000 MHz
CISPR 25 ECE R 10
30 - 1000 MHz narrowband and broadband
ISO 11452-2 ECE R 10
20 - 2000 MHz / 30 V/m
ISO 7637-2 ECE R 10
pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off
ISO 7637-3
- 80 V pulse a / + 80 V pulse b
DIN EN 61000-4-2 ESD4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated10 V/m
DIN EN 61000-4-4 Burst2 kV
DIN EN 61000-4-6 HF conducted10 V
DIN EN 55022 class B / CISPR 16-2-330 - 1000 MHz
CISPR 25 ECE R 1030 - 1000 MHz narrowband and broadband
ISO 11452-2 ECE R 1020 - 2000 MHz / 30 V/m
ISO 7637-2 ECE R 10pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off
ISO 7637-3- 80 V pulse a / + 80 V pulse b
Shock resistanceDIN EN 60068-2-27
100 g 1 ms / 10000 impacts per axis (X/Y)
DIN EN 60068-2-29
30 g 6 ms / 24000 shock (bump)
DIN EN 60068-2-27100 g 1 ms / 10000 impacts per axis (X/Y)
DIN EN 60068-2-2930 g 6 ms / 24000 shock (bump)
Vibration resistanceDIN EN 60068-2-64
10...2000 Hz Test VII / random, mounting place car body
DIN EN 60068-2-6
10...500 Hz / 10 g 10 cycles/axis, sine
DIN EN 60068-2-6410...2000 Hz Test VII / random, mounting place car body
DIN EN 60068-2-610...500 Hz / 10 g 10 cycles/axis, sine
Salt spray testDIN EN 60068-2-52
severity level 5 (motor vehicle)
DIN EN 60068-2-52severity level 5 (motor vehicle)
Damp heatDIN EN 60068-2-30
55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h
DIN EN 60068-2-3055 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h
MTTF[years] [years]176
StandardCompliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07

Mechanical data

Weight[g] [g]410
Dimensions[mm] [mm]90 x 62 x 33.2
Materialshousing: diecast zinc nickel-plated
Installation positionhorizontal

Displays / operating elements

Displayoperation
1 x LED, green
switch point
1 x LED, yellow
operation1 x LED, green
switch point1 x LED, yellow

Accessories

Items suppliedProtective cover

Remarks

Remarksthe device complies with overvoltage category II
Pack quantity1 pcs.

Electrical connection - digital

Connector1 x M12; coding: A

Electrical connection - analogue

Connector1 x M12; coding: A
