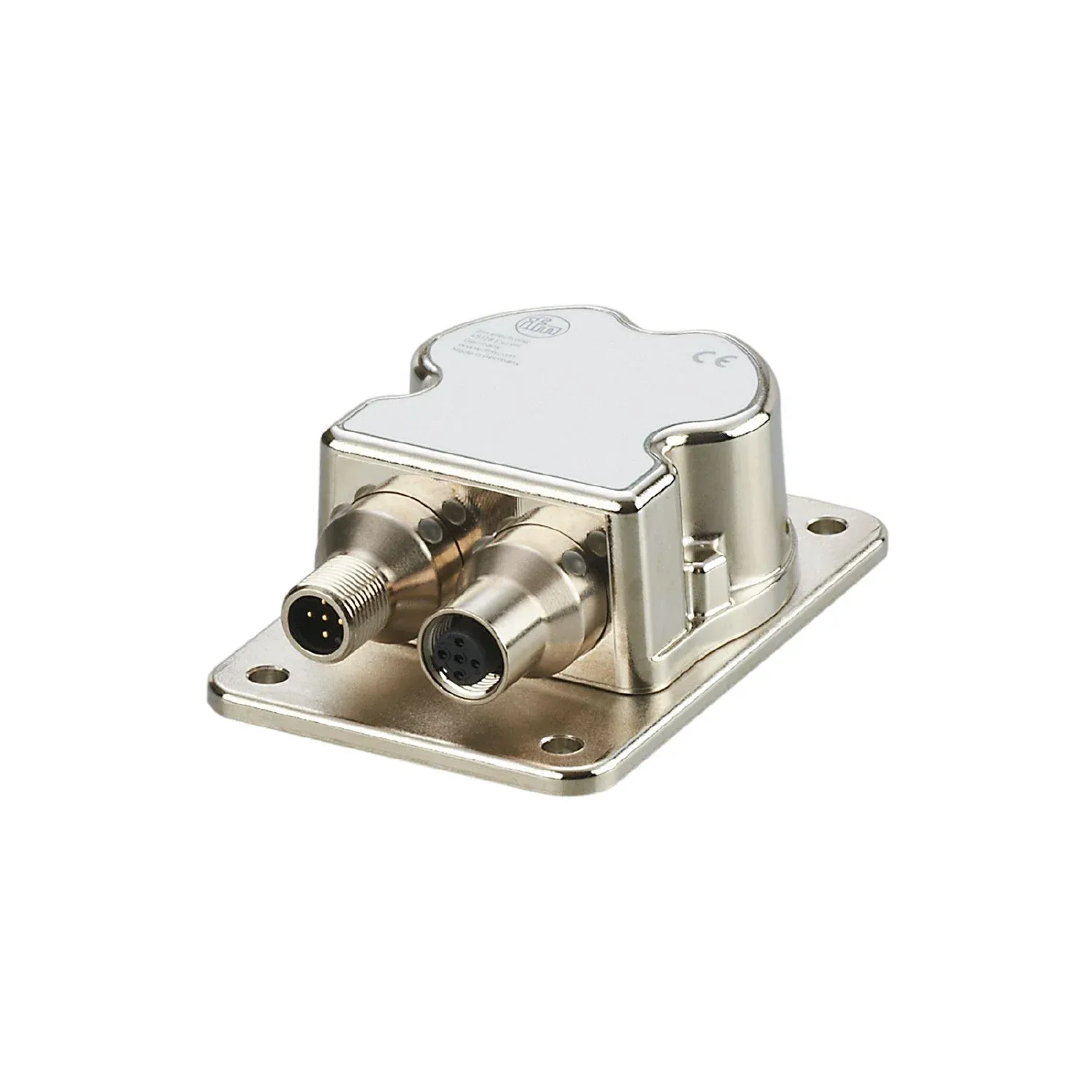

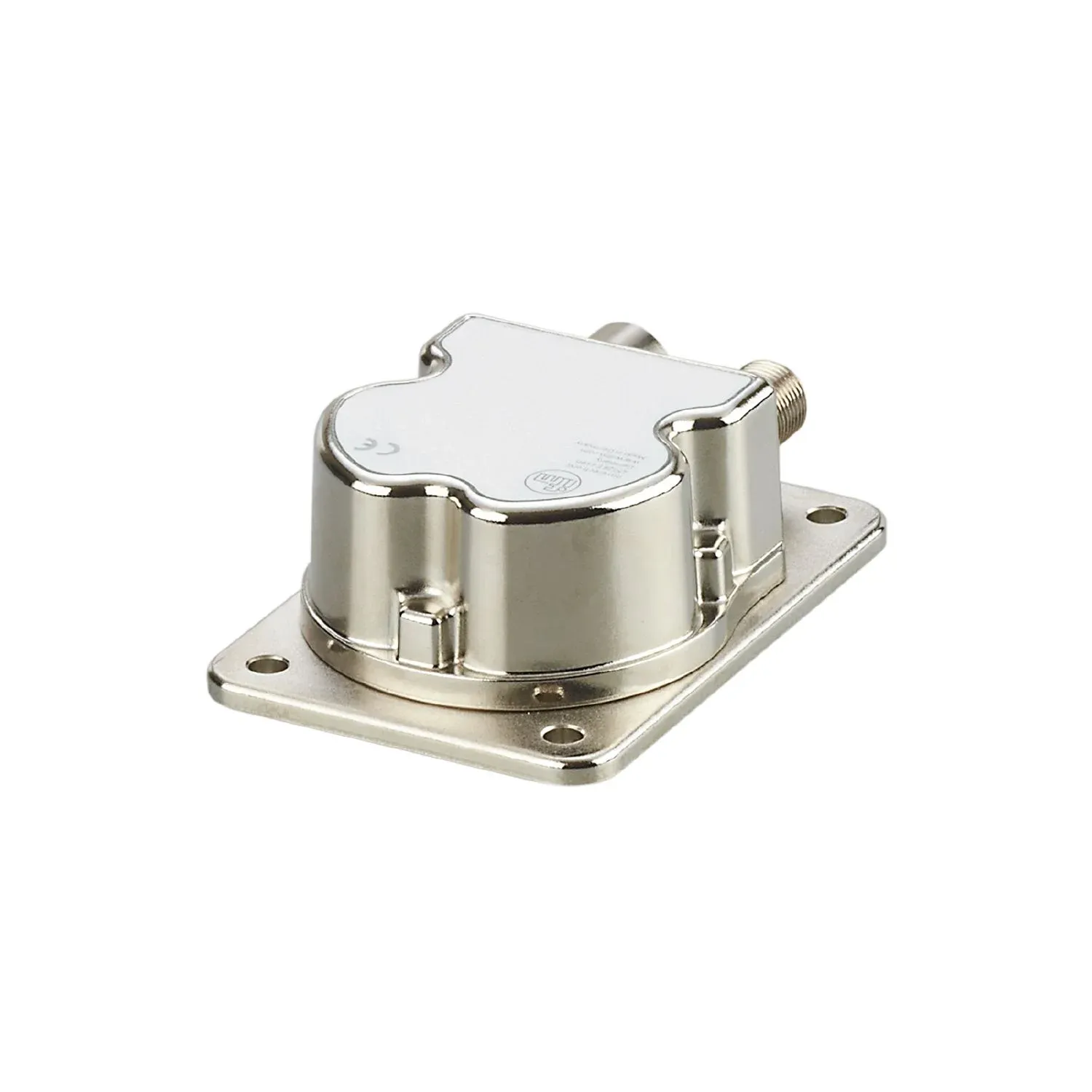

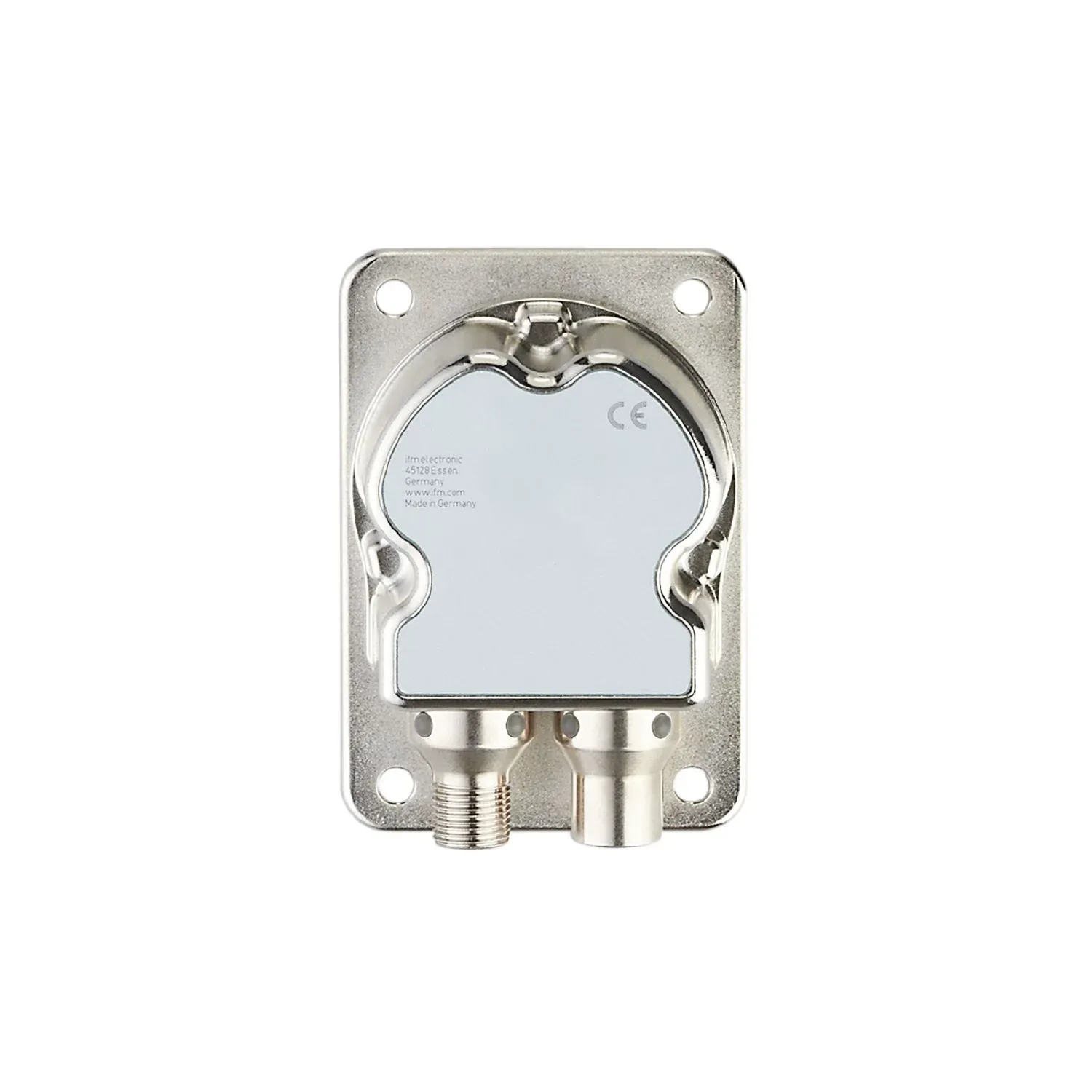

IFM JN2101
JN2101
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise measurement of angles of inclination on X and Y axes
High measurement accuracy across the total angular range in two axes
Zero point, counting direction and limit frequency adjustable
Compact and robust housing
High-performance CAN interface for various communication tasks
Specification
Product characteristics
| Measuring principle | MEMS capacitive |
|---|---|
| Communication interface | CAN |
| Number of measurement axes | 2 |
| Angular range[°] [°] | -45…45 |
Application
| Function principle | static |
|---|---|
| Application | High-precision inclination measurement in 2 axes for mobile applications |
Electrical data
| Operating voltage[V] [V] | 9.2...30 DC |
|---|---|
| Current consumption[mA] [mA] | 70; (24 V DC, 25 °C) |
| Max. current consumption[mA] [mA] | 405; (9,2 V DC; -40 °C) |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 300; (warm-up time; Max. initialisation time: 1000 ms) |
Measuring/setting range
| Measuring principle | MEMS capacitive |
|---|---|
| Number of measurement axes | 2 |
| Angular range[°] [°] | -45…45 |
| Limit frequency[Hz] [Hz] | 0.5...10; (parameterisable) |
Accuracy / deviations
| Accuracy[°] [°] | ≤ ± 0,01; (absolute) |
|---|---|
| Hysteresis[°] [°] | ≤ ± 0,05 |
| Repeatability[°] [°] | ≤ ± 0,01 |
| Resolution[°] [°] | 0.01; (parameterisable) |
| Temperature coefficient[1/K] [1/K] | ≤ ± 0,0008 ° |
Interfaces
| Communication interface | CAN |
|---|---|
| Number of CAN interfaces | 1 |
| Terminating resistor | yes; (internal ; parameterisable) |
| Protocol | CANopen |
| Factory settings | Baud rate: 125 kBit/s node ID: 10 |
| Version | CiA DS301 V4.2.0; DSP-410 V2.0.0; CiA 306 V1.3.0 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-4-2 ESD 4 kV CD / 8 kV AD DIN EN 61000-4-3 HF radiated 10 V/m DIN EN 61000-4-4 Burst 2 kV DIN EN 61000-4-6 HF conducted 10 V DIN EN 55022 class B / CISPR 16-2-3 30 - 1000 MHz CISPR 25 ECE R 10 30 - 1000 MHz narrowband and broadband ISO 11452-2 ECE R 10 20 - 2000 MHz / 30 V/m ISO 7637-2 ECE R 10 pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off ISO 7637-3 - 80 V pulse a / + 80 V pulse b |
|---|---|
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| DIN EN 61000-4-3 HF radiated | 10 V/m |
| DIN EN 61000-4-4 Burst | 2 kV |
| DIN EN 61000-4-6 HF conducted | 10 V |
| DIN EN 55022 class B / CISPR 16-2-3 | 30 - 1000 MHz |
| CISPR 25 ECE R 10 | 30 - 1000 MHz narrowband and broadband |
| ISO 11452-2 ECE R 10 | 20 - 2000 MHz / 30 V/m |
| ISO 7637-2 ECE R 10 | pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off |
| ISO 7637-3 | - 80 V pulse a / + 80 V pulse b |
| Shock resistance | DIN EN 60068-2-27 100 g 1 ms / 10000 impacts per axis (X/Y) DIN EN 60068-2-29 30 g 6 ms / 24000 shock (bump) |
| DIN EN 60068-2-27 | 100 g 1 ms / 10000 impacts per axis (X/Y) |
| DIN EN 60068-2-29 | 30 g 6 ms / 24000 shock (bump) |
| Vibration resistance | DIN EN 60068-2-64 10...2000 Hz Test VII / random, mounting place car body DIN EN 60068-2-6 10...500 Hz / 10 g 10 cycles/axis, sine |
| DIN EN 60068-2-64 | 10...2000 Hz Test VII / random, mounting place car body |
| DIN EN 60068-2-6 | 10...500 Hz / 10 g 10 cycles/axis, sine |
| Salt spray test | DIN EN 60068-2-52 severity level 5 (motor vehicle) |
| DIN EN 60068-2-52 | severity level 5 (motor vehicle) |
| Damp heat | DIN EN 60068-2-30 55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h |
| DIN EN 60068-2-30 | 55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h |
| MTTF[years] [years] | 372 |
| Standard | Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07 |
Mechanical data
| Weight[g] [g] | 415.5 |
|---|---|
| Dimensions[mm] [mm] | 90 x 62 x 33.2 |
| Materials | housing: diecast zinc nickel-plated |
| Installation position | horizontal |
Displays / operating elements
| Display | preoperational mode 1 x LED, green operational mode 1 x LED, green flashing fault 1 x LED, red |
|---|---|
| preoperational mode | 1 x LED, green |
| operational mode | 1 x LED, green flashing |
| fault | 1 x LED, red |
Accessories
| Items supplied | Protective cover: 1 |
|---|
Remarks
| Remarks | the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - CAN-In
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - CAN-Out
| Connector | 1 x M12; coding: A |
|---|
