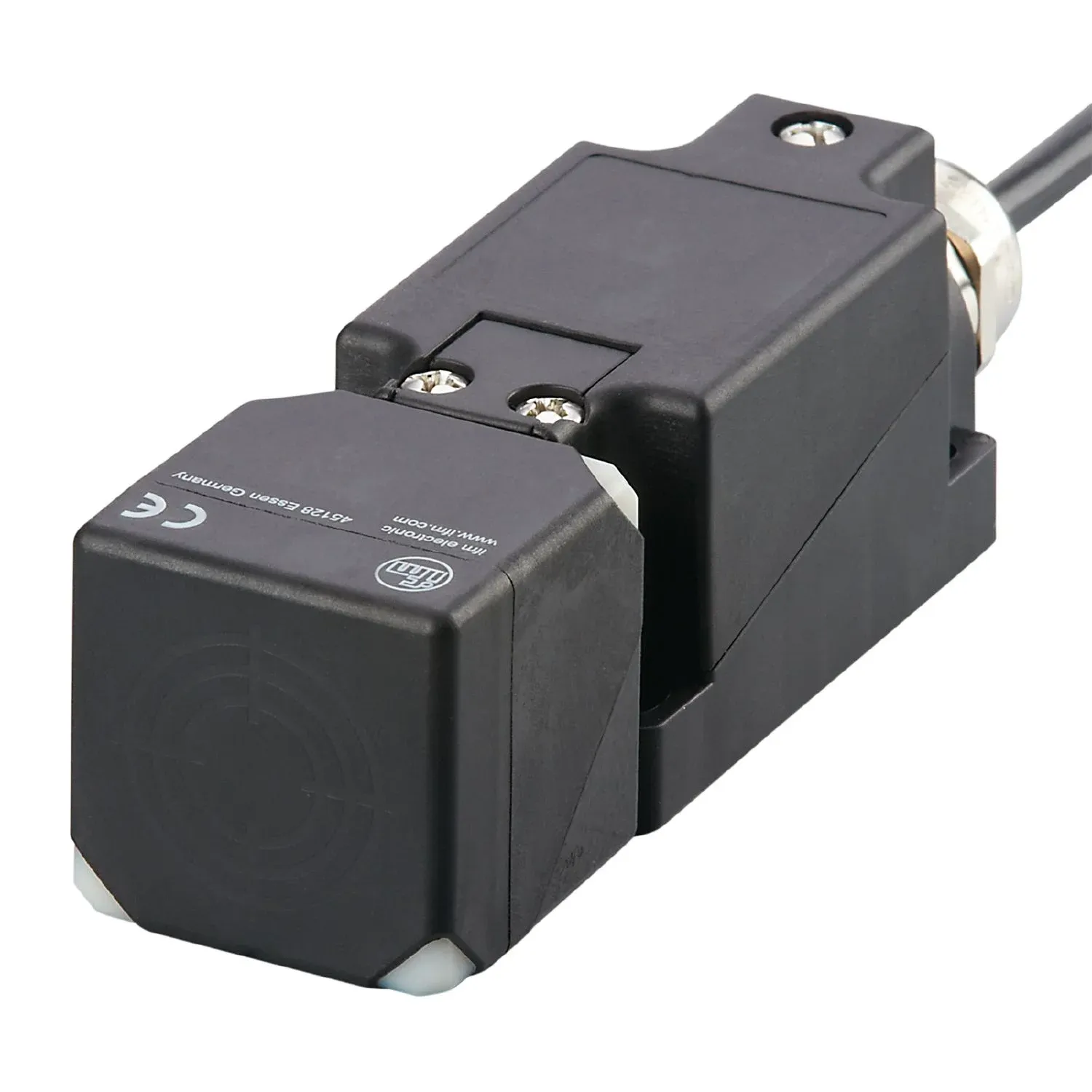

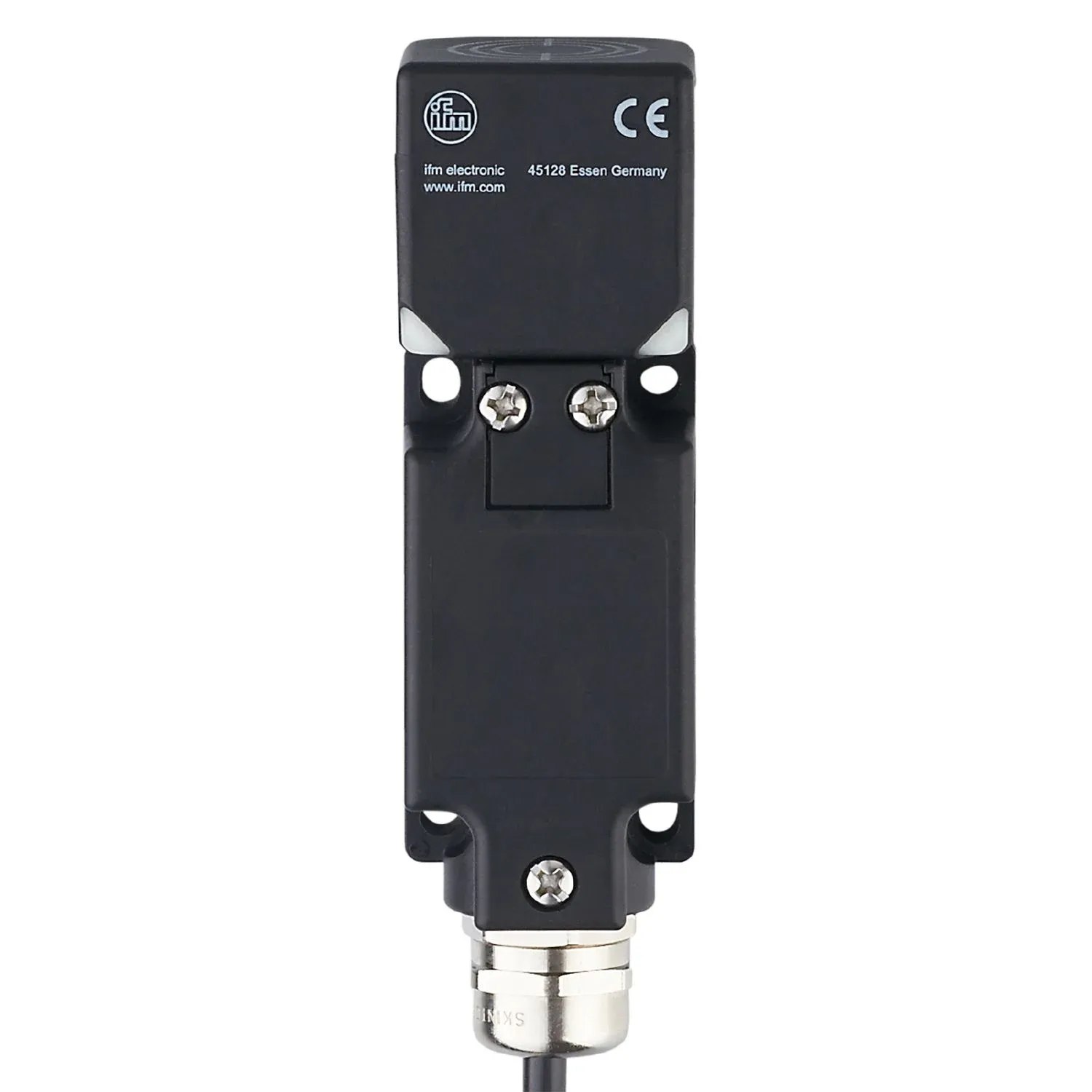

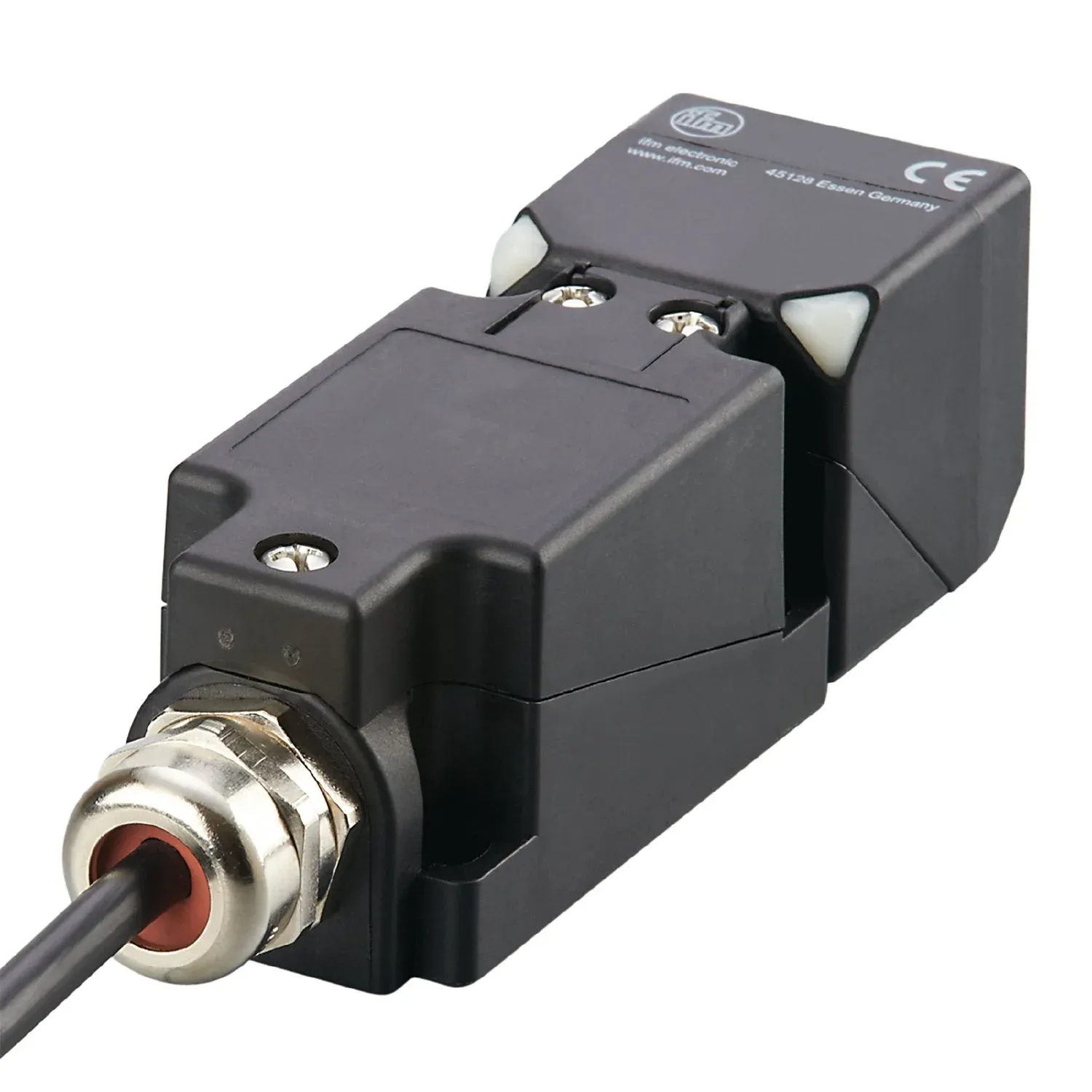

IFM IV5059
IV5059
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Five positions of the sensing face selectable
Long sensing range for high uptime
Robust housing for use in harsh industrial environments
For use in materials handling
LED display to check switching status and operation
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range[mm] [mm] | 20 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 40 x 118 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 20; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 20 |
|---|---|
| Real sensing range Sr[mm] [mm] | 20 ± 10 % |
| Operating distance[mm] [mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...10 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...100 |
|---|---|
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 ESD 8 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 15 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 8 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 15 V |
| EN 55011 | class B |
| Vibration resistance | EN 60068-2-6 Fc 10 g (10...2000 Hz) / 10 cycles |
| EN 60068-2-6 Fc | 10 g (10...2000 Hz) / 10 cycles |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Continuous shock resistance | EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
| Fast temperature change | EN 60068-2-14 Na TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
| EN 60068-2-14 Na | TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
| MTTF[years] [years] | 652.2 |
| UL approval | Ta 0...40 °C Enclosure type Type 1 File number UL E174191 |
| Ta | 0...40 °C |
| Enclosure type | Type 1 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 1438 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | 40 x 40 x 118 |
| Materials | PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (303/1.4305) |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Remarks | 5 positions of the active zone possible |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 20 m, PVC; 4 x 0.50 mm² |
|---|
