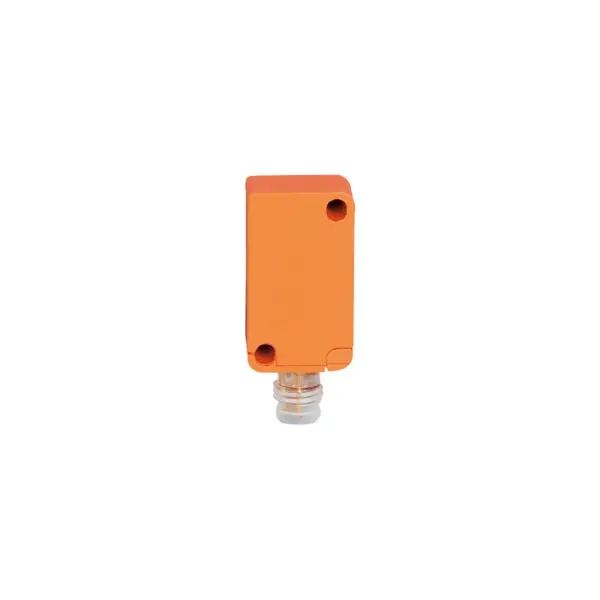

IFM IS5044
IS5044
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly space-saving rectangular housing
For use where space is restricted
Very high switching frequency
Output function normally open / normally closed programmable
With space-saving M8 connector
Specification
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 2 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 36.8 x 10.2 x 16 |
Application
| Special feature | Increased sensing range |
|---|
Electrical data
| Operating voltage[V] [V] | 5...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 4.6 |
| Minimum load current[mA] [mA] | 4 |
| Max. leakage current[mA] [mA] | 0.8 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 2000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 2 |
|---|---|
| Real sensing range Sr[mm] [mm] | 2 ± 10 % |
| Operating distance[mm] [mm] | 0...1.62 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| Impact resistance | EN 60068-2-75 Ehc |
| Vibration resistance | EN 60068-2-6 Fc |
| Shock resistance | EN 60068-2-27 Ea |
| Continuous shock resistance | EN 60068-2-29 Eb |
| Fast temperature change | EN 60068-2-14 Na |
| Salt spray test | EN 60068-2-52 Kb |
| MTTF[years] [years] | 2571 |
| UL approval | Ta -25...80 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191 |
| Ta | -25...80 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 11.4 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | 36.8 x 10.2 x 16 |
| Materials | PBT |
| Tightening torque[Nm] [Nm] | < 0.5; (with washer) |
Displays / operating elements
| Display | switching status 4 x 90° LED, yellow |
|---|---|
| switching status | 4 x 90° LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M8; coding: A |
|---|
