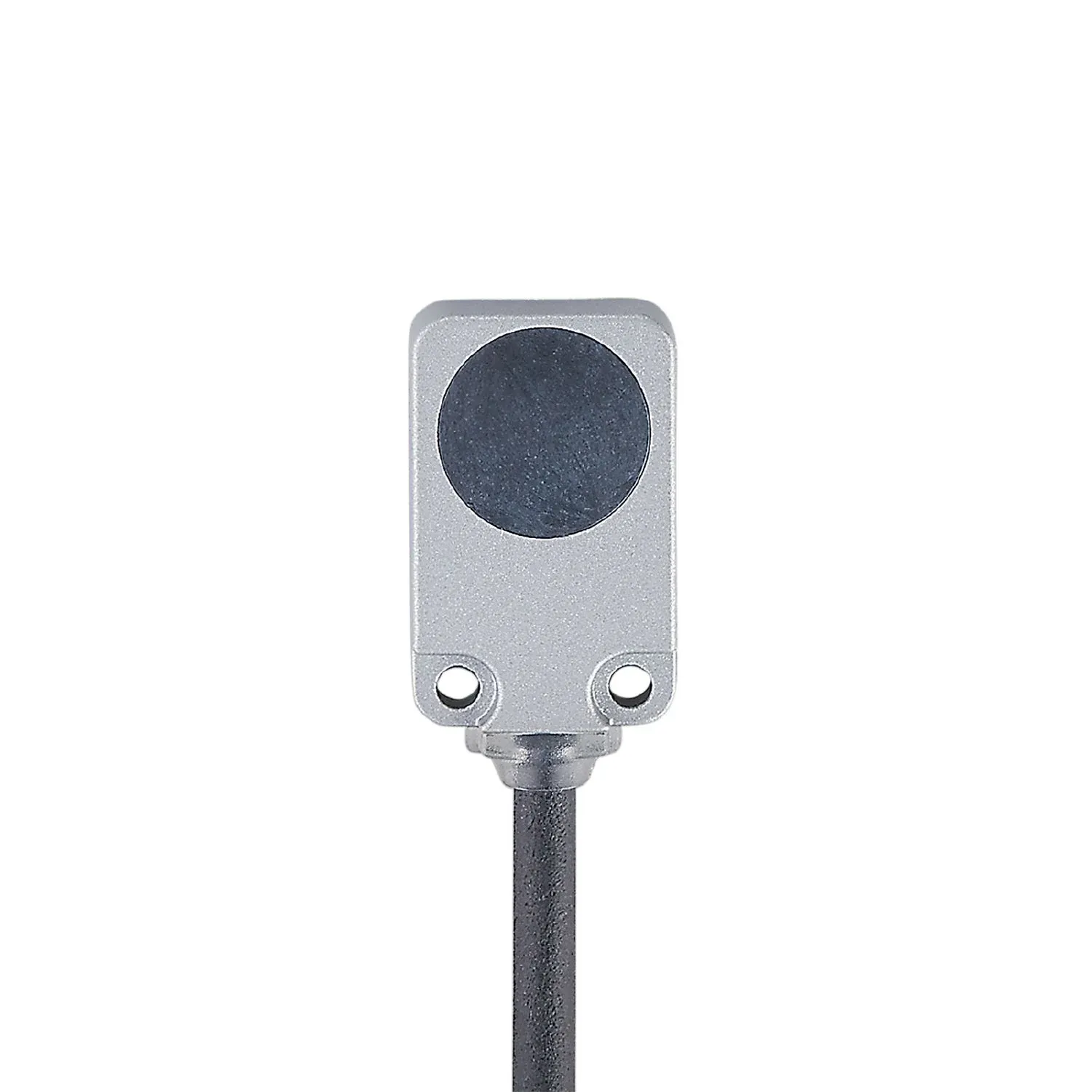

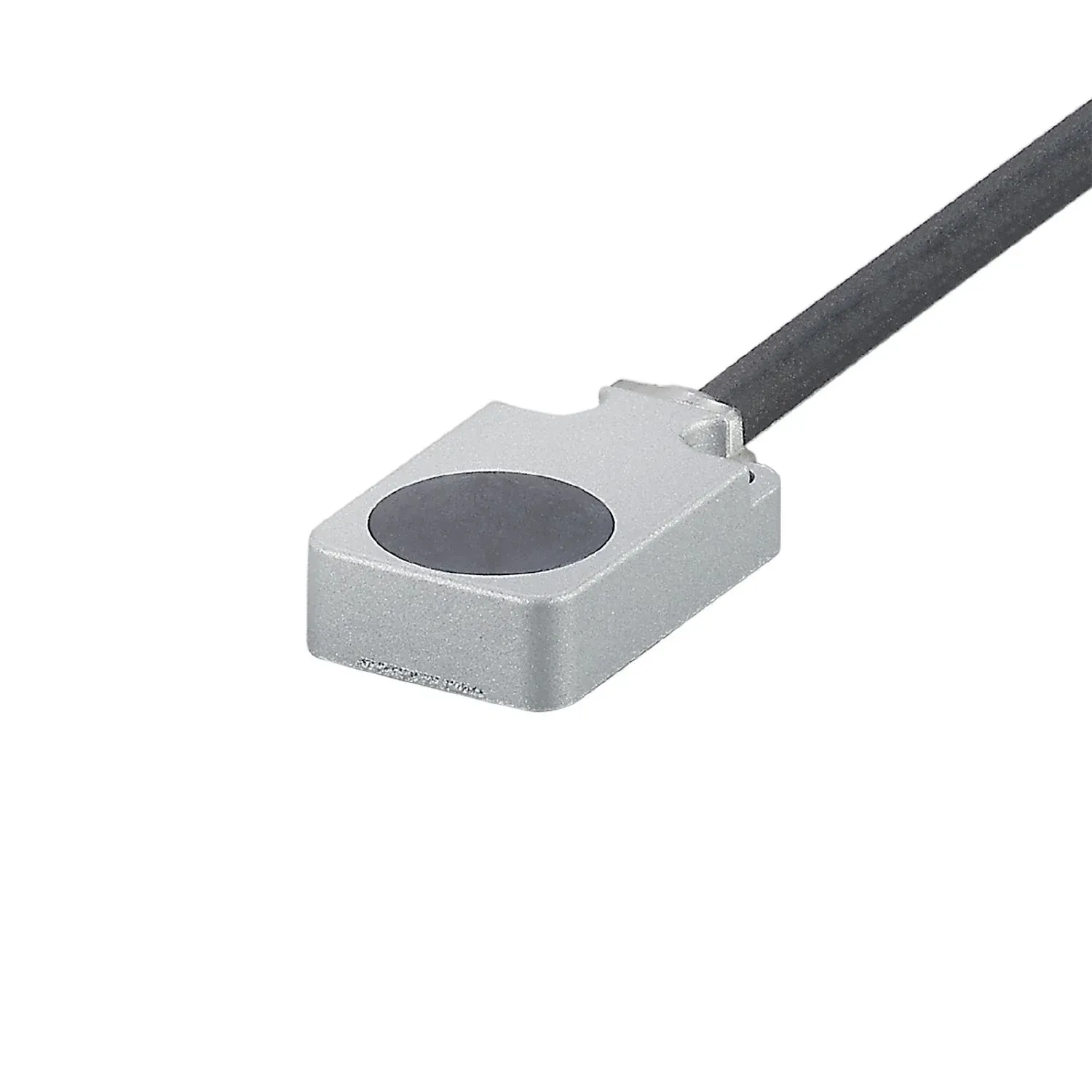

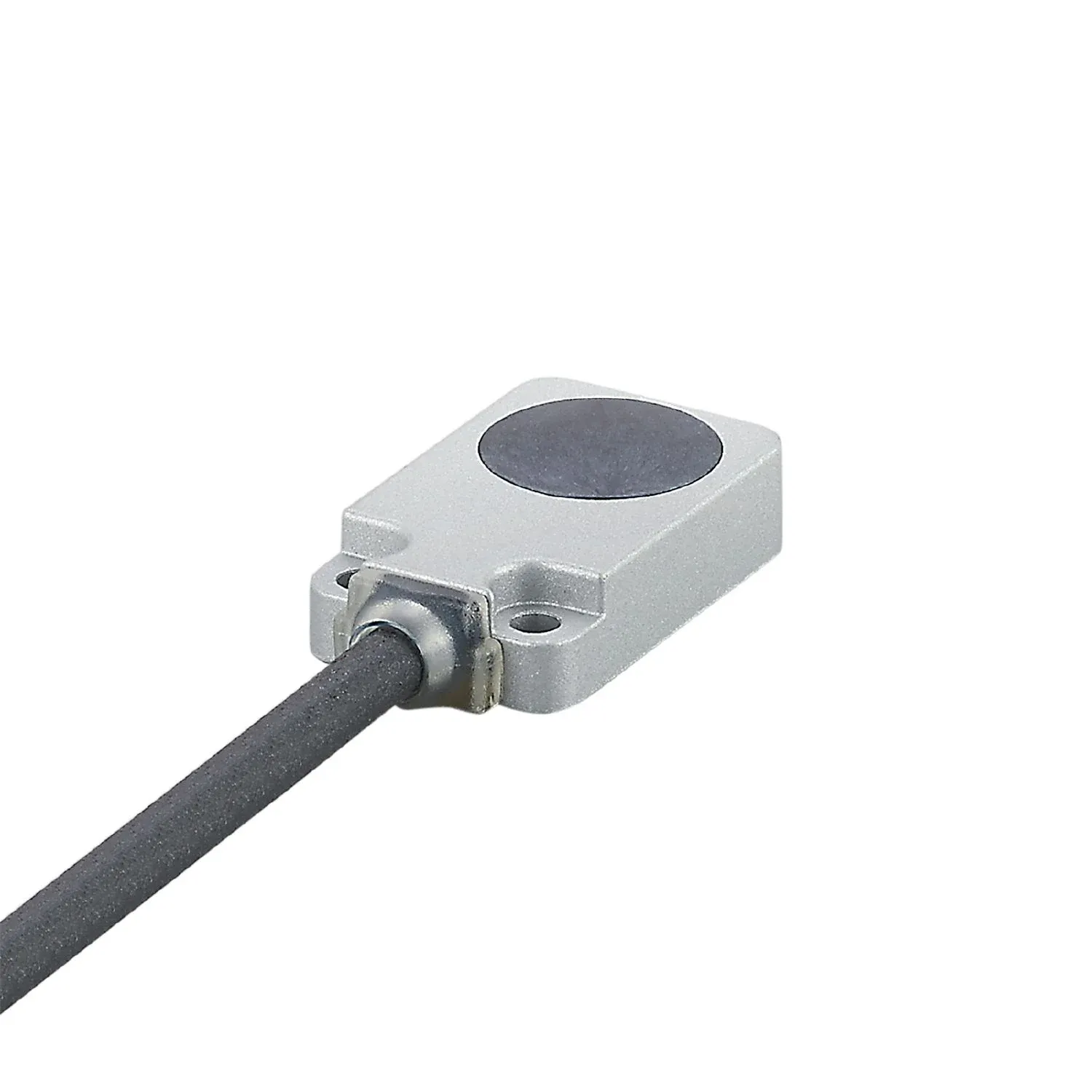

IFM IQW200
IQW200
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Magnetic-field immune for welding applications
Correction factor 1: Constant sensing range on all metals
Very high switching frequency
Long sensing range for high uptime
Particularly space-saving design
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 8 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 20 x 8 x 32 |
Application
| Special feature | Drag chain suitability; Increased sensing range; Magnetic-field immune |
|---|---|
| Application | Use in welding applications |
| Magnetic-field immune | yes |
| Max. magnetic field immunity[mT] [mT] | 300 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 2000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 8 |
|---|---|
| Real sensing range Sr[mm] [mm] | 8 ± 10 % |
| Operating distance[mm] [mm] | 0...6.48 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 3...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 66; IP 67; IP 68 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| Vibration resistance | EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| Shock resistance | EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Continuous shock resistance | EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
| Fast temperature change | EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles |
| EN 60068-2-14 Na | TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles |
| MTTF[years] [years] | 1084 |
| UL approval | Ta -40...60 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. A021 File number UL E174191 |
| Ta | -40...60 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | A021 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 78.9 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | 20 x 8 x 32 |
| Materials | diecast zinc anti-spatter; sensing face: LCP black; LED window: TPU; potting: PUR |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter bending cycles > 5 Mio. |
| bending radius for flexible use | min. 10 x cable diameter |
| bending cycles | > 5 Mio. |
Displays / operating elements
| Display | Display operation 1 x LED, green switching status 1 x LED, yellow |
|---|---|
| Display operation | 1 x LED, green |
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR, Ø 4.9 mm; 3 x 0.34 mm² |
|---|
