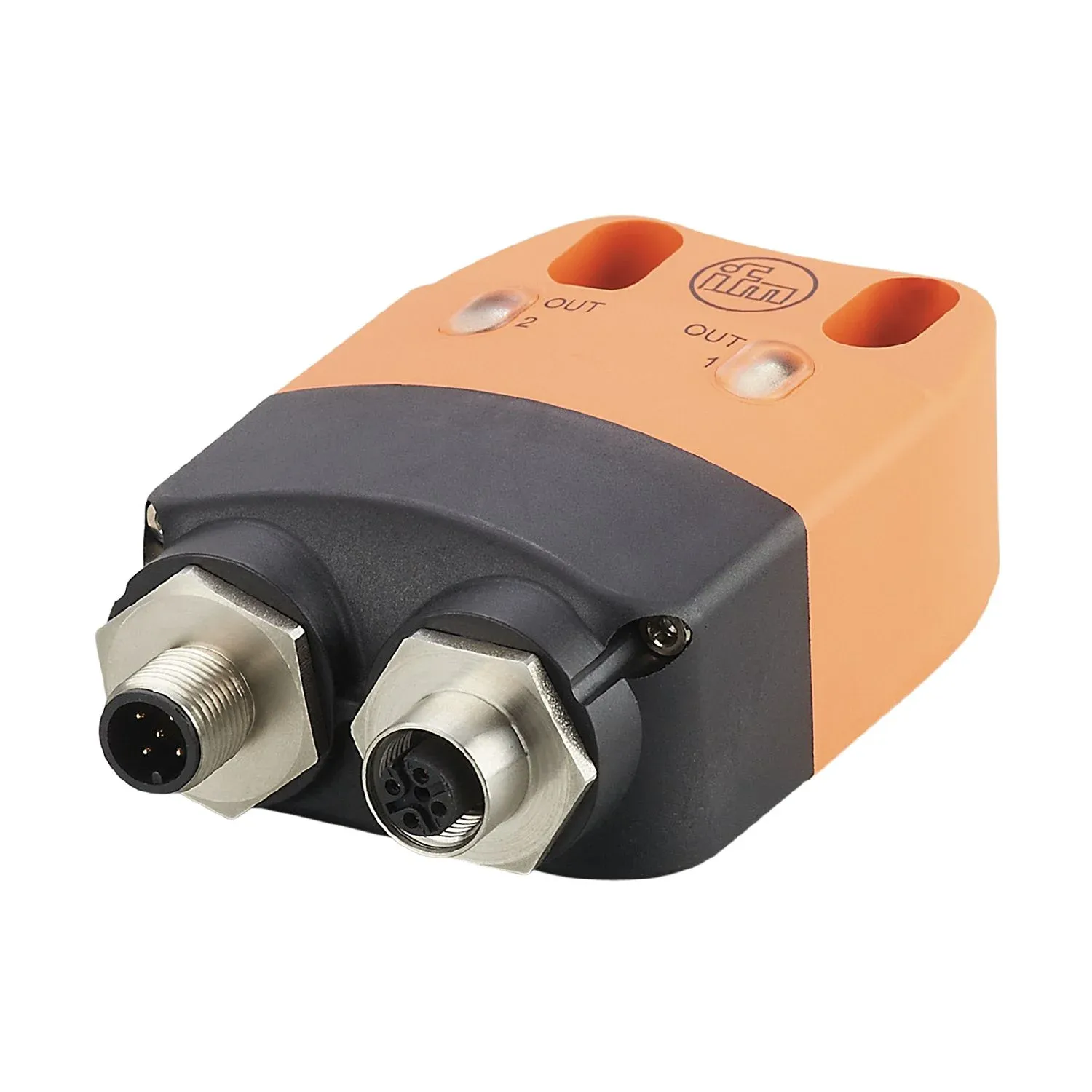

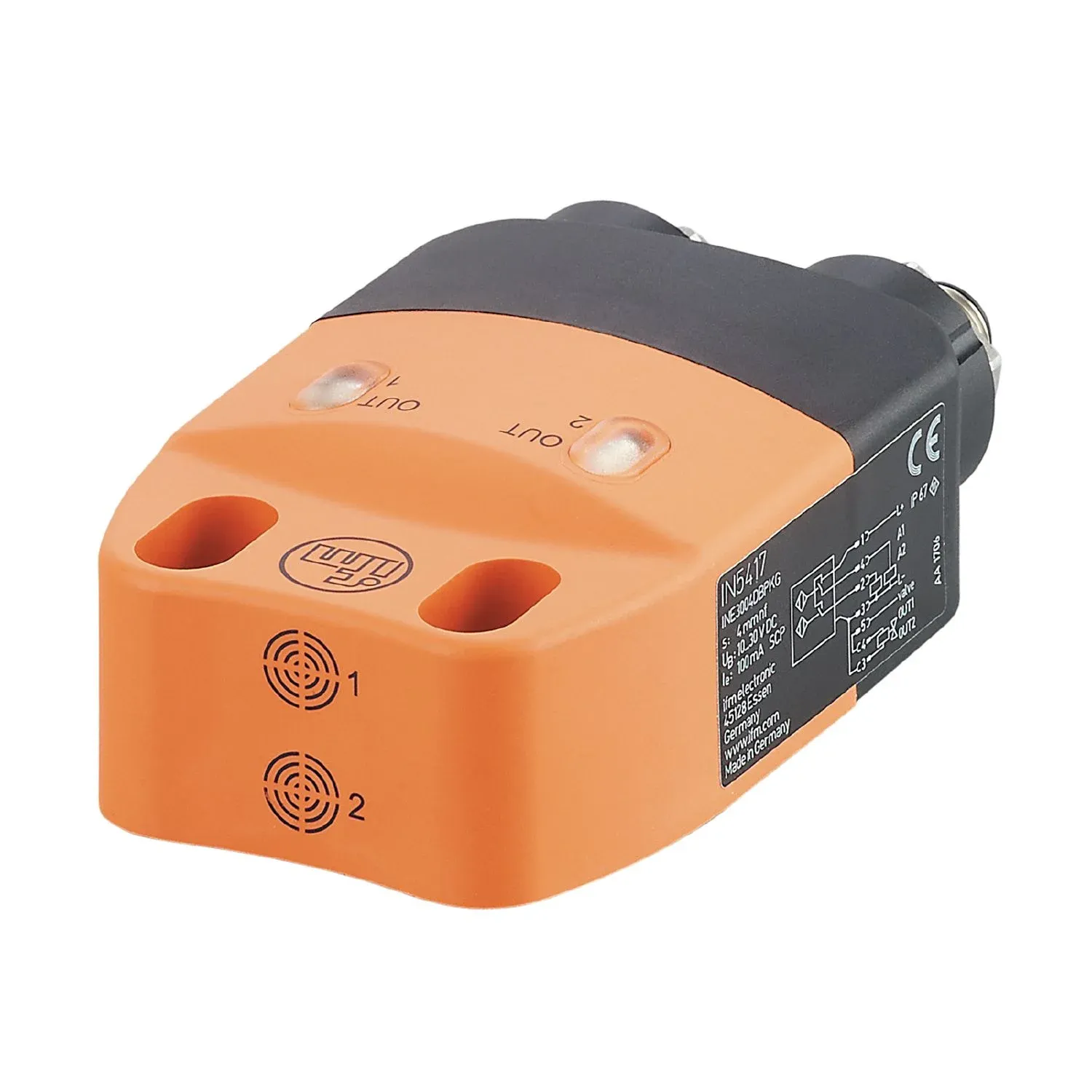

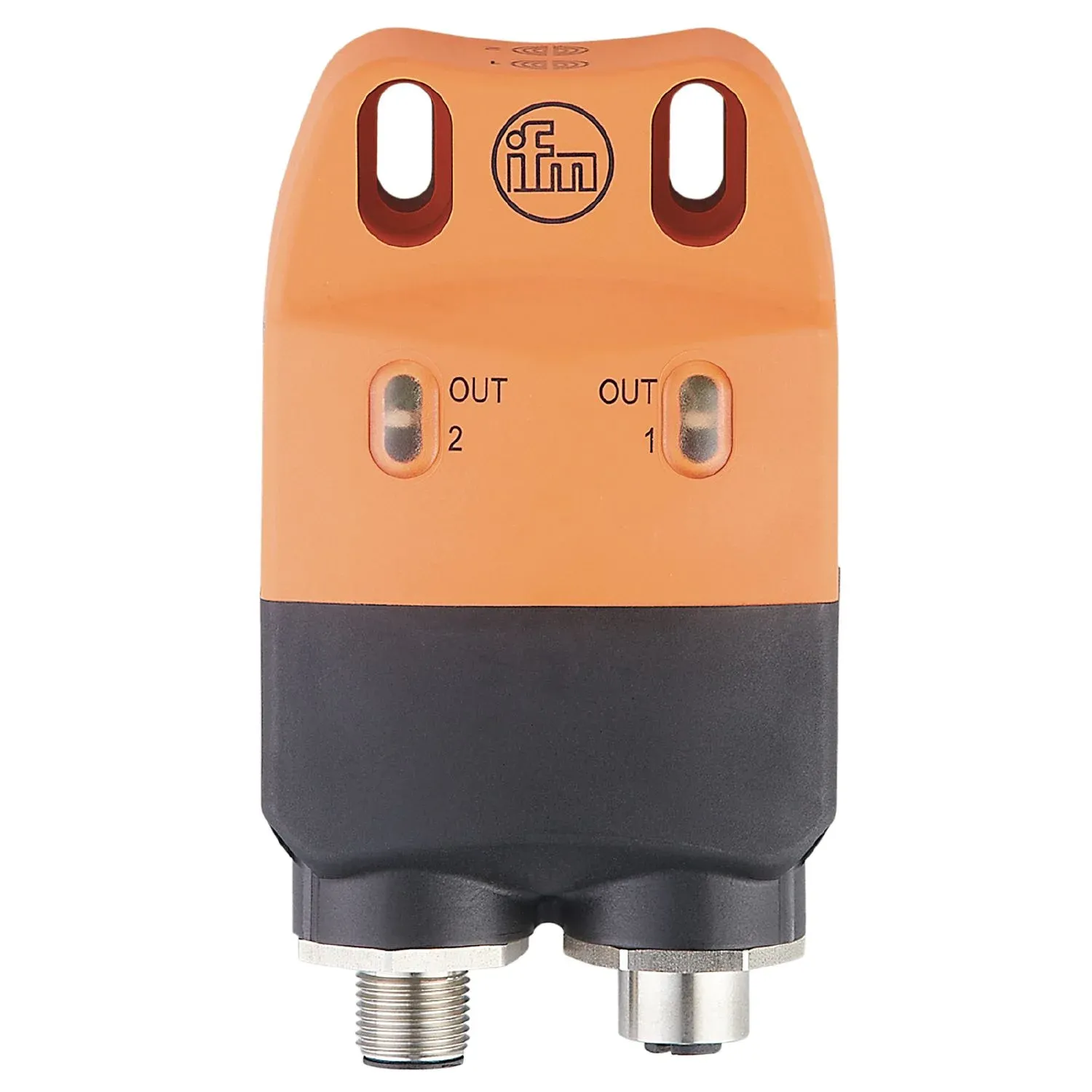

IFM IN5417
IN5417
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For monitoring valve positions
For reliable position feedback on valve actuators
Non-contact and self-cleaning system
High shock and vibration resistance
Quick and secure mounting with only three screws
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open |
| Sensing range[mm] [mm] | 4 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 33 x 60 x 92 |
Application
| Application | position sensor for valve actuators; actuator control |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC; (; to PELV) |
|---|---|
| Current consumption[mA] [mA] | 15; (a maximum of one output is switched) |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Valve control | 24 (< 20 W) |
Detection zone
| Sensing range[mm] [mm] | 4 |
|---|---|
| Real sensing range Sr[mm] [mm] | 4 ± 10 % |
| Operating distance[mm] [mm] | 0...3.25 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
Mechanical data
| Weight[g] [g] | 211.4 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 33 x 60 x 92 |
| Materials | housing: PA; screws: stainless steel; washer: stainless steel |
| Tightening torque[Nm] [Nm] | 1.8; (Mounting screw) |
Displays / operating elements
| Display | switching status 2 x LED, yellow |
|---|---|
| switching status | 2 x LED, yellow |
Accessories
| Items supplied | washers: 2 cylinder screws: 2 x (M5 x 18 mm) |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - socket
| Connector | 1 x M12; coding: A |
|---|
