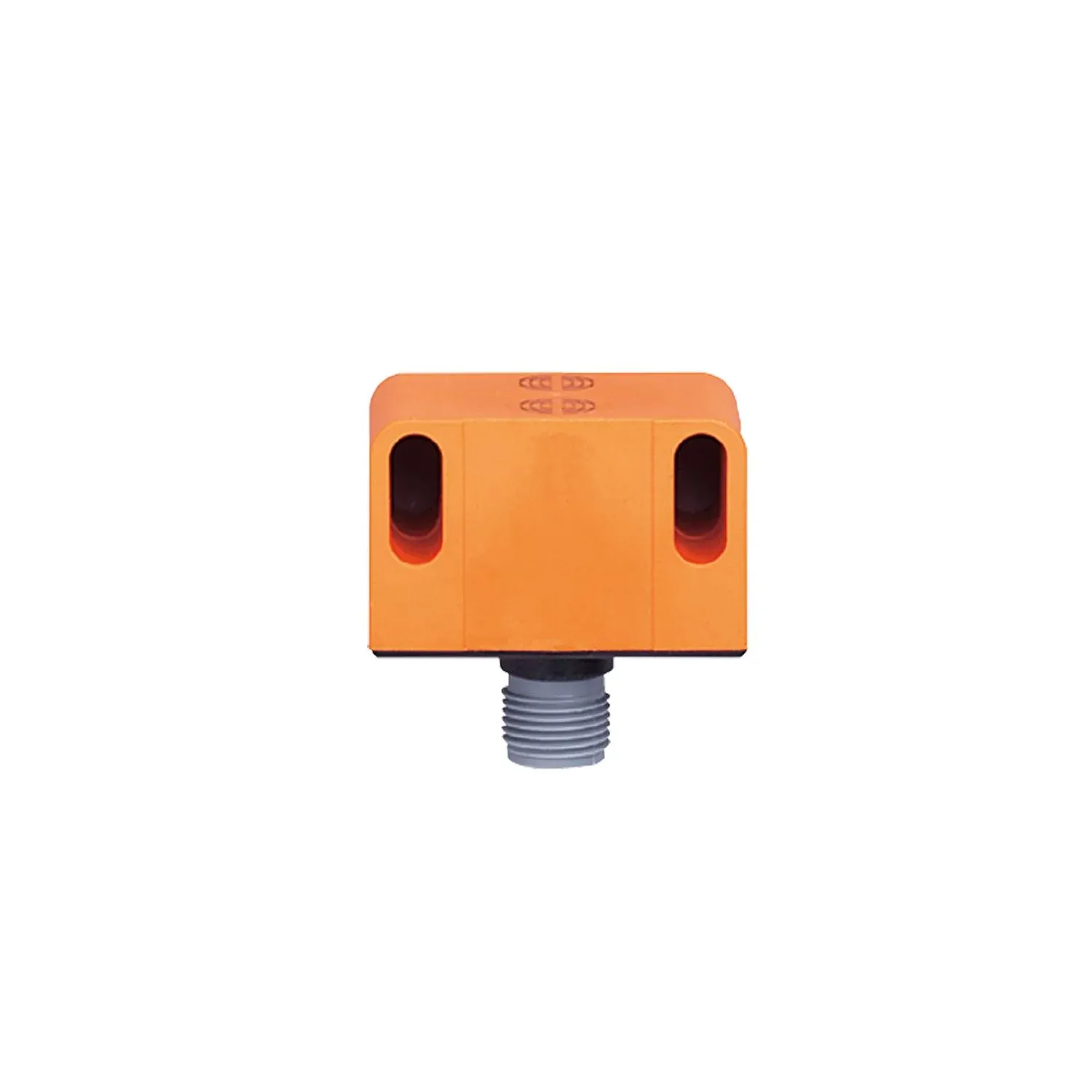

IFM IN5415
IN5415
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For monitoring valve positions
For reliable position feedback on valve actuators
Non-contact and self-cleaning system
Quick and secure mounting with only three screws
High shock and vibration resistance
Specification
Product characteristics
| Electrical design | NPN |
|---|---|
| Output function | 2 x normally open |
| Sensing range[mm] [mm] | 4 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 26 x 26 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | position sensor for valve actuators |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Rated insulation voltage[V] [V] | 250 |
| Current consumption[mA] [mA] | < 30 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | 2 x normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Max. leakage current[mA] [mA] | 0.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Short-time current rating of switching output[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 4 |
|---|---|
| Real sensing range Sr[mm] [mm] | 4 ± 10 % |
| Operating distance[mm] [mm] | 0...3.24 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|
Mechanical data
| Weight[g] [g] | 40.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 40 x 26 x 26 |
| Materials | housing: PBT; cover: PC |
| Tightening torque[Nm] [Nm] | 0.6...1.5; (Lock nut) |
Displays / operating elements
| Display | switching status 2 x LED, yellow |
|---|---|
| switching status | 2 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
