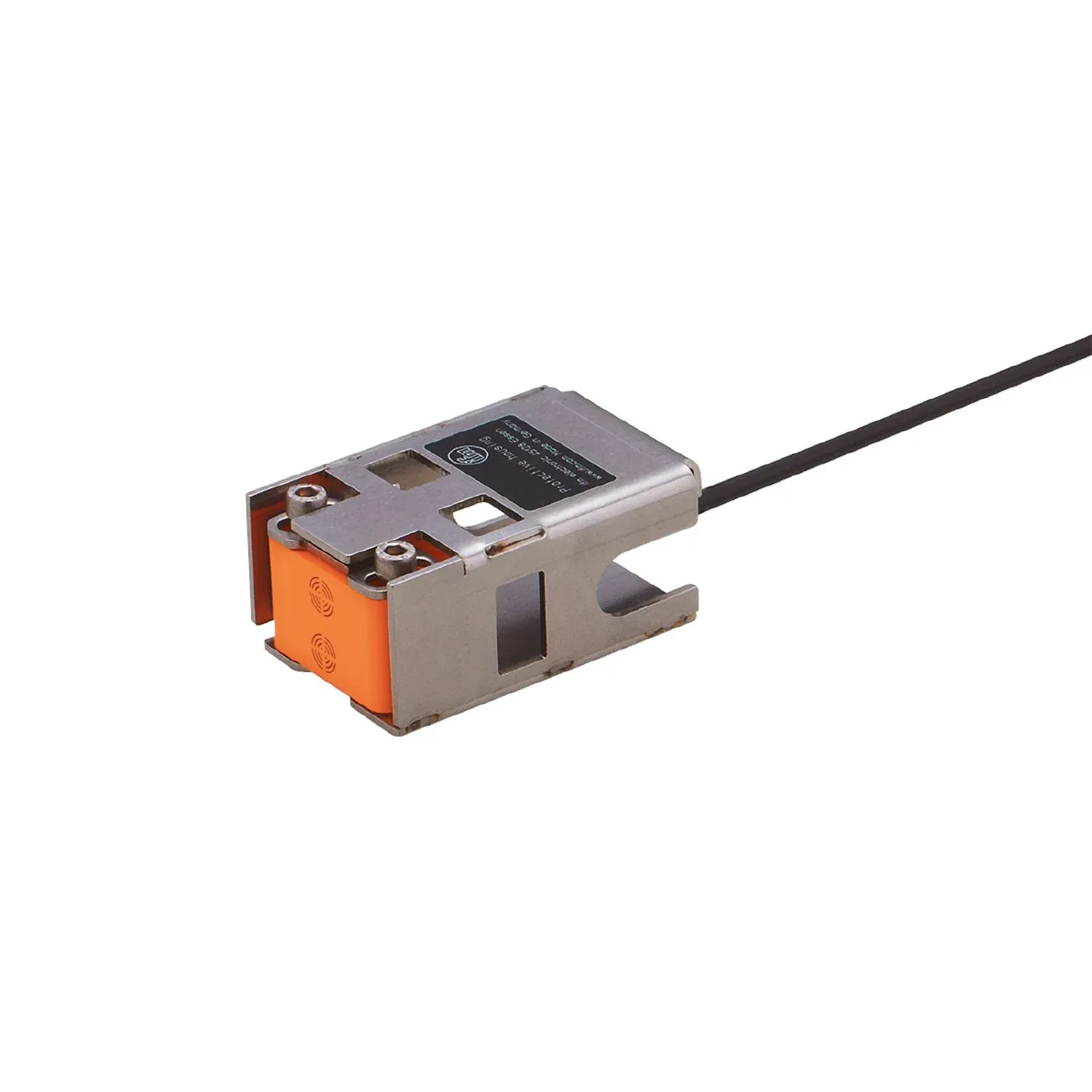

IFM IN512A
IN512A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Robust housing with 4 joules shock test
For monitoring valve positions
For reliable position feedback on valve actuators
Non-contact and self-cleaning system
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open |
| Sensing range[mm] [mm] | 4 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 26 x 26 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-time current rating of switching output[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 1300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 4 |
|---|---|
| Operating distance target puck[mm] [mm] | 1 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T80°C Dc IP67 X |
|---|---|
| Note on ATEX marking | only in conjunction with the impact protection housing |
| EMC | EN 60947-5-2 |
| MTTF[years] [years] | 1064 |
Mechanical data
| Weight[g] [g] | 347.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 26 x 26 |
| Materials | housing: PBT; cover: PC; Impact protection housing: stainless steel |
Displays / operating elements
| Display | switching status 2 x LED, yellow |
|---|---|
| switching status | 2 x LED, yellow |
Accessories
| Items supplied | socket head screws: 2 x (M5 x 35 mm) Impact protection housing Mounting plate: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 4 x 0.34 mm² |
|---|
