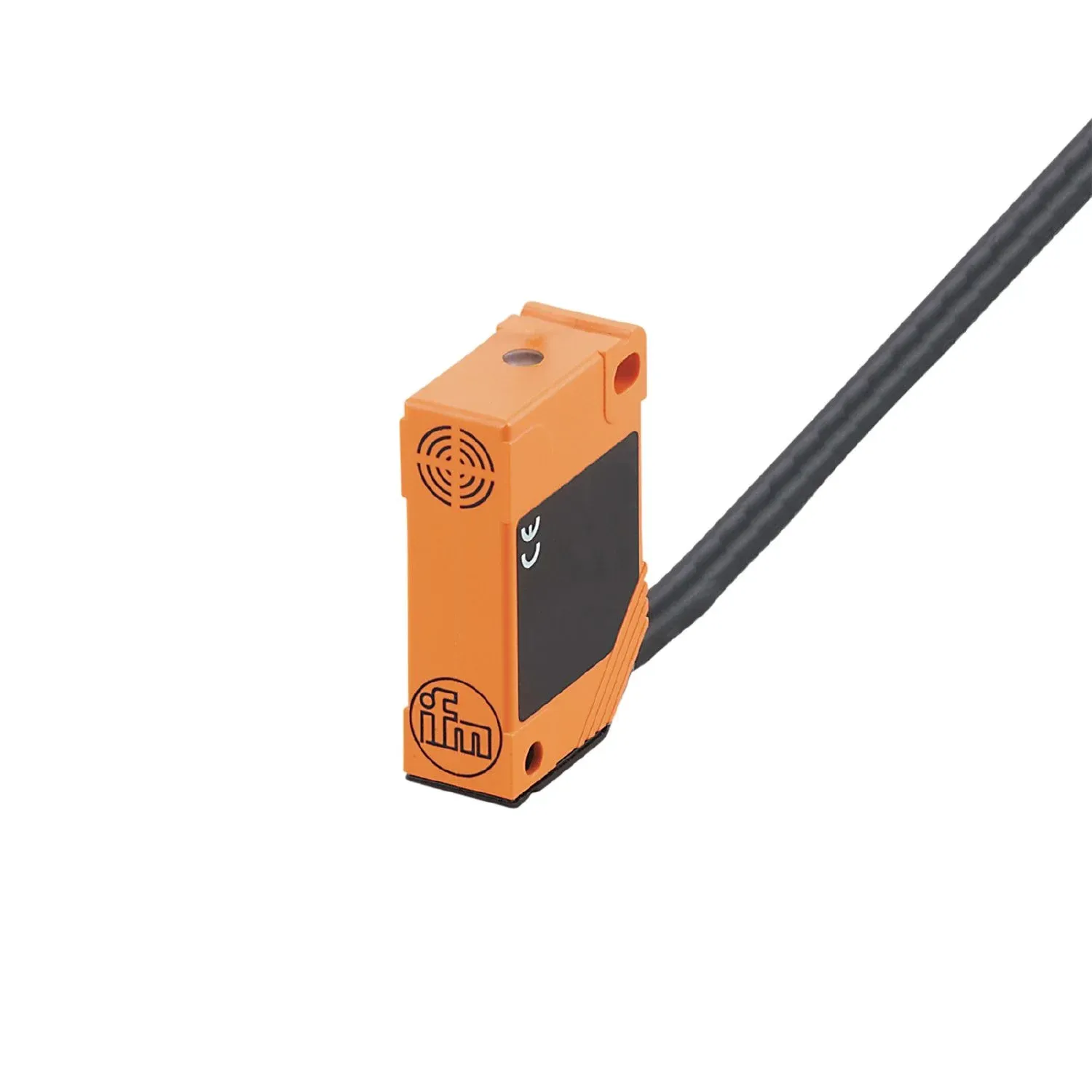

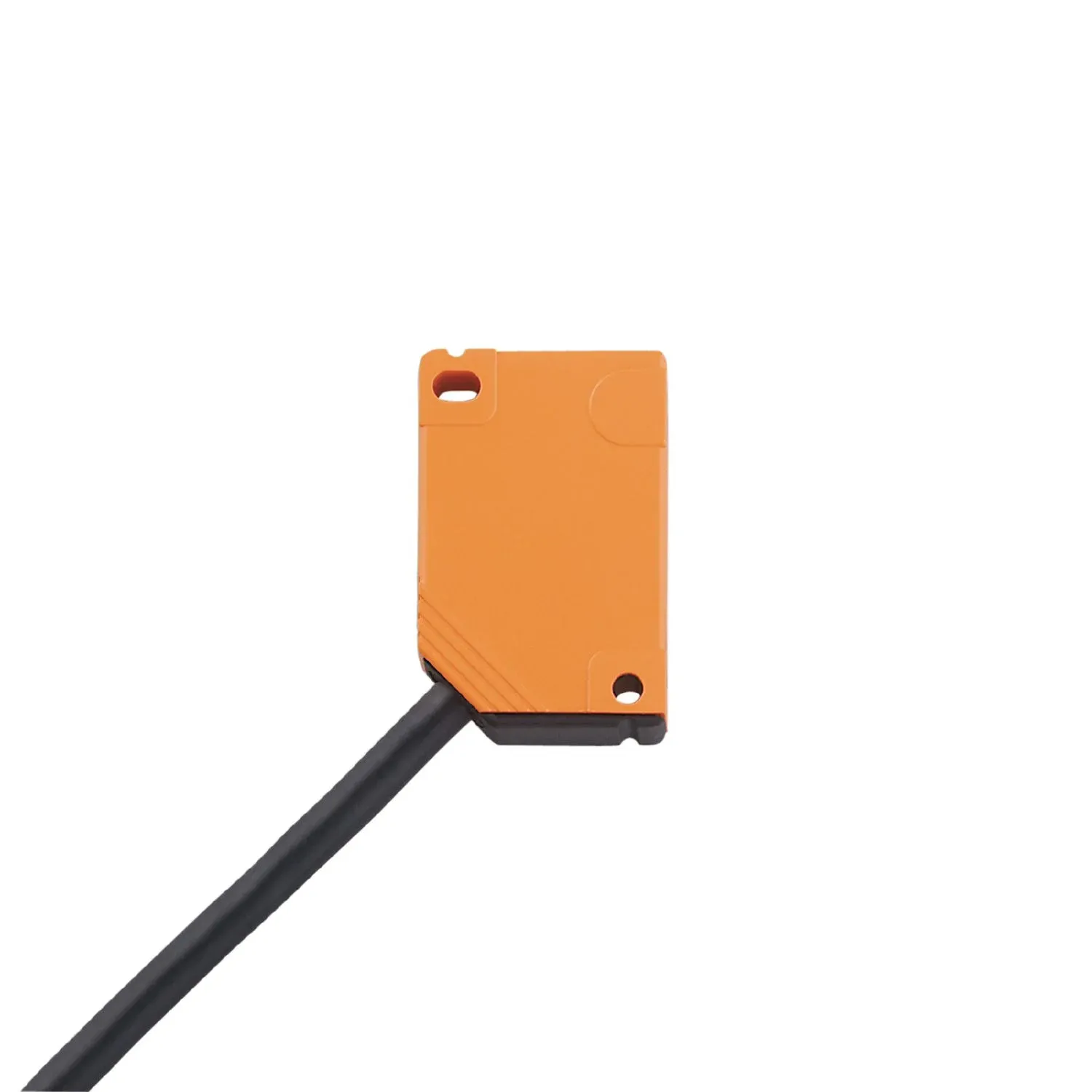

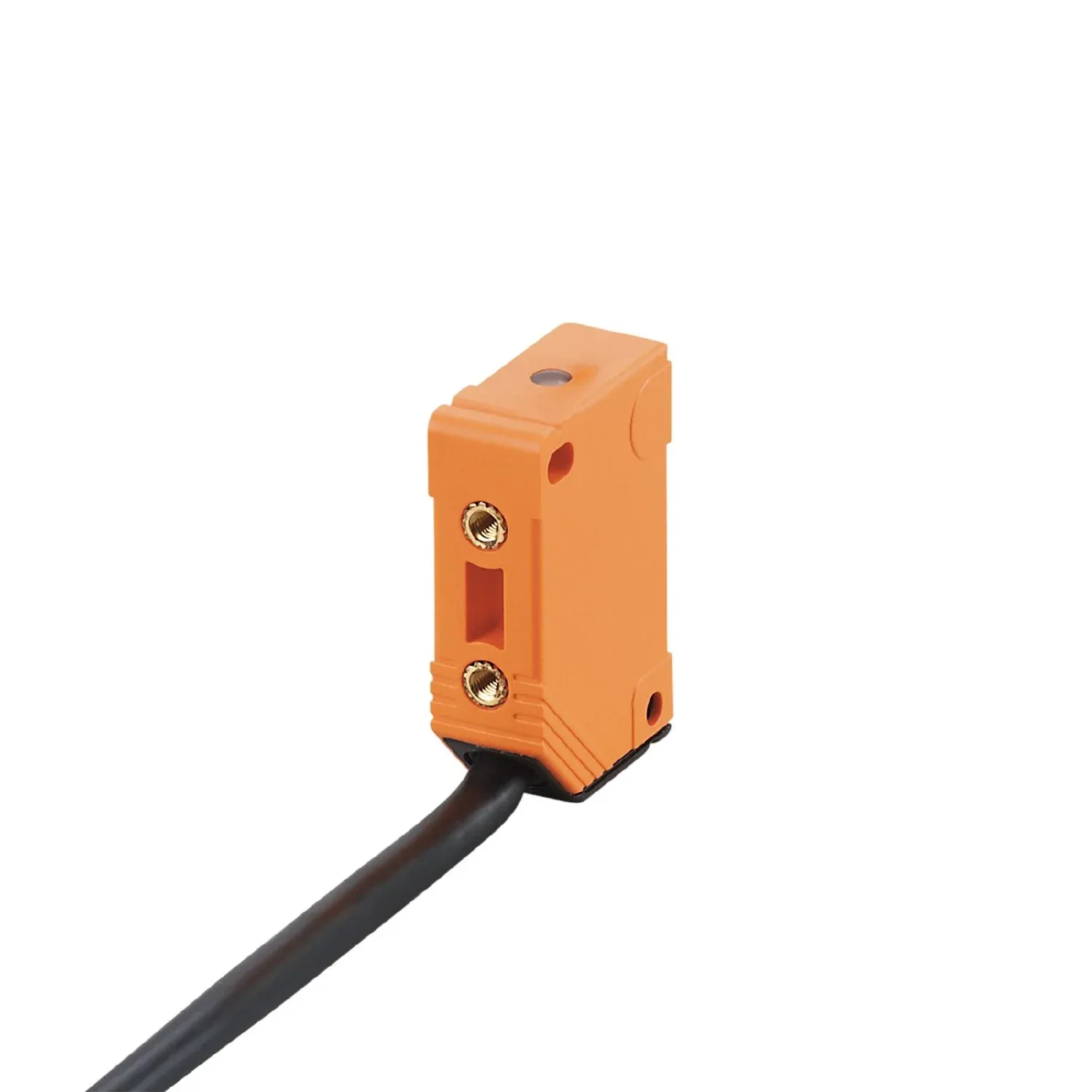

IFM IN0097
IN0097
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With combined AC/DC output stage
Large operating voltage range
Two-wire technology
Particularly space-saving rectangular housing
For use where space is restricted
Specification
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range[mm] [mm] | 2 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 12 x 26 |
Electrical data
| Operating voltage[V] [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 6 |
| Max. voltage drop switching output AC[V] [V] | 6.7 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 2.0 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC[mA] [mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-time current rating of switching output[mA] [mA] | 2200; (50 ms / 1 Hz) |
| Switching frequency AC[Hz] [Hz] | 25 |
| Switching frequency DC[Hz] [Hz] | 50 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] [mm] | 2 |
|---|---|
| Real sensing range Sr[mm] [mm] | 2 ± 10 % |
| Operating distance[mm] [mm] | 0...1.6 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.25 / aluminium: 0.2 / copper: 0.05 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 emission class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 emission | class B |
| MTTF[years] [years] | 609 |
| CSA approval | Ta -25...60 °C Classification Class I; Div. 2; Groups A, B, C, D; T4 Class II; Div. 2; Groups F, G; T135 °C Class III |
| Ta | -25...60 °C |
| Classification | Class I; Div. 2; Groups A, B, C, D; T4 |
Mechanical data
| Weight[g] [g] | 104.8 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | 40 x 12 x 26 |
| Materials | PBT |
| Tightening torque[Nm] [Nm] | < 1.2; (when brass insert in contact with counterpart) |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 2 m, PVC; 2 x 0.5 mm² |
|---|
