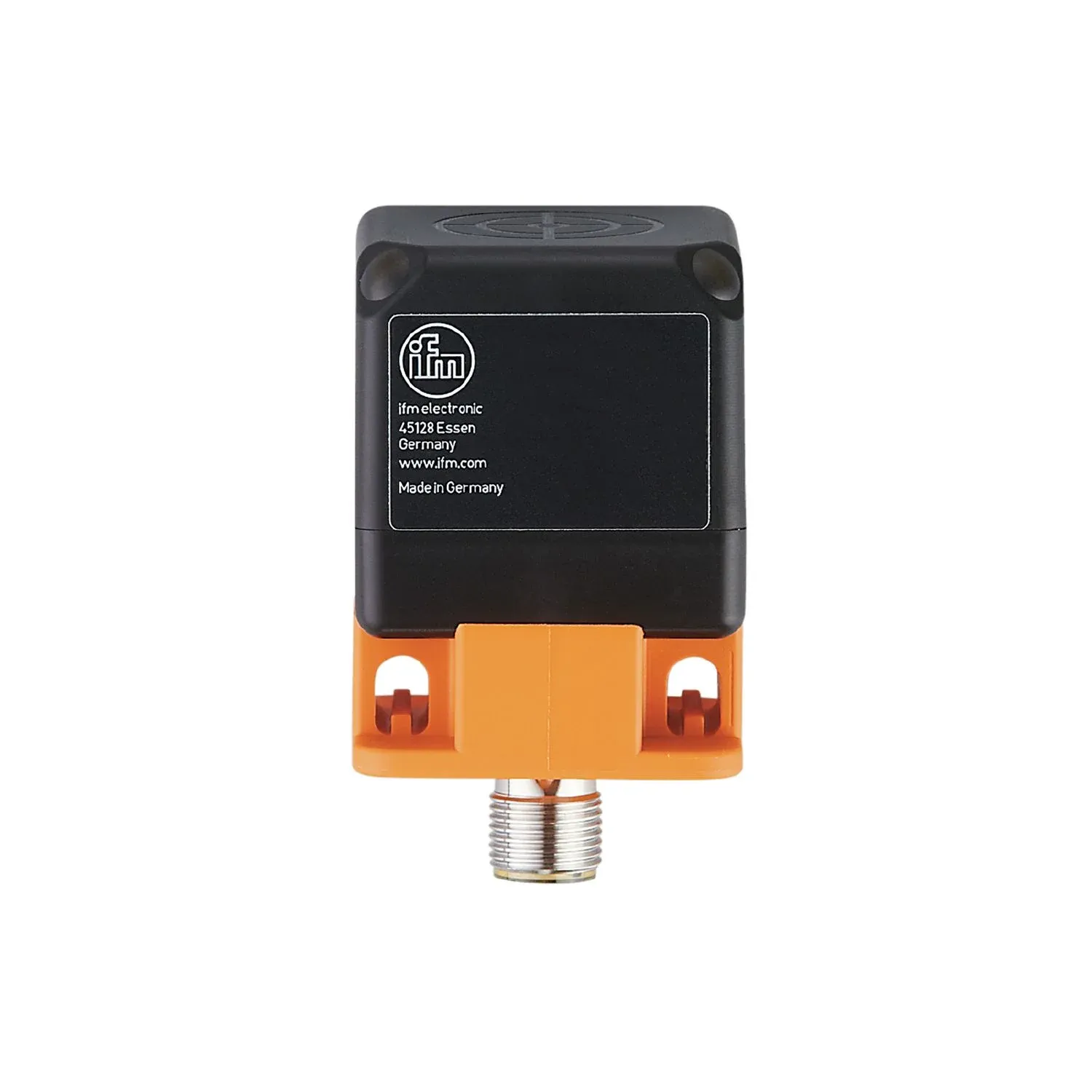

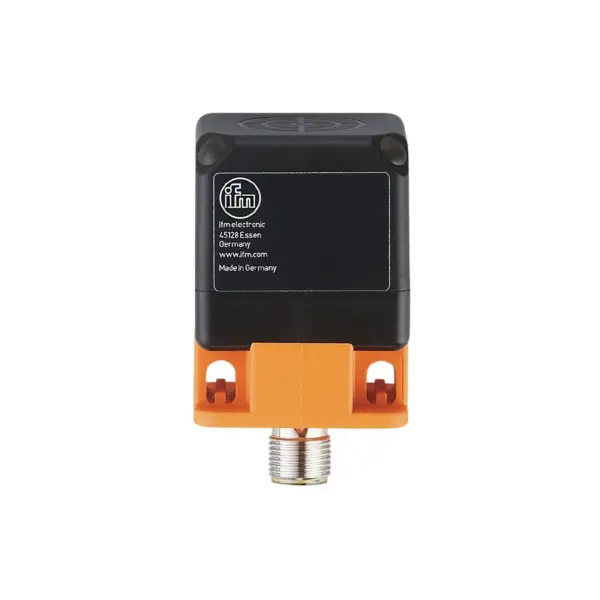

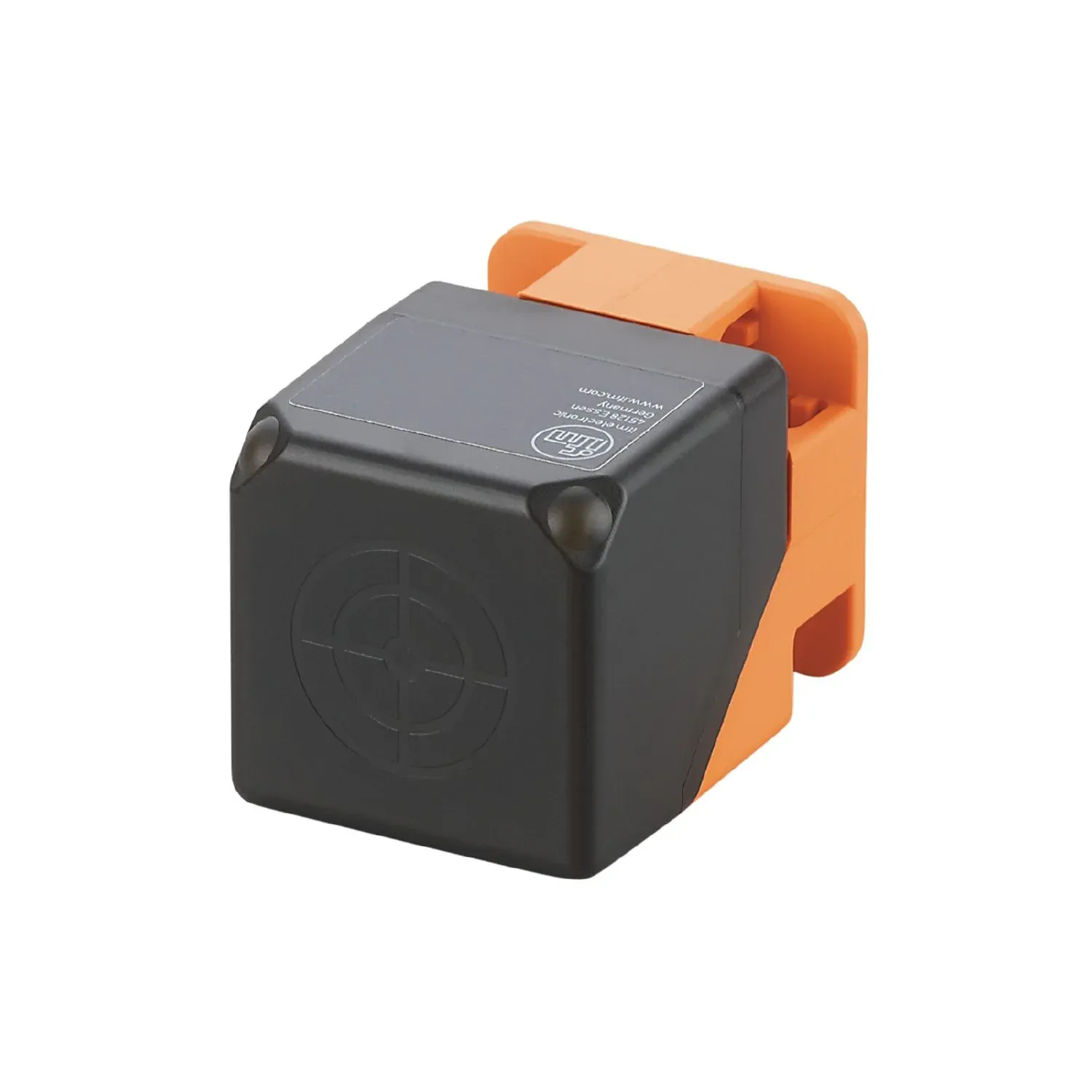

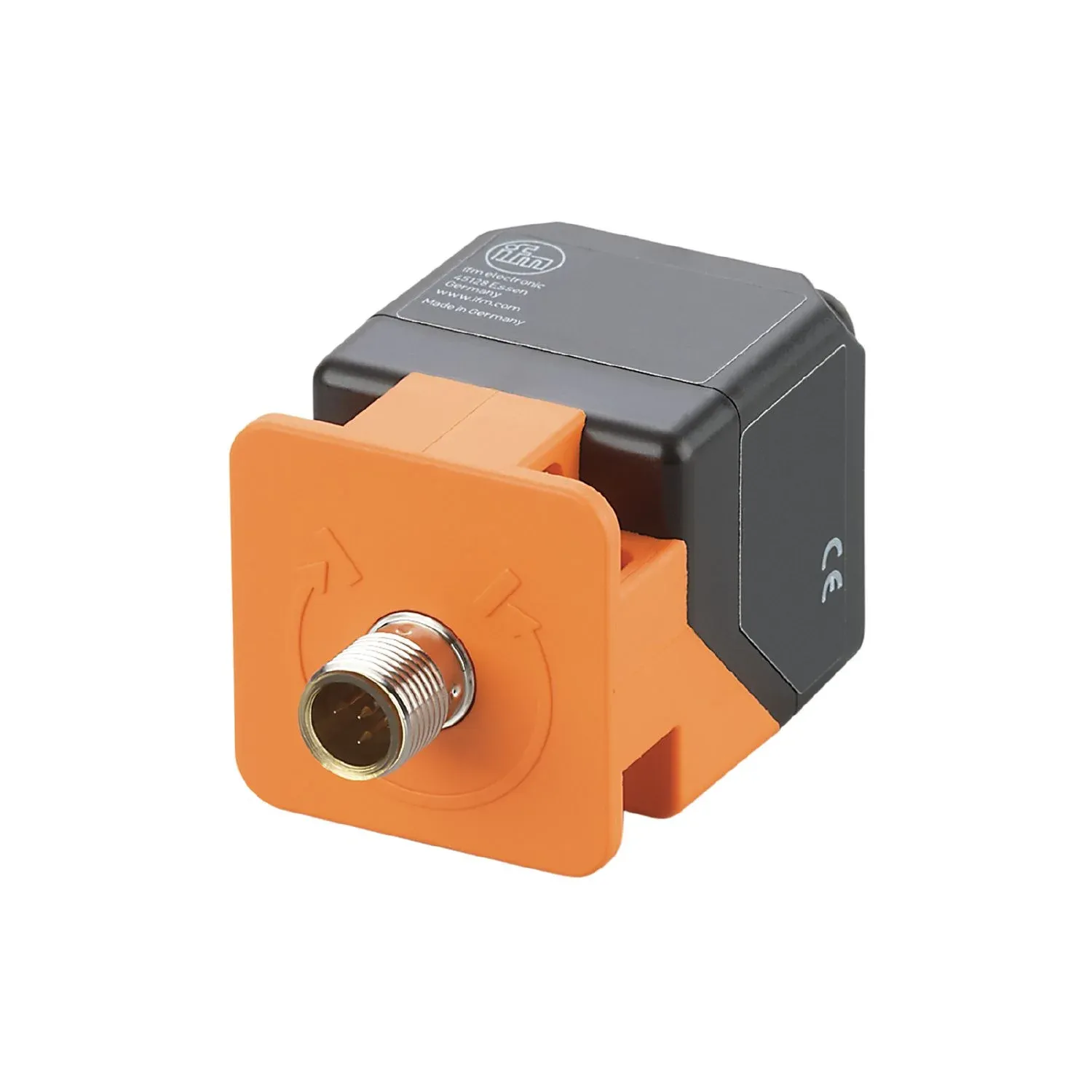

IFM IM5173
IM5173
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Long sensing range for use in conveying
Five positions of the sensing face selectable
LED display to check switching status and operation
Reliable transmission of the distance as linearised process value via IO-Link
Normally closed / normally open and PNP/NPN adjustable via IO-Link
Specification
Product characteristics
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 40 x 54 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Switch point IO-Link[mm] [mm] | 4.9...24.3; (parameterisable) |
|---|---|
| Measuring range IO-Link[mm] [mm] | 2.6...26 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.8 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 3...15 |
| Linearity error of analogue output[%] [%] | ± 2 %; (of the final value of the measuring range) |
| Repeatability analogue output[%] [%] | ± 1 %; (of the final value of the measuring range) |
| Temperature coefficient | ± 0,2 %/K; (of the final value of the measuring range) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Multiple switching signal Function Process data variable Function Device diagnosis Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 3 |
| Supported DeviceIDs | default 791 |
| default | 791 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| MTTF[years] [years] | 629 |
| Embedded software included | yes |
| UL approval | Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. A009 File number UL E174191 |
| Ta | -25...70 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | A009 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 151.5 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 40 x 40 x 54 |
| Materials | housing: PA |
Displays / operating elements
| Display | operation LED, green SIO mode output stage supplied with current LED, yellow lights IO-Link mode target in measuring range LED, yellow lights |
|---|---|
| operation | LED, green |
| output stage supplied with current | LED, yellow lights |
| target in measuring range | LED, yellow lights |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: brass, white bronze coated |
|---|
