Fast delivery within 72 Hours

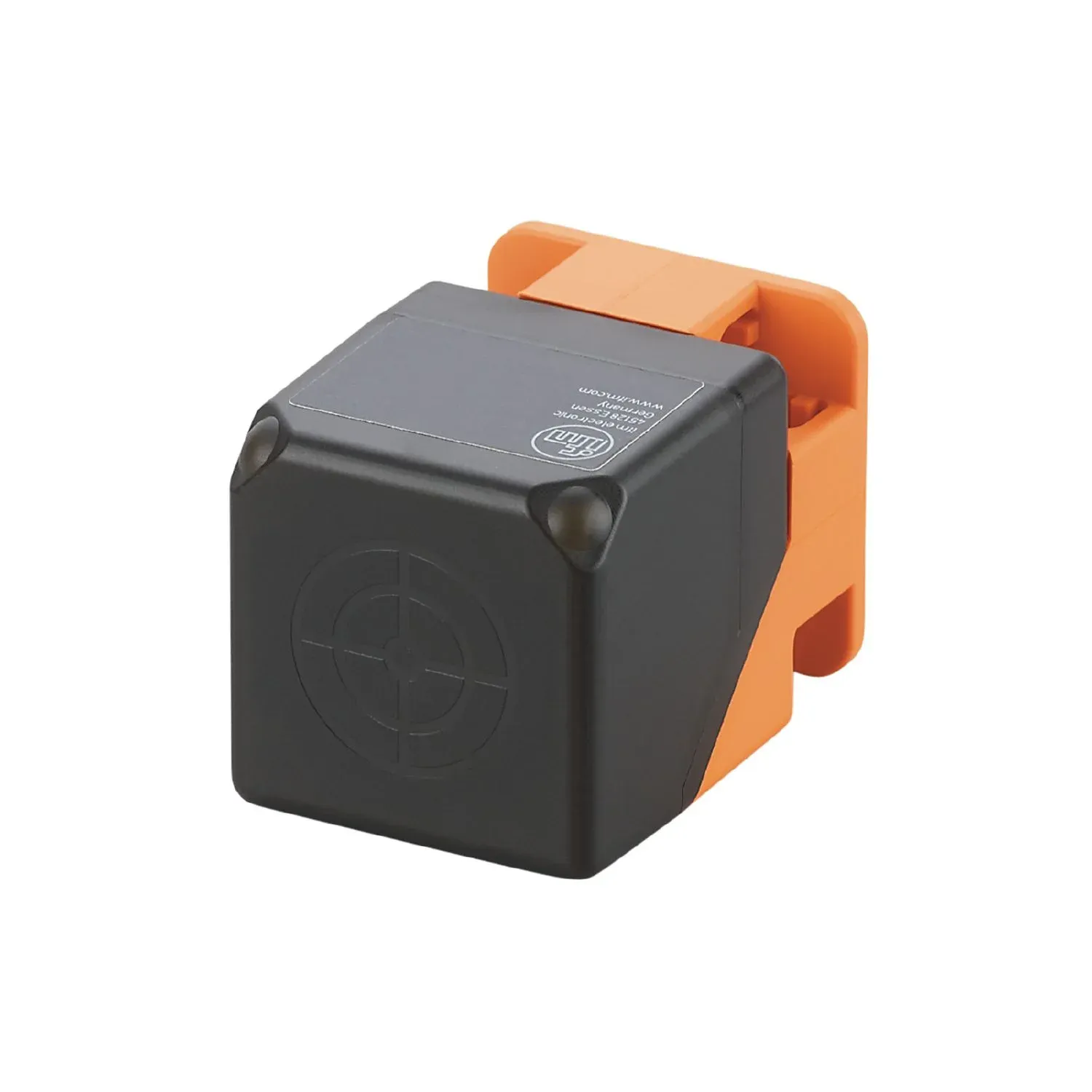

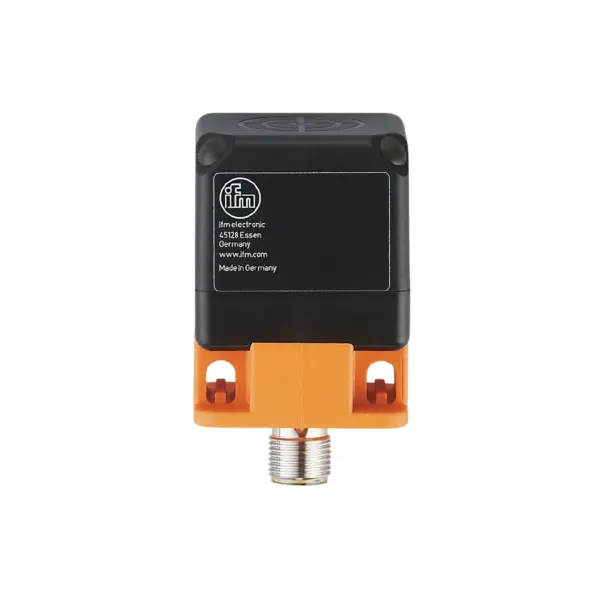

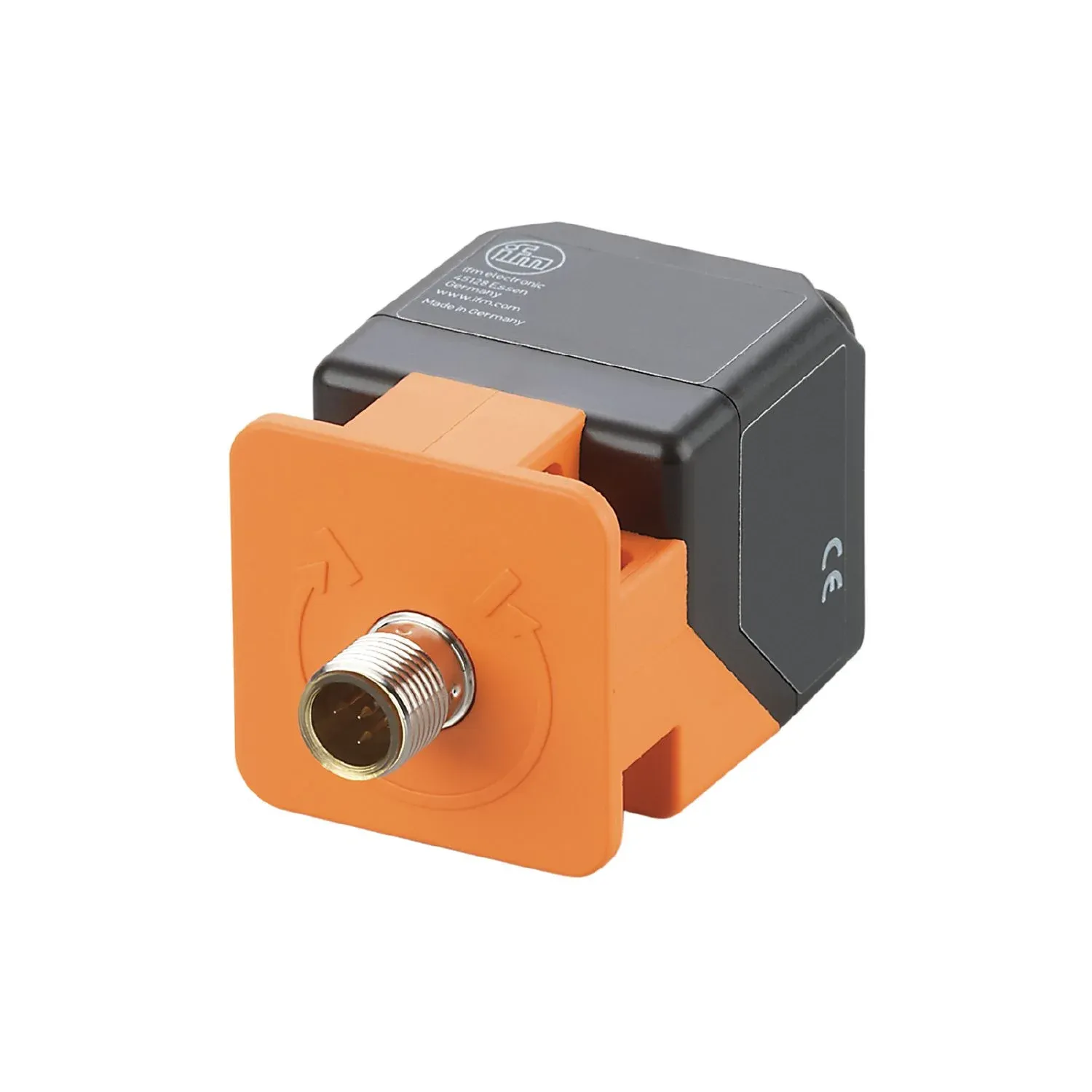

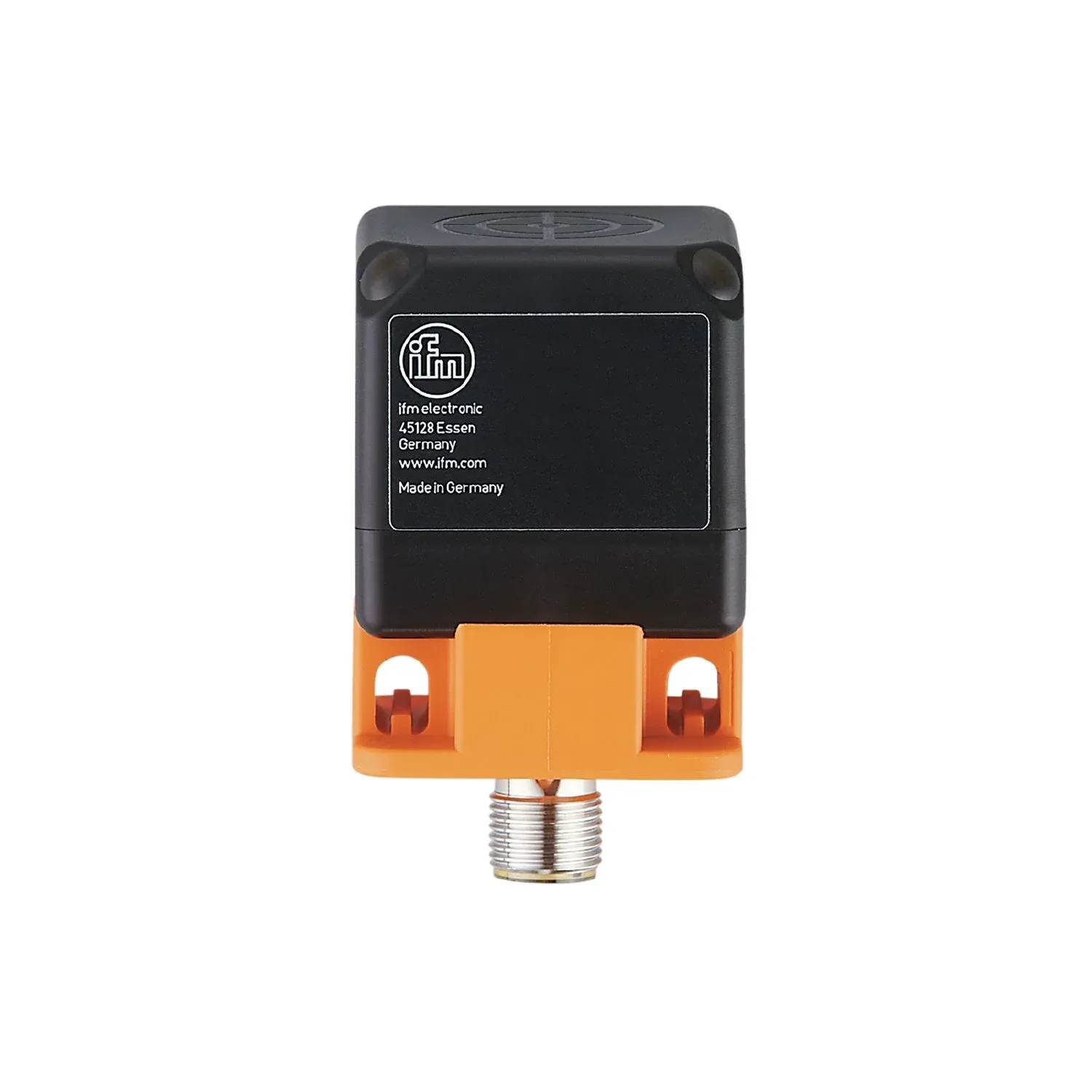

IFM IM5139

IM5139

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Non-contact measurement of distances up to 15 mm
Precise linearised current output
Wide operating temperature range
High repeatability
LED display to check working range and operation
Reliable transmission of the distance as linearised process value via IO-Link
Normally closed / normally open and PNP/NPN adjustable via IO-Link

Specification

Product characteristics

Electrical designPNP/NPN; (parameterisable)
Output functionnormally open / normally closed; (parameterisable)
Communication interfaceIO-Link
Housingrectangular
Dimensions[mm] [mm]40 x 40 x 54

Electrical data

Operating voltage[V] [V]15...30 DC
Current consumption[mA] [mA]< 33
Protection classII
Reverse polarity protectionyes

Outputs

Electrical designPNP/NPN; (parameterisable)
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2.5
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]100
Analogue current output[mA] [mA]4...20; (linear; gradient: 1,143 mA/mm; for frontal approach and for target made of mild steel: 45 x 45 x 1 mm)
Max. load[Ω] [Ω]500; (Ub <=18 V;; Max. load <=400 Ω)
Short-circuit protectionyes
Overload protectionyes

Detection zone

Measuring range[mm] [mm]1...15
Switch point IO-Link[mm] [mm]2.37...13.99

Accuracy / deviations

Correction factorsteel: 1 / stainless steel: 0.9 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] [% of Sr]3...15
Note on hysteresisparameterisable
Linearity error of analogue output[%] [%]± 2; (of the final value of the measuring range)
Repeatability analogue output[%] [%]± 2; (of the final value of the measuring range)
Temperature coefficient[%/K vom MEW] [%/K vom MEW]±0,15
Temperature drift± 5 %; (of the final value of the measuring range)

Response times

Response time[ms] [ms]< 20

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 0
Generic Profiled Sensor
Common - I&D
Identification and Diagnosis
Function
Multiple switching signal
Function
Teach channel
Smart Sensor - SSP 0Generic Profiled Sensor
Common - I&DIdentification and Diagnosis
FunctionTeach channel
SIO modeyes
Required master port typeA
Min. process cycle time[ms] [ms]3.2
IO-Link process data (cyclical)process value
16
device status
4
binary switching information
2
process value16
device status4
binary switching information2
IO-Link functions (acyclical)switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag
Supported DeviceIDsdefault
1205
default1205
NoteFor further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature[°C] [°C]-25...80
ProtectionIP 67

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-6 HF conducted10 V
EN 55011class B
MTTF[years] [years]231
Embedded software includedyes
UL approvalTa
-25...70 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL approval no.
A025
File number UL
E174191
Ta-25...70 °C
Enclosure typeType 1
power supplyLimited Voltage/Current
UL approval no.A025
File number ULE174191

Mechanical data

Weight[g] [g]190
Housingrectangular
Sensing face5 positions selectable
Mountingflush mountable
Dimensions[mm] [mm]40 x 40 x 54
MaterialsPA; brass white bronze coated

Displays / operating elements

Displaytarget in measuring range
1 x LED, yellow lights
target outside measuring range
1 x LED, yellow flashing
operation
LED, green
target in measuring range1 x LED, yellow lights
target outside measuring range1 x LED, yellow flashing
operationLED, green

Remarks

Pack quantity1 pcs.

Electrical connection - plug

Connector1 x M12; coding: A
