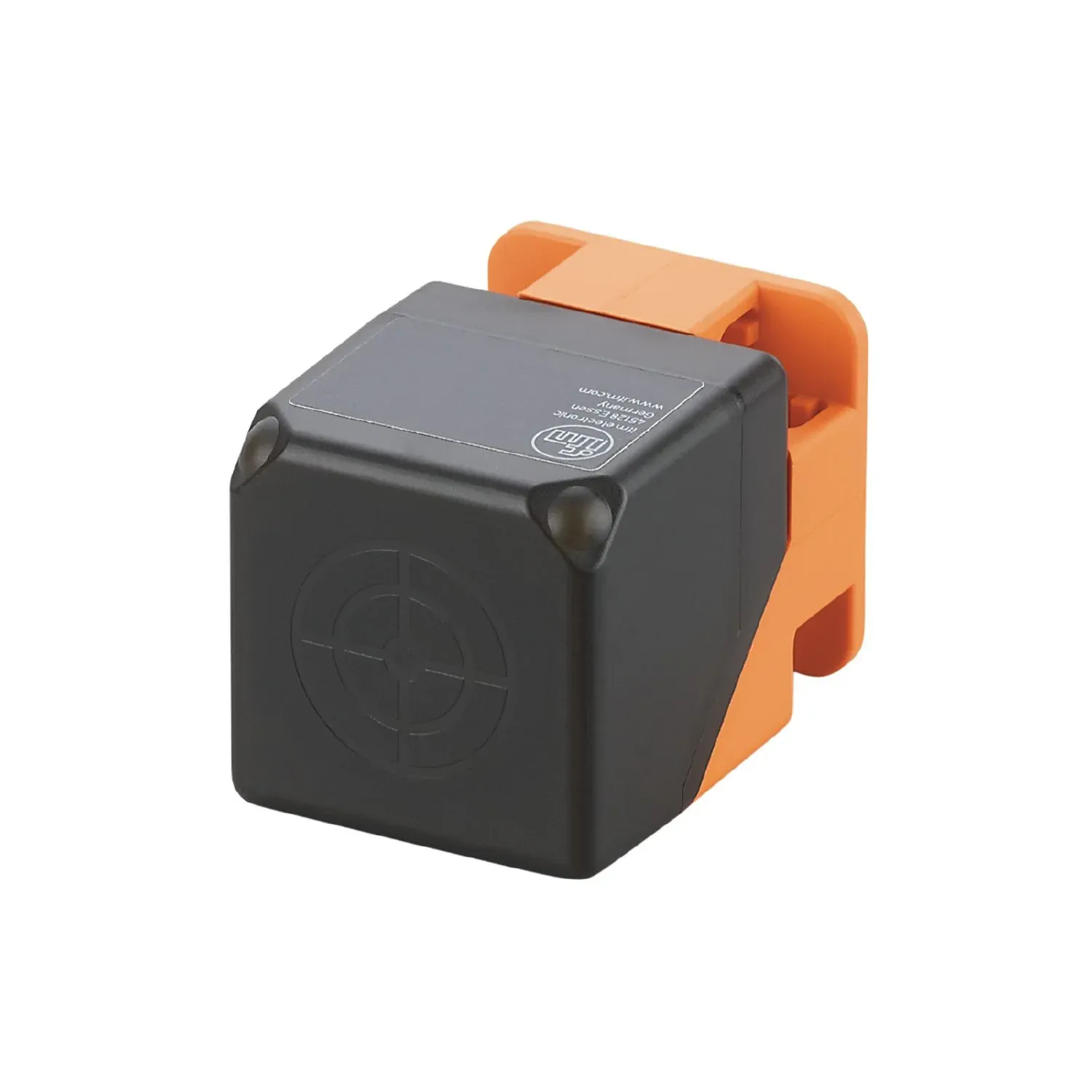

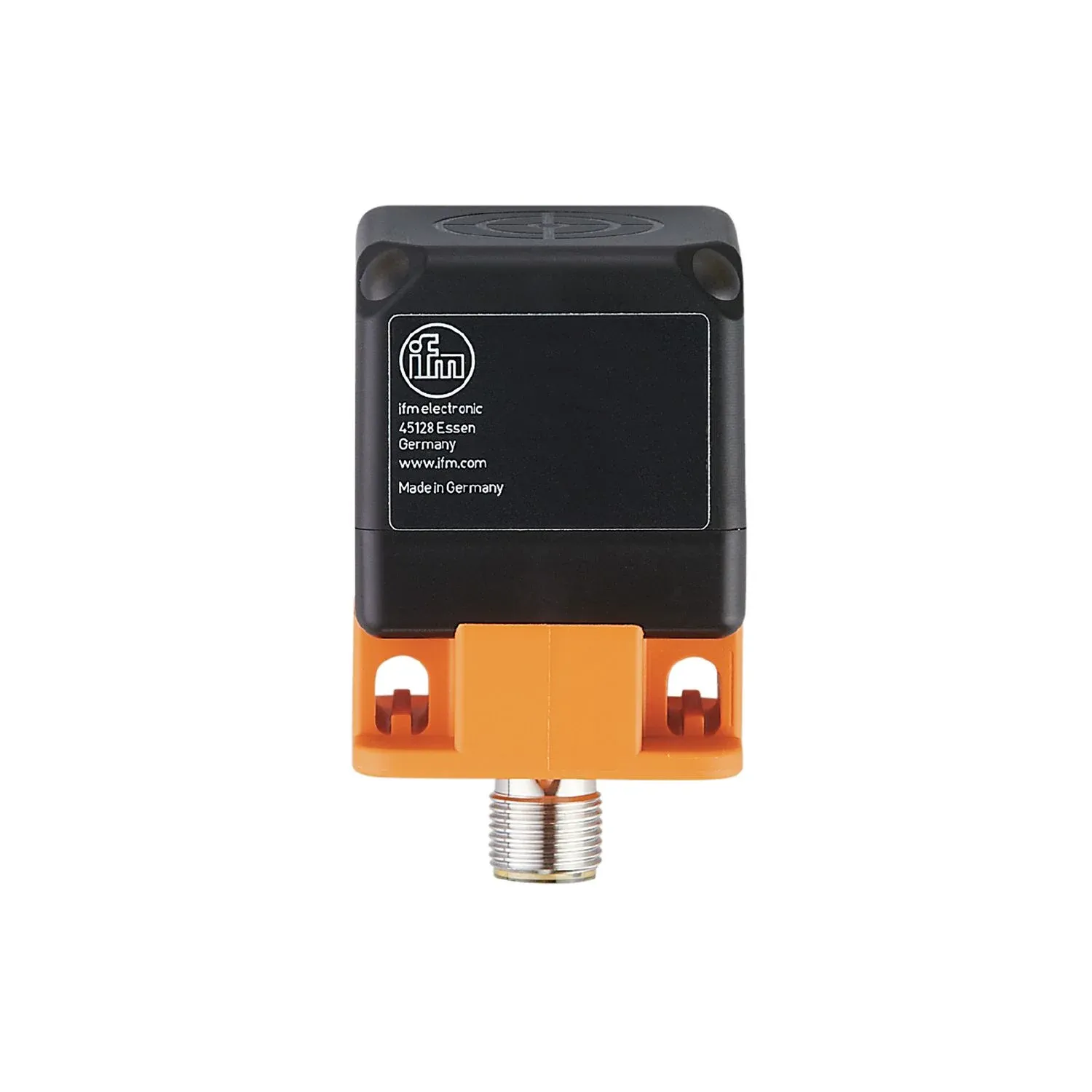

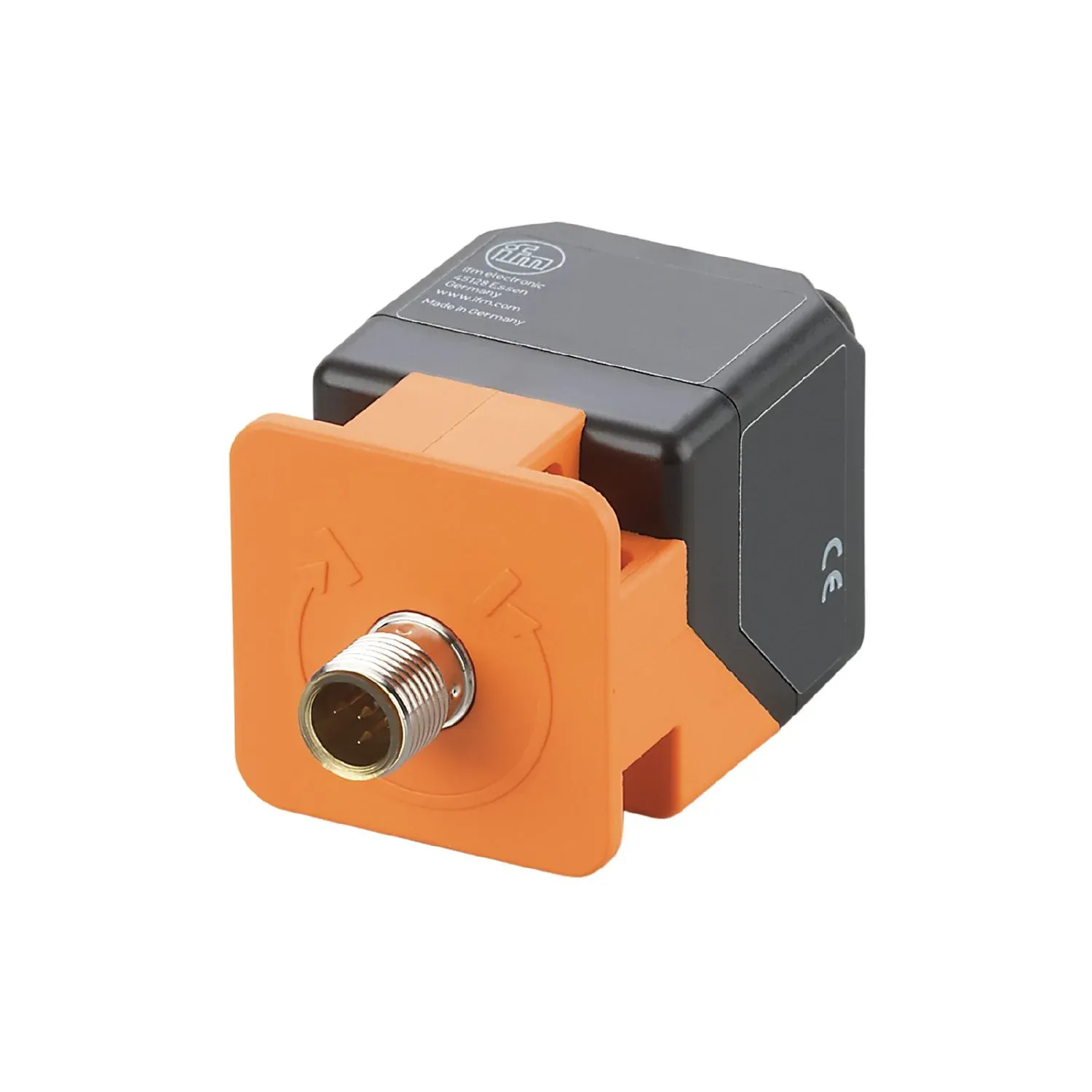

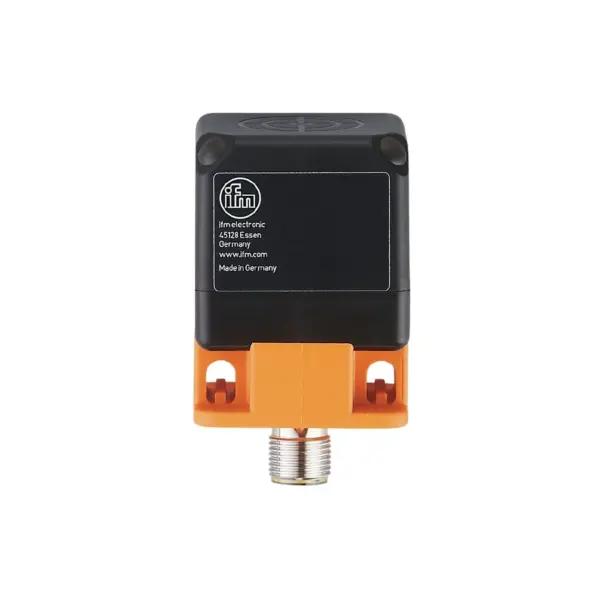

IFM IM5118
IM5118
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With AS-i interface
Long sensing range for use in conveying
Five positions of the sensing face selectable
LED display to check switching status and operation
Corner LEDs clearly visible in any mounted position
Specification
Product characteristics
| Electrical design | AS-i |
|---|---|
| Sensing range[mm] [mm] | 15 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 40 x 54 |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | AS-i |
|---|---|
| Switching frequency DC[Hz] [Hz] | 100 |
Detection zone
| Sensing range[mm] [mm] | 15 |
|---|---|
| Operating distance[mm] [mm] | 0...12.1 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| MTTF[years] [years] | 958 |
AS-i classification
| AS-i version | 3.0 |
|---|---|
| Extended addressing mode | yes |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 71901 |
| Assignment of the data bits | Designation switching signal unsafe zone readiness for operation not used status = 0 target outside the active zone, yellow LED off target within the uncertain zone, red LED flashes unit faulty or distance to medium < 10 %, red LED flashes - status = 1 target within the active zone, yellow LED on target outside the uncertain zone, red LED off readiness for operation, red LED off default value |
| Designation | switching signal |
| status = 0 | target outside the active zone, yellow LED off |
| status = 1 | target within the active zone, yellow LED on |
Mechanical data
| Weight[g] [g] | 151.5 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | 40 x 40 x 54 |
| Materials | PBT; PPE |
Displays / operating elements
| Display | switching status 1 x LED, yellow function 1 x LED, red |
|---|---|
| switching status | 1 x LED, yellow |
| function | 1 x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Locking: locking, rotatable |
|---|
