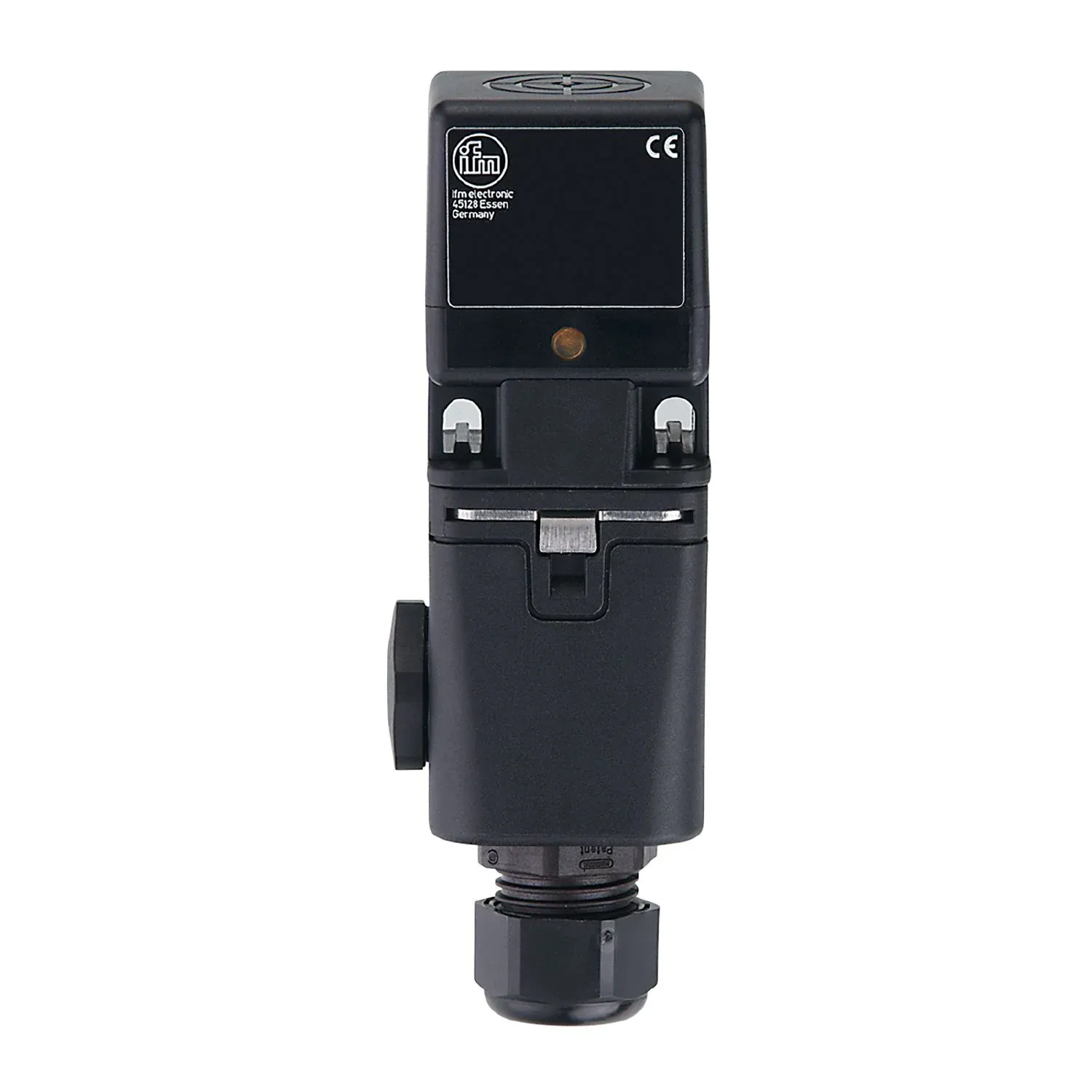

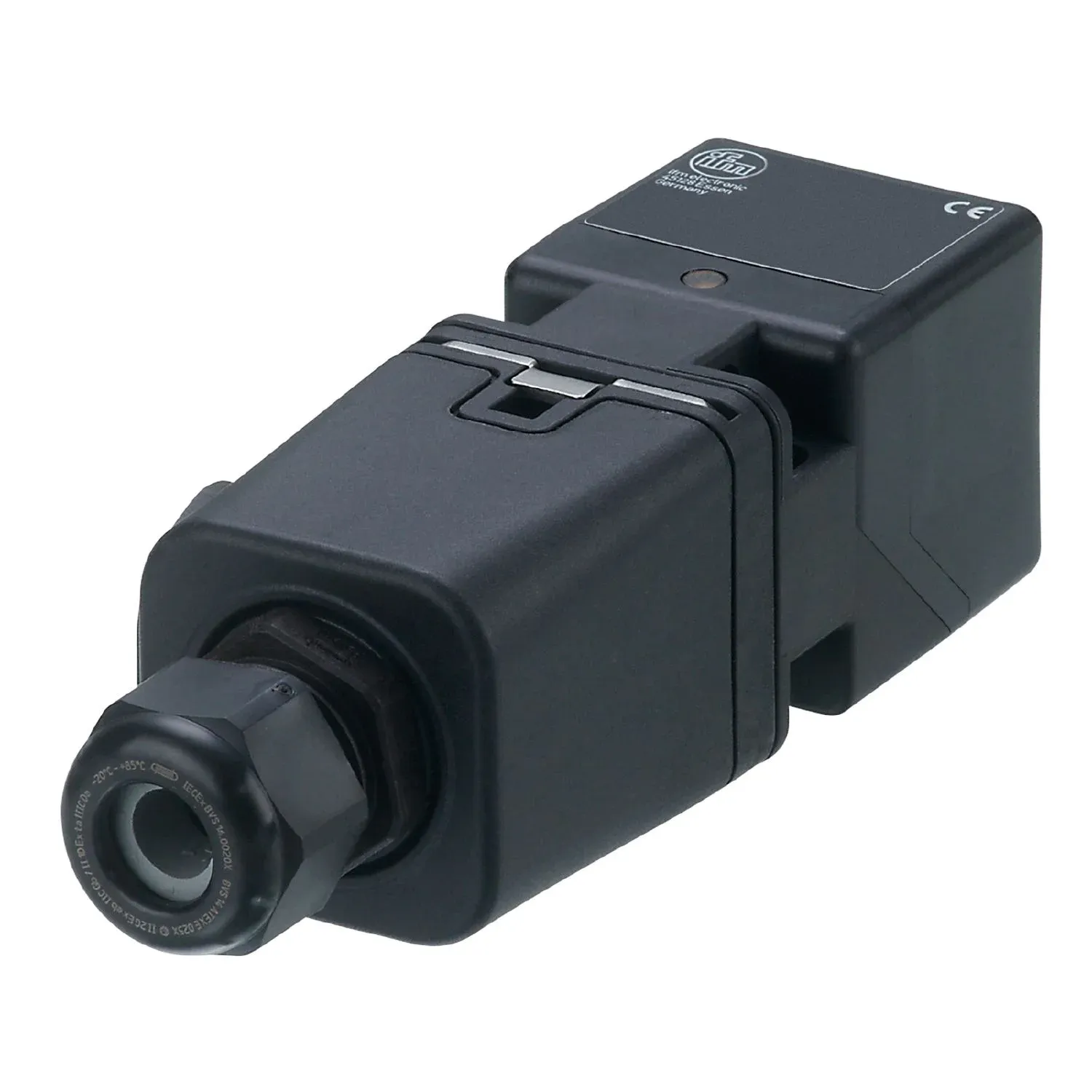

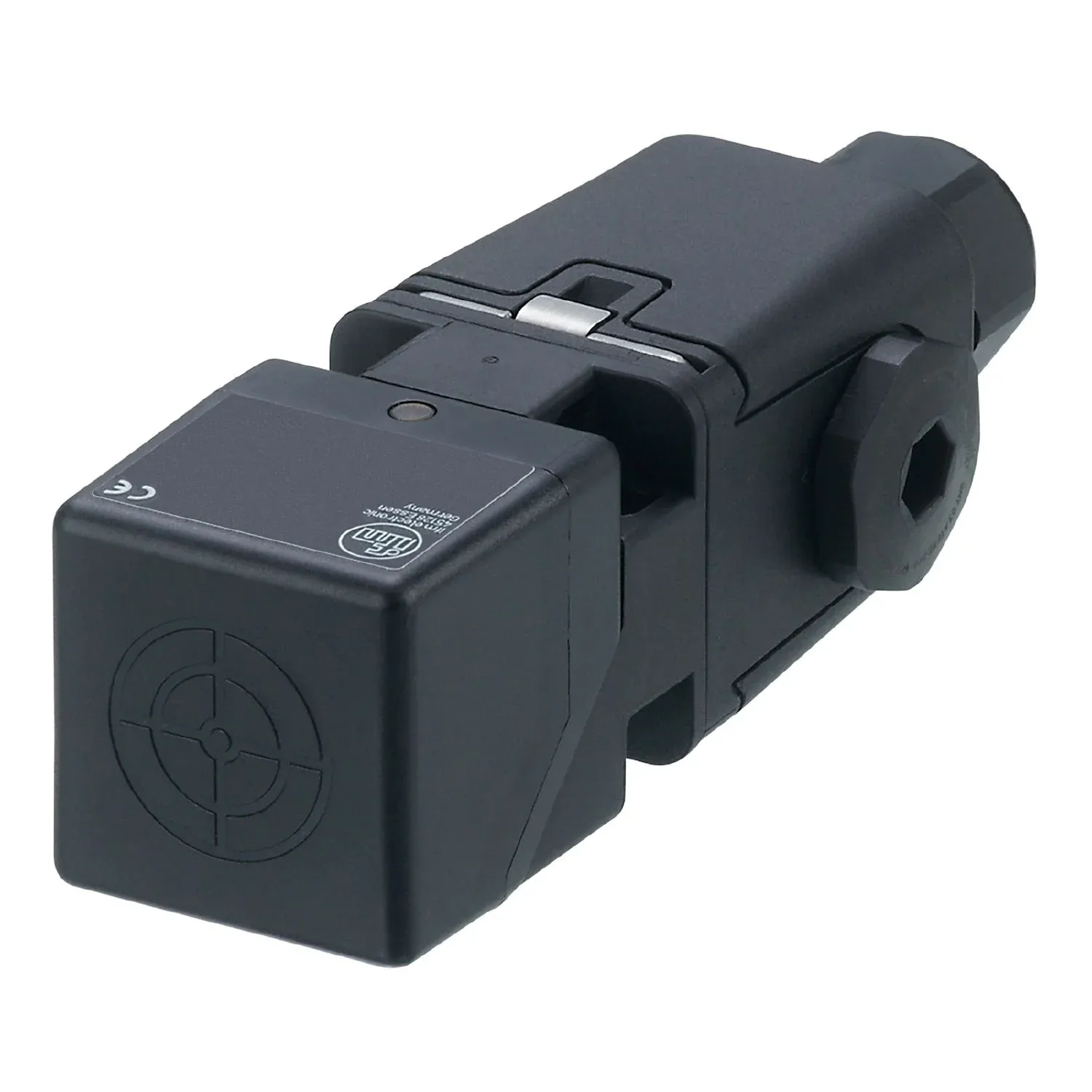

IFM IM509A
IM509A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Long sensing range for use in conveying
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
Specification
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range[mm] [mm] | 20 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 40 x 105 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Max. leakage current[mA] [mA] | 0.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 100 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 20 |
|---|---|
| Real sensing range Sr[mm] [mm] | 20 ± 10 % |
| Operating distance[mm] [mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T95°C Dc X |
|---|---|
| EMC | EN 60947-5-2 |
| MTTF[years] [years] | 1679 |
Mechanical data
| Weight[g] [g] | 244 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | 40 x 40 x 105 |
| Materials | PC; PA; stainless steel |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. 5 positions of the active zone possible |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm |
|---|
