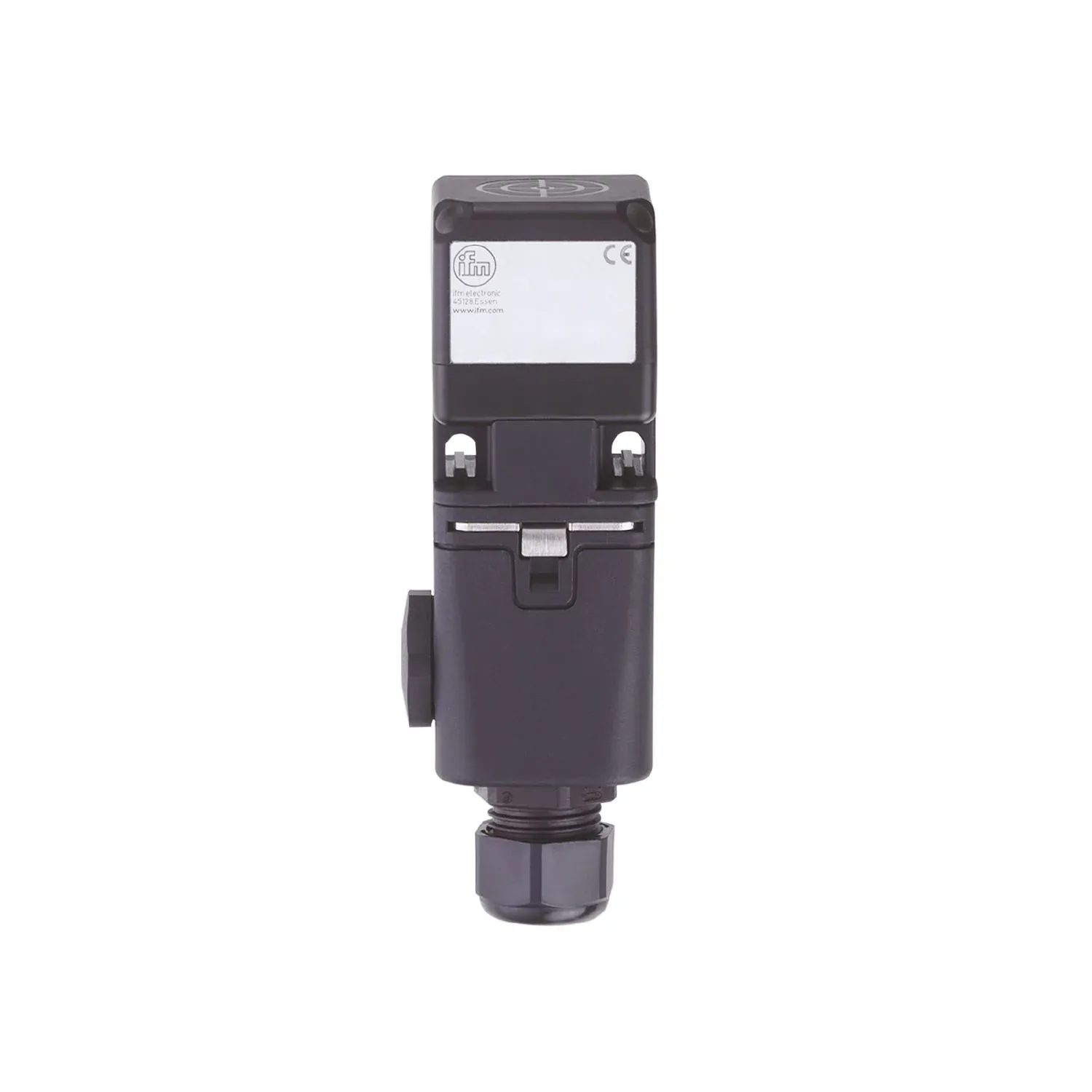

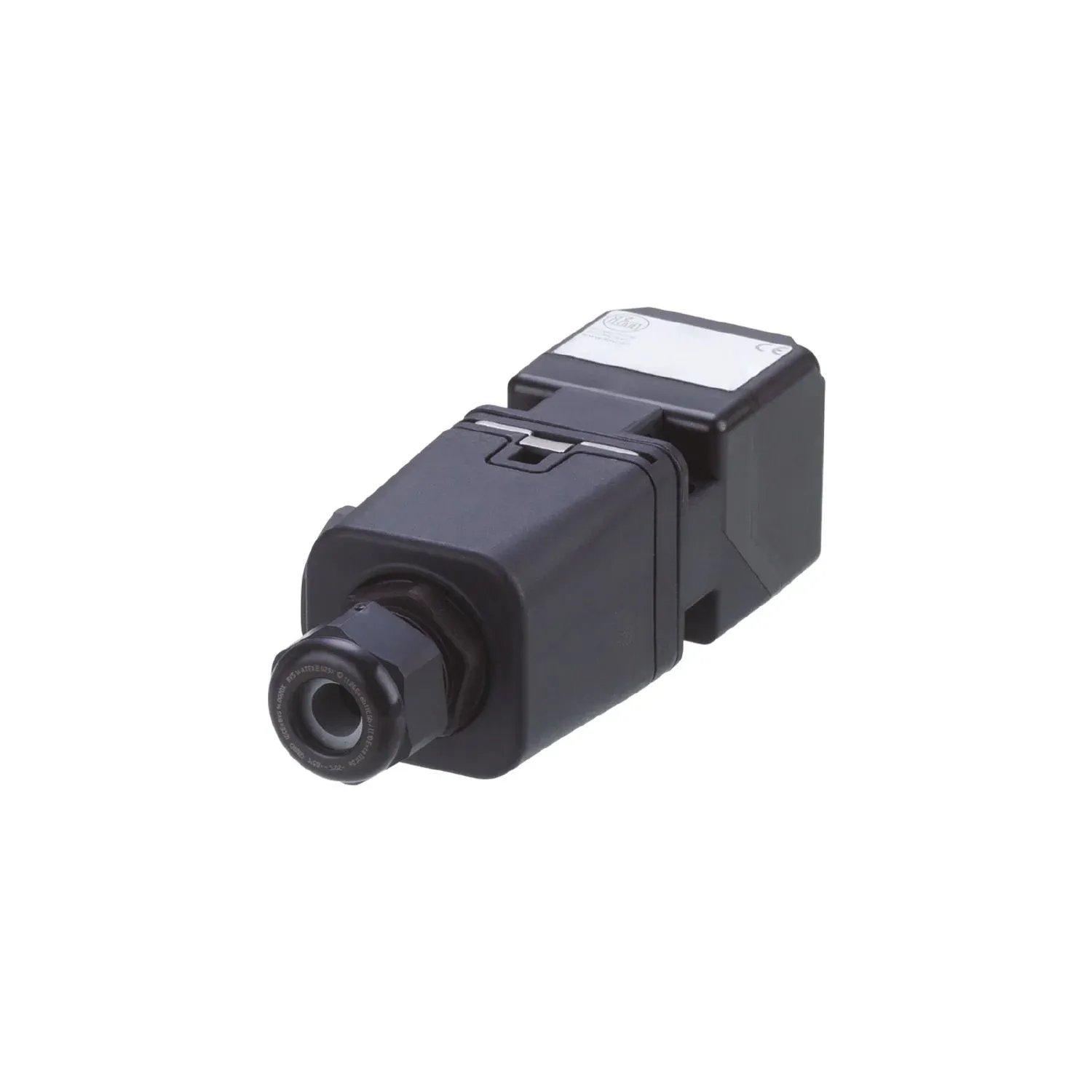

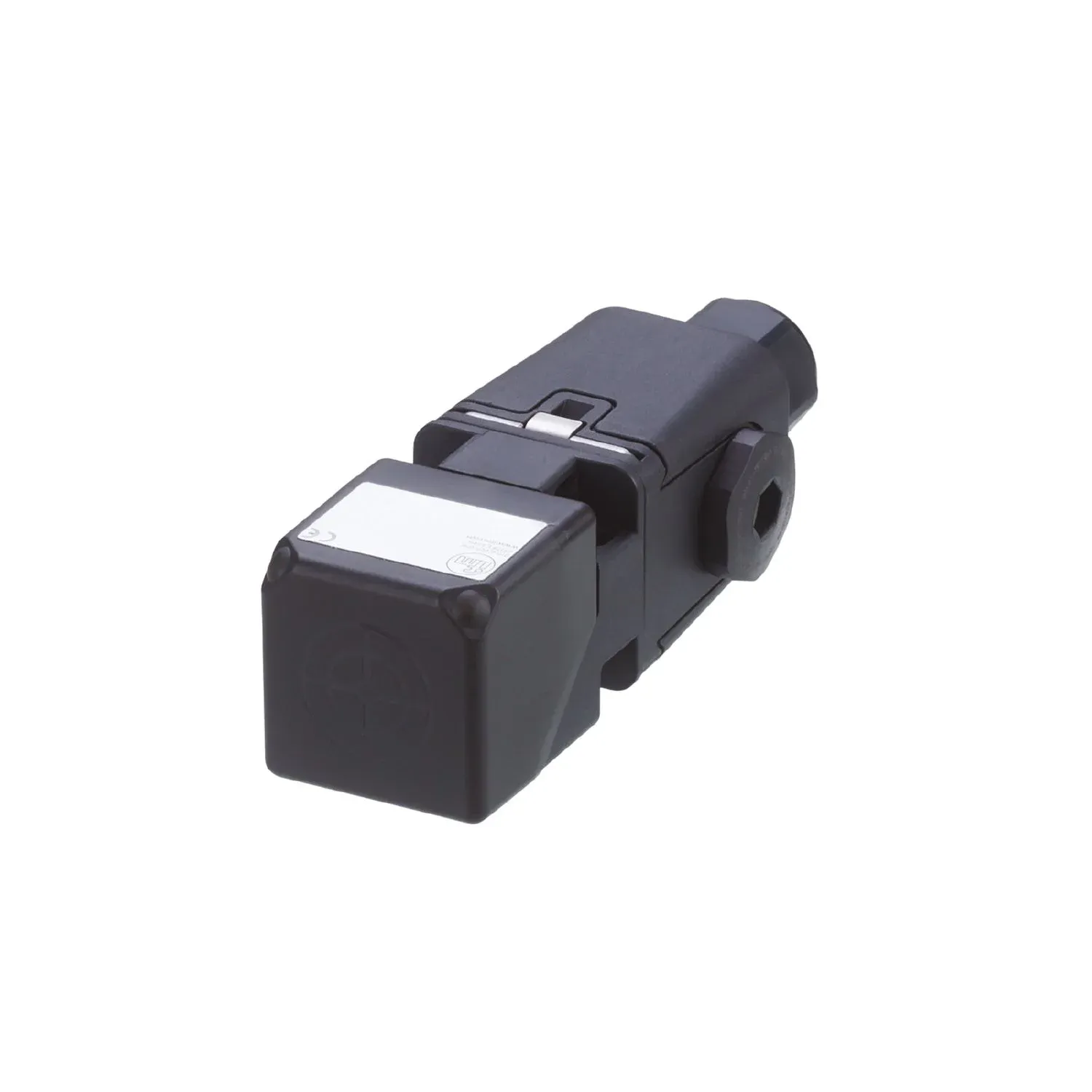

IFM IM0059
IM0059
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Long sensing range for use in conveying
With combined AC/DC output and two-wire technology
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
Clearly visible indication of the switching status
Specification
Product characteristics
| Output function | normally open / normally closed; (programmable) |
|---|---|
| Sensing range[mm] [mm] | 40 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 40 x 105 |
Electrical data
| Frequency AC[Hz] [Hz] | 45...65 |
|---|---|
| Operating voltage[V] [V] | 20...250 AC/DC |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open / normally closed; (programmable) |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 5.5 |
| Max. voltage drop switching output AC[V] [V] | 5.5 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC[mA] [mA] | 100 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-time current rating of switching output[mA] [mA] | î: 0,6 A (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 10 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Notes on switching frequency[Hz] [Hz] | only for resistive loads; 2 Hz for utilisation category AC-140 |
| Type of short-circuit protection | pulsed |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 40 |
|---|---|
| Real sensing range Sr[mm] [mm] | 40 ± 10 % |
| Operating distance[mm] [mm] | 0...32.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 2008-08 |
|---|---|
| EN 60947-5-2 | 2008-08 |
Mechanical data
| Weight[g] [g] | 237.8 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 40 x 40 x 105 |
| Materials | PC; PA; stainless steel |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals | 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm |
|---|
