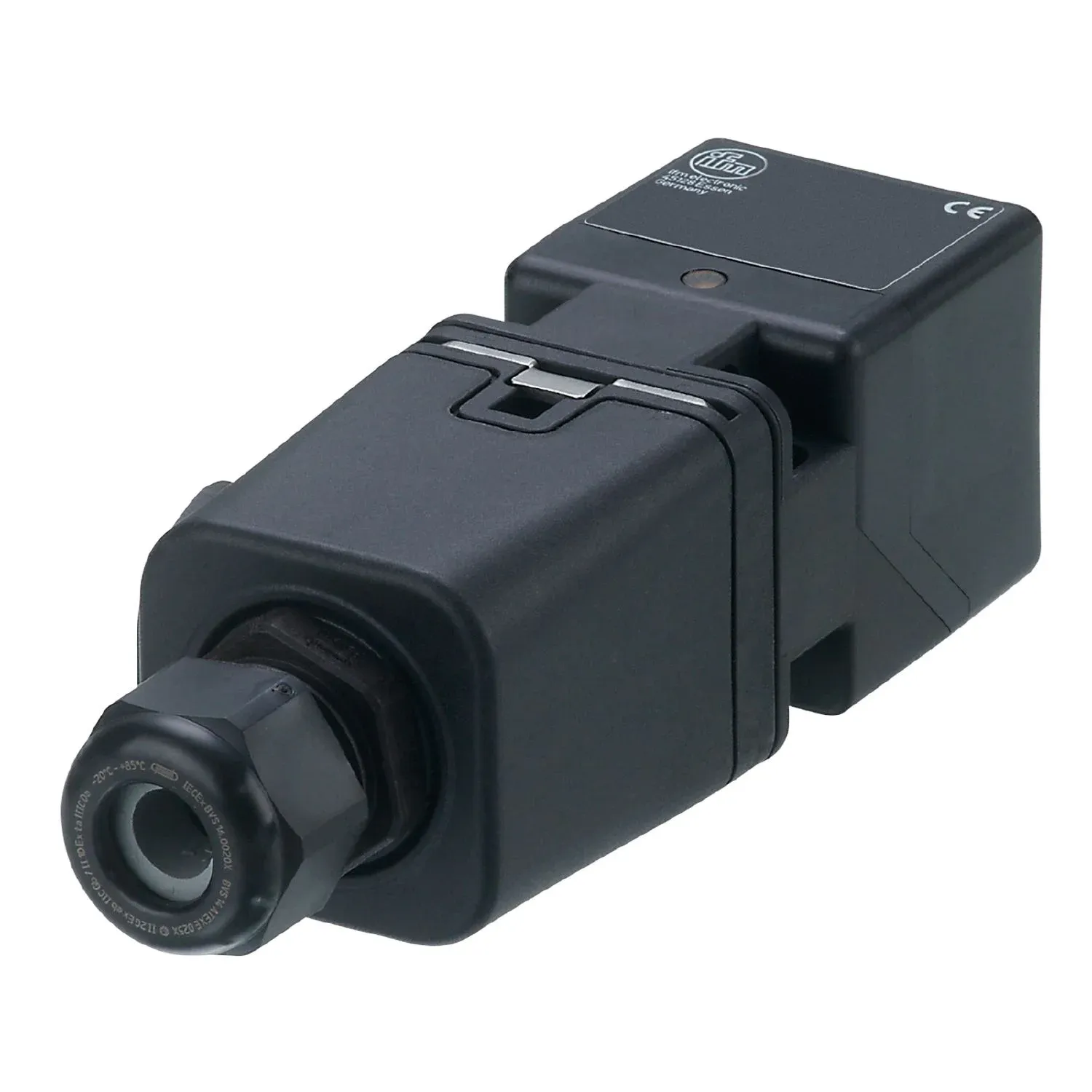

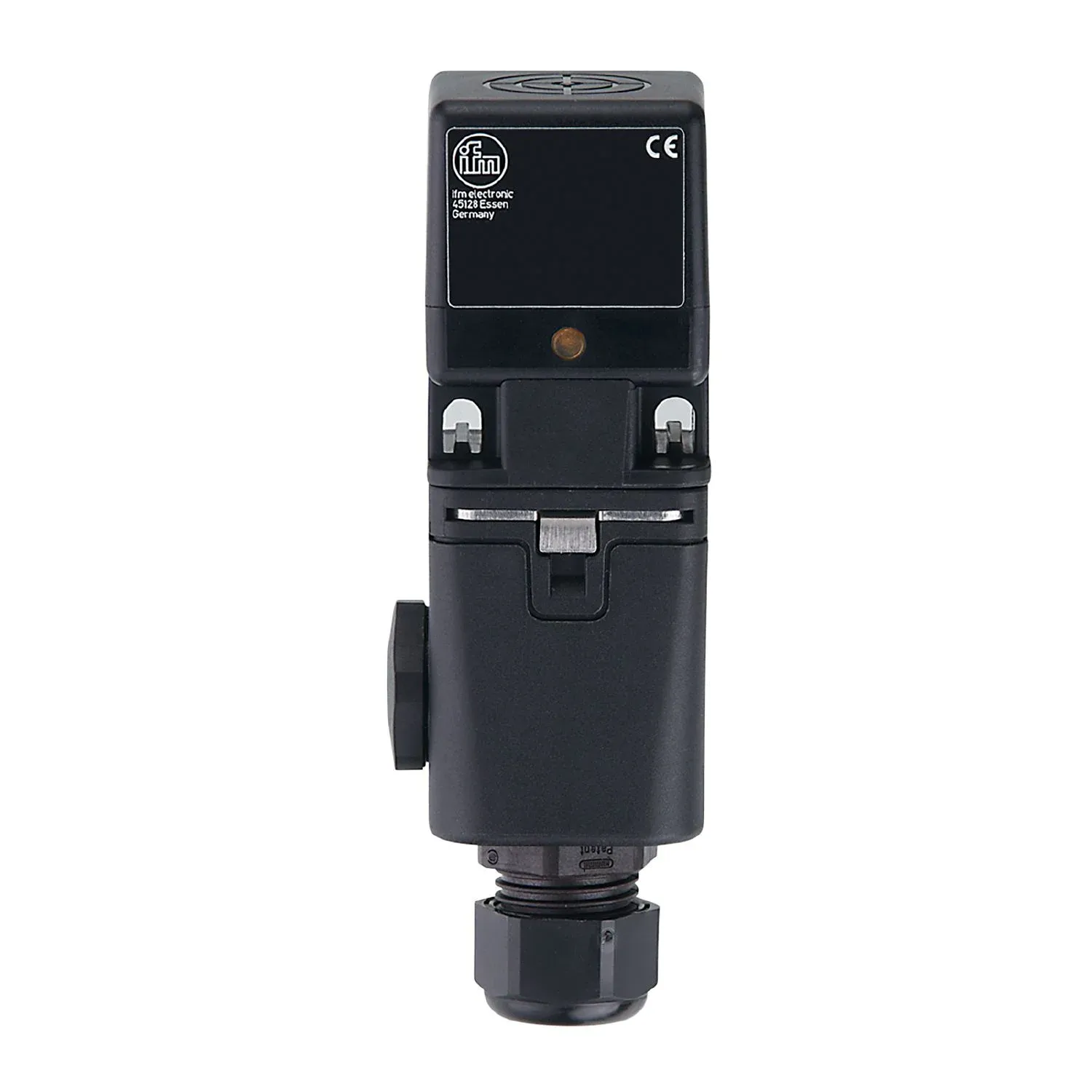

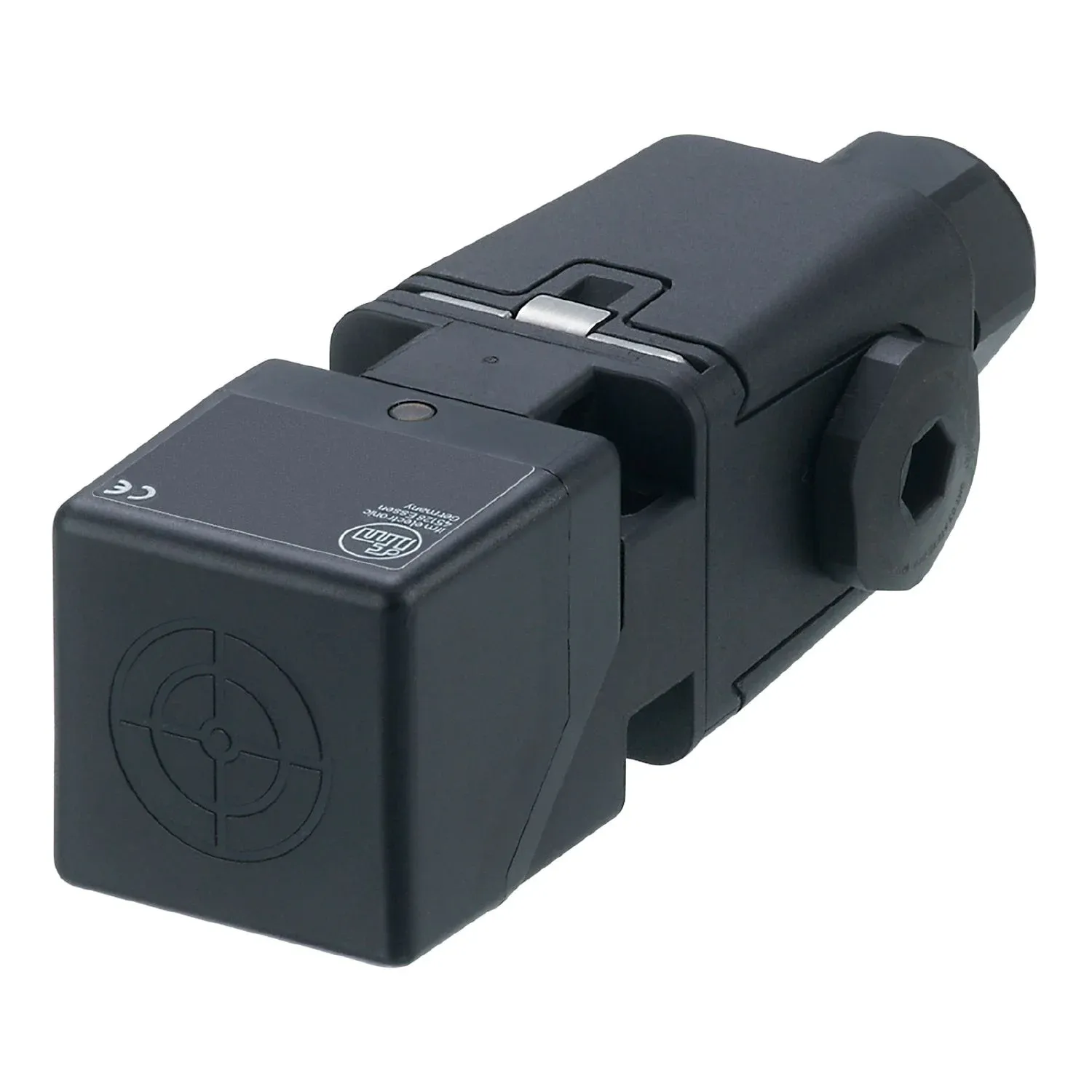

IFM IM002A
IM002A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
With combined AC/DC output and two-wire technology
Output function normally open / normally closed programmable
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
Specification
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range[mm] [mm] | 40 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 40 x 40 x 105 |
Electrical data
| Operating voltage[V] [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 6 |
| Max. voltage drop switching output AC[V] [V] | 6.5 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC[mA] [mA] | 150 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-time current rating of switching output[mA] [mA] | 2200; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 10 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Notes on switching frequency[Hz] [Hz] | only for resistive loads; 2 Hz for utilisation category AC-140 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] [mm] | 40 |
|---|---|
| Real sensing range Sr[mm] [mm] | 40 ± 10 % |
| Operating distance[mm] [mm] | 0...32.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T95°C Dc X |
|---|---|
| EMC | EN 60947-5-2 |
| MTTF[years] [years] | 554 |
Mechanical data
| Weight[g] [g] | 253 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 40 x 40 x 105 |
| Materials | PC; PA; stainless steel |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Place the fuse outside the hazardous area. |
|---|
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. 5 positions of the active zone possible |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm |
|---|
