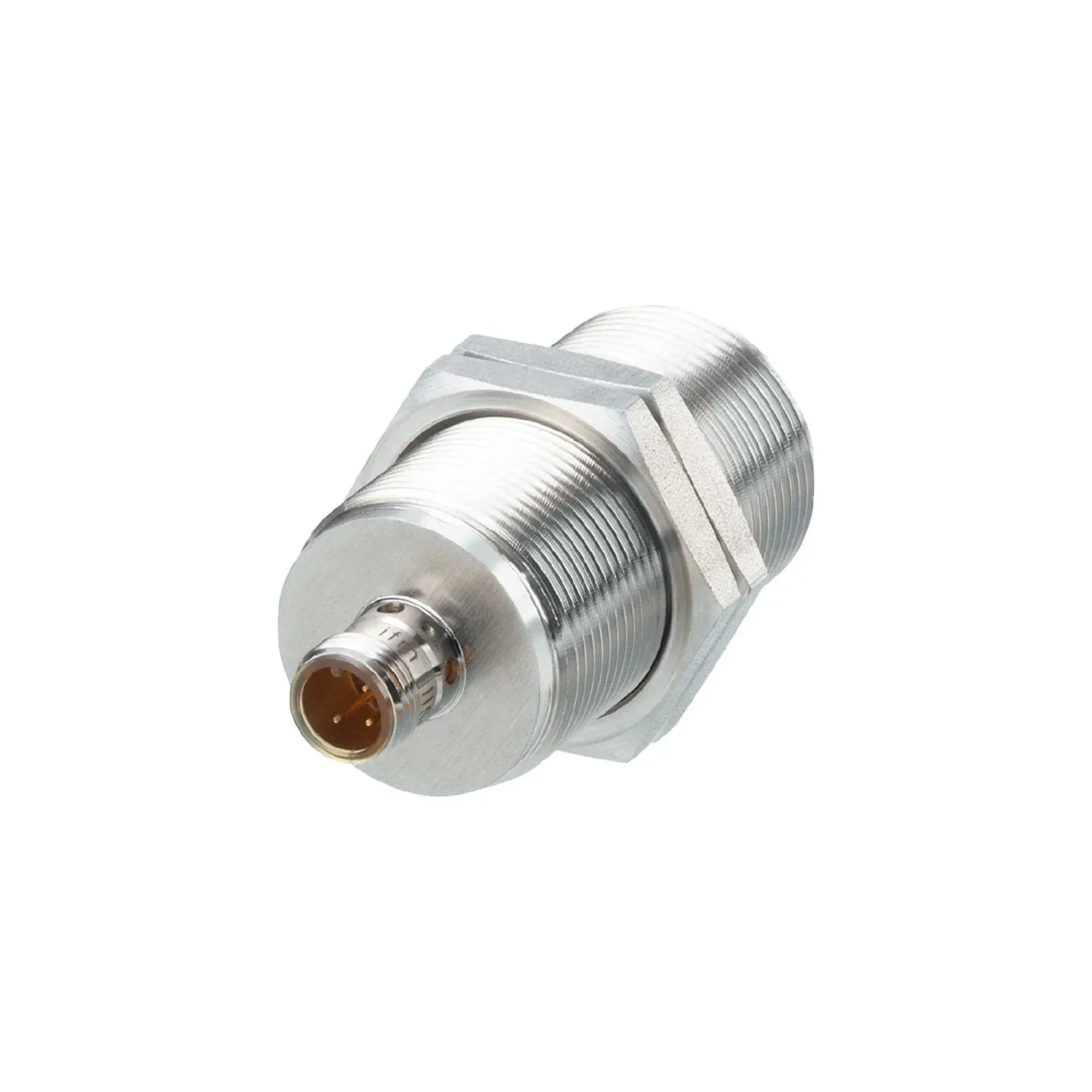

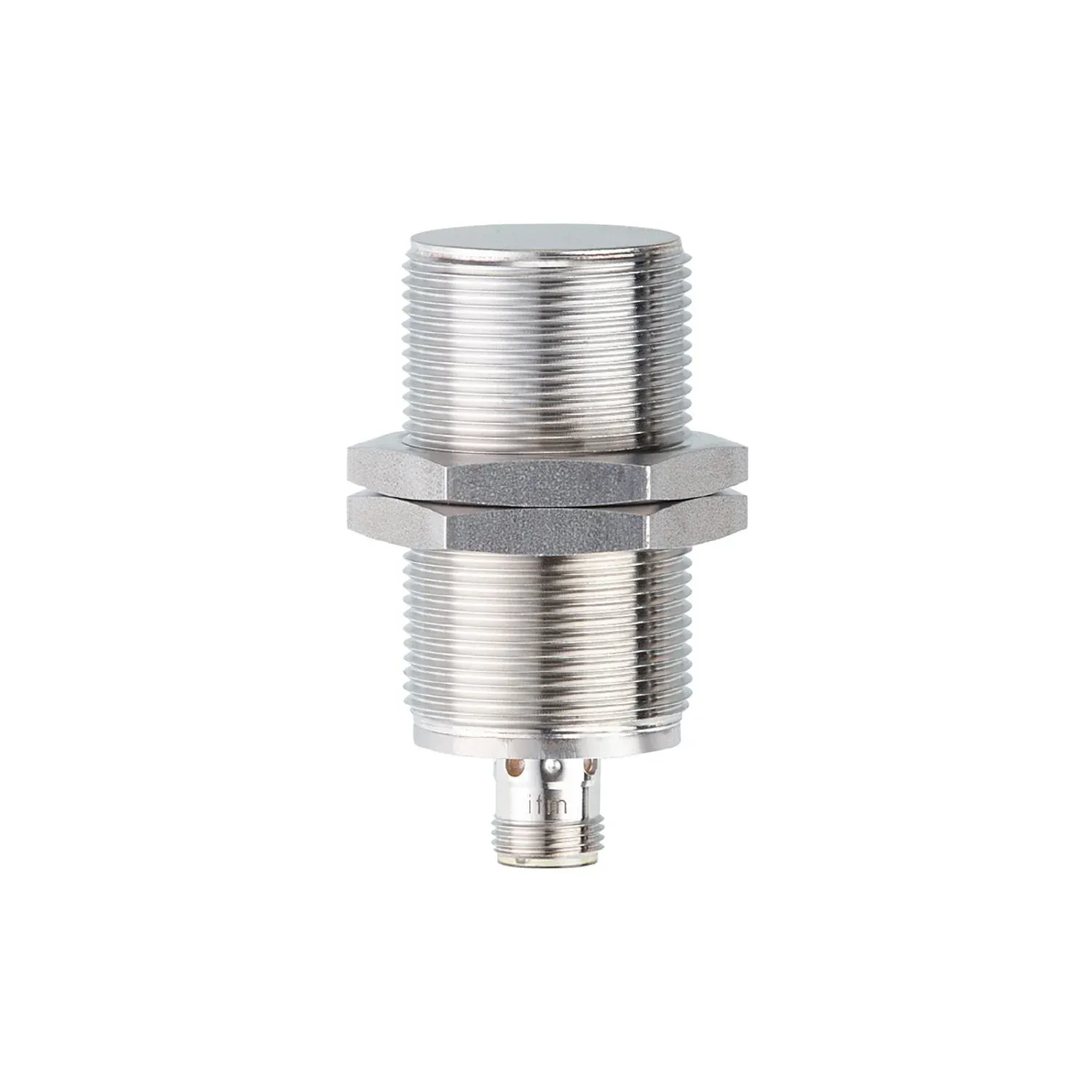

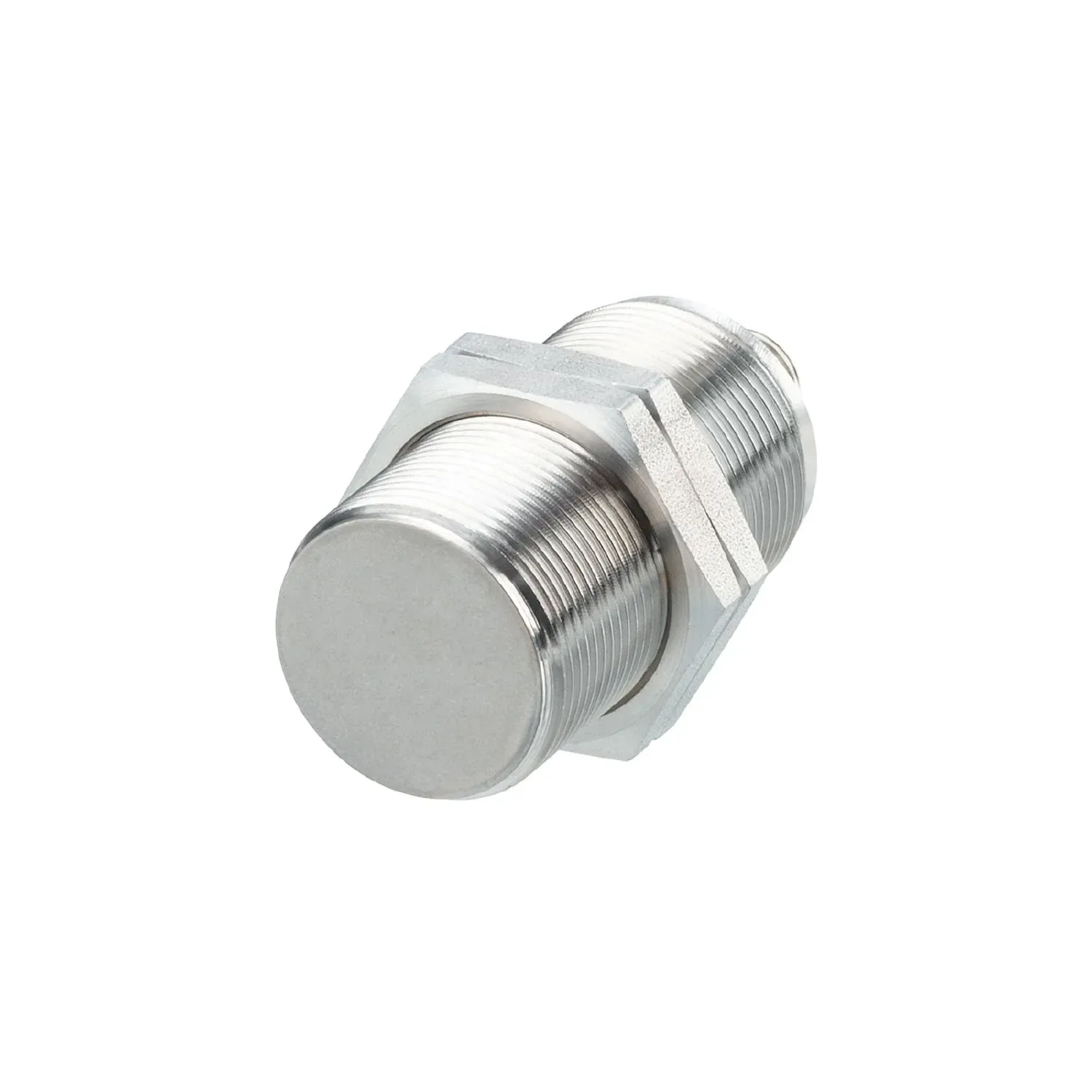

IFM II502A
II502A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
High protection rating for the requirements of harsh industrial environments
Metal sensing face for heavy duty
Special mechanical stability ensures high plant safety
Clearly visible indication of the switching status
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 10 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 65 |
Application
| Special feature | Gold-plated contacts; Increased sensing range; Full-metal housing |
|---|---|
| Pressure rating | 100 bar 10 MPa |
| 100 bar | 10 MPa |
| Note on pressure rating | sensing face |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 50 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 10 |
|---|---|
| Real sensing range Sr[mm] [mm] | 10 ± 10 % |
| Operating distance[mm] [mm] | 0...8.1 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.6 / brass: 0.8 / aluminium: 0.6 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|---|
| Protection | IP 67; (when used outside the hazardous area: IP 65, IP 67, IP 68, IP 69K) |
Tests / approvals
| Approval | BVS 20 ATEX E 055 X; IECEx BVS 20.0042 X |
|---|---|
| ATEX marking | II 3G Ex ec IIC T6 Gc |
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| Impact resistance | EN 60068-2-75 Ehc 1 J |
| EN 60068-2-75 Ehc | 1 J |
| Vibration resistance | EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| Shock resistance | EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
| Continuous shock resistance | EN 60068-2-27 Ea 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
| Fast temperature change | EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = 10 s 50 cycles |
| EN 60068-2-14 Na | TA = -40°C; TB = 85°C; t1 = 30 min; t2 = 10 s 50 cycles |
| Salt spray test | EN 60068-2-52 Kb severity level 5 (4 test cycles) |
| EN 60068-2-52 Kb | severity level 5 (4 test cycles) |
| MTTF[years] [years] | 1114 |
| Embedded software included | no |
Mechanical data
| Weight[g] [g] | 207 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 65 |
| Thread designation | M30 x 1.5 |
| Materials | housing: stainless steel (316L/1.4404); LED window: PEI; lock nuts: stainless steel |
| Tightening torque[Nm] [Nm] | 80 |
| Full-metal housing | yes |
Displays / operating elements
| Display | switching status 4 x 90° LED, yellow |
|---|---|
| switching status | 4 x 90° LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
