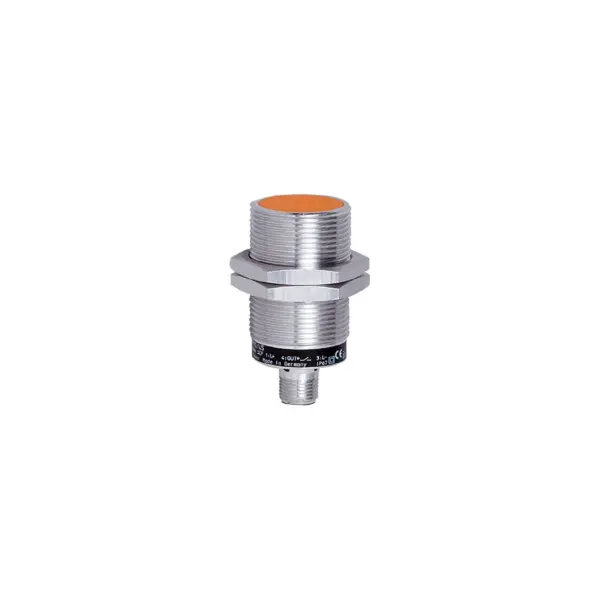

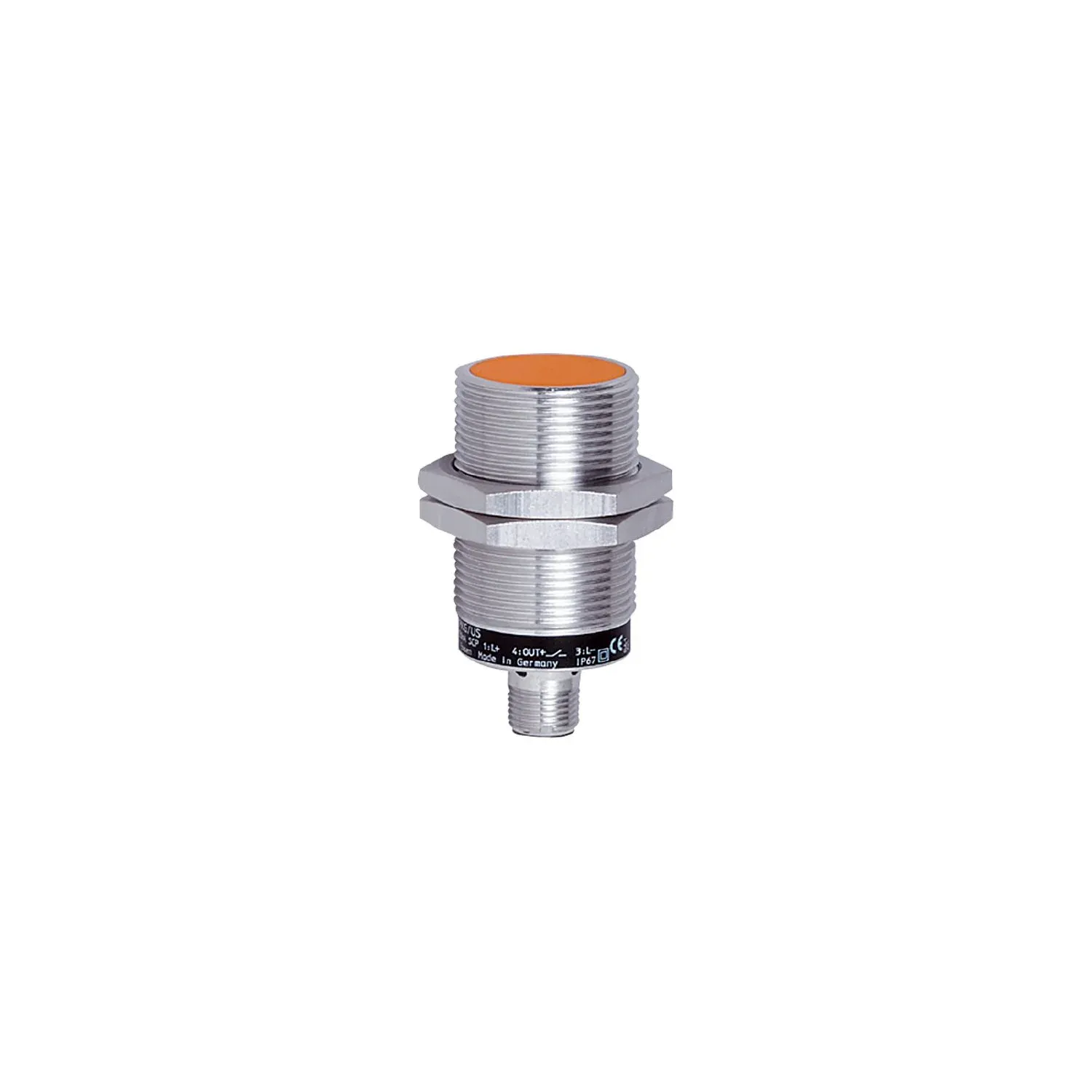

IFM II0366
II0366
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Two-wire technology
Robust metal housing for use in harsh industrial environments
Large operating voltage range
Clearly visible indication of the switching status
For a precise position detection on machines
Specification
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range[mm] [mm] | 15 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 58 |
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | 20...140 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 6 |
| Max. voltage drop switching output AC[V] [V] | 6.5 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 1 |
| Permanent current rating of switching output AC[mA] [mA] | 200 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Short-time current rating of switching output[mA] [mA] | 1200; (20ms / 0,5Hz; for UL application: î: 0,9 A (20 ms / 0,5 Hz)) |
| Switching frequency AC[Hz] [Hz] | 25 |
| Switching frequency DC[Hz] [Hz] | 25 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 15 |
|---|---|
| Operating distance[mm] [mm] | 0...12.1 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 1 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-5 Surge | 1 kV line to line, Ri: 2 Ohm |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| MTTF[years] [years] | 398 |
| UL approval | Ta -25...70 °C Enclosure type Type 1 File number UL E174191 |
| Ta | -25...70 °C |
| Enclosure type | Type 1 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 135.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 58 |
| Thread designation | M30 x 1.5 |
| Materials | housing: brass white bronze coated; sensing face: PBT |
Displays / operating elements
| Display | switching status 4 x 90° LED, red |
|---|---|
| switching status | 4 x 90° LED, red |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: B; Contacts: gold-plated |
|---|
