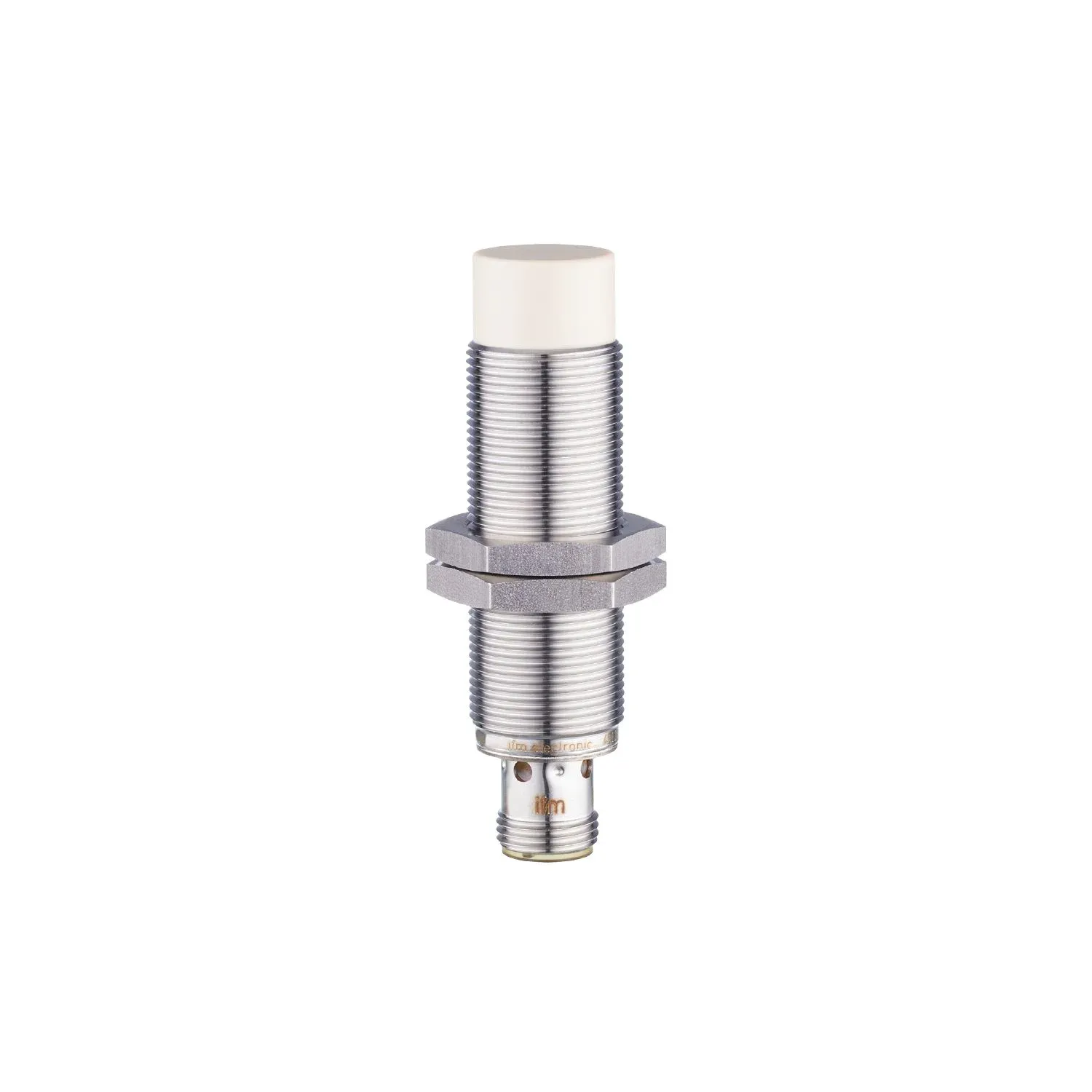

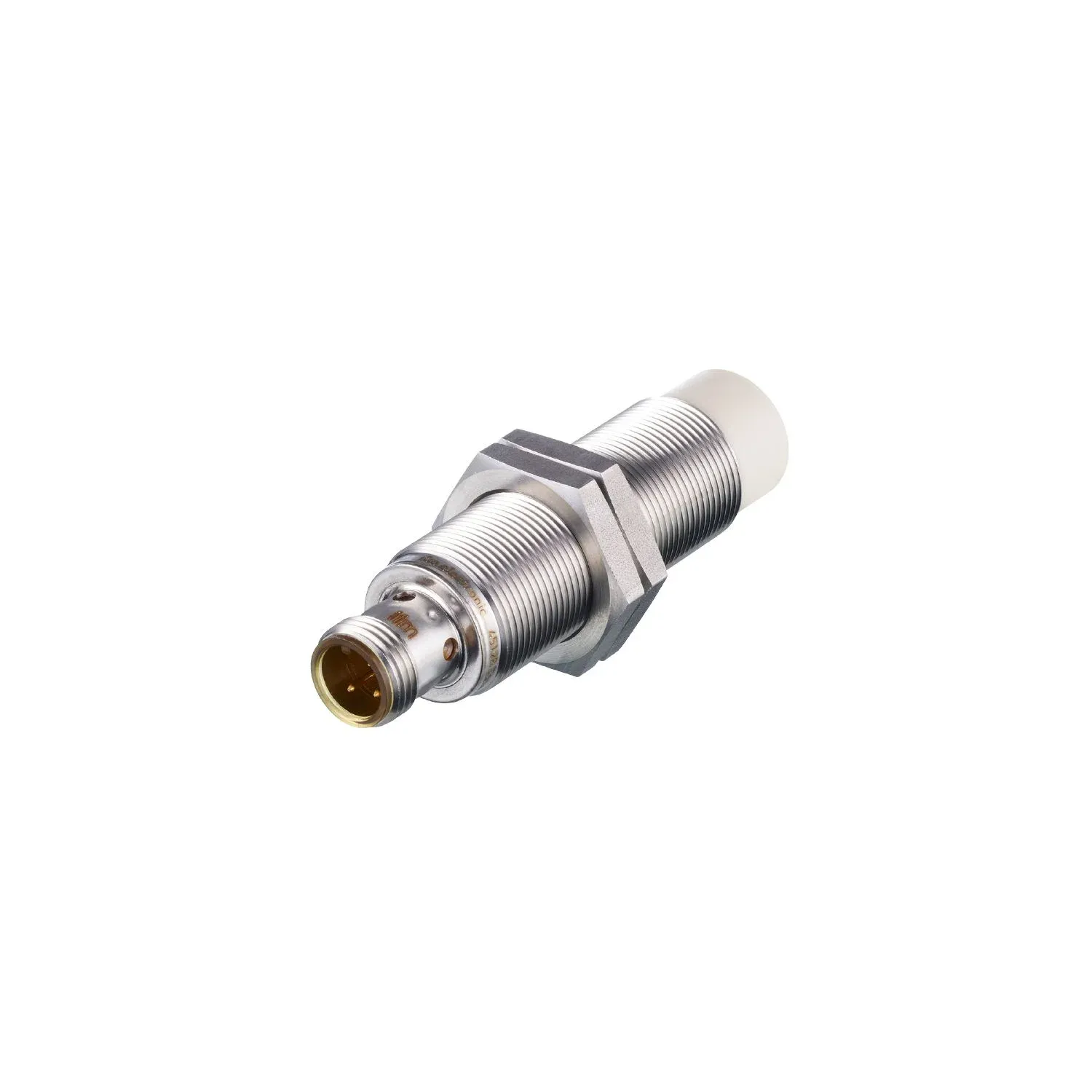

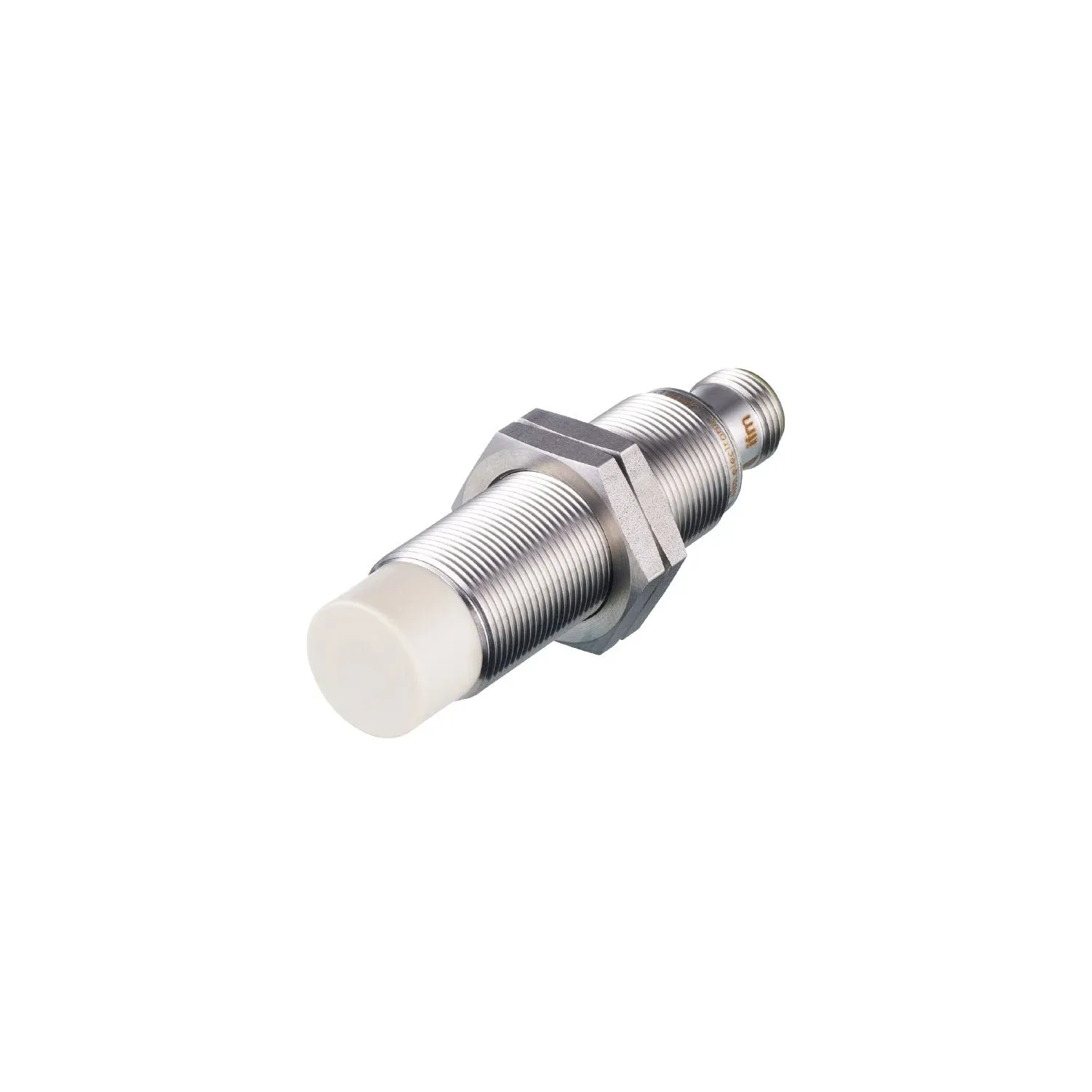

IFM IGT202
IGT202
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in the food industry
Temperature shock resistant even in case of frequent temperature fluctuations
Operation as three-wire or two-wire possible
Resistant to high-pressure cleaning with aggressive cleaning agents
With optical mounting and setting aid
Specification
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 12 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 70 |
Application
| Special feature | Gold-plated contacts; Increased sensing range; Optical setting aid |
|---|---|
| Application | Use in hygienic areas / regular cleaning processes |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.8 |
| Minimum load current[mA] [mA] | 2; (only in 2-wire operation) |
| Max. leakage current[mA] [mA] | 0.6 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 12 |
|---|---|
| Real sensing range Sr[mm] [mm] | 12 ± 10 % |
| Operating distance[mm] [mm] | 0...9.72 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...100 |
|---|---|
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV mains line to line EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-5 Surge | 0,5 kV mains line to line |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| MTTF[years] [years] | 1359 |
| UL approval | Ta 0...40 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. A039 File number UL E174191 |
| Ta | 0...40 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | A039 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 52.7 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (316L/1.4404) |
| Tightening torque[Nm] [Nm] | 50 |
Displays / operating elements
| Display | switching status 4 x 90° LED, yellow setting aid 1 x LED, red |
|---|---|
| switching status | 4 x 90° LED, yellow |
| setting aid | 1 x LED, red |
| Optical setting aid | yes |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | suitable for PLC type 1 according to IEC 61131-2 |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
