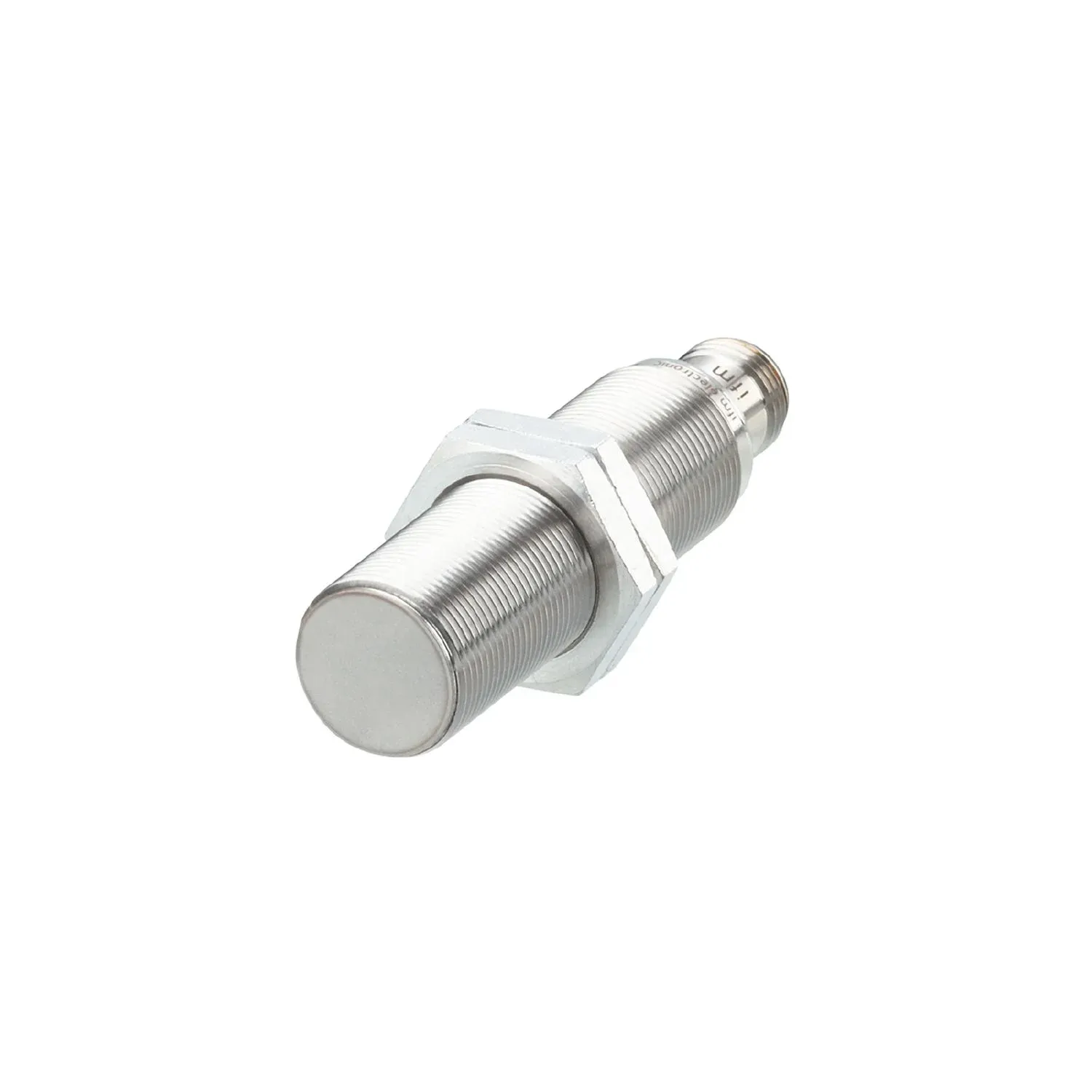

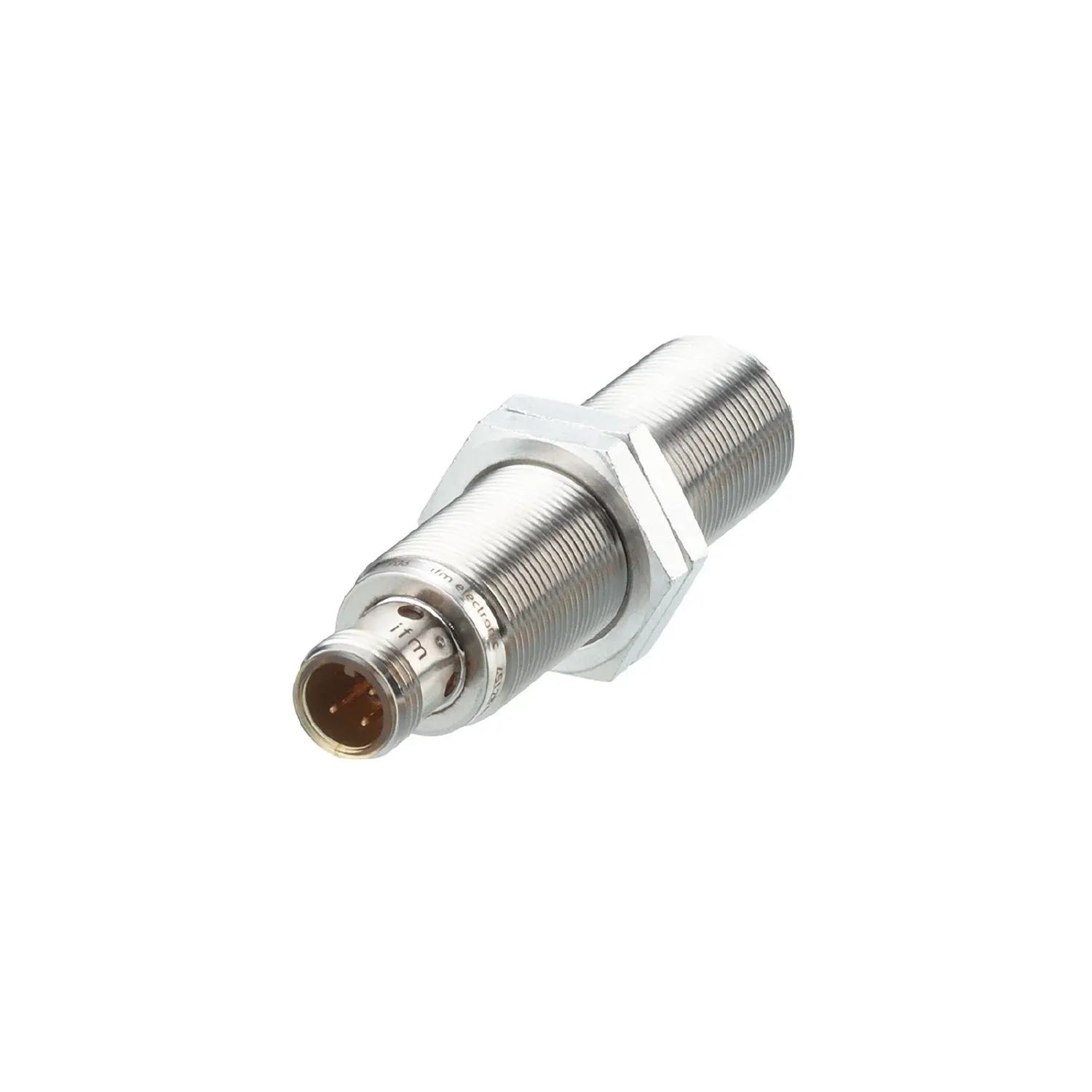

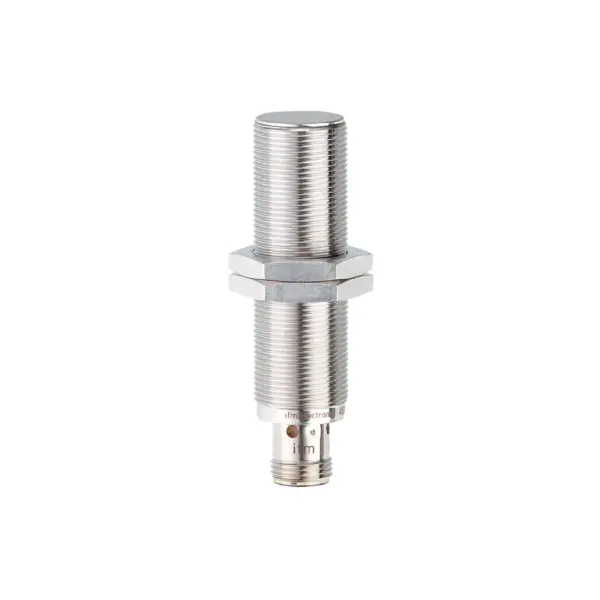

IFM IGC249
IGC249
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in machine tools and metalworking
Resistant to oils and coolants
Metal sensing face for heavy duty
Selective detection of ferrous metals, aluminium chip immune
Clearly visible indication of the switching status
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 4.5 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 70 |
Application
| Special feature | Gold-plated contacts; Full-metal housing; Correction factor K = 0 |
|---|---|
| Application | Use in machine tools, coolants and lubricants |
| Media | ferrous only; aluminium chip immune |
| Pressure rating | 100 bar 10 MPa |
| 100 bar | 10 MPa |
| Note on pressure rating | sensing face |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 4.5 |
|---|---|
| Operating distance[mm] [mm] | 0...3.64 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.5 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Correction factor K = 0 | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 68; ("Coolant") |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| Impact resistance | EN 60068-2-27 Ehc 1 J |
| EN 60068-2-27 Ehc | 1 J |
| MTTF[years] [years] | 1258 |
| Embedded software included | yes |
| UL approval | Ta 25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. A012 File number UL E174191 |
| Ta | 25...70 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | A012 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 55.3 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); LED window: PEI; lock nuts: stainless steel (316L/1.4404) |
| Tightening torque[Nm] [Nm] | 50 |
| Full-metal housing | yes |
Displays / operating elements
| Display | switching status 4 x 90° LED, yellow |
|---|---|
| switching status | 4 x 90° LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
