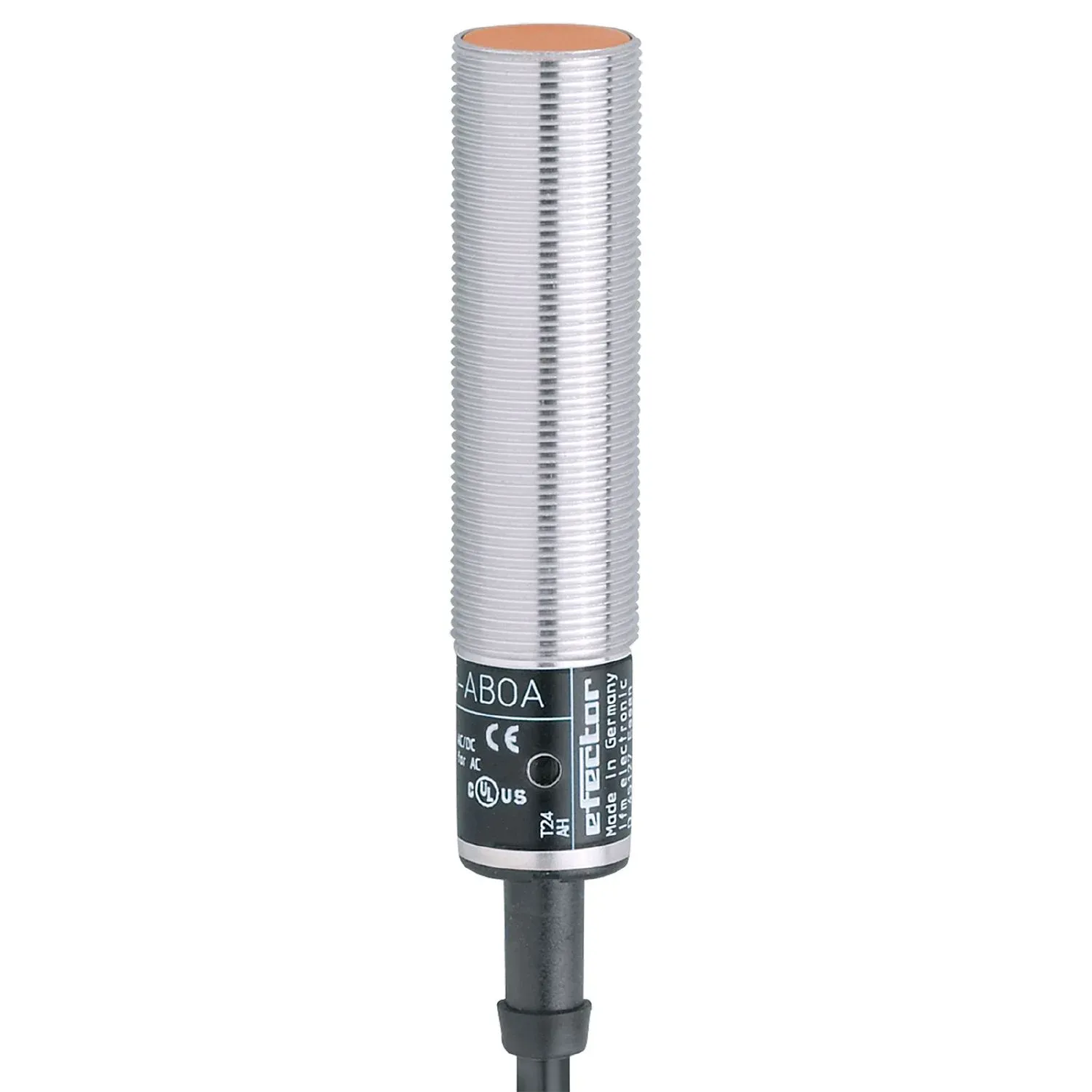

Robust stainless steel housing for use in harsh industrial environments
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
With highly flexible cable
Specification
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range[mm] [mm] | 5 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 80 |
Electrical data
| Operating voltage[V] [V] | 10...55 DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 4.6 |
| Minimum load current[mA] [mA] | 4 |
| Max. leakage current[mA] [mA] | 0.8 |
| Permanent current rating of switching output DC[mA] [mA] | 400 |
| Switching frequency DC[Hz] [Hz] | 700 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 5 |
|---|---|
| Real sensing range Sr[mm] [mm] | 5 ± 10 % |
| Operating distance[mm] [mm] | 0...4.05 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 1835 |
Mechanical data
| Weight[g] [g] | 319.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 80 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (316Ti/1.4571); PC |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 6 m, PUR / PVC; highly flexible; 2 x 0.5 mm² |
|---|
