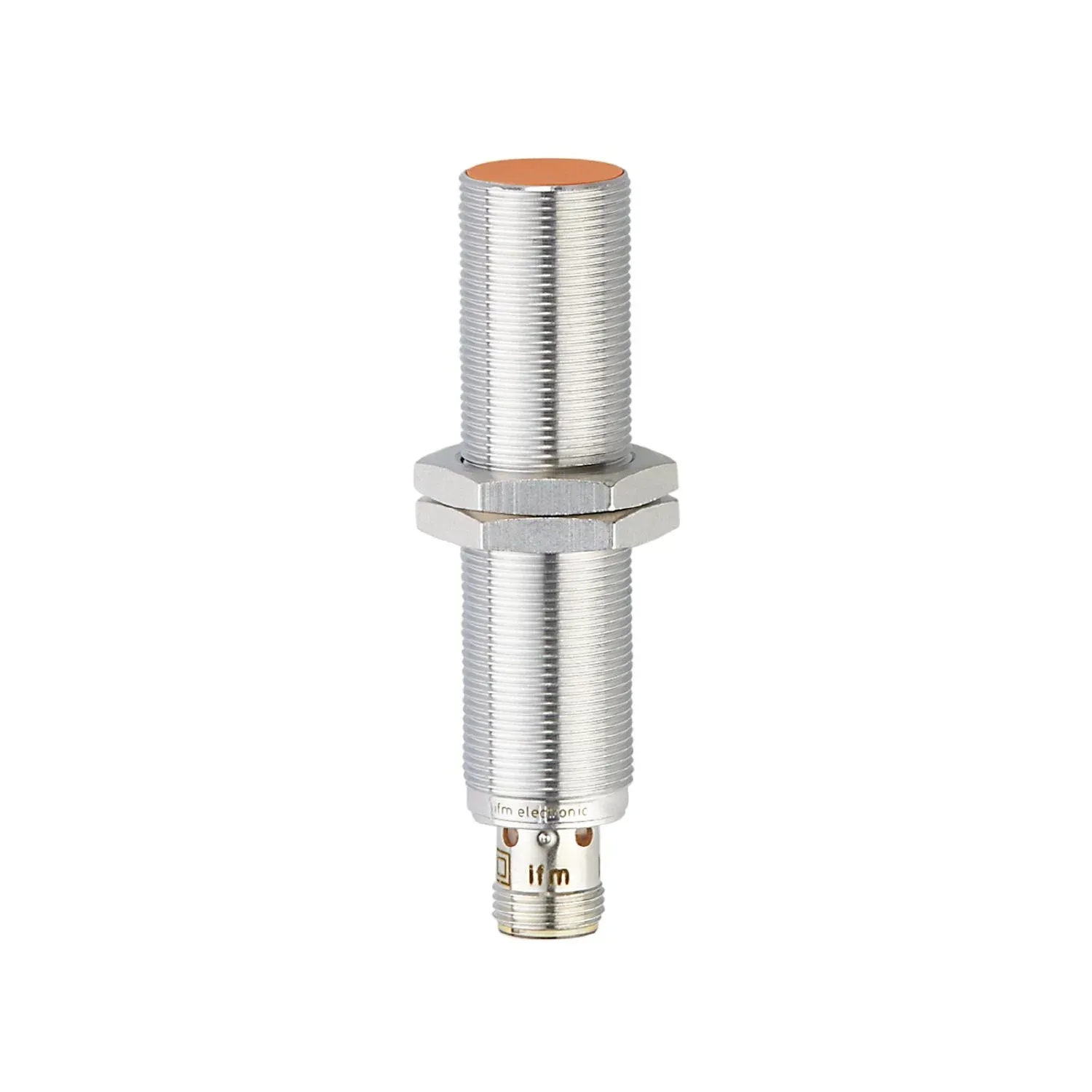

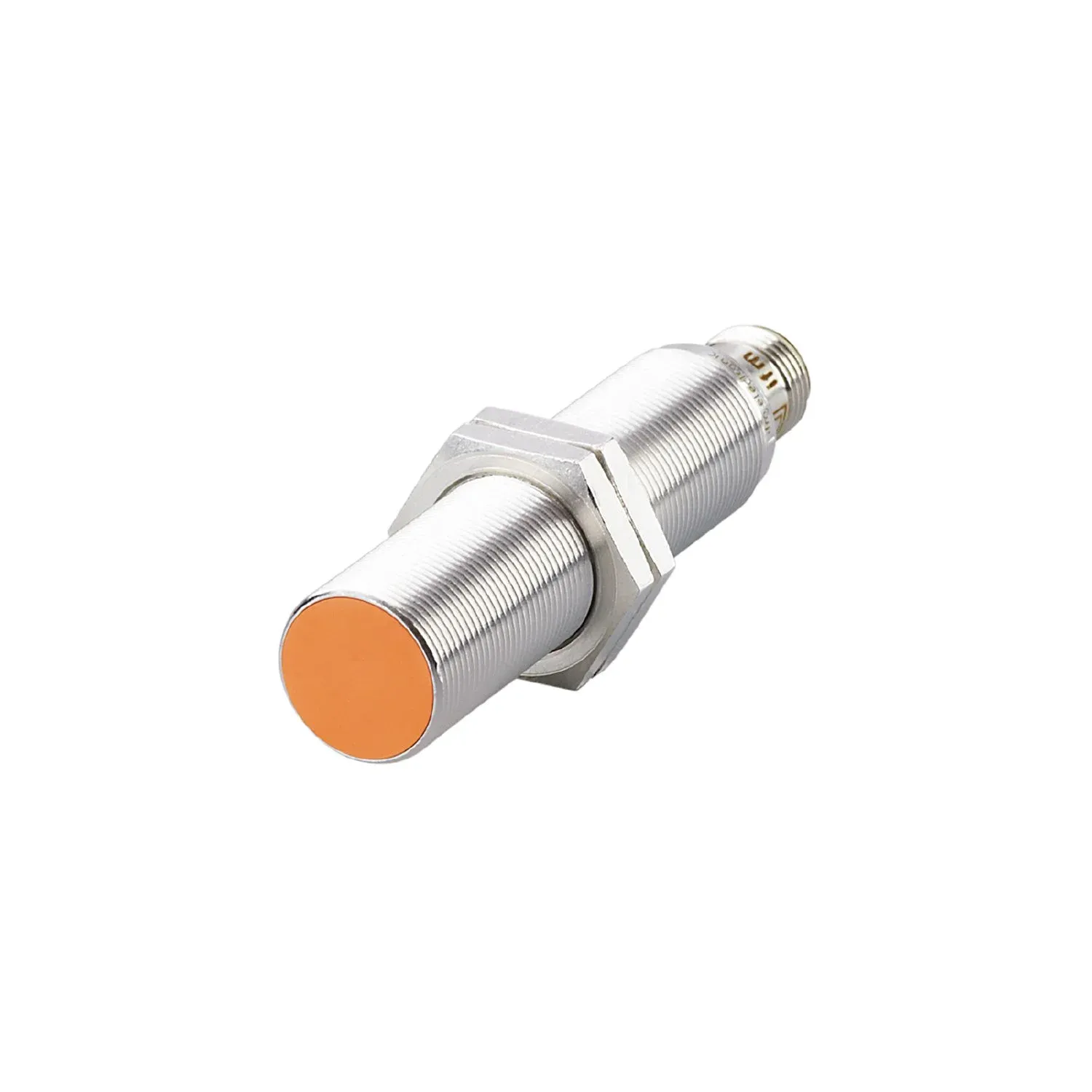

IFM IG5539
IG5539
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust metal housing for use in harsh industrial environments
Complementary output function NO/NC
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range[mm] [mm] | 5 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 80 |
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 10; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 400 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 5 |
|---|---|
| Real sensing range Sr[mm] [mm] | 5 ± 10 % |
| Operating distance[mm] [mm] | 0...4.05 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 3...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 1441 |
| Embedded software included | yes |
Mechanical data
| Weight[g] [g] | 71 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 80 |
| Thread designation | M18 x 1 |
| Materials | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: white bronze coated |
Displays / operating elements
| Display | switching status 4 x LED, yellow |
|---|---|
| switching status | 4 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug

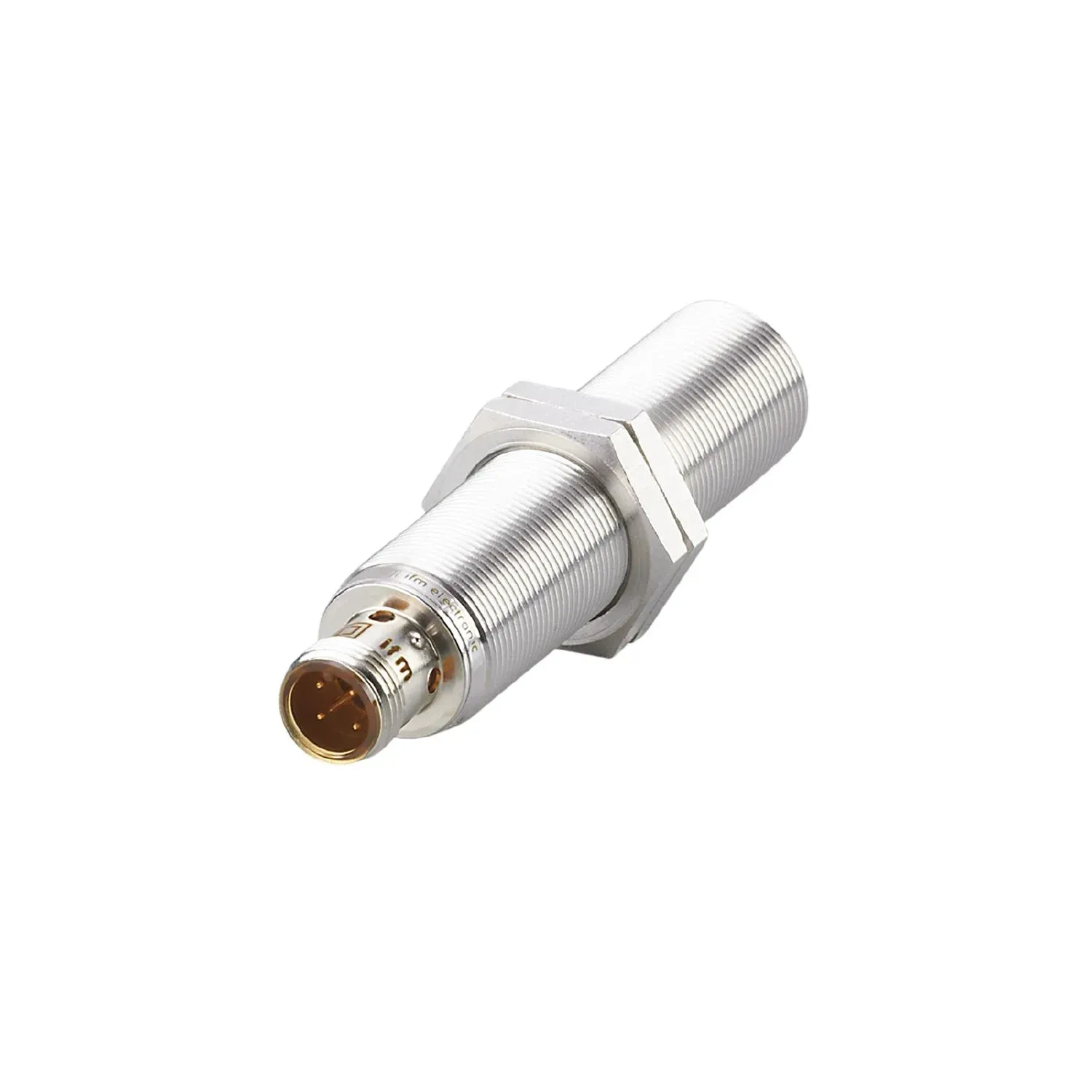

| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
