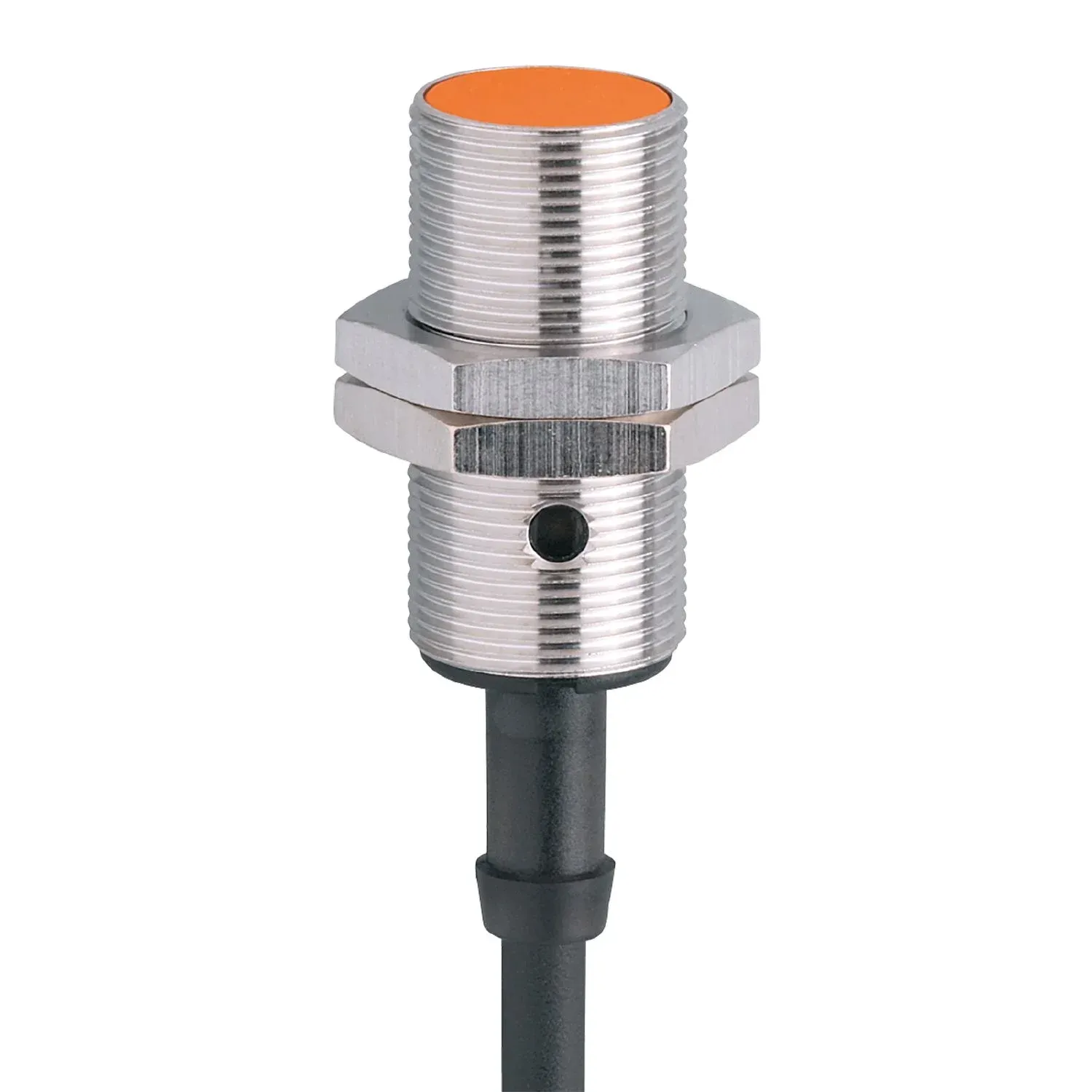

IFM IG5246
IG5246
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust metal housing for use in harsh industrial environments
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally closed |
| Sensing range[mm] [mm] | 5 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 38 |
Electrical data
| Operating voltage[V] [V] | 18...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15; (24 V) |
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally closed |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 125; (150 (...50 °C)) |
| Switching frequency DC[Hz] [Hz] | 500 |
| Short-circuit protection | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] [mm] | 5 |
|---|---|
| Real sensing range Sr[mm] [mm] | 5 ± 10 % |
| Operating distance[mm] [mm] | 0...4.05 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 3077 |
Mechanical data
| Weight[g] [g] | 137.8 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 38 |
| Thread designation | M18 x 1 |
| Materials | brass white bronze coated; PC |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 3 x 0.5 mm² |
|---|
