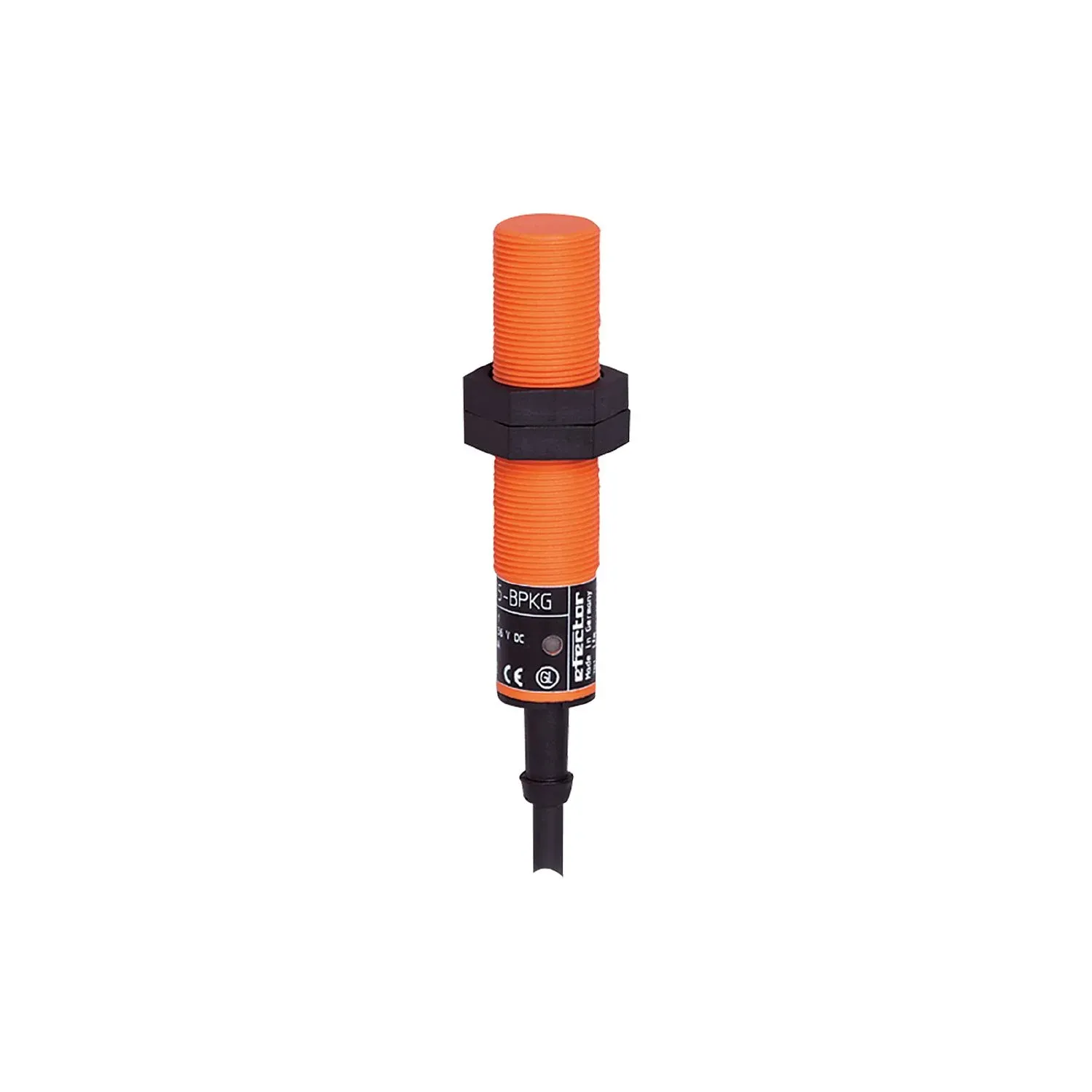

IFM IG0390
IG0390
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With combined AC/DC output and two-wire technology
Large operating voltage range
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
With silicone cable for use in high temperatures
Specification
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range[mm] [mm] | 8 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 80 |
Electrical data
| Operating voltage[V] [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 6 |
| Max. voltage drop switching output AC[V] [V] | 6.5 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC[mA] [mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-time current rating of switching output[mA] [mA] | 2200; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 25 |
| Switching frequency DC[Hz] [Hz] | 50 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] [mm] | 8 |
|---|---|
| Real sensing range Sr[mm] [mm] | 8 ± 10 % |
| Operating distance[mm] [mm] | 0...6.5 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...100 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 604 |
Mechanical data
| Weight[g] [g] | 124.4 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 80 |
| Thread designation | M18 x 1 |
| Materials | PBT |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 2 m, silicone; 2 x 0.75 mm² |
|---|
