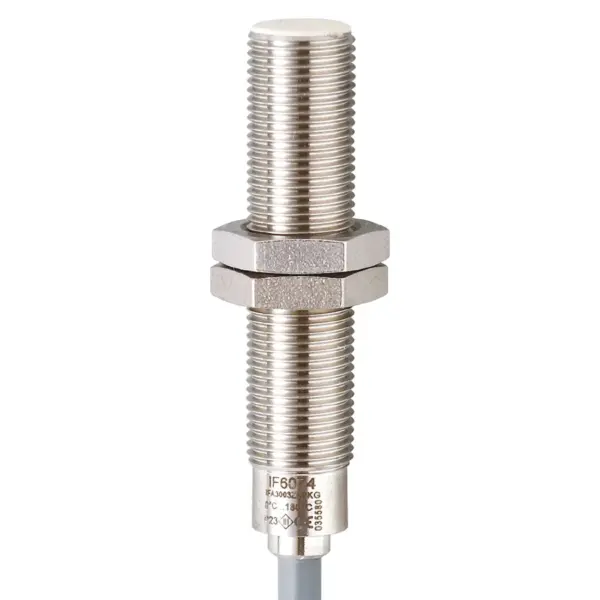

IFM IF6074
IF6074
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in high temperatures up to 150 °C
For use in the steel or glass industry
Sensor and evaluation unit in one housing
Robust stainless steel housing for use in harsh industrial environments
Long silicone cable terminals can be outside the critical area
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 3 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 56 |
Application
| Application | high-temperature applications |
|---|
Electrical data
| Operating voltage[V] [V] | 10...35 DC |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 120 |
| Switching frequency DC[Hz] [Hz] | 500 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 3 |
|---|---|
| Operating distance[mm] [mm] | 0...2.4 |
Accuracy / deviations
| Correction factor | stainless steel: 0.6 / brass: 0.3 / aluminium: 0.2 / copper: 0.1 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 3...15 |
| Switch point drift[% of Sr] [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...150 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 2 kV CD / 4 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V |
|---|---|
| EN 61000-4-2 ESD | 2 kV CD / 4 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| MTTF[years] [years] | 1273 |
Mechanical data
| Weight[g] [g] | 220.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M12 x 1 / L = 56 |
| Thread designation | M12 x 1 |
| Materials | threaded sleeve: stainless steel; sensing face: LCP |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, silicone; highly flexible; 3 x 0.22 mm² |
|---|
