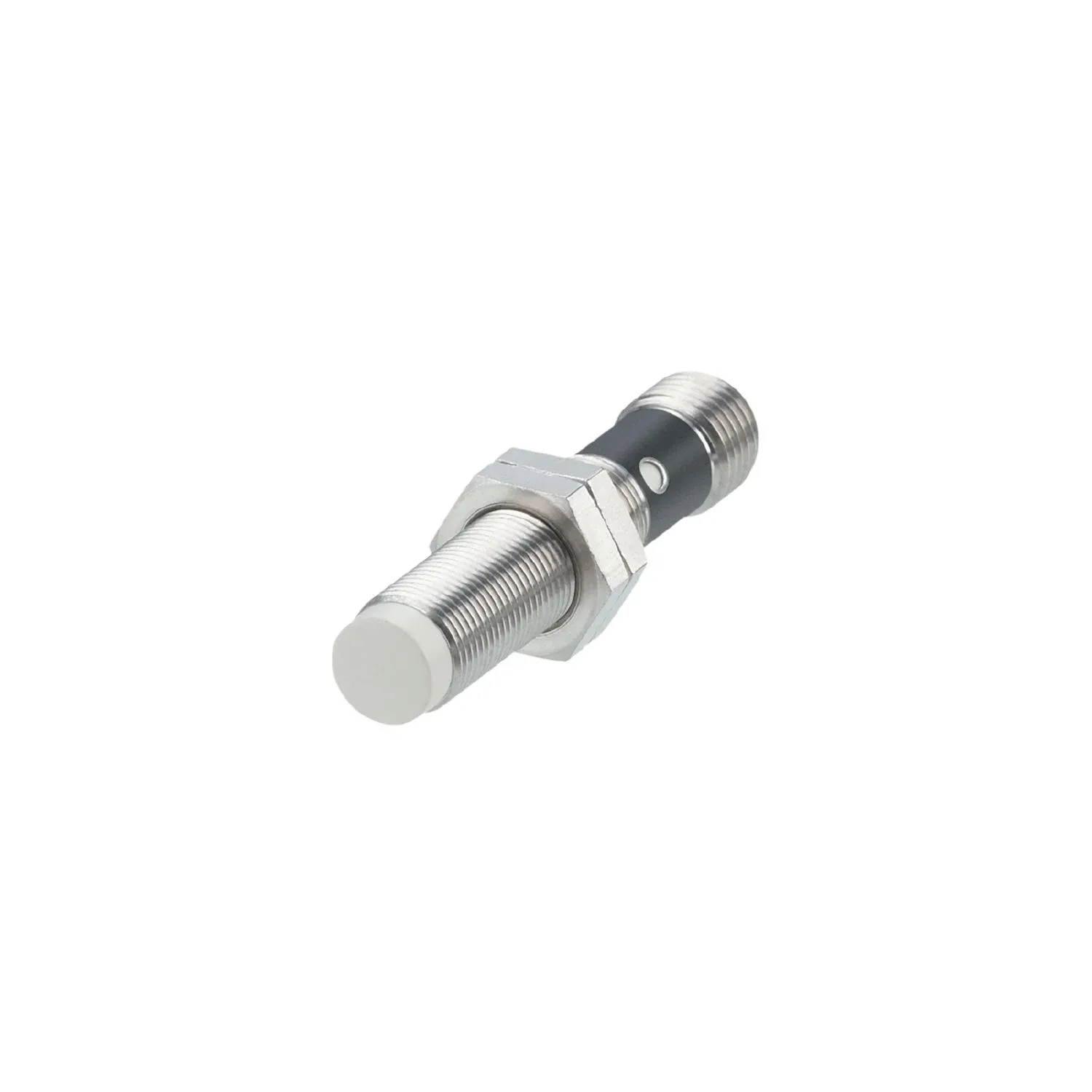

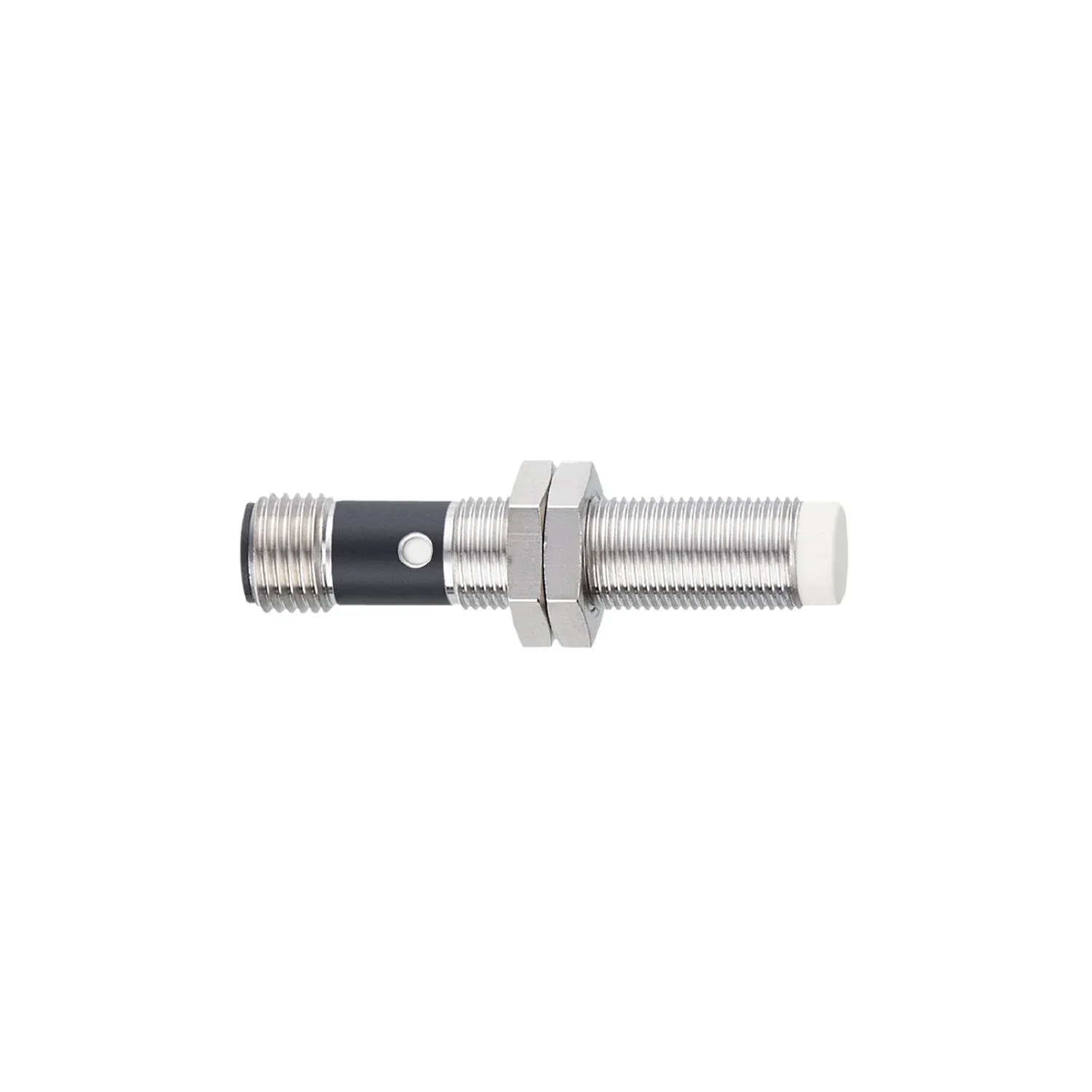

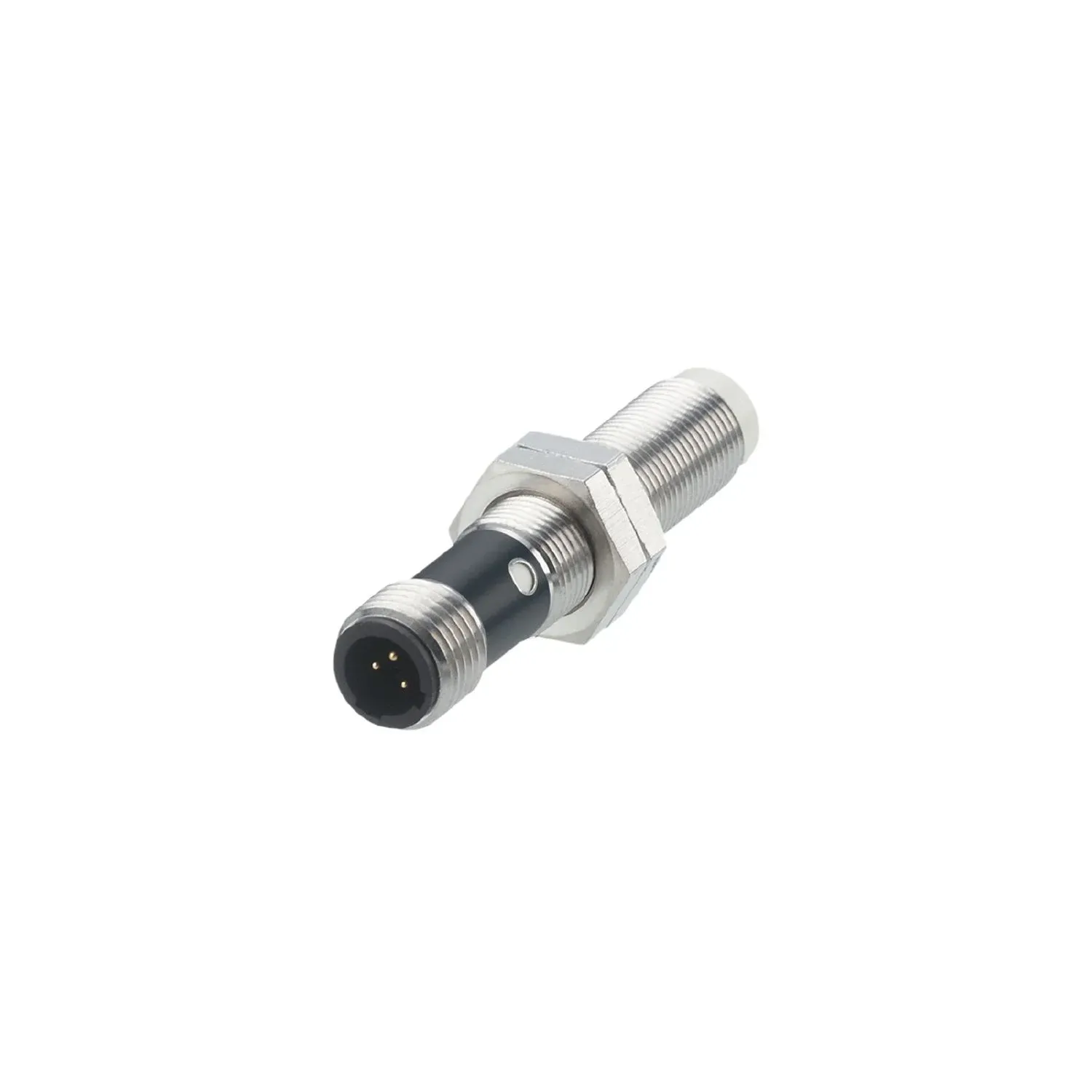

IFM IF0309
IF0309
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With combined AC/DC output stage
Large operating voltage range
Two-wire technology
Robust metal housing for use in harsh industrial environments
For a precise position detection on machines
Specification
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range[mm] [mm] | 4 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 62 |
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Operating voltage[V] [V] | 20...140 AC / 10...140 DC |
| Protection class | I |
| Reverse polarity protection | no |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 5 |
| Max. voltage drop switching output AC[V] [V] | 5 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 0.8 |
| Permanent current rating of switching output AC[mA] [mA] | 200 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Short-time current rating of switching output[mA] [mA] | 900; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 25 |
| Switching frequency DC[Hz] [Hz] | 90 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] [mm] | 4 |
|---|---|
| Real sensing range Sr[mm] [mm] | 4 ± 10 % |
| Operating distance[mm] [mm] | 0...3.25 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.45 / aluminium: 0.4 / copper: 0.33 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 3...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 6100-4-6 HF conducted 3 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 6100-4-6 HF conducted | 3 V |
| EN 55011 | class B |
| MTTF[years] [years] | 1257 |
| UL approval | Ta 0...40 °C Enclosure type Type 1 File number UL E174191 |
| Ta | 0...40 °C |
| Enclosure type | Type 1 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 28.2 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M12 x 1 / L = 62 |
| Thread designation | M12 x 1 |
| Materials | housing: brass white bronze coated; sensing face: PBT natural; LED window: PBT natural; lock nuts: brass white bronze coated |
| Tightening torque[Nm] [Nm] | A = 4 mm: 3,5 Nm; B: 5 Nm |
| Length[mm] [mm] | 62 |
Displays / operating elements
| Display | switching status 1 x LED, red |
|---|---|
| switching status | 1 x LED, red |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x 1/2"; coding: C |
|---|
