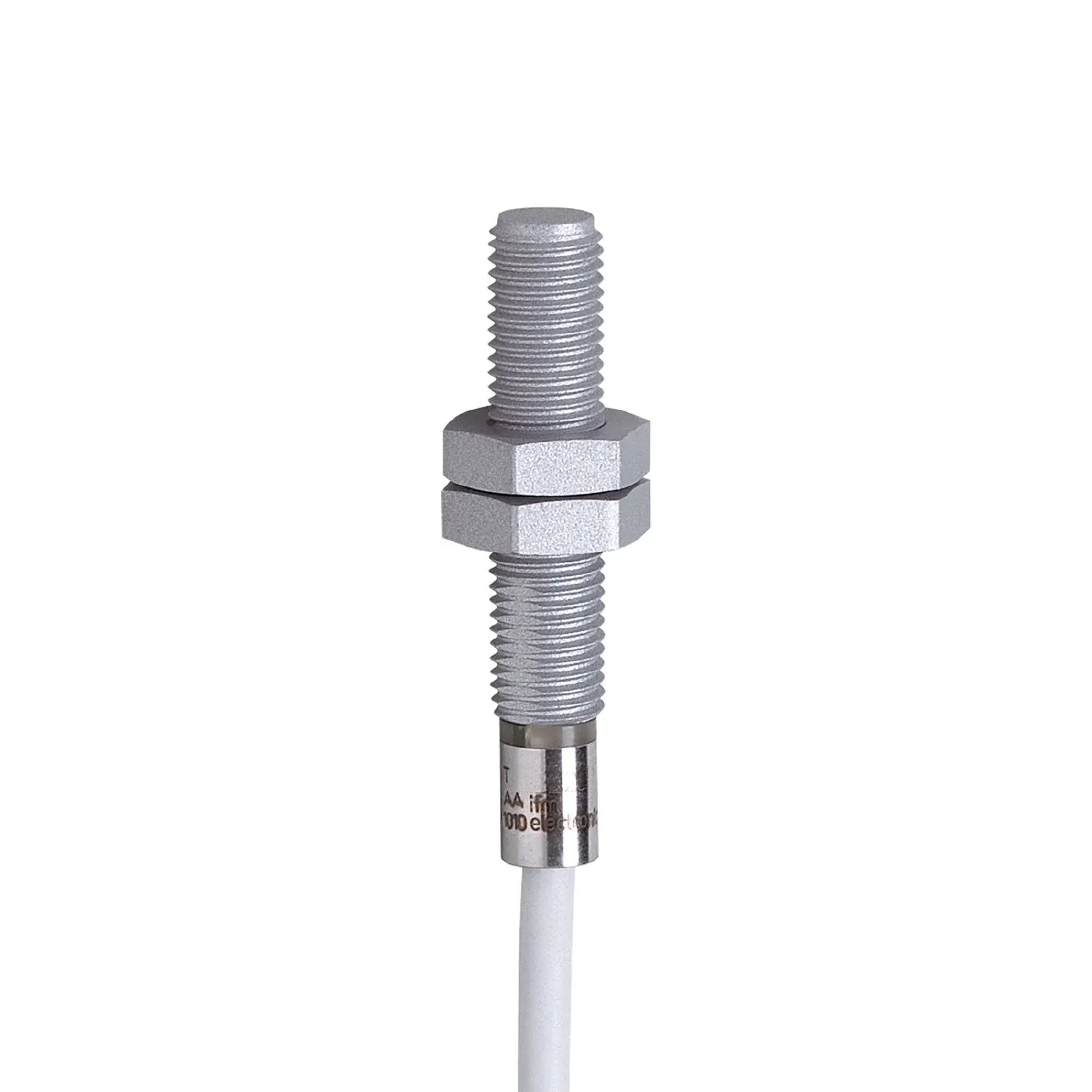

IFM IER204
IER204
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in machine tools and metalworking
Resistant to weld slag thanks to non-stick coating
Metal sensing face for heavy duty
Long sensing range for high uptime
Excellent price/performance ratio
Specification
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 2 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M8 x 1 / L = 45 |
Application
| Special feature | Increased sensing range; Full-metal housing; Optical setting aid |
|---|---|
| Application | Use in welding applications |
| Pressure rating[bar] [bar] | 50 |
| Note on pressure rating | sensing face |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Minimum load current[mA] [mA] | 2 |
| Max. leakage current[mA] [mA] | 0.75 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 150 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 2 |
|---|---|
| Operating distance[mm] [mm] | 0...1.6 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.6 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| Impact resistance | 1 J |
| MTTF[years] [years] | 1384 |
| UL approval | Ta 0...40 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191 |
| Ta | 0...40 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 73 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M8 x 1 / L = 45 |
| Thread designation | M8 x 1 |
| Materials | housing: stainless steel (316L/1.4404) anti-spatter; sensing face: stainless steel (316L/1.4404) anti-spatter; lock nuts: stainless steel (316L/1.4404) anti-spatter |
| Full-metal housing | yes |
Displays / operating elements
| Display | switching status 1 x LED, green setting aid 1 x LED, red |
|---|---|
| switching status | 1 x LED, green |
| setting aid | 1 x LED, red |
| Optical setting aid | yes |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 3 m, PUR; 2 x 0.34 mm² |
|---|
