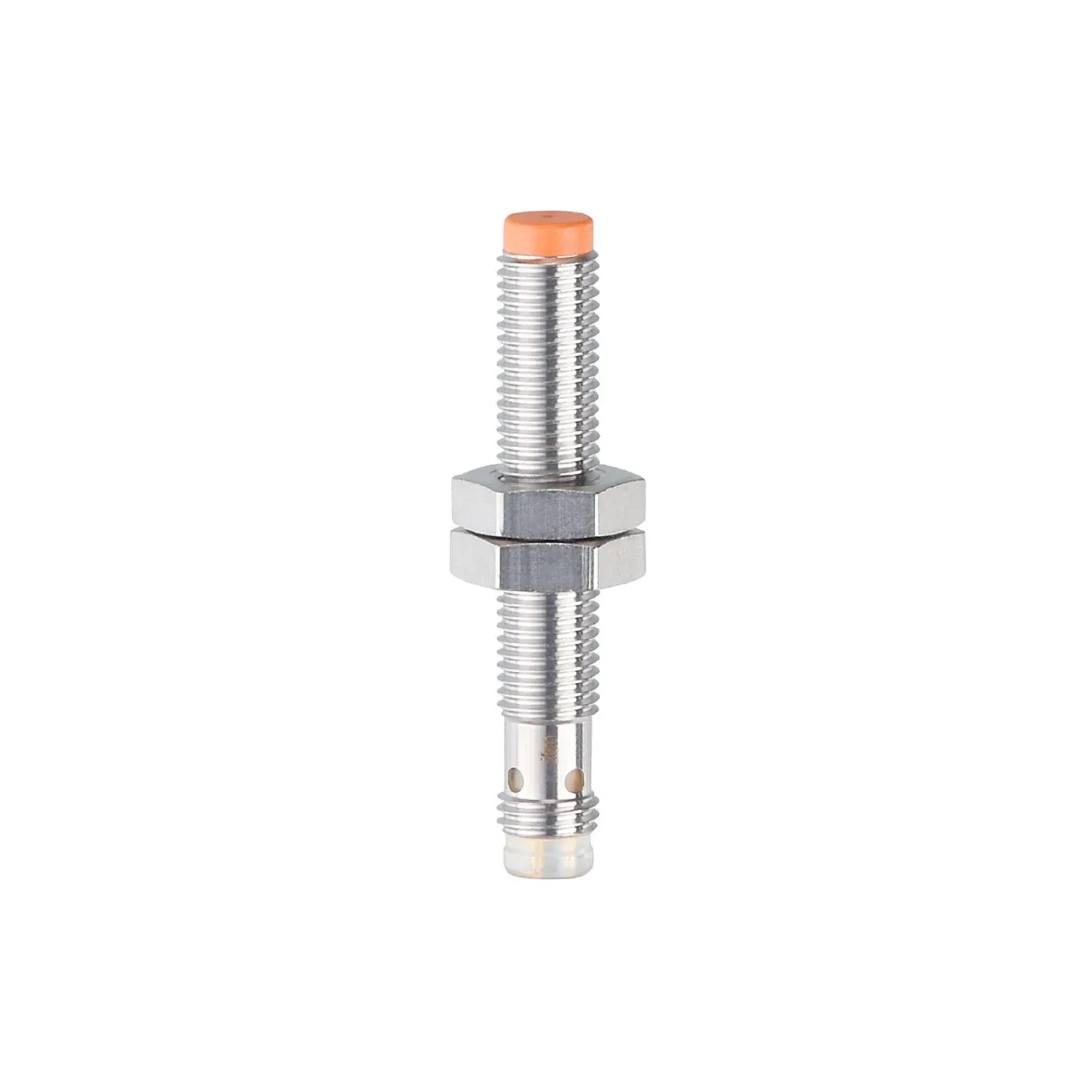

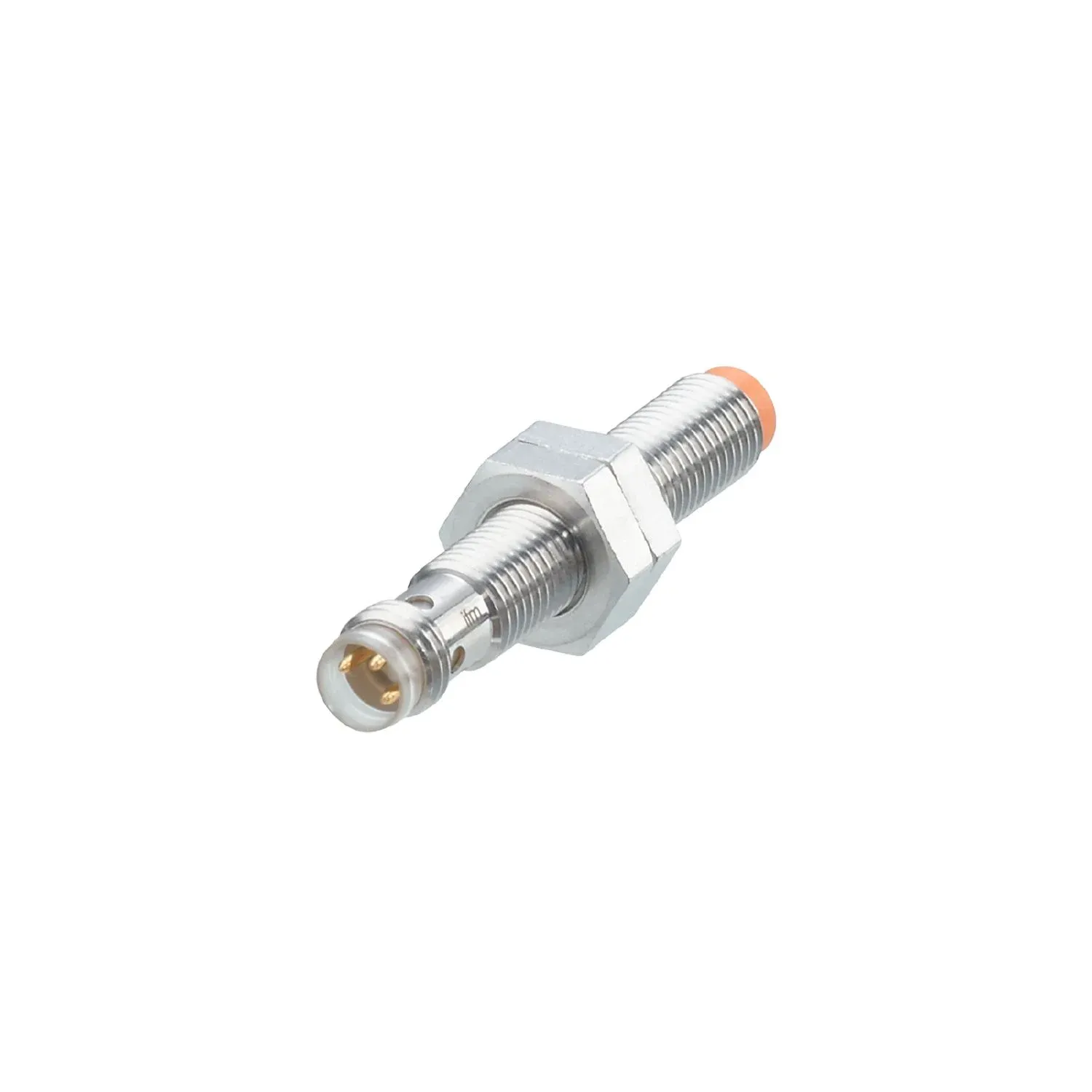

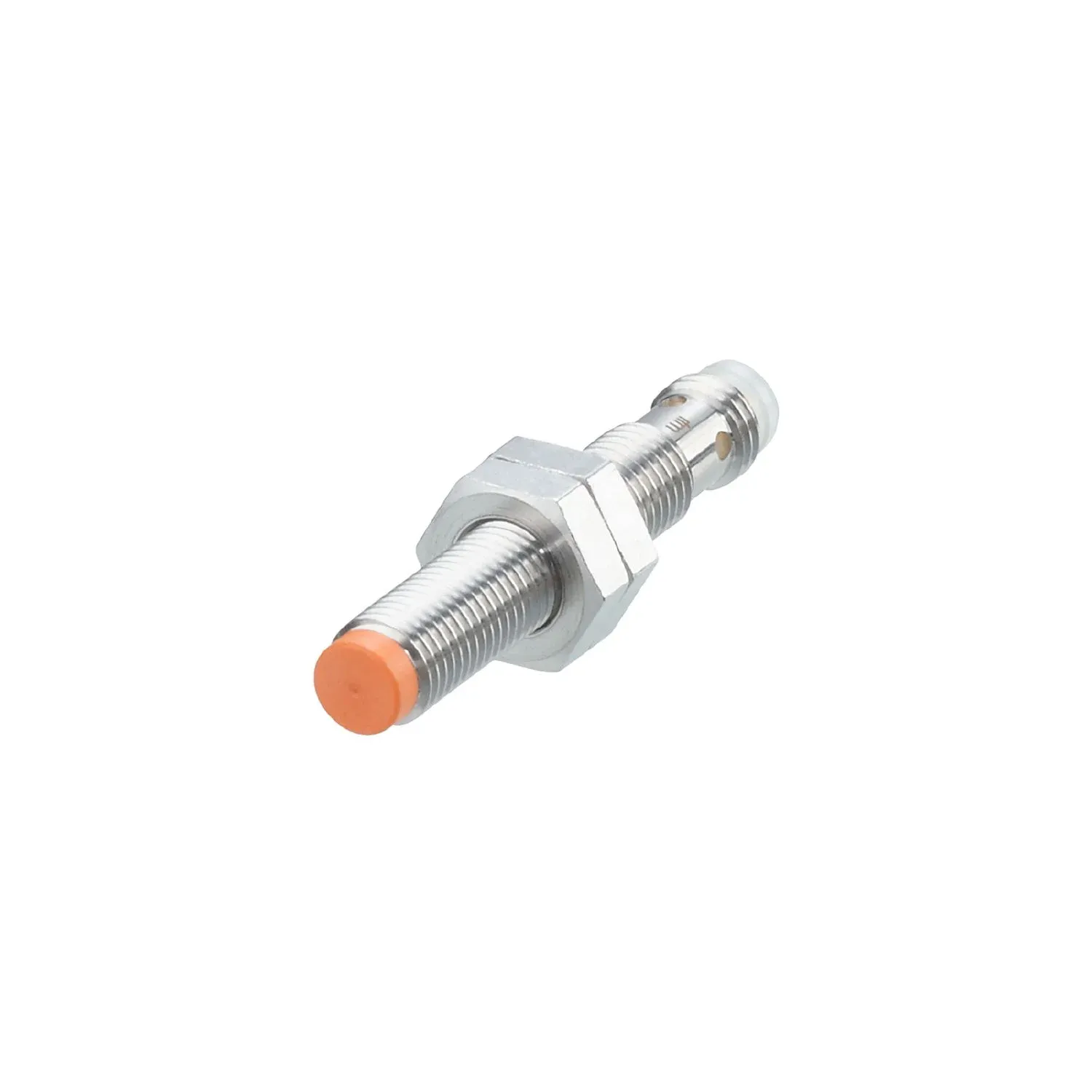

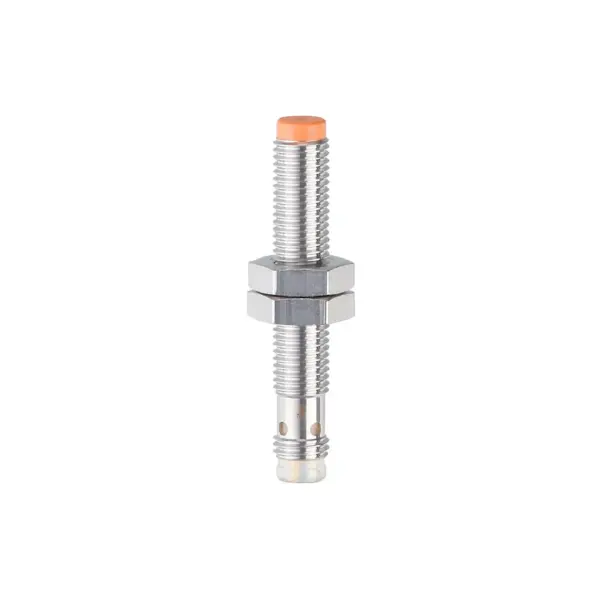

IFM IE5292
IE5292
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly space-saving design
For use where space is restricted
Robust metal housing for use in harsh industrial environments
With space-saving M8 connector
Very high switching frequency
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 2.5 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M8 x 1 / L = 50 |
Application
| Special feature | Increased sensing range |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 1200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 2.5 |
|---|---|
| Real sensing range Sr[mm] [mm] | 2.5 ± 10 % |
| Operating distance[mm] [mm] | 0...2.03 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...20 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...80 |
|---|---|
| Protection | IP 65; IP 67; (with ifm socket duly screwed on) |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 emission class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 emission | class B |
| MTTF[years] [years] | 1376 |
| Embedded software included | yes |
| UL approval | Ta 0...80 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. A017 File number UL E174191 |
| Ta | 0...80 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | A017 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 18 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M8 x 1 / L = 50 |
| Thread designation | M8 x 1 |
| Materials | stainless steel (316L/1.4404); cover: LCP; LED window: PPSU; potting: oil resistant; lock nuts: stainless steel (316 / 1.4401) |
| Tightening torque[Nm] [Nm] | A = 5 mm: 2 Nm; B = 5 Nm |
Displays / operating elements
| Display | switching status 4 LED, yellow |
|---|---|
| switching status | 4 LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M8; coding: A |
|---|
