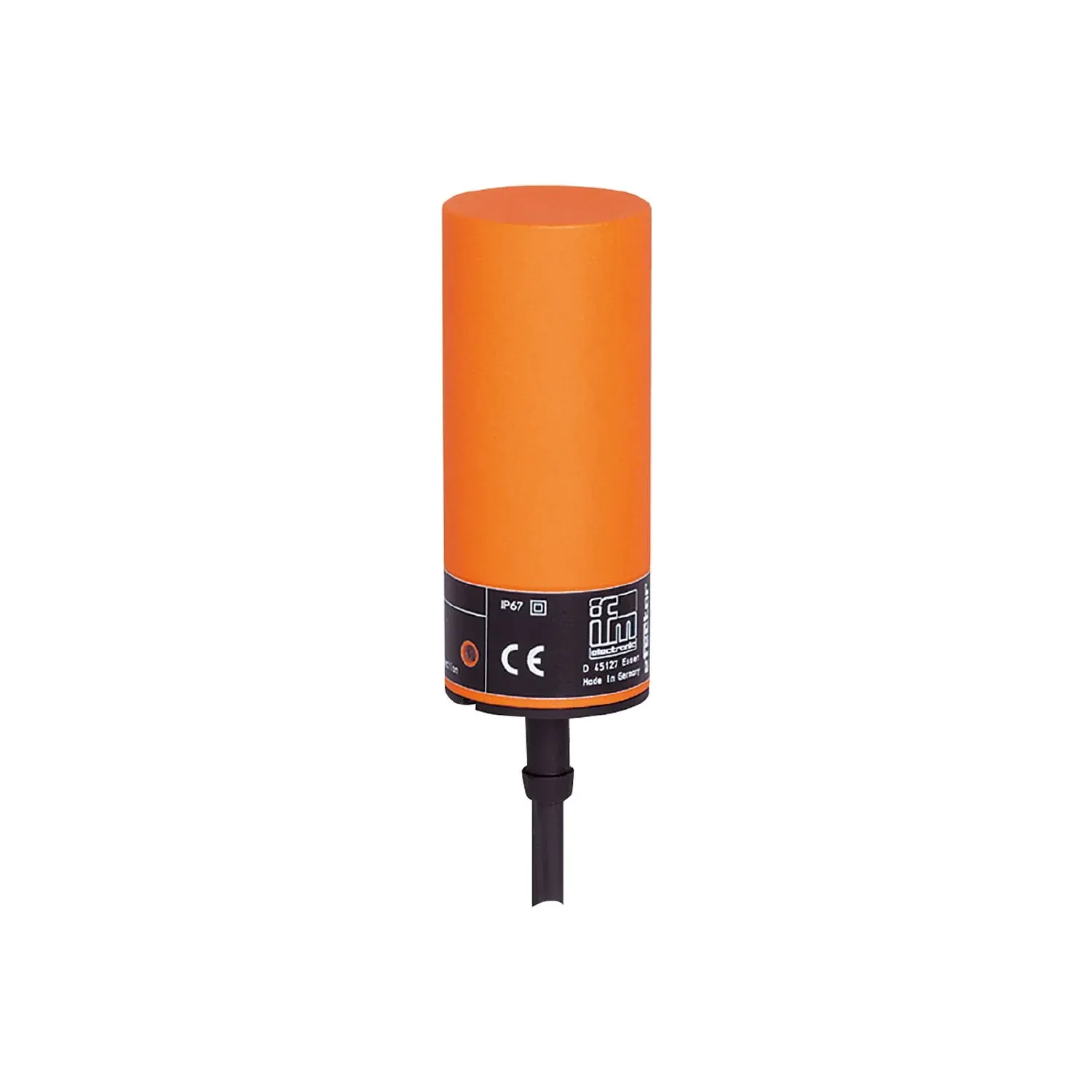

IFM IB8504
IB8504
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Output function normally open / normally closed programmable
Very long sensing range
With robust M12 connector
Smooth plastic housing to protect against deposits
PBT housing resistant against pickling solutions
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 27 |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 34 / L = 82 |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 3 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Short-time current rating of switching output[mA] [mA] | 400 |
| Switching frequency DC[Hz] [Hz] | 20 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 27 |
|---|---|
| Real sensing range Sr[mm] [mm] | 27 ± 10 % |
| Operating distance[mm] [mm] | 0...21.87 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -30...50 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 1194 |
Mechanical data
| Weight[g] [g] | 189 |
|---|---|
| Housing | cylindrical |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | Ø 34 / L = 82 |
| Materials | PBT |
Displays / operating elements
| Display | switching status 1 x LED, red |
|---|---|
| switching status | 1 x LED, red |
Accessories
| Items supplied | Mounting clamps: 1 |
|---|
Remarks
| Remarks | Reprogramming allows the output of the switch to be monitored in the monitor mode. Note: The switch holds no approval as a fail-safe switch. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Cable | 0.152 m, PVC; 3 x 0.5 mm² |
|---|---|
| Connector | 1 x M12; coding: A |
