IFM IB5169
IB5169
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Output function normally open / normally closed programmable
Two-wire technology
With robust M12 connector
Smooth plastic housing to protect against deposits
PBT housing resistant against pickling solutions
Specification
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 20 |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 34 / L = 95 |
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 4.6 |
| Minimum load current[mA] [mA] | 4 |
| Max. leakage current[mA] [mA] | 1 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 20 |
|---|---|
| Real sensing range Sr[mm] [mm] | 20 ± 10 % |
| Operating distance[mm] [mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 1941 |
Mechanical data
| Weight[g] [g] | 226 |
|---|---|
| Housing | cylindrical |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | Ø 34 / L = 95 |
| Materials | housing: PBT; sensing face: PBT orange; clamp: PBT black |
Displays / operating elements
| Display | switching status 4 x 90° LED, yellow |
|---|---|
| switching status | 4 x 90° LED, yellow |
Accessories

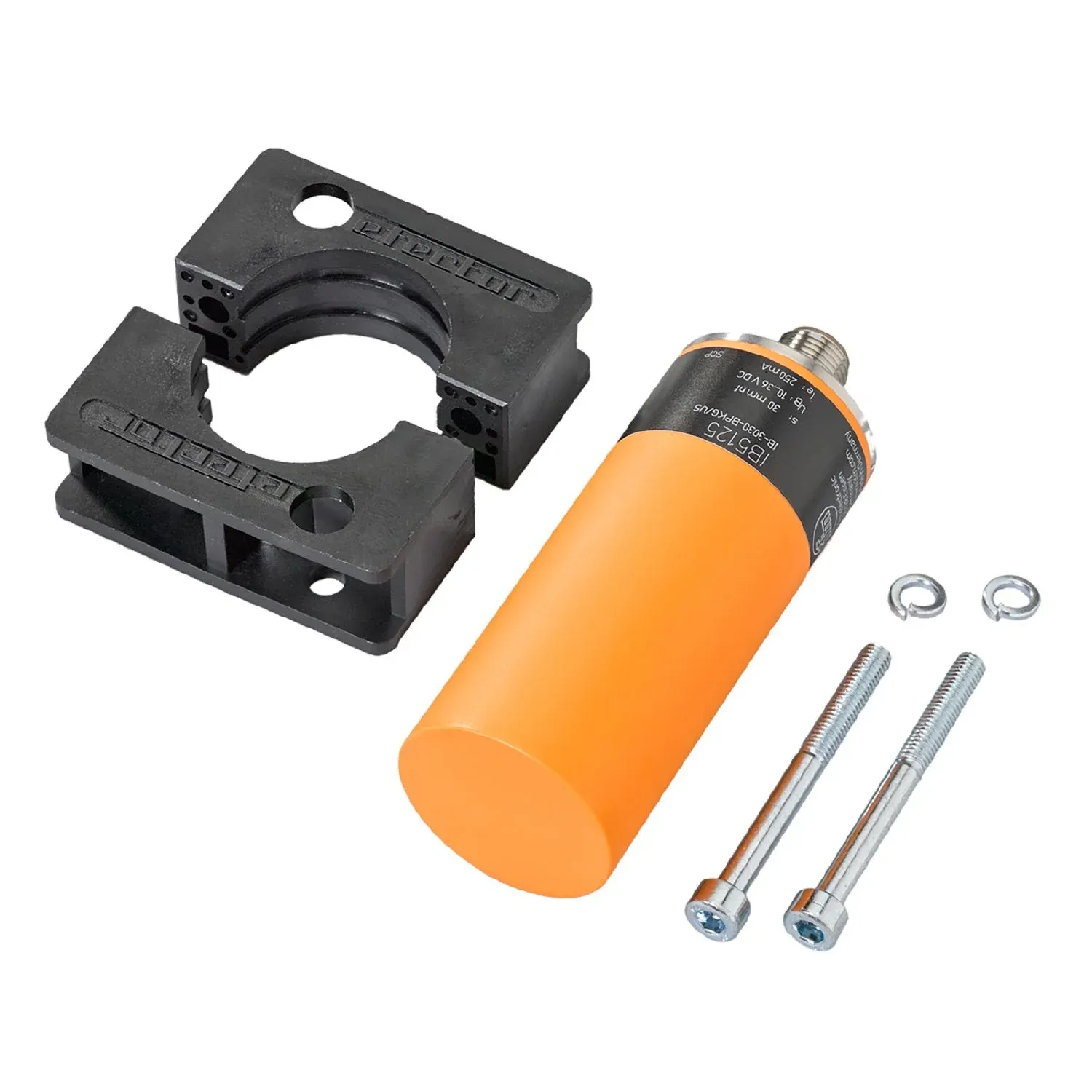

| Items supplied | Mounting clamps: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Locking: brass, anti-spatter; Contacts: gold-plated |
|---|
