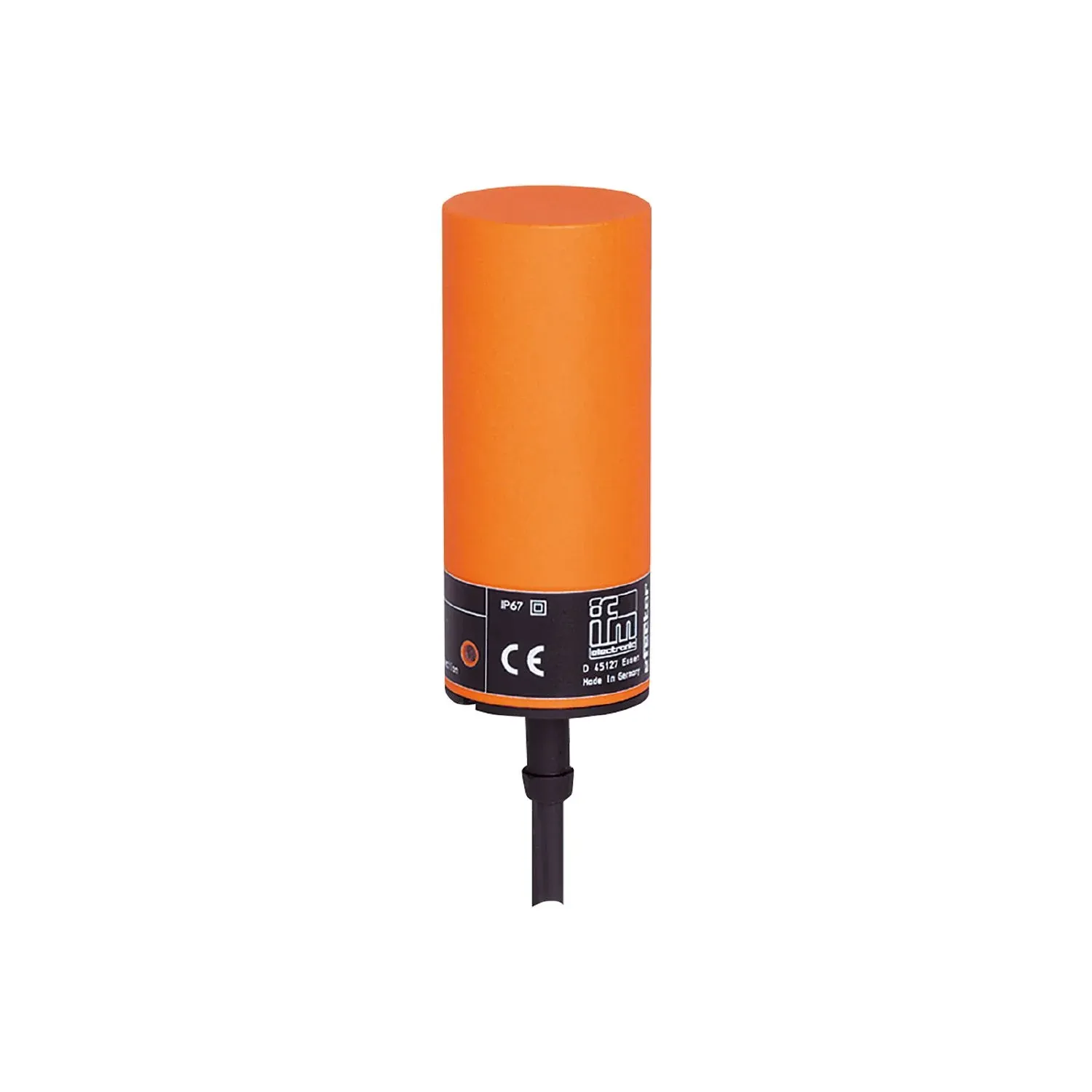

IFM IB5163
IB5163
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long sensing range
Smooth plastic housing to protect against deposits
PBT housing resistant against pickling solutions
For applications in pickling lines
With PVC cable
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 27 |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 34 / L = 82 |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 3 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Short-time current rating of switching output[mA] [mA] | 400 |
| Switching frequency DC[Hz] [Hz] | 20 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 27 |
|---|---|
| Real sensing range Sr[mm] [mm] | 27 ± 10 % |
| Operating distance[mm] [mm] | 0...21.87 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -30...50 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 1194 |
Mechanical data
| Weight[g] [g] | 257.5 |
|---|---|
| Housing | cylindrical |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | Ø 34 / L = 82 |
| Materials | PBT |
Displays / operating elements
| Display | switching status 1 x LED, red |
|---|---|
| switching status | 1 x LED, red |
Accessories
| Items supplied | Mounting clamps: 1 |
|---|
Remarks
| Remarks | Reprogramming allows the output of the switch to be monitored in the monitor mode. Note: The switch holds no approval as a fail-safe switch. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 2 m, PVC; 4 x 0.34 mm² |
|---|
