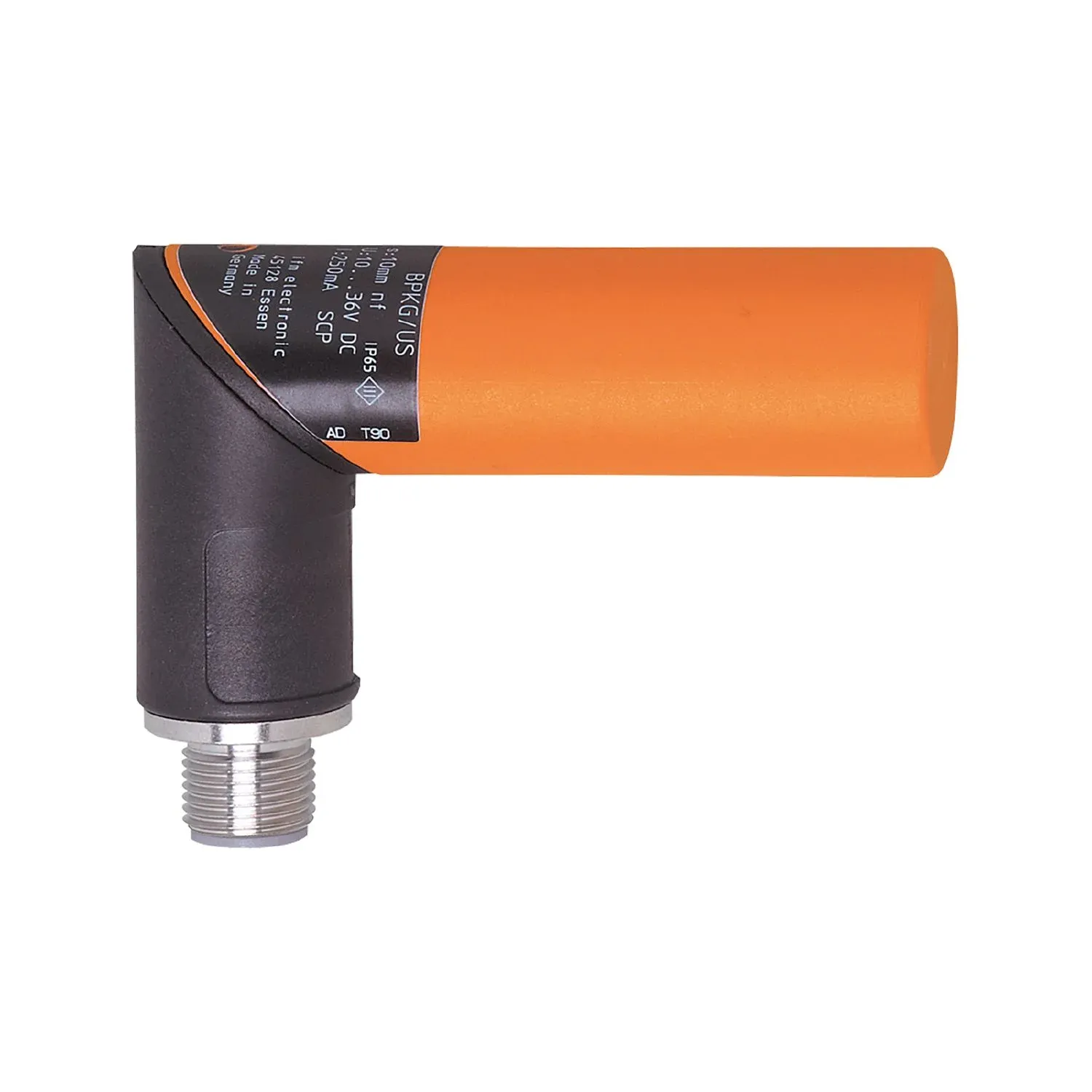

IFM IA5136
IA5136
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Smooth plastic housing to protect against deposits
PBT housing resistant against pickling solutions
With connector that can be rotated by 90°
Clearly visible indication of the switching status
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally closed |
| Sensing range[mm] [mm] | 10 |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 20 / L = 72 |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally closed |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 10 |
|---|---|
| Real sensing range Sr[mm] [mm] | 10 ± 10 % |
| Operating distance[mm] [mm] | 0...8.1 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 3 V EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 3 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | - CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 | class B |
| MTTF[years] [years] | 1076 |
Mechanical data
| Weight[g] [g] | 99 |
|---|---|
| Housing | cylindrical |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | Ø 20 / L = 72 |
| Materials | PBT; LED window: PC |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | Mounting clamps: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
