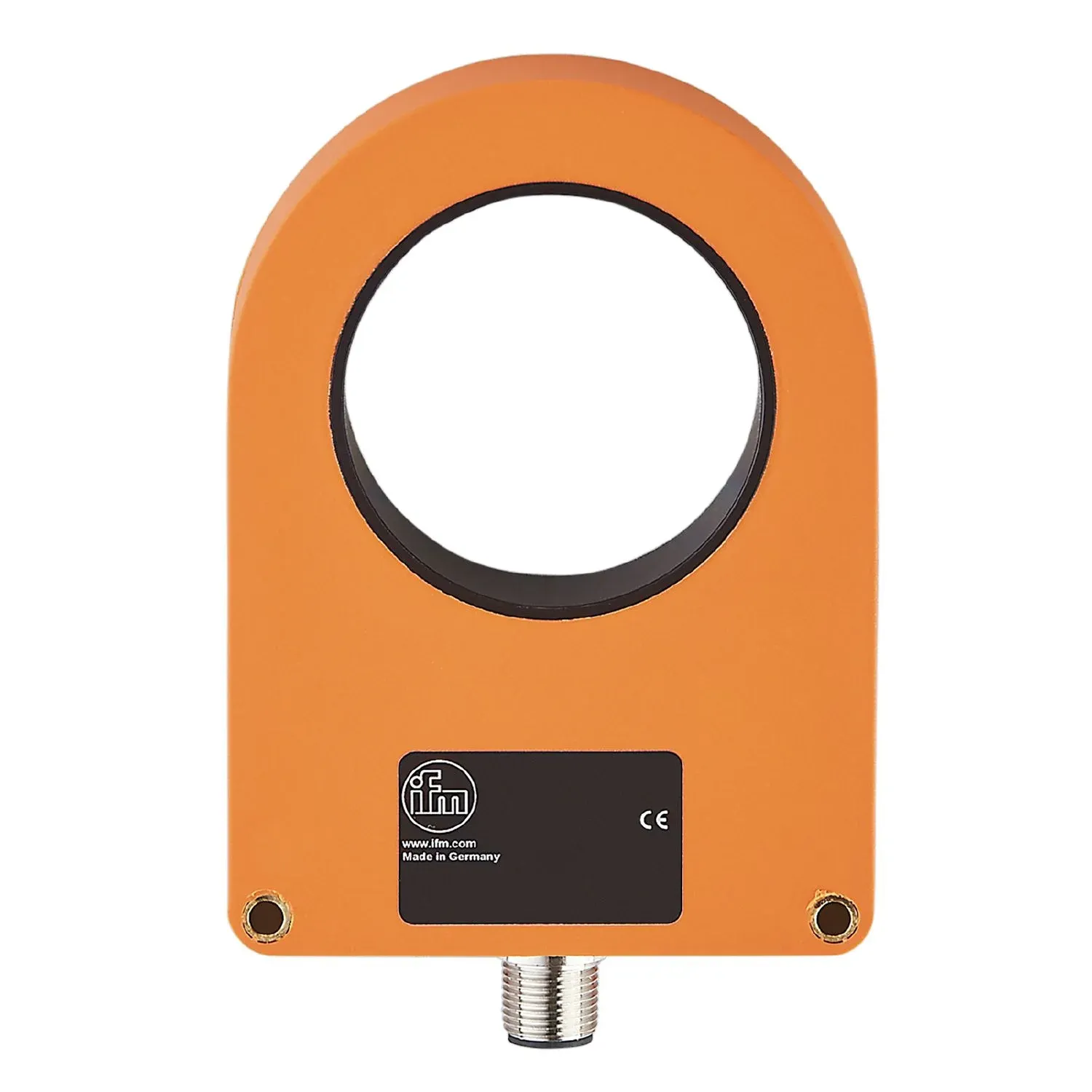

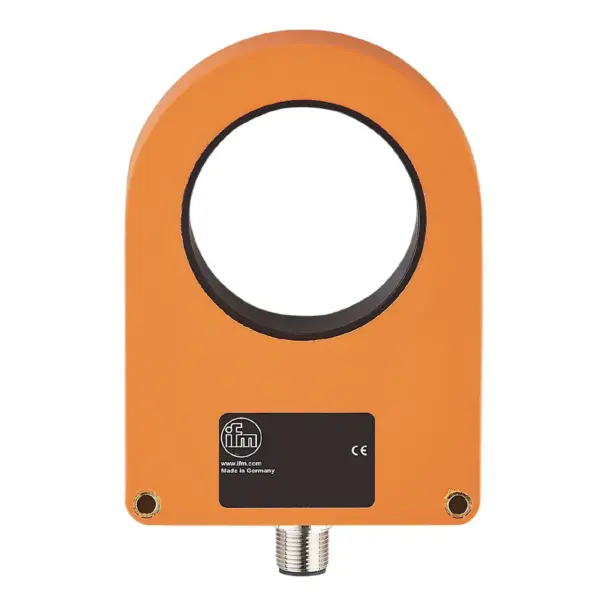

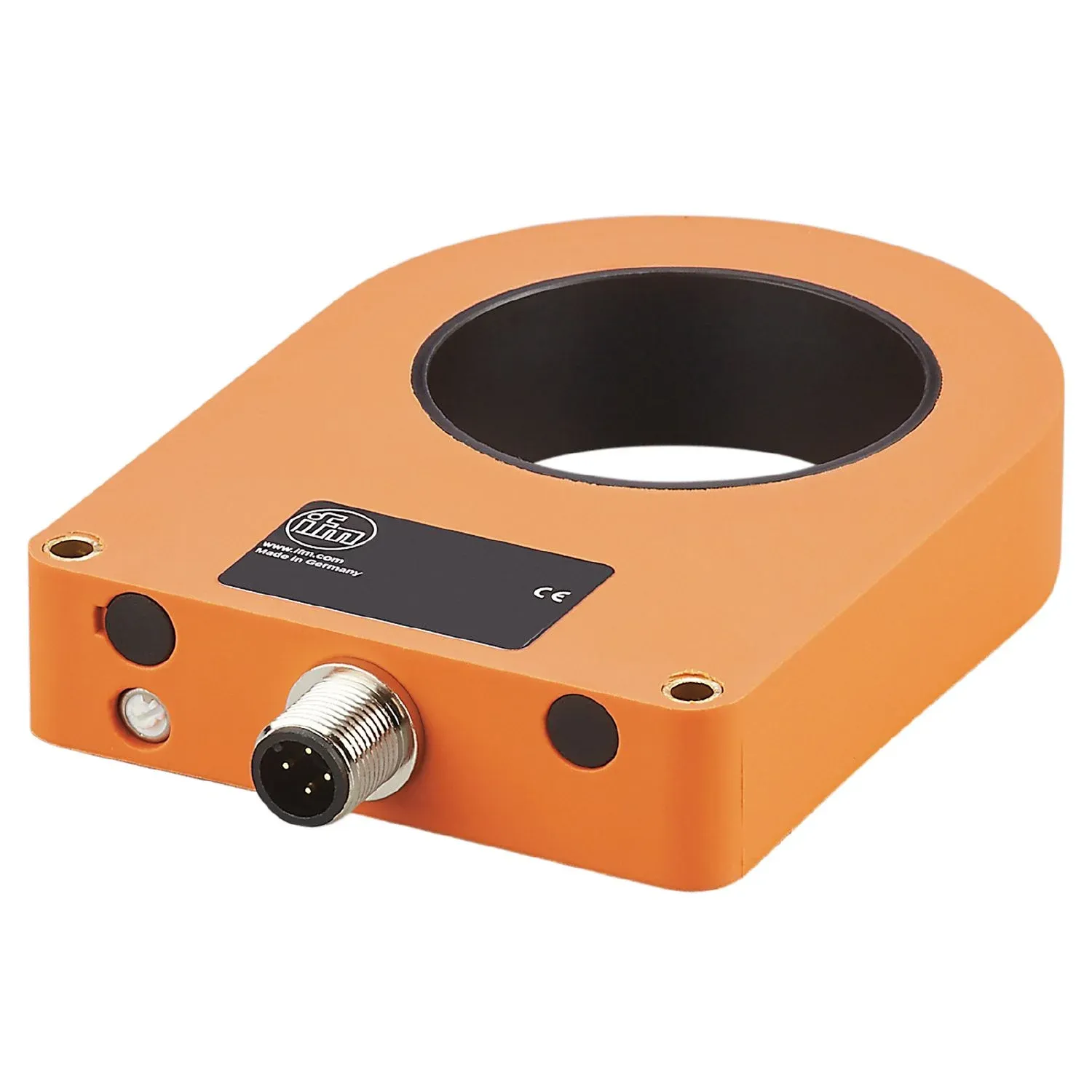

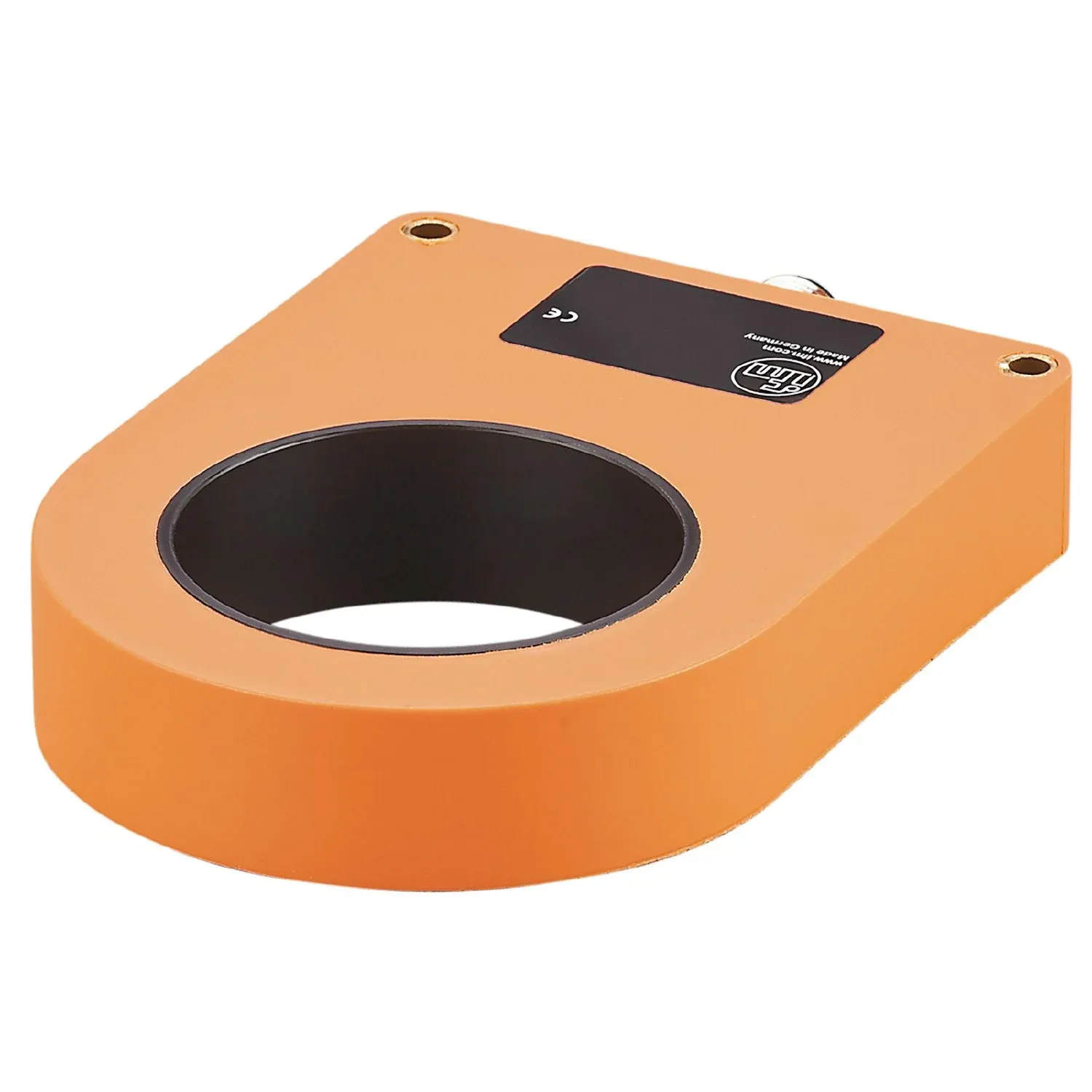

IFM I7R217
I7R217
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Static operating principle
Reliable detection of objects with very small diameters
Very short response time
Easy adjustment of pulse stretching and sensitivity via potentiometer
Output function normally open / normally closed programmable
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Housing | circular |
| Dimensions[mm] [mm] | 110 x 80 x 20 |
Application
| Operating principle | static |
|---|
Electrical data
| Operating voltage[V] [V] | 10...35 DC |
|---|---|
| Current consumption[mA] [mA] | < 11 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Resolution of steel ball (diameter)[mm] [mm] | 6 |
|---|---|
| Max. part speed[m/s] [m/s] | 35 |
Response times
| Pulse stretching[ms] [ms] | 10...150 |
|---|---|
| Pulse stretching adjustable | yes |
| Max. fall time[ms] [ms] | 10 |
| Response time[ms] [ms] | < 0.5 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| MTTF[years] [years] | 646 |
|---|---|
| UL approval | Ta -25...70 °C Enclosure type Type 4X (indoor use only) / 12 and 13 power supply Class 2 File number UL E174191 |
| Ta | -25...70 °C |
| Enclosure type | Type 4X (indoor use only) / 12 and 13 |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 226.5 |
|---|---|
| Housing | circular |
| Dimensions[mm] [mm] | 110 x 80 x 20 |
| Inside diameter[mm] [mm] | 51 |
| Materials | housing: PA; ring: POM |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
