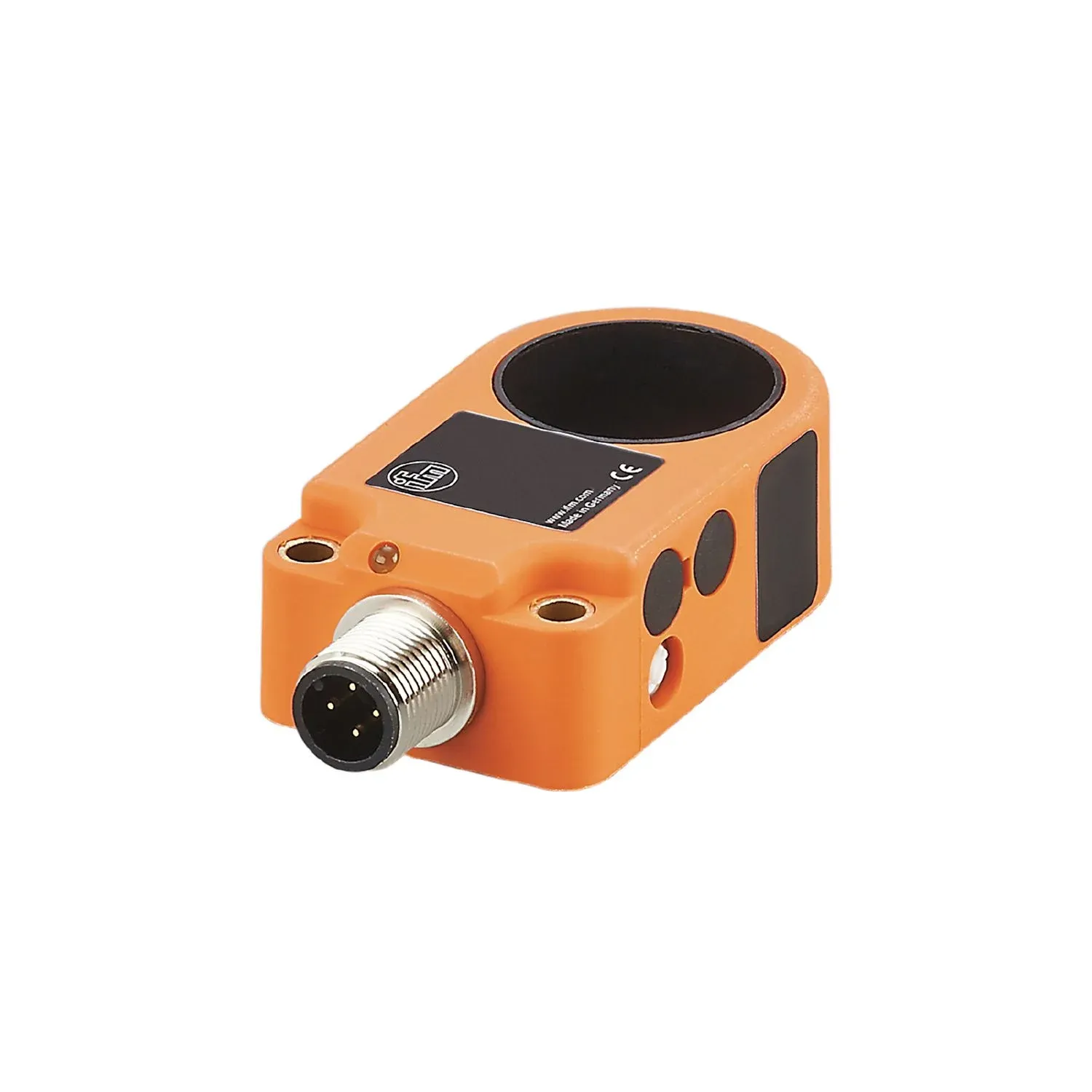

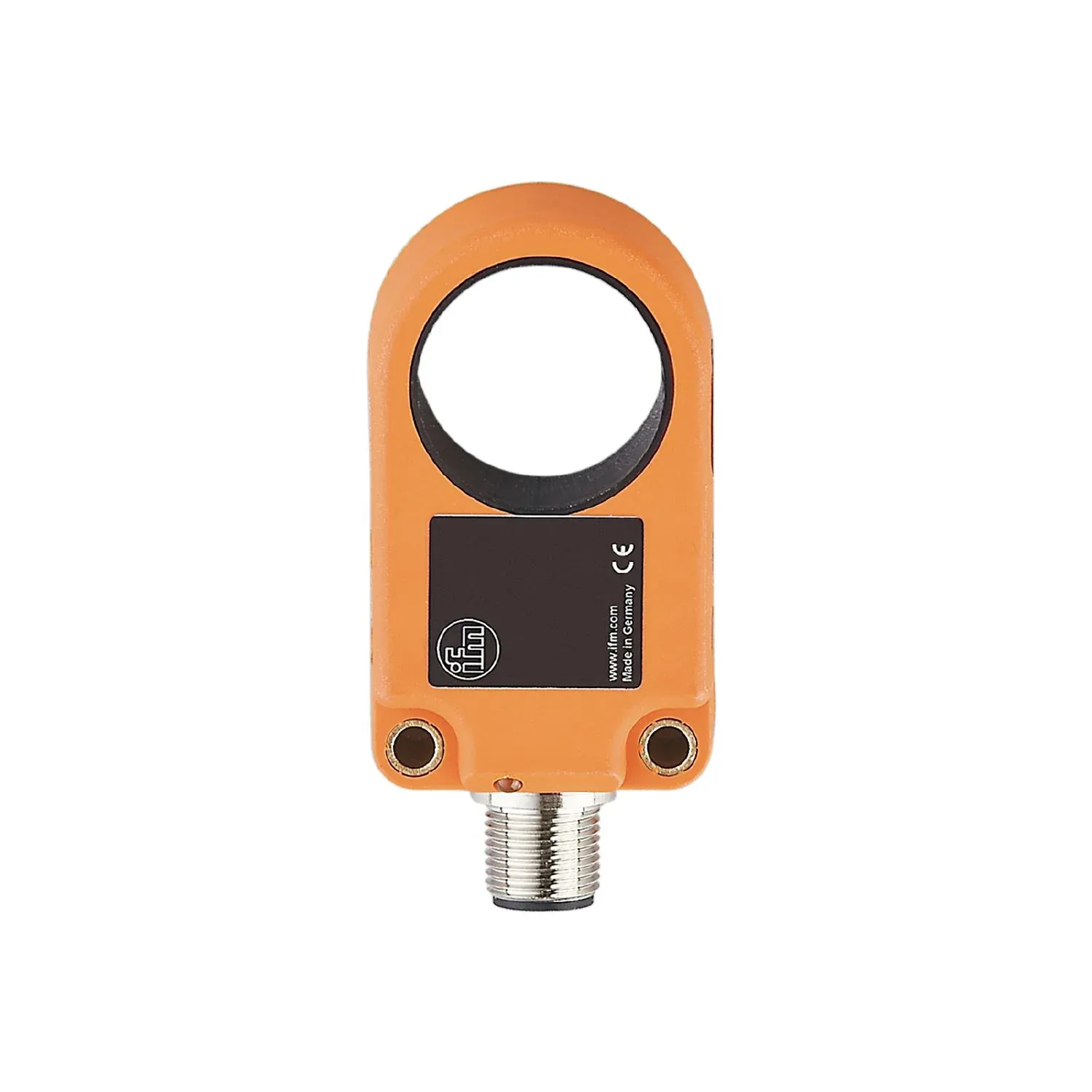

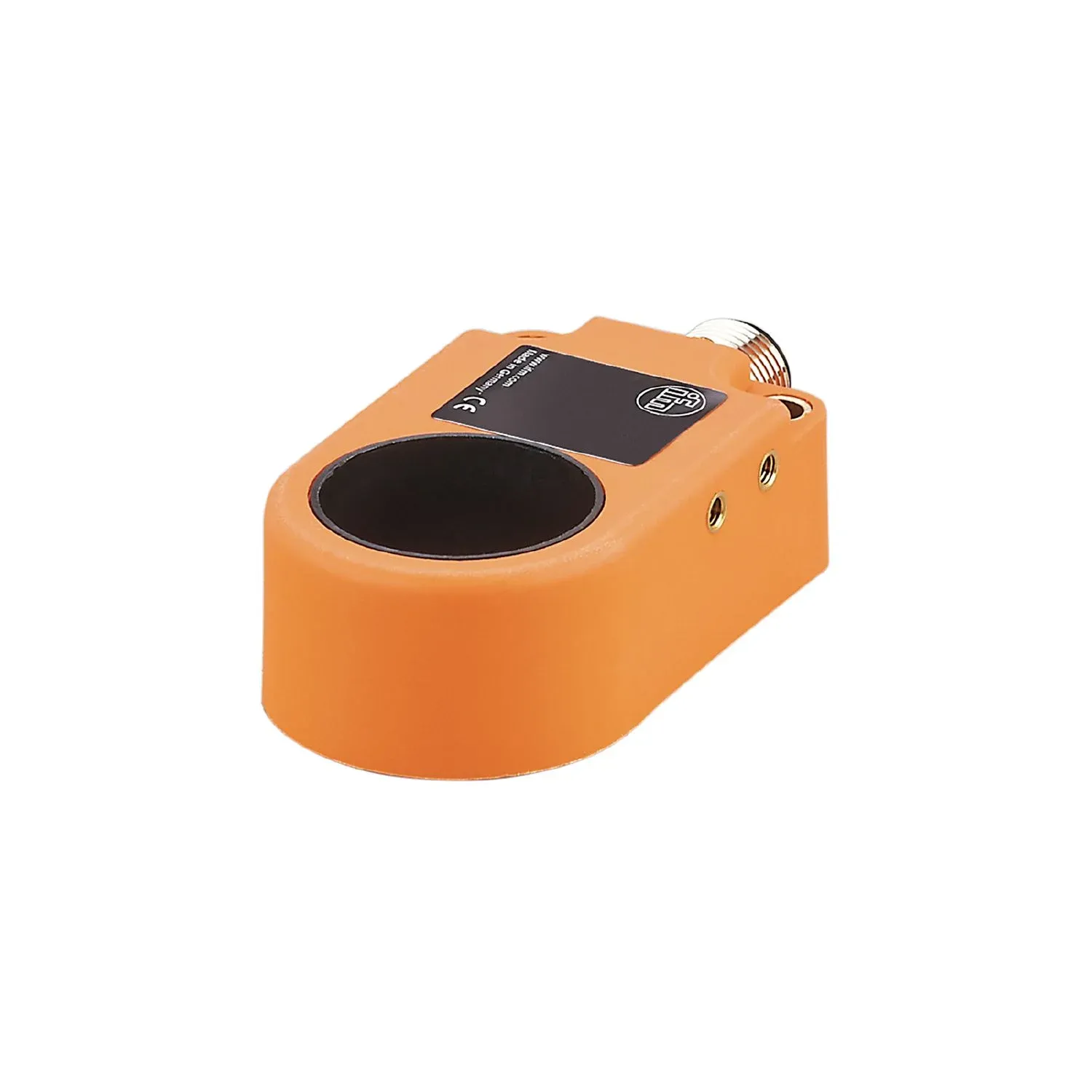

IFM I7R213
I7R213
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High resolution
Short response times
Insensitive to dirt
Static operating principle
High protection rating
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Housing | circular |
| Dimensions[mm] [mm] | 60 x 35 x 20 |
Application
| Operating principle | static |
|---|
Electrical data
| Operating voltage[V] [V] | 10...35 DC |
|---|---|
| Current consumption[mA] [mA] | < 11 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Resolution of steel ball (diameter)[mm] [mm] | 3 |
|---|---|
| Max. part speed[m/s] [m/s] | 35 |
Response times
| Pulse stretching[ms] [ms] | 10...150 |
|---|---|
| Pulse stretching adjustable | yes |
| Max. fall time[ms] [ms] | 10 |
| Response time[ms] [ms] | < 0.5 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Max. relative air humidity[%] [%] | 50; (Ambient temperature 70 °C) |
| Protection | IP 67 |
Tests / approvals
| MTTF[years] [years] | 646 |
|---|---|
| UL approval | Ta -25...70 °C Enclosure type Type 4X (indoor use only) / 12 and 13 power supply Class 2 File number UL E174191 |
| Ta | -25...70 °C |
| Enclosure type | Type 4X (indoor use only) / 12 and 13 |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 54 |
|---|---|
| Housing | circular |
| Dimensions[mm] [mm] | 60 x 35 x 20 |
| Inside diameter[mm] [mm] | 25.1 |
| Materials | housing: PA; ring: POM |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
