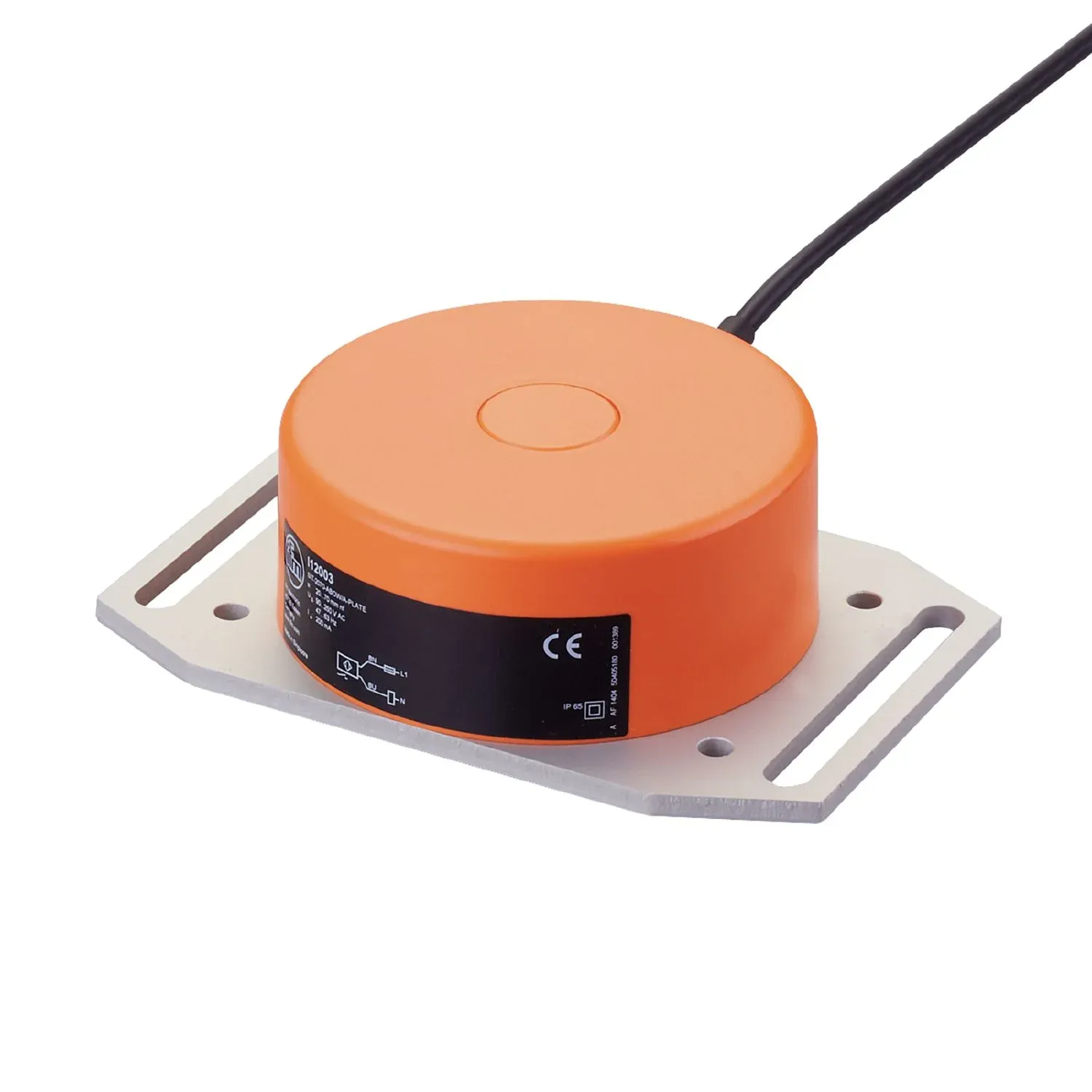

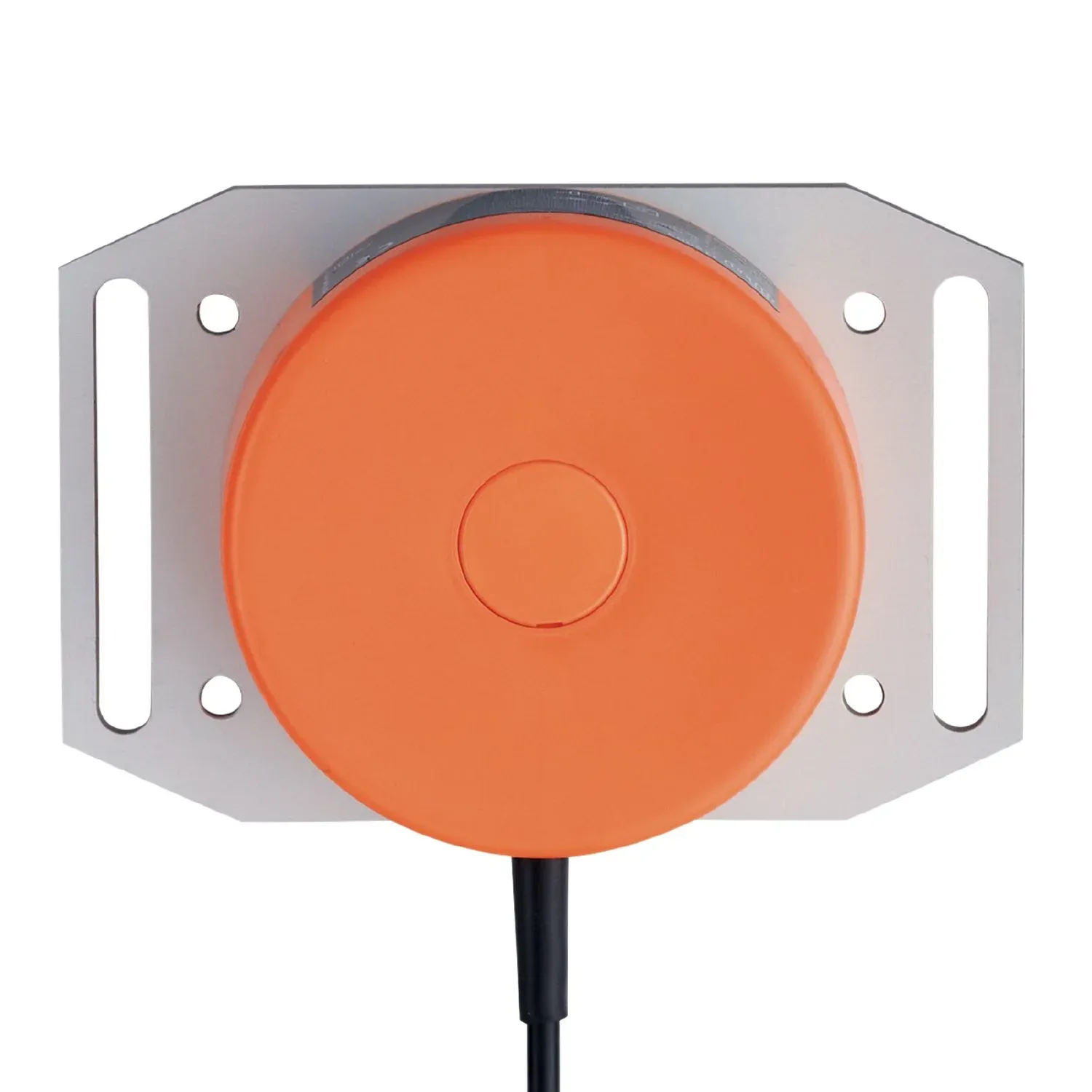

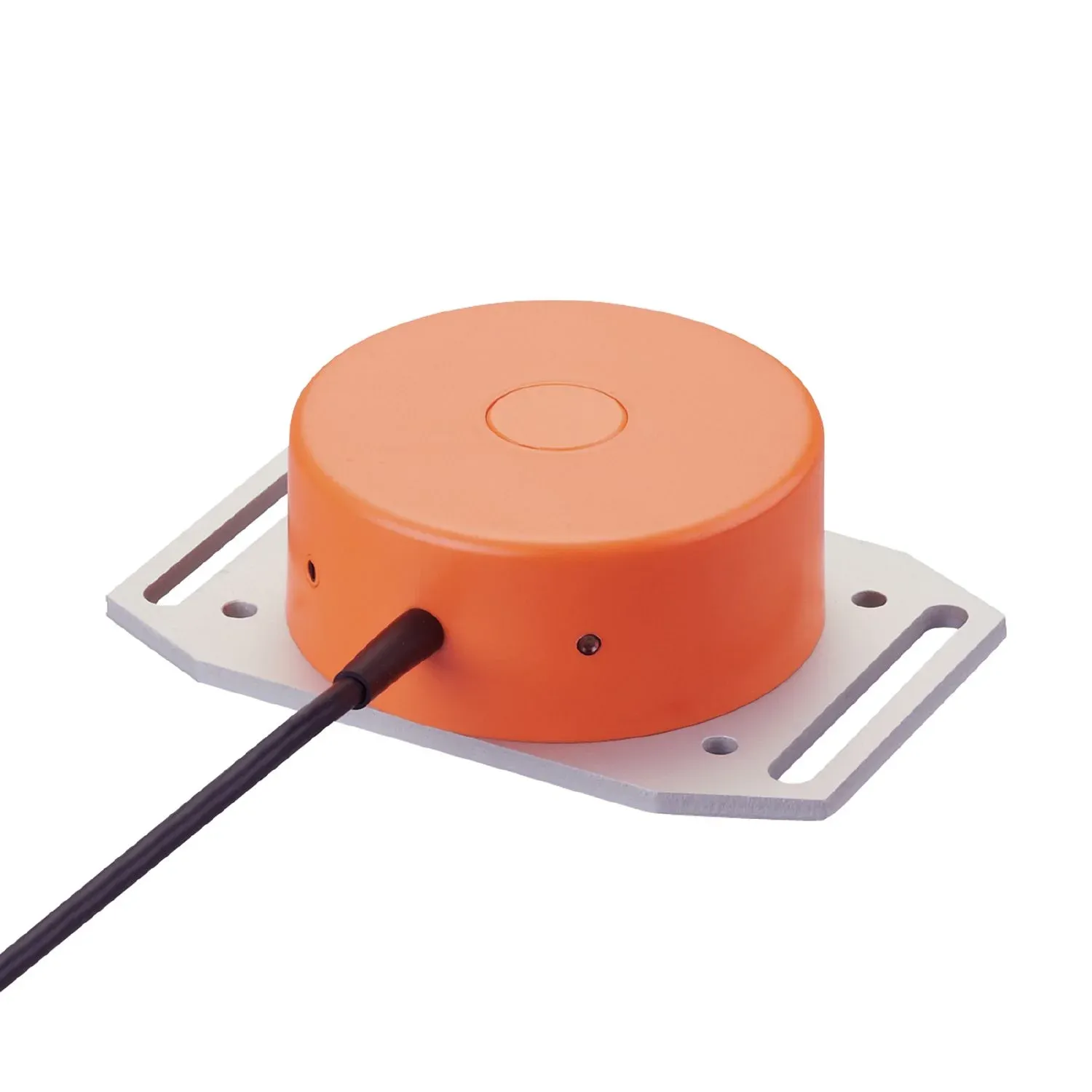

IFM I17004
I17004
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Long sensing range of 70 mm
Active base with Ø 100 mm
For applications in the steel and metal industries
Easy setting of the sensing range via potentiometer
DC version
Specification
Product characteristics
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 20...70 |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 100 / L = 45 |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 5 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 20...70 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] [mm] | 70 |
| Real sensing range Sr[mm] [mm] | 70 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | < 15 |
| Switch point drift[% of Sr] [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|
Mechanical data
| Weight[g] [g] | 685.5 |
|---|---|
| Housing | cylindrical |
| Mounting | non-flush mountable |
| Type of mounting | with mounting plate |
| Dimensions[mm] [mm] | Ø 100 / L = 45 |
| Materials | PBT; Mounting plate: aluminium anodised |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 3 x 0.5 mm² |
|---|
