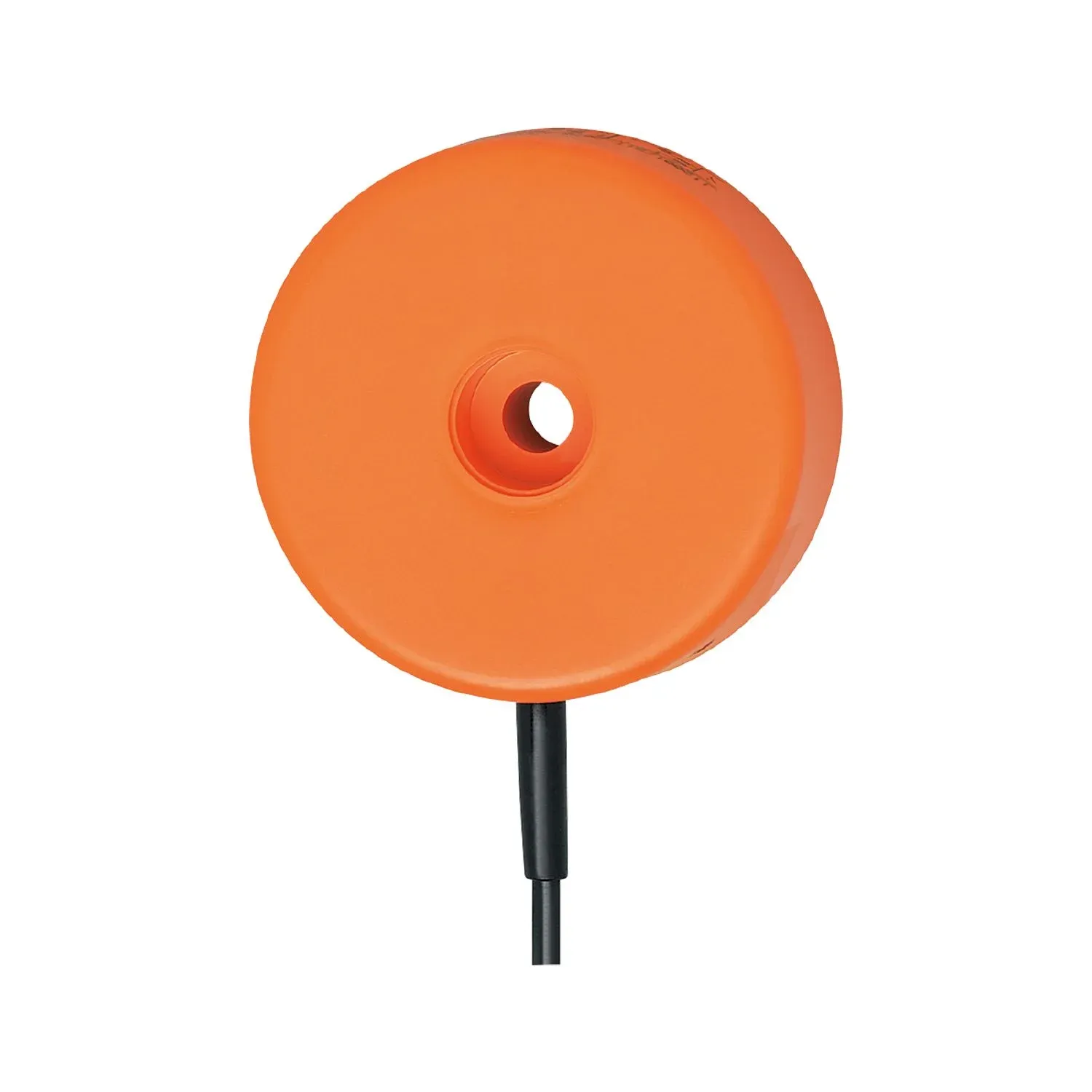

Long sensing range of 70 mm
Active base with Ø 100 mm
For applications in the steel and metal industries
Easy setting of the sensing range via potentiometer
DC version
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range[mm] [mm] | 20...70 |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 100 / L = 40 |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 20; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC[V] [V] | 3.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 5 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 20...70 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] [mm] | 70 |
| Real sensing range Sr[mm] [mm] | 70 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | < 15 |
| Switch point drift[% of Sr] [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
Mechanical data
| Weight[g] [g] | 508.5 |
|---|---|
| Housing | cylindrical |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | Ø 100 / L = 40 |
| Materials | PBT |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | screws: 1 x (M10 x 50 mm) covers: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 4 x 0.34 mm² |
|---|
