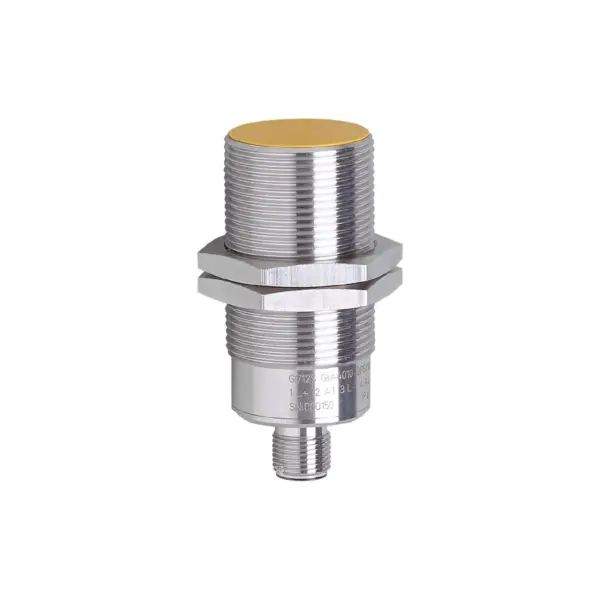

IFM GI712S

GI712S

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

For ensuring machine safety
Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849
No special actuator for electronic fail-safe sensors required
Connection to safety PLC, safe AS-i modules or safe evaluation units

Specification

Product characteristics

Electrical designPNP
Output function2 x OSSD (A1 and A2)
Enable zone[mm] [mm]1...10
Housingthreaded type
Dimensions[mm] [mm]M30 x 1.5 / L = 70

Application

Special featureGold-plated contacts
Type of operationcontinuous operation (maintenance-free)
Safety-related sub-functionsafe state when properly undamped
ApplicationIndustrial applications / factory automation

Electrical data

Operating voltage[V] [V]19.2...30 DC
Rated insulation voltage[V] [V]30
Current consumption[mA] [mA]< 30
Protection classIII
Reverse polarity protectionyes
Max. power-on delay time[ms] [ms]1000

Outputs

Electrical designPNP
Output function2 x OSSD (A1 and A2)
Max. voltage drop switching output DC[V] [V]2.5; (30 mA)
Permanent current rating of switching output DC[mA] [mA]100
Output dataInterface type C class 1
Output voltage at 24 Vcompatible with EN 61131-2 inputs type 1, 2
Short-circuit protectionyes
Overload protectionno
Max. capacitive load CL_max[nF] [nF]20

Detection zone

Enable zone[mm] [mm]1...10
Safe switch-off distance s(ar)[mm] [mm]15

Response times

Response time to safety request[ms] [ms]10
Response time when approaching the enable zone[ms] [ms]1
Risk time (response time for safety-related faults)[ms] [ms]30

Operating conditions

Applicationsclass C to EN 60654-1 sheltered locations
Ambient temperature[°C] [°C]10...40
Note on ambient temperatureoperational life ≤ 175200 h
Rate of temperature change[K/min] [K/min]0.5
Max. relative air humidity[%] [%]briefly: 5...95 %; permanent: 5...70 %
Air pressure[kPa] [kPa]80...106
Max. height above sea level[m] [m]2000
Ionising radiationnot permissible
Salt sprayno
ProtectionIP 65; IP 67

Tests / approvals

EMCIEC 60947-5-2
IEC 60947-5-3
EN 60947-5-3
EN 61000-4-2 ESD
6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
20 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-8
30 A/m
EN 55011
class B
EN 61000-4-2 ESD6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated20 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-6 HF conducted10 V
EN 61000-4-830 A/m
EN 55011class B
Shock resistanceIEC 60947-5-2
Vibration resistanceIEC 60947-5-2

Safety classification

Complies with the requirementsISO 13849-1: 2015 category 2, PL d
IEC 61508 SIL 2
IEC 62061 SIL 2
Mission time TM[h] [h]≤ 175200
Mission time TM (additional indication)20 years
PFH[1/h] [1/h]1,0E-07

Mechanical data

Weight[g] [g]204.5
Housingthreaded type
Mountingflush mountable
Dimensions[mm] [mm]M30 x 1.5 / L = 70
Thread designationM30 x 1.5
Materialsbrass white bronze coated; PBT

Displays / operating elements

Displayoperation
1 x LED, green
signal
1 x LED, yellow
operation1 x LED, green
signal1 x LED, yellow

Accessories

Items suppliedlock nuts: 2

Remarks

RemarksUnless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range.
(FE360 = ST37K) 30x30x1 mm
Pack quantity1 pcs.

Electrical connection - plug

Connector1 x M12; coding: A; Contacts: gold-plated
