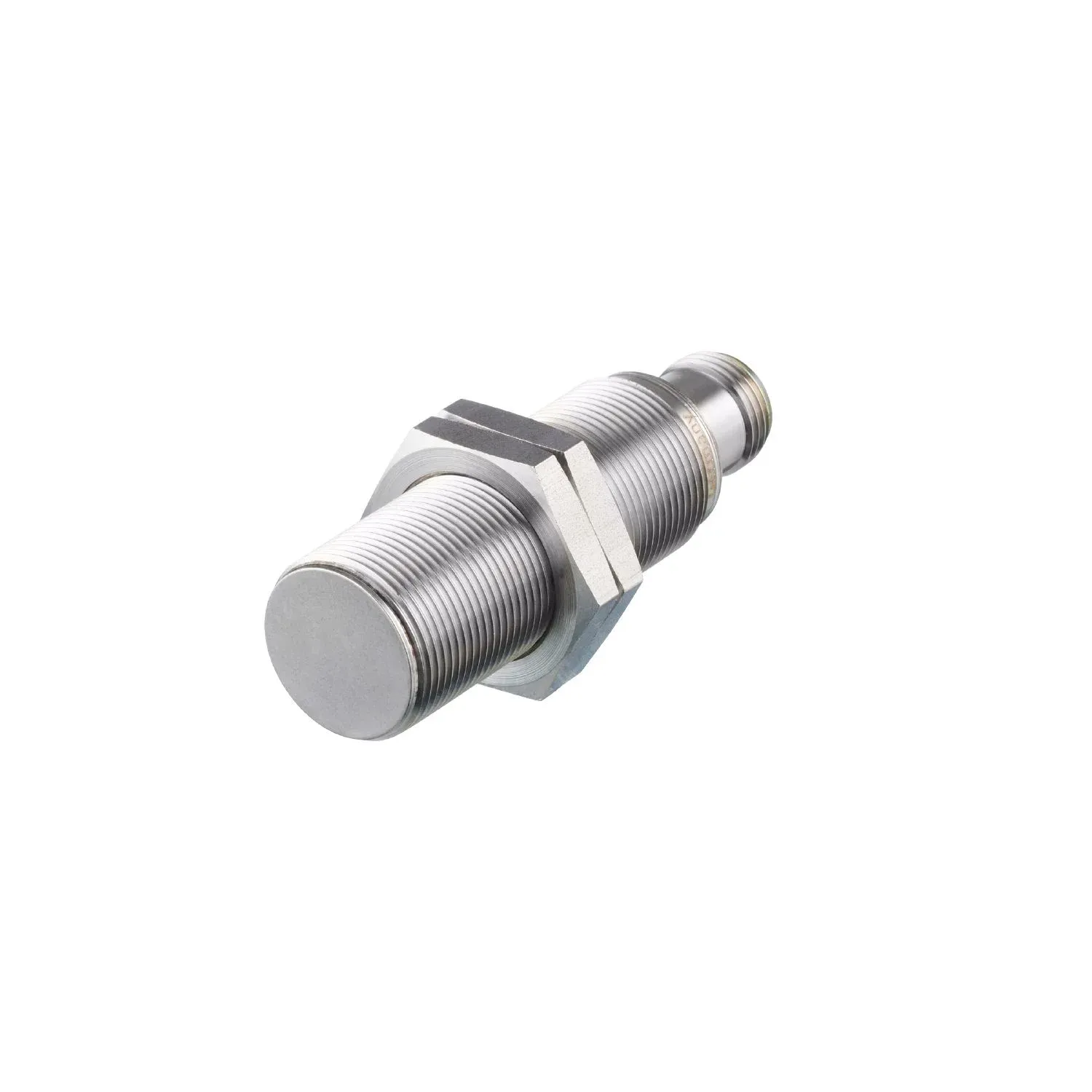

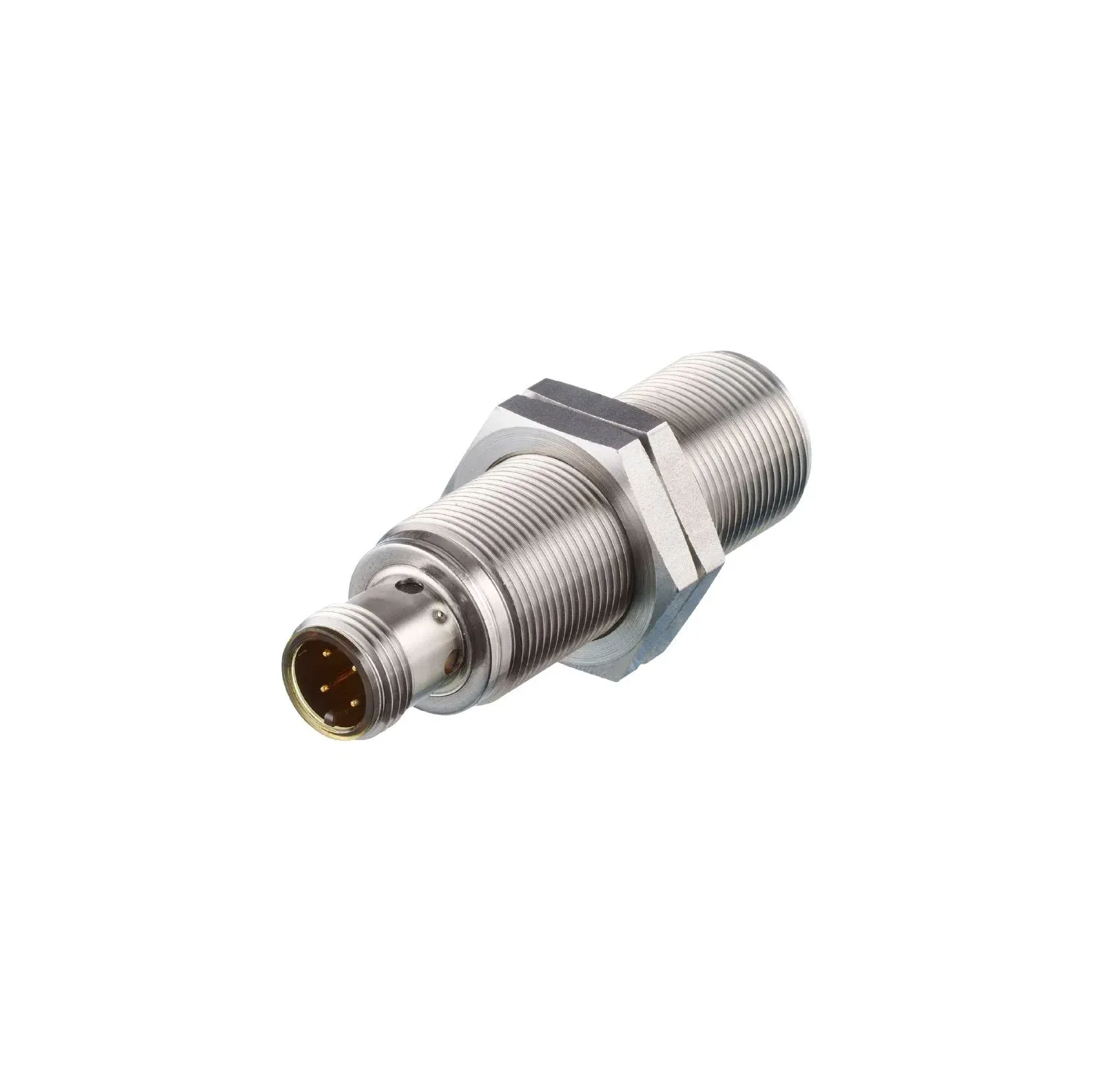

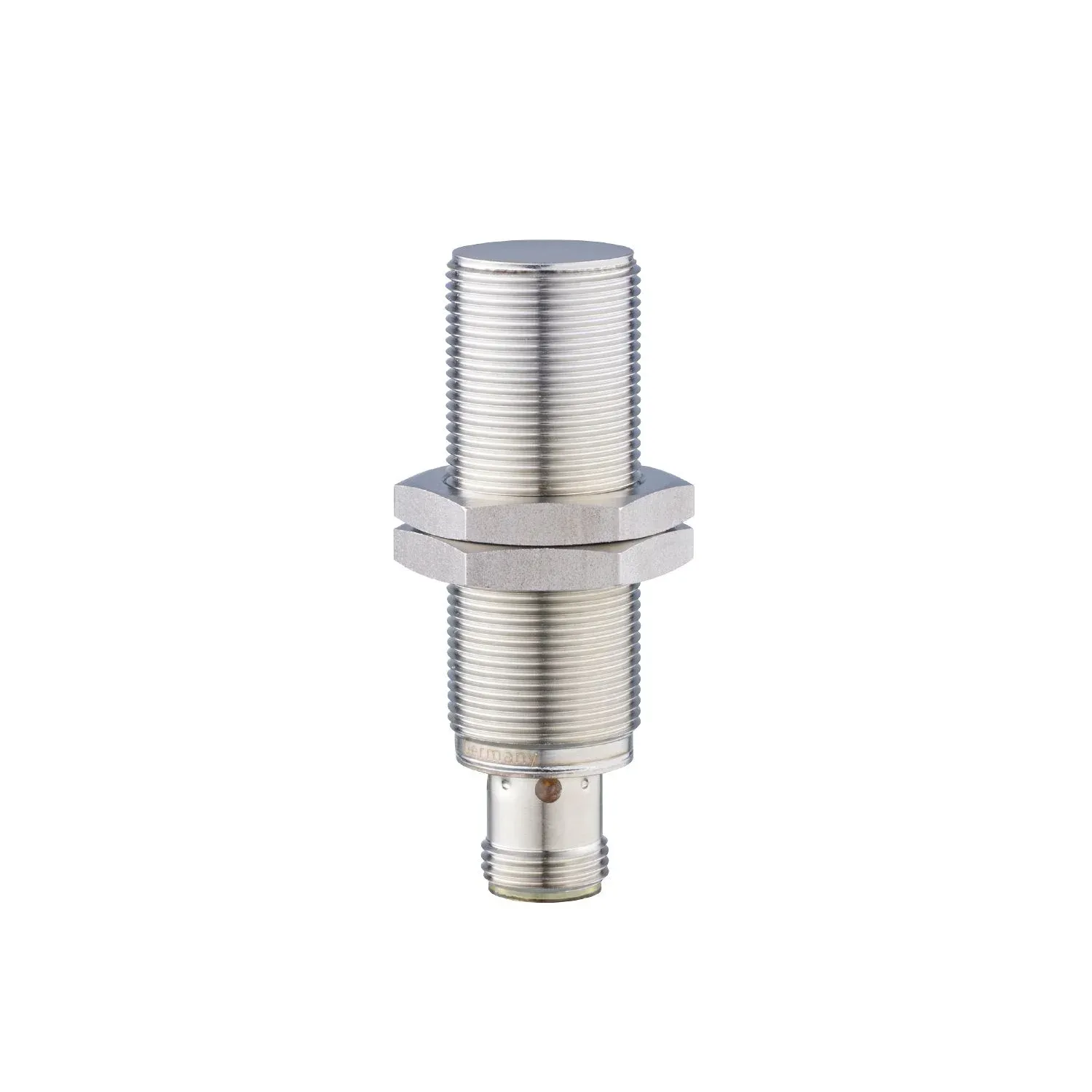

IFM GG761S

GG761S

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849
Connection to safety PLC, safe AS-i modules or safe evaluation units
Ensuring operator and machine safety
Stainless steel sensing face
High protection rating

Specification

Product characteristics

Electrical designPNP
Enable zone[mm] [mm]0...3.5
Housingthreaded type
Dimensions[mm] [mm]M18 x 1 / L = 60

Application

Special featureGold-plated contacts; Full-metal housing
Type of operationpermanent operation
Safety-related sub-functionsafe state when properly undamped
ApplicationUse in mobile and harsh applications

Electrical data

Operating voltage[V] [V]9...32 DC
Rated insulation voltage[V] [V]60
Current consumption[mA] [mA]< 10; (24 V)
Protection classIII
Reverse polarity protectionyes
Max. power-on delay time[ms] [ms]500

Outputs

Electrical designPNP
Max. voltage drop switching output DC[V] [V]2.5
Number of OSSD outputs2
Max. current load per OSSD output[mA] [mA]50
Output dataInterface type C class 1
Output voltage at 24 Vcompatible with EN 61131-2 inputs type 1, 2
Short-circuit protectionyes
Overload protectionyes
Max. capacitive load CL_max[nF] [nF]20

Detection zone

Enable zone[mm] [mm]0...3.5
Safe switch-off distance sAs (sar)[mm] [mm]10.5

Accuracy / deviations

Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.8 / aluminium: 0.6 / copper: 0.3

Response times

Response time when approaching the enable zone, turn-on time (ton)[ms] [ms]20
Response time to safety request, turn-off time (toff)[ms] [ms]20
Risk time / error handling time (toff max)[ms] [ms]100

Operating conditions

Ambient temperature[°C] [°C]-40...85
Max. height above sea level[m] [m]3000
Ionising radiationnot permissible
ProtectionIP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMCindustrial environments
EN 60947-5-3
EN 61000-4-2 ESD
6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
20 V/m 80...1000 MHz
EN 61000-4-3 HF radiated
10 V/m 1,4...2,0 GHz / 3 V/m 2,0...6,0 GHz
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
2 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-8
30 A/m 50/60 Hz / 1000 A/m 0 Hz
EN 55011
class B
mobile applications
only for operation with central load-dump suppression (58 V) / not for active operation during motor start phase in 12 V systems
ISO 10605 ESD
8 kV CD / 15 kV AD
ISO 11452-2, ISO 11452-5 radiated immunity
100 V/m 400...3000 MHz
ISO 7637-2, ISO 16750-2 conducted immunity
12 V / 24 V
pulse
1 2a 2b 3a 3b 4 5b
severity level
III III III III III III 58V
failure criterion
B A B A A C/B A/C
EN 55025
class 3
EN 61000-4-2 ESD6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m 1,4...2,0 GHz / 3 V/m 2,0...6,0 GHz
EN 61000-4-4 Burst2 kV
EN 61000-4-5 Surge2 kV
EN 61000-4-6 HF conducted10 V
EN 61000-4-830 A/m 50/60 Hz / 1000 A/m 0 Hz
EN 55011class B
mobile applicationsonly for operation with central load-dump suppression (58 V) / not for active operation during motor start phase in 12 V systems
ISO 10605 ESD8 kV CD / 15 kV AD
ISO 11452-2, ISO 11452-5 radiated immunity100 V/m 400...3000 MHz
ISO 7637-2, ISO 16750-2 conducted immunity12 V / 24 V
pulse1 2a 2b 3a 3b 4 5b
severity levelIII III III III III III 58V
failure criterionB A B A A C/B A/C
EN 55025class 3
Shock resistanceEN 60068-2-27 Ea
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
EN 60068-2-27 Ea40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Continuous shock resistanceEN 60068-2-27 Ea
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature changeEN 60068-2-14 Na
TA = -40°C; TB = 85°C; t1 = 45 min; t2 = 10 s 100 cycles
EN 60068-2-14 NaTA = -40°C; TB = 85°C; t1 = 45 min; t2 = 10 s 100 cycles
Vibration resistanceEN 60068-2-6 Fc
20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
EN 60068-2-64 Fh
5.9 g RMS / effective acceleration for chassis mounting
ISO 19014-3
5.7 g RMS / effective acceleration
EN 60068-2-6 Fc20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
EN 60068-2-64 Fh5.9 g RMS / effective acceleration for chassis mounting
ISO 19014-35.7 g RMS / effective acceleration
Salt spray testEN 60068-2-52 Kb
severity level 5 (4 test cycles)
EN 60068-2-52 Kbseverity level 5 (4 test cycles)

Safety classification

Complies with the requirementsISO 13849-1 category 2, PL d
IEC 61508 SIL 2, HFT 0, SC 2
Mission time TM[h] [h]≤ 87600
Mission time TM (additional indication)industrial environments Temperature range -25...70 °C ≤ 175200
PFH[1/h] [1/h]< 1,5E-07

Mechanical data

Weight[g] [g]55
Housingthreaded type
Mountingflush mountable
Dimensions[mm] [mm]M18 x 1 / L = 60
Thread designationM18 x 1
Materialsthreaded sleeve: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); LED window: PEI; LED Sealing: PU; lock nuts: stainless steel (316L/1.4404)
Tightening torque[Nm] [Nm]50
Full-metal housingyes

Displays / operating elements

DisplayDisplay switching status
4 LED, yellow
Display switching status4 LED, yellow

Accessories

Items suppliedlock nuts: 2

Remarks

Remarksmeets the environmental and EMC requirements for operation in agricultural and forestry machinery, earthworks and construction machines as well as in industrial trucks
can be used in applications up to SIL 2 in accordance with IEC 62061, MPL d in accordance with ISO 19014-3 and Ag PL d in accordance with ISO 25119
Unless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range.
(FE360 = ST37-2K) 18x18x1 mm
the correction factors apply to an ambient temperature of 20°C
do not use a correction factor for the safe switch-off distance sAs/(sar)
Pack quantity1 pcs.

Electrical connection - plug

Connector1 x M12; coding: A; Contacts: gold-plated
