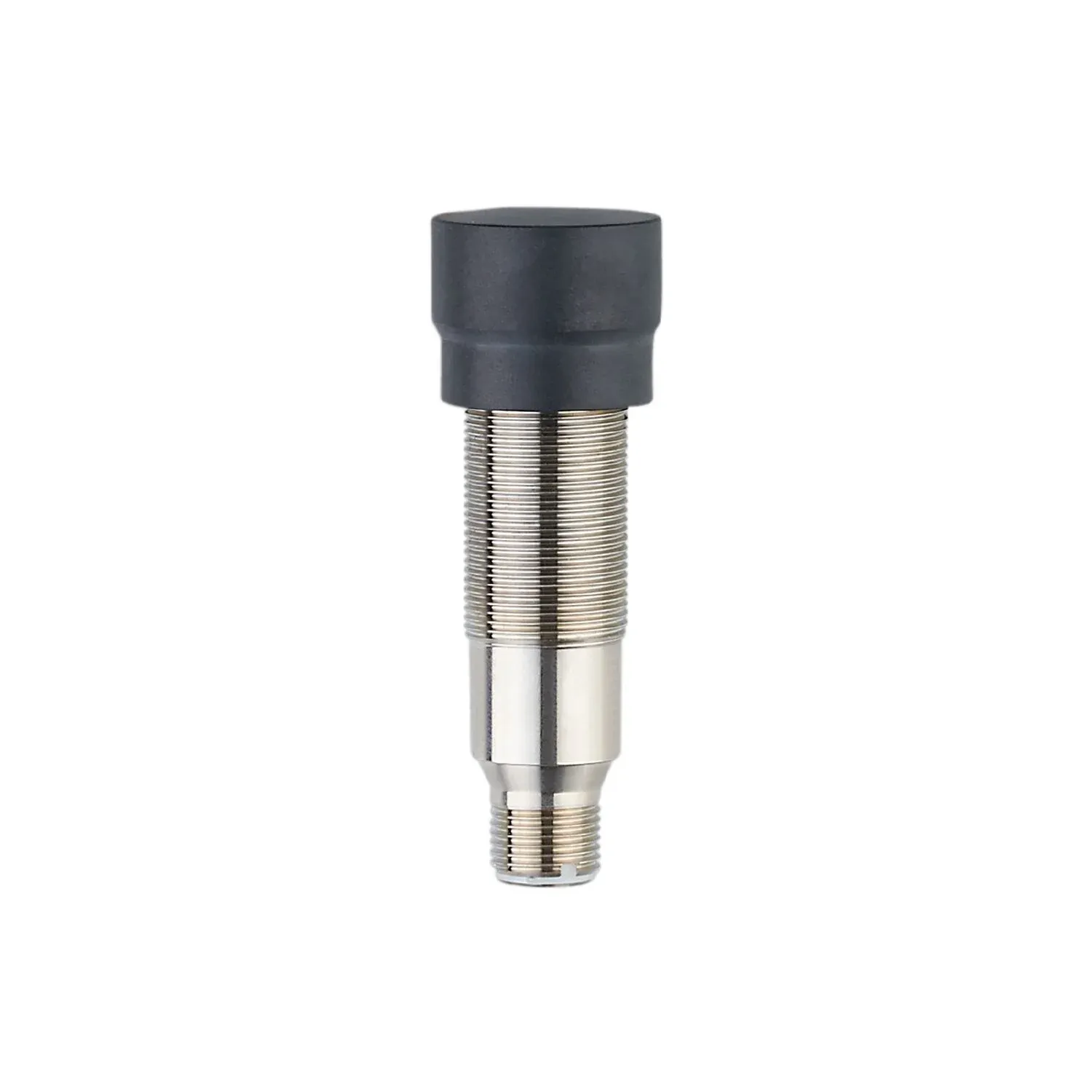

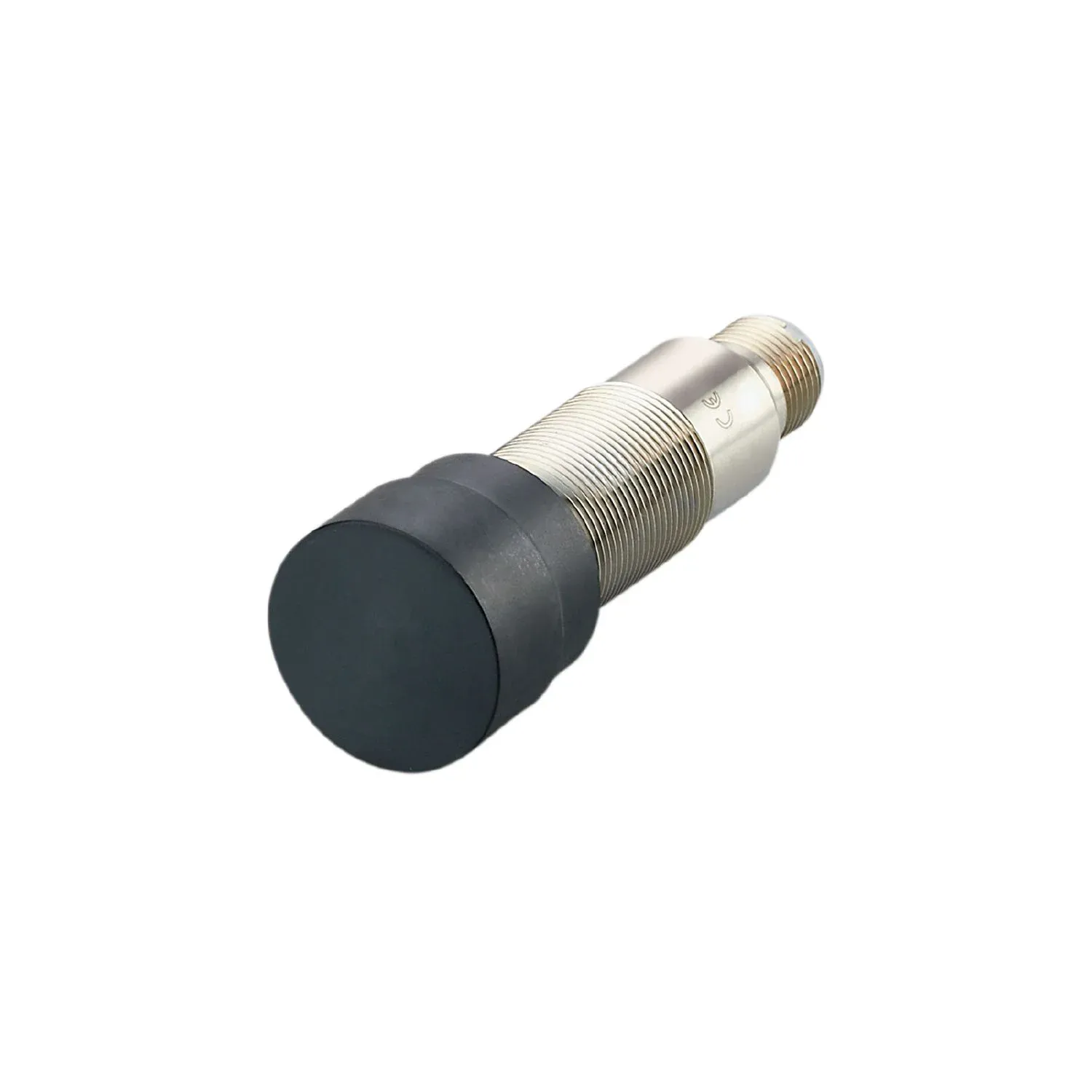

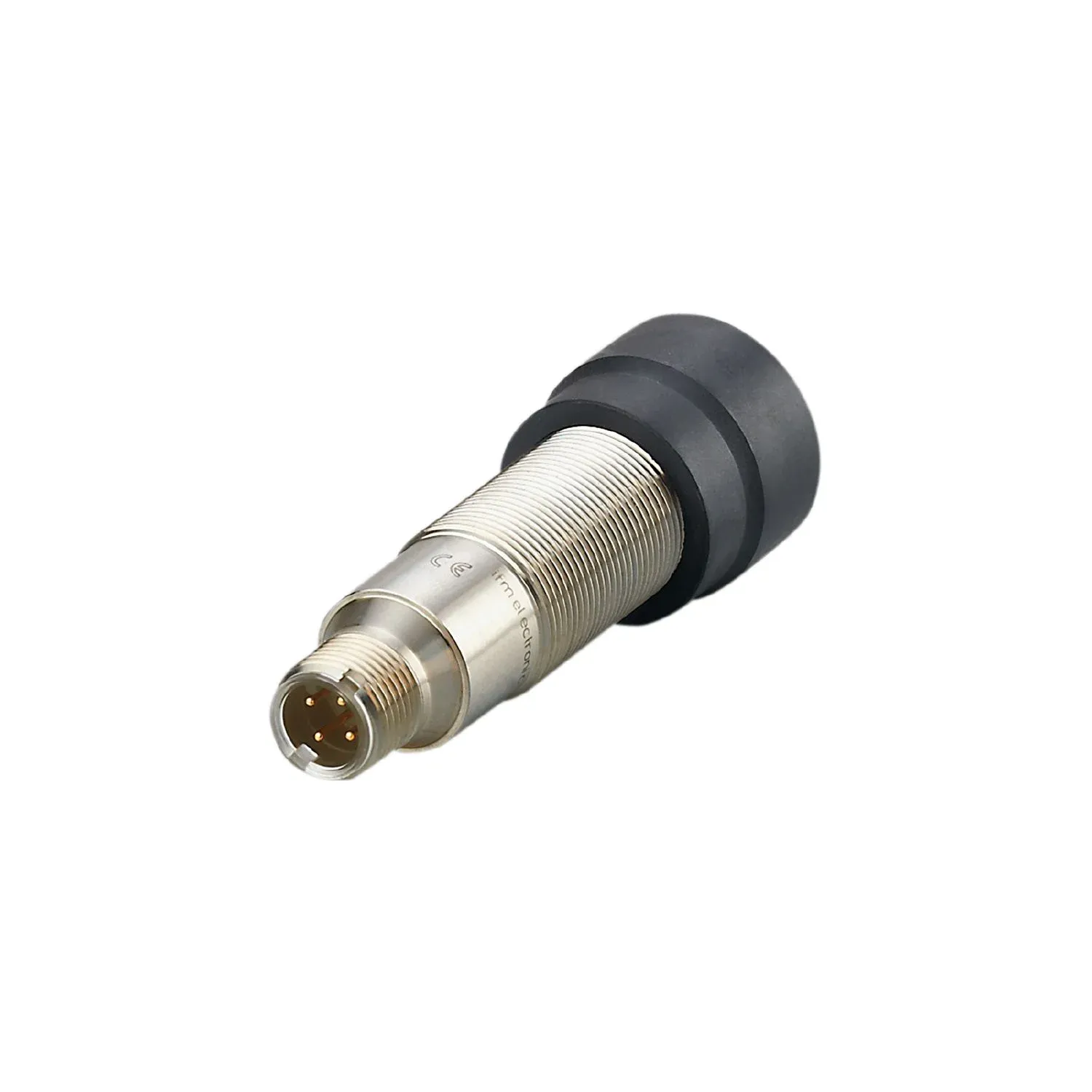

IFM GG714S
GG714S
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For ensuring machine safety
Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849
No special actuator for electronic fail-safe sensors required
Connection to safety PLC, safe AS-i modules or safe evaluation units
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | 2 x OSSD (A1 and A2) |
| Enable zone[mm] [mm] | 0...6.5 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 71.5 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Type of operation | continuous operation (maintenance-free) |
| Safety-related sub-function | safe state when properly undamped |
| Application | Industrial applications / factory automation |
Electrical data
| Operating voltage[V] [V] | 19.2...30 DC |
|---|---|
| Rated insulation voltage[V] [V] | 30 |
| Current consumption[mA] [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 1000 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x OSSD (A1 and A2) |
| Max. voltage drop switching output DC[V] [V] | 2.5; (30 mA) |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Output data | Interface type C class 1 |
| Output voltage at 24 V | compatible with EN 61131-2 inputs type 1, 2 |
| Short-circuit protection | yes |
| Overload protection | no |
| Max. capacitive load CL_max[nF] [nF] | 20 |
Detection zone
| Enable zone[mm] [mm] | 0...6.5 |
|---|---|
| Safe switch-off distance s(ar)[mm] [mm] | 11 |
Response times
| Response time to safety request[ms] [ms] | 1 |
|---|---|
| Response time when approaching the enable zone[ms] [ms] | 1 |
| Risk time (response time for safety-related faults)[ms] [ms] | 20 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|---|
| Rate of temperature change[K/min] [K/min] | 0.5 |
| Max. relative air humidity[%] [%] | briefly: 5...95 %; permanent: 5...70 % |
| Air pressure[kPa] [kPa] | 80...106 |
| Max. height above sea level[m] [m] | 2000 |
| Ionising radiation | not permissible |
| Salt spray | IEC 60068-2-52 |
| Protection | IP 65; IP 67; IP 69K; (with ifm socket duly screwed on) |
| UV radiation | DIN ISO 4892-1, DIN ISO 4892-2 |
| Chemical media | test according to ISO 16750-5 The following media were tested for 22 hours at 75 °C Liebherr Hydraulik 37 Liebherr Hydraulik Gear ATF Liebherr Hydraulik Plus Arctic diesel biodiesel brake fluid urea The following media were tested for 22 hours at 25 °C battery acid cold cleaner ammonia-based cleaner The following media were tested for 2 hours at 25 °C wheel rim cleaner |
| The following media were tested for 22 hours at 75 °C | Liebherr Hydraulik 37 |
| The following media were tested for 22 hours at 25 °C | battery acid |
| The following media were tested for 2 hours at 25 °C | wheel rim cleaner |
Tests / approvals
| EMC | IEC 60947-5-2 IEC 60947-5-3 EN 60947-5-3 EN 61000-4-2 ESD 6 kV CD / 8 kV AD EN 61000-4-3 HF radiated 20 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 61000-4-8 30 A/m EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 6 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 20 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 61000-4-8 | 30 A/m |
| EN 55011 | class B |
| Shock resistance | IEC 60947-5-2 |
| Vibration resistance | IEC 60947-5-2 |
Safety classification
| Complies with the requirements | ISO 13849-1: 2015 category 2, PL d IEC 61508 SIL 2 IEC 62061 SIL 2 |
|---|---|
| Mission time TM[h] [h] | ≤ 87600 |
| Mission time TM (additional indication) | 10 years |
| PFH[1/h] [1/h] | 1,0E-07 |
Mechanical data
| Weight[g] [g] | 130 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 71.5 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404); sensing face: PBT; Protective cover: PPS GF40; LED window: PA; lock nuts: stainless steel (316L/1.4404) |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | Unless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range. (FE360 = ST37K) 24x24x1 mm |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: PPS GF40; Contacts: gold-plated |
|---|
