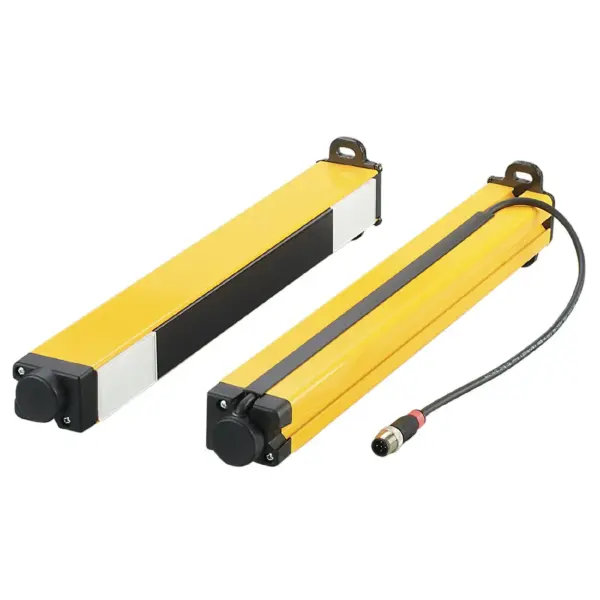

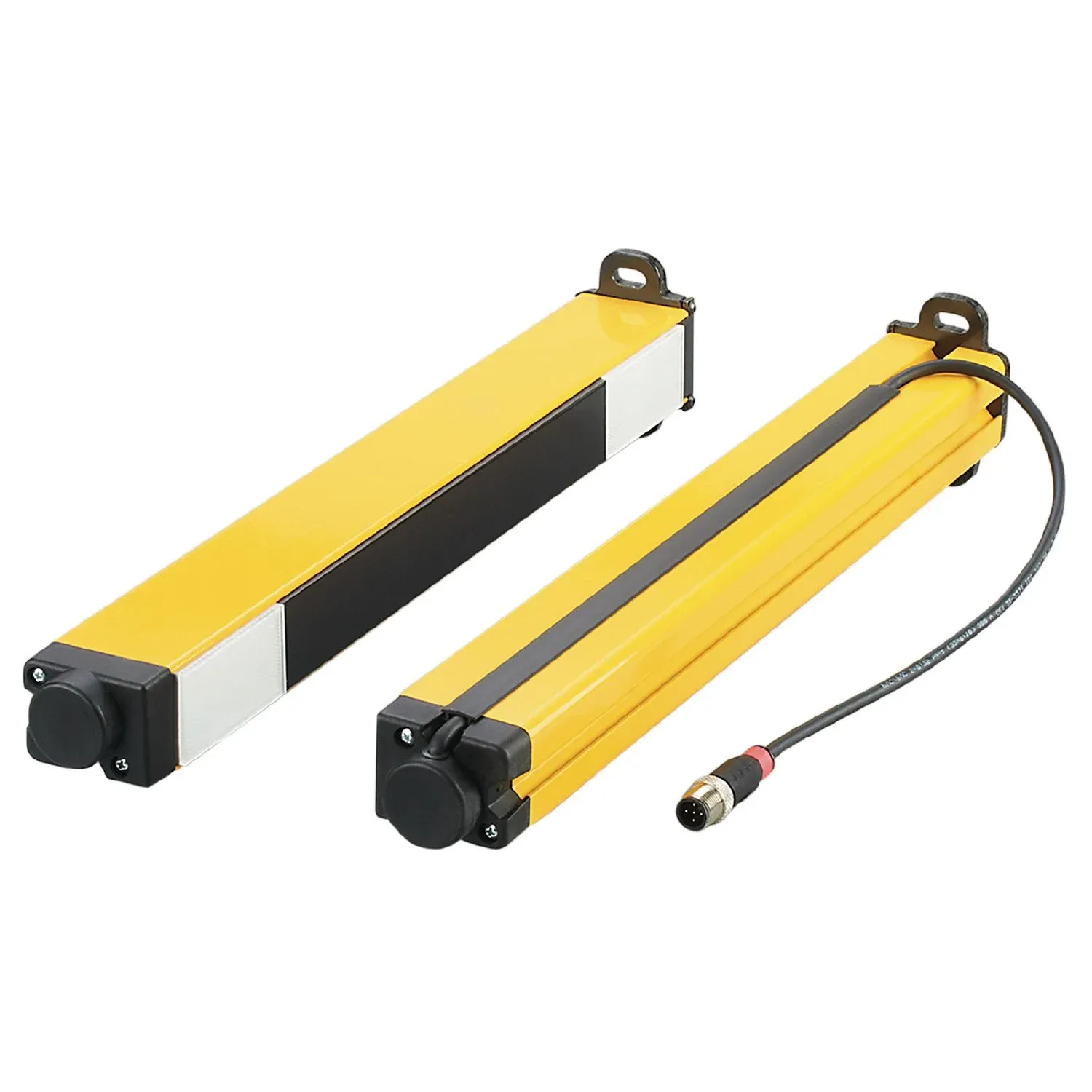

IFM EY5011
EY5011
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For safety light grids with muting function
Sequential muting with four stages
Parallele Lichtstrahlführung
Quick and easy mounting directly on the safety light grid
Specification
Product characteristics
| Type of light | infrared light |
|---|
Application
| Design | sequential muting with four parallel retro-reflective sensors |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage[V] [V] | 19.2...28.8 DC |
|---|---|
| Current consumption[mA] [mA] | 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 940 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC[V] [V] | 0.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Range[m] [m] | < 2.5 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -30...55 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|
Mechanical data
| Weight[g] [g] | 3530 |
|---|---|
| Materials | aluminium; polypropylene |
| Lens material | polycarbonate-ABS |
Remarks
| Pack quantity | 4 pcs. |
|---|
Electrical connection - transmitter 1
| Connector | 1 x M12; coding: A; Moulded body: blue |
|---|
Electrical connection - transmitter 2
| Connector | 1 x M12; coding: A; Moulded body: red |
|---|
