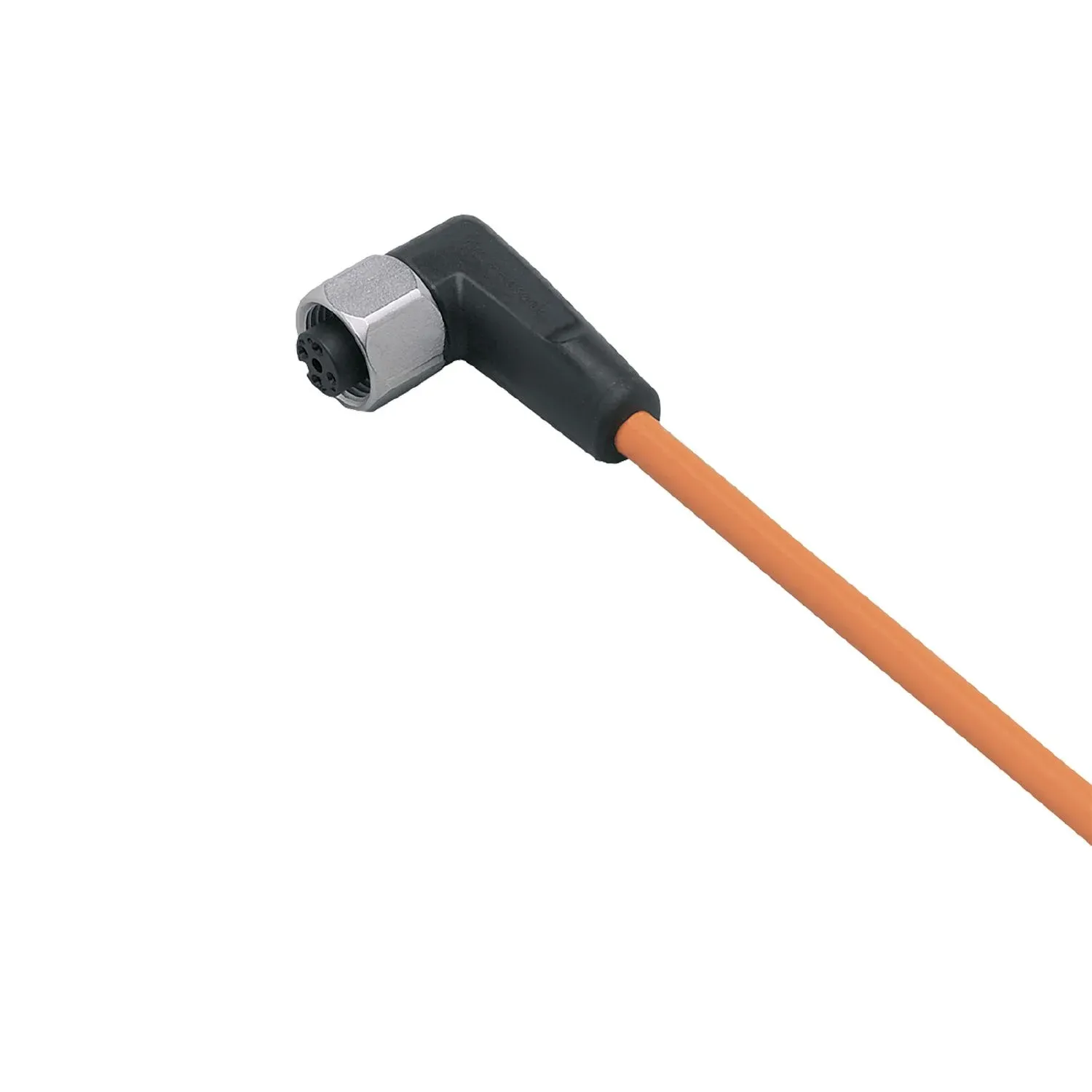

IFM EVT437
EVT437
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in hygienic and wet areas in the food industry
Permanent, reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
LEDs clearly visible even under bright lighting
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts; Drag chain suitability |
|---|---|
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Protection class | II |
| Max. current load total[A] [A] | 4 |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...100 |
|---|---|
| Note on ambient temperature | cULus: ...50 |
| Ambient temperature (moving)[°C] [°C] | 5...100 |
| Note on ambient temperature (moving) | cULus: ...50 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| MTTF[years] [years] | 20027 |
|---|
Mechanical data
| Weight[g] [g] | 2560 |
|---|---|
| Dimensions[mm] [mm] | 26.5 x 15.5 x 36.5 |
| Moulded-body material | PVC |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | EPDM |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio. torsional strain ± 180 °/m |
| bending radius for flexible use | min. 10 x cable diameter |
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 1 Mio. |
| torsional strain | ± 180 °/m |
Displays / operating elements
| Display | switching status 2 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 2 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 70 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x M12, angled; coding: A; Moulded body: PVC, black transparent; Locking: stainless steel (316L/1.4404); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
