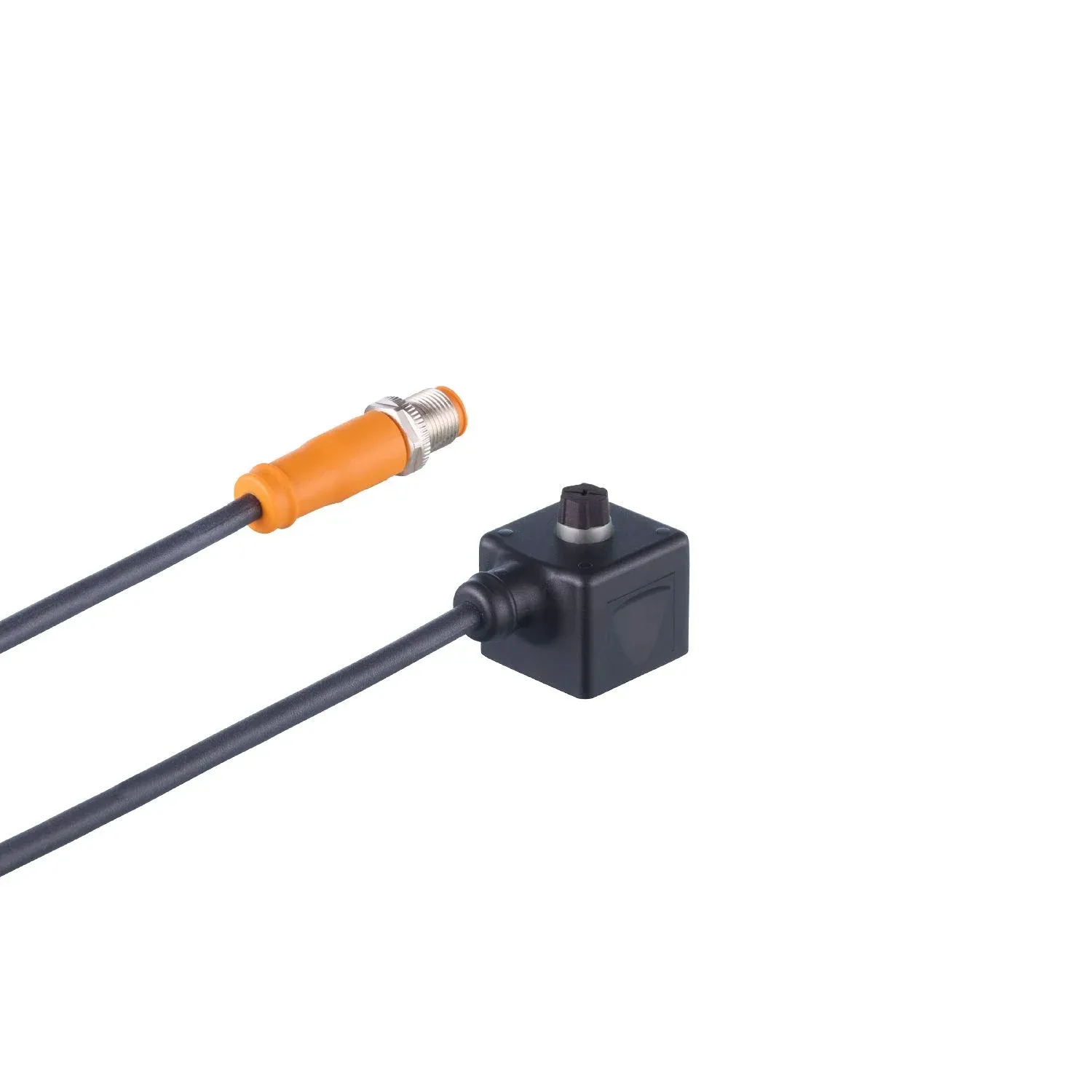

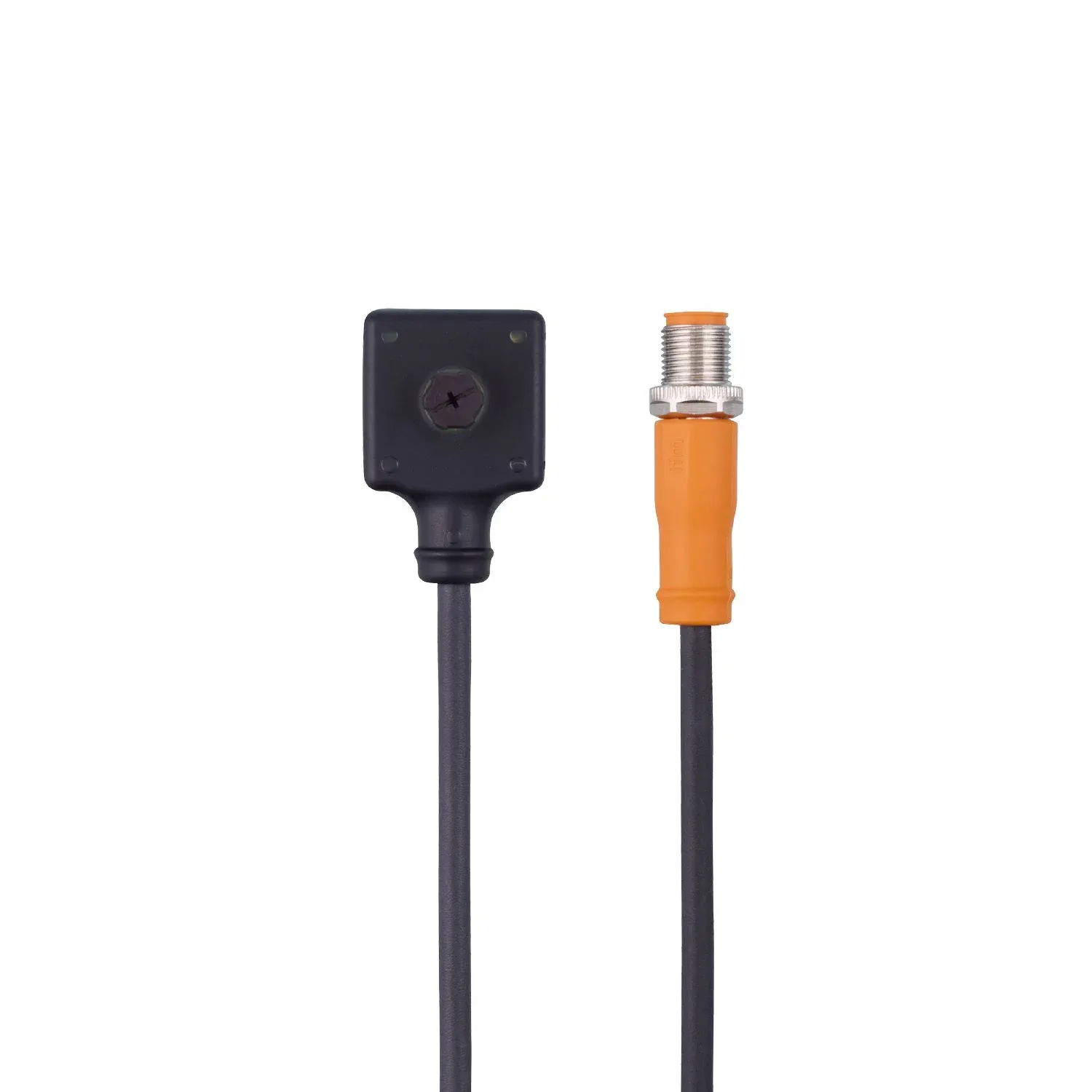

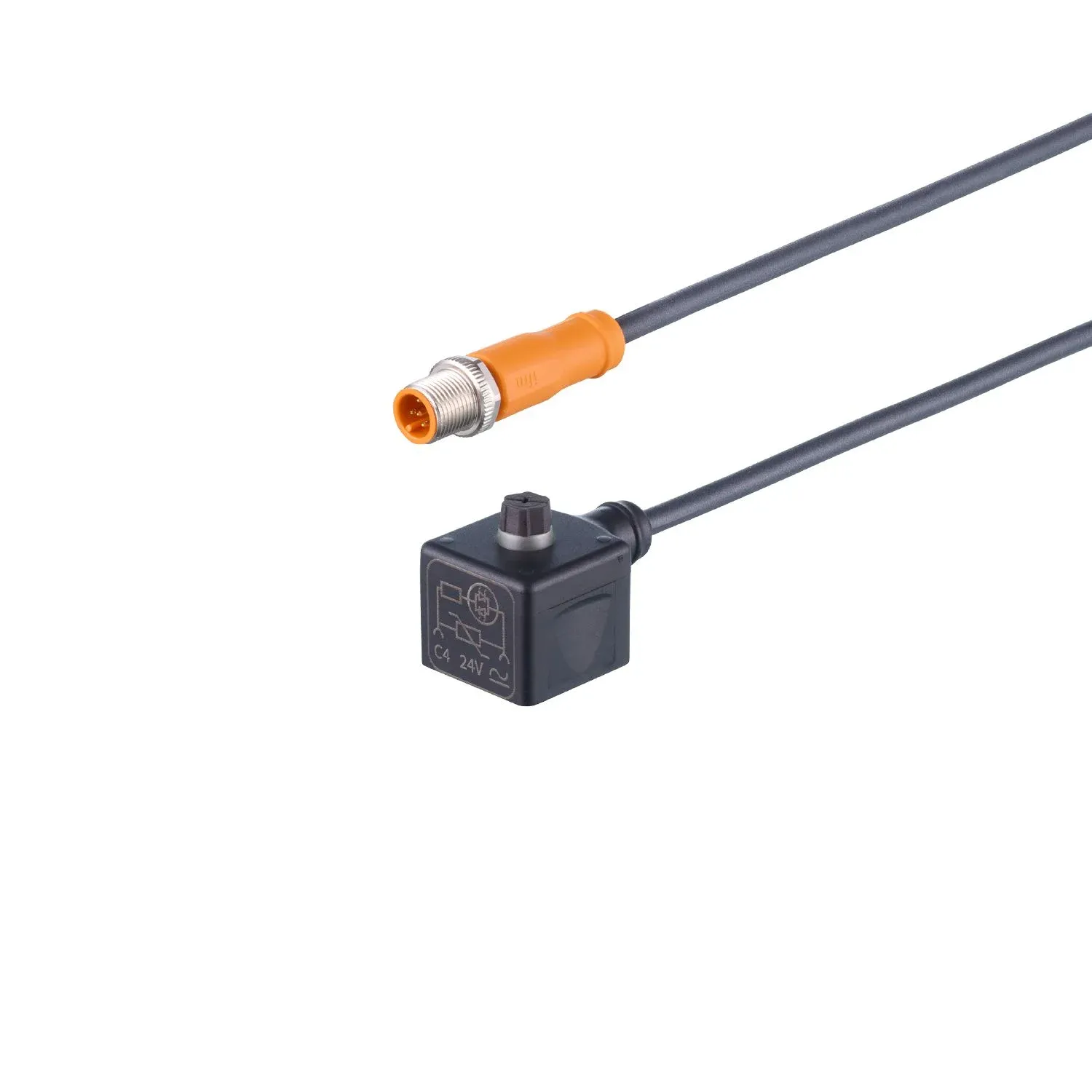

IFM EVCB06
EVCB06
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Permanent, reliable sealing even when mounted without tools
Great all-round position visibility from a distance
Mechanical end stop to reliably protect the seal from destruction
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to vibration protection
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Application | Industrial applications / factory automation; Use in machine tools, coolants and lubricants |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 24 AC/DC |
|---|---|
| Current consumption[mA] [mA] | < 4; (Ub = 24V) |
| Overvoltage protection | yes; (VDR) |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...90 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -25...90 |
| Storage temperature[°C] [°C] | -25...55 |
| Storage humidity[%] [%] | 10...100 |
| Other climatic conditions for storage according to stated class | 1K22/ DIN 60721-3-1 |
| Protection | IP 67; IP 68; IP 69K; (plug M12: IP 65; IP 67; IP 68; IP 69K) |
Mechanical data
| Weight[g] [g] | 71.4 |
|---|---|
| Materials | housing: PA |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Sealing material | HNBR |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio. torsional strain ± 180 °/m |
| bending radius for flexible use | min. 10 x cable diameter |
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 5 Mio. |
| torsional strain | ± 180 °/m |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.3 m, PUR, Halogen-free, Ø 5.4 mm; 3 x 0.75 mm² / AWG 19 |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
Electrical connection - socket
| Connector | 1 x valve type A DIN (EN 175301-803), angled; Moulded body: TPU, black; Sealing: HNBR; Tightening torque: 0.3...0.4 Nm |
|---|
