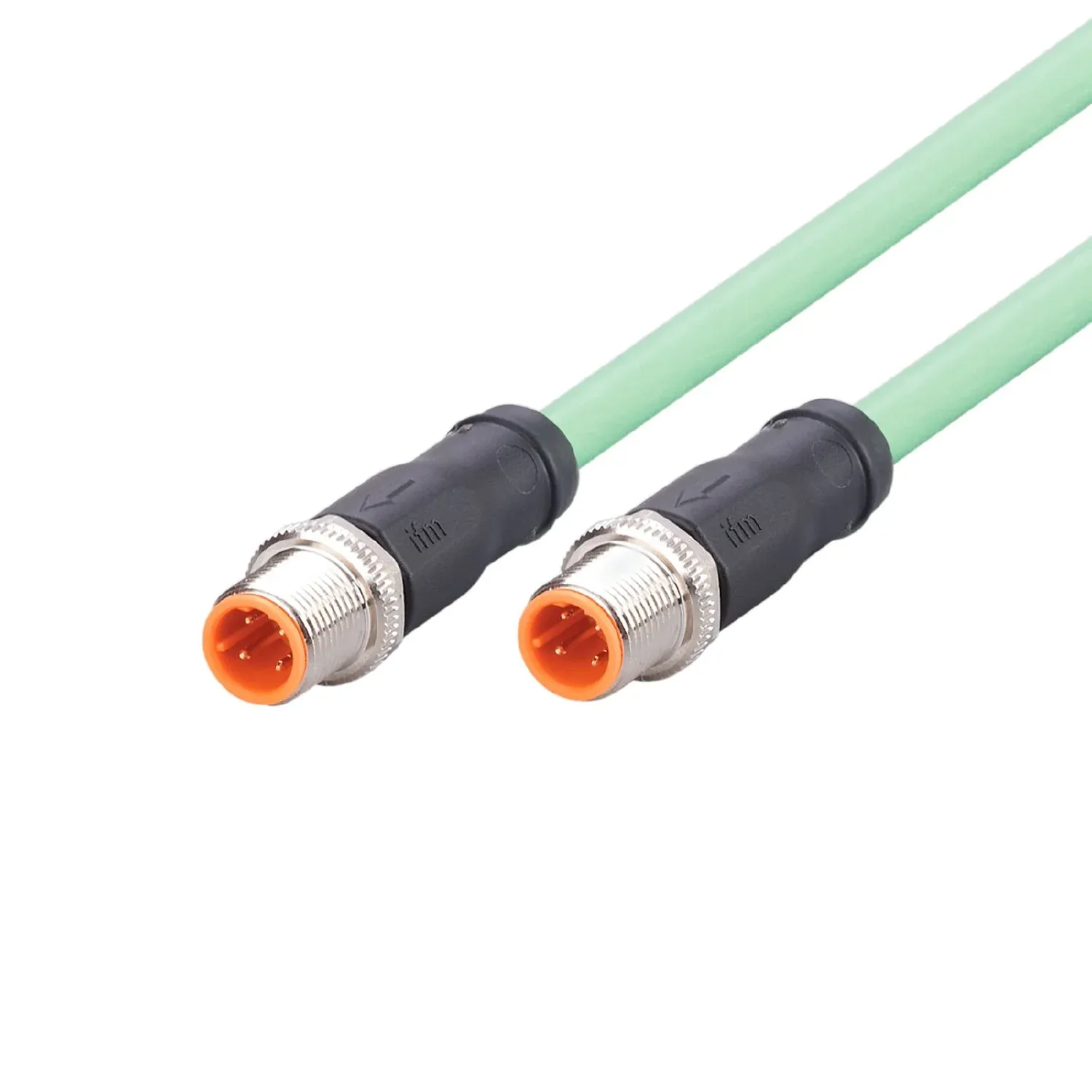

IFM EVC907
EVC907
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High protection rating for the requirements of harsh industrial environments
Cable sheath made of halogen-free and flame-retardant material
With robust M12 connector Industrial Ethernet
Large operating temperature range and high protection rating
Good electromagnetic compatibility thanks to shielded cable
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
|---|---|
| Design | Ethernet cable, D-coded |
| Application | Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; Industrial applications / factory automation |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | 30 AC / 60 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -25...90 |
| Protection | IP 65; IP 67 |
Mechanical data
| Weight[g] [g] | 340.2 |
|---|---|
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 3 Mio. torsional strain ± 180 °/m |
| bending radius for flexible use | min. 10 x cable diameter |
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 3 Mio. |
| torsional strain | ± 180 °/m |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: screen connected |
|---|
Electrical connection
| Cable | 5 m, PUR, Halogen-free, green, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm ) |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: screen connected |
|---|
