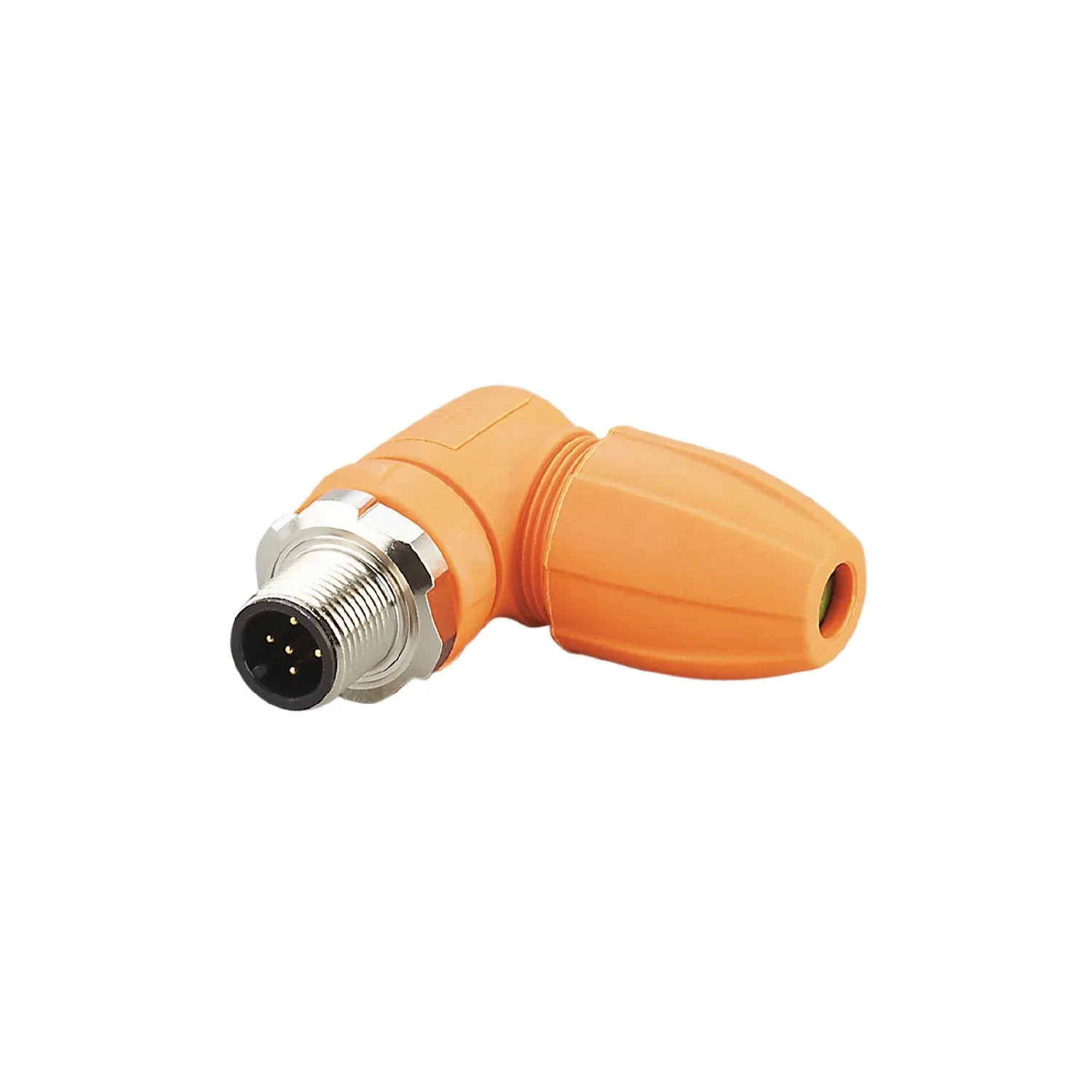

IFM EVC817
EVC817
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Extremely effective strain relief by means of patented three-way ball clamp technology
Simple and fast wiring by means of screw terminals
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total[A] [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Storage temperature[°C] [°C] | -25...55 |
| Storage humidity[%] [%] | 10...100 |
| Other climatic conditions for storage according to stated class | 1K22/ DIN 60721-3-1 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight[g] [g] | 34.4 |
|---|---|
| Moulded-body material | PA 6.6 |
| Material nut | brass, nickel-plated |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals | 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17 |
|---|
Electrical connection - plug
| Connector | 1 x M12, angled; coding: A; Moulded body: PA 6.6, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart! |
|---|
