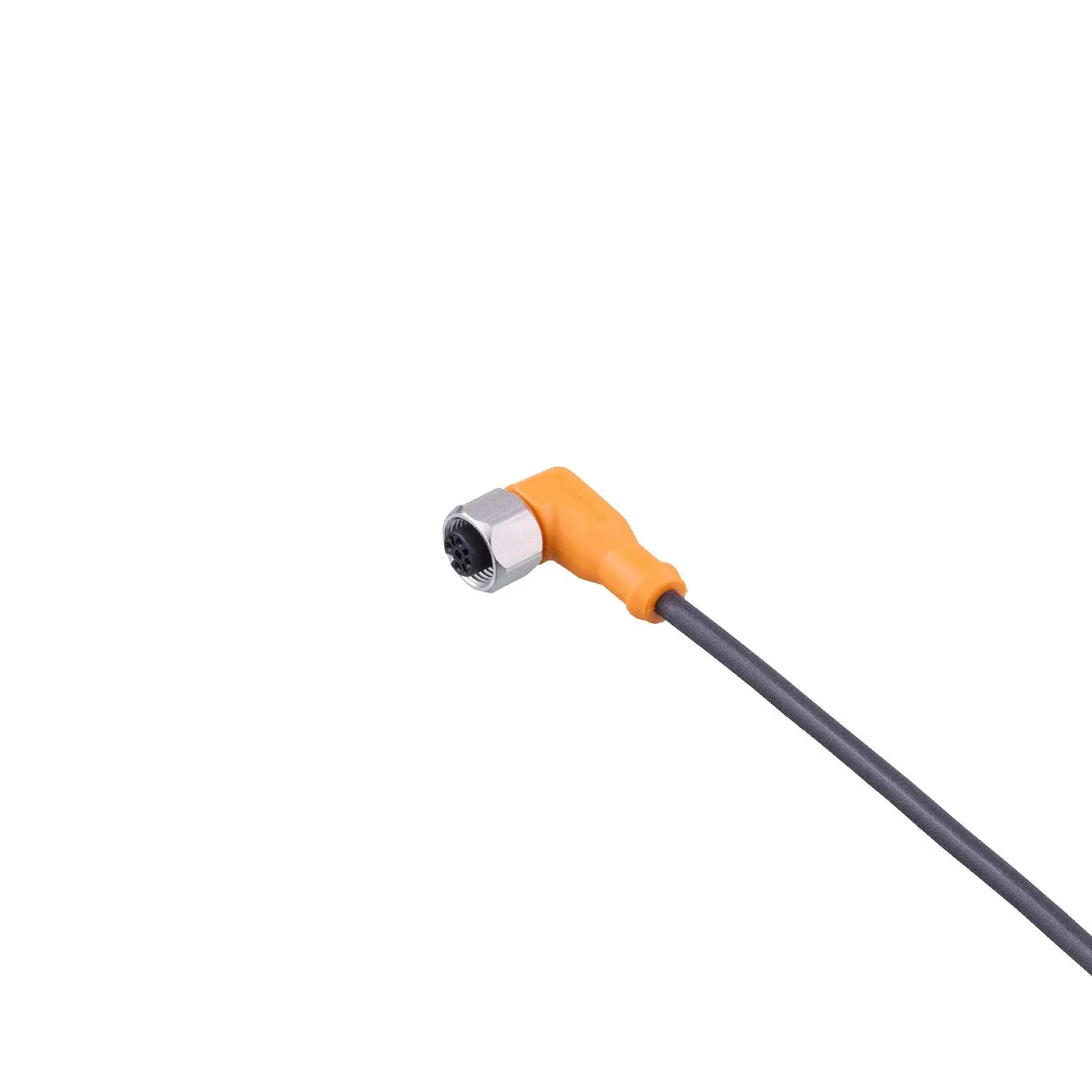

IFM EVC04A
EVC04A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Resistant to oils and coolants
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Specification
Application
| Special feature | Halogen-free; Gold-plated contacts |
|---|---|
| Compatible with paint | yes |
Electrical data
| Operating voltage[V] [V] | < 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total[A] [A] | 2 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 67; (when used outside the hazardous area: IP 68 / IP 69K) |
Tests / approvals
| Approval | BVS 08 ATEX E 109 U; IECEx BVS 08.0041 U |
|---|---|
| ATEX marking | II 3G Ex ec IIC Gc; II 2D Ex tb IIIC Db IP65/IP67 |
Mechanical data
| Weight[g] [g] | 101.4 |
|---|---|
| Dimensions[mm] [mm] | 26.5 x 15.5 x 36.5 |
| Moulded-body material | TPU |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: stainless steel (316L/1.4404); Sealing: FKM; Contacts: gold-plated; Tightening torque: 1.2...1.5 Nm |
|---|
