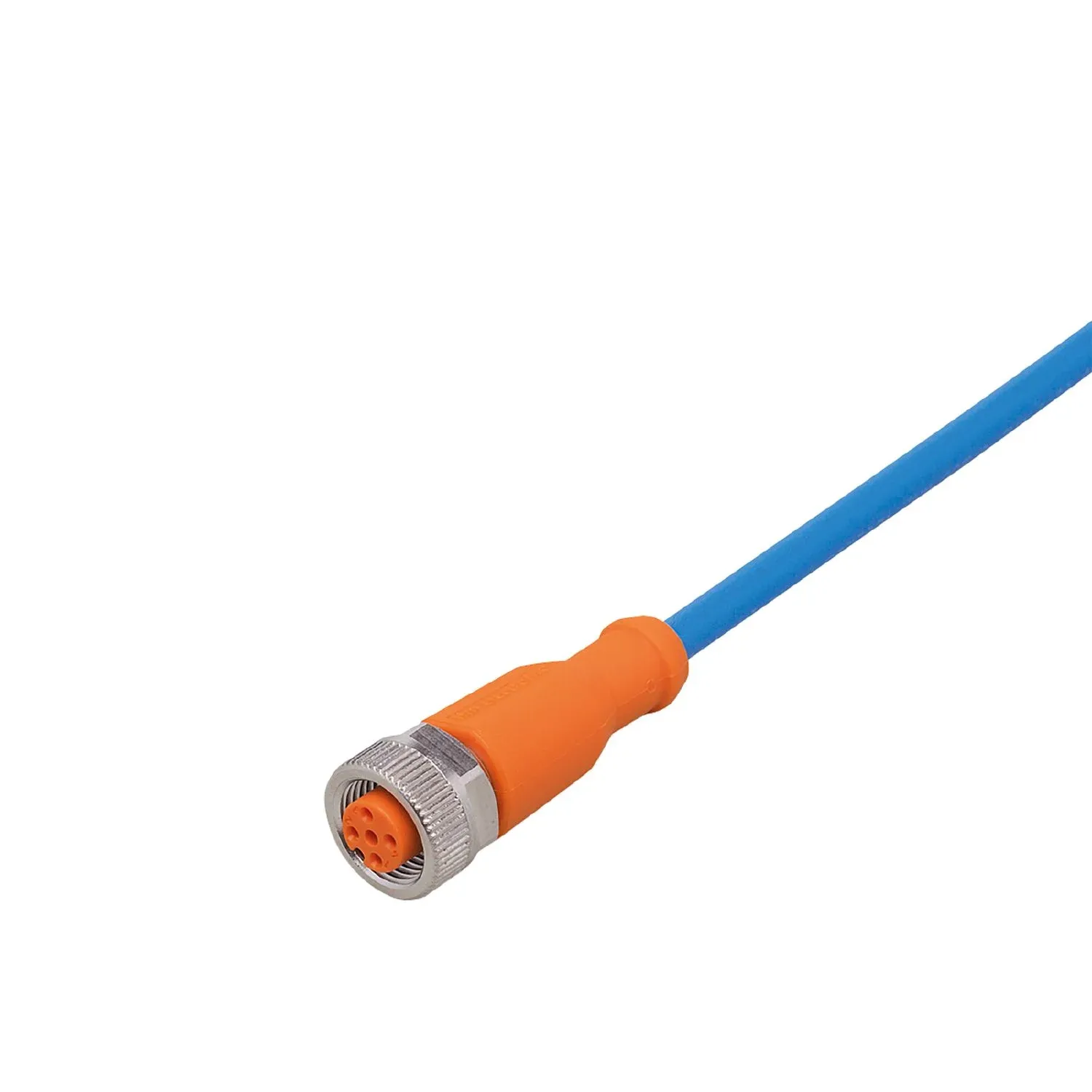

IFM ENC01A
ENC01A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
| Compatible with paint | yes |
Electrical data
| Operating voltage[V] [V] | < 30 DC |
|---|---|
| Protection class | II |
| Max. input power[mW] [mW] | group II: 1000; group III: 1000 |
| Max. current load total[A] [A] | 1 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Note on ambient temperature | for use in hazardous areas: ambient temperature in accordance with unit marking |
| Protection | IP 67; (when used outside the hazardous area: IP 68 / IP 69K) |
Tests / approvals
| Approval | BVS 11 ATEX E 009 X; IECEx BVS 11.0002 X |
|---|---|
| ATEX marking | II 1G Ex ia IIB T6 Ga Ta: -25...75°C |
Safety classification
| Max. internal capacitance[nF] [nF] | 0.2 |
|---|---|
| Max. internal inductance[µH] [µH] | 4 |
Mechanical data
| Weight[g] [g] | 101.8 |
|---|---|
| Dimensions[mm] [mm] | 15.5 x 15.5 x 45 |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Sealing material | FKM |
Remarks
| Remarks | Special conditions for safe operation apply for use in hazardous areas. Observe the corresponding notes in the operating instructions (Ex protection related part). |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 2 m, PUR, Halogen-free, blue, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 1.2...1.5 Nm |
|---|
