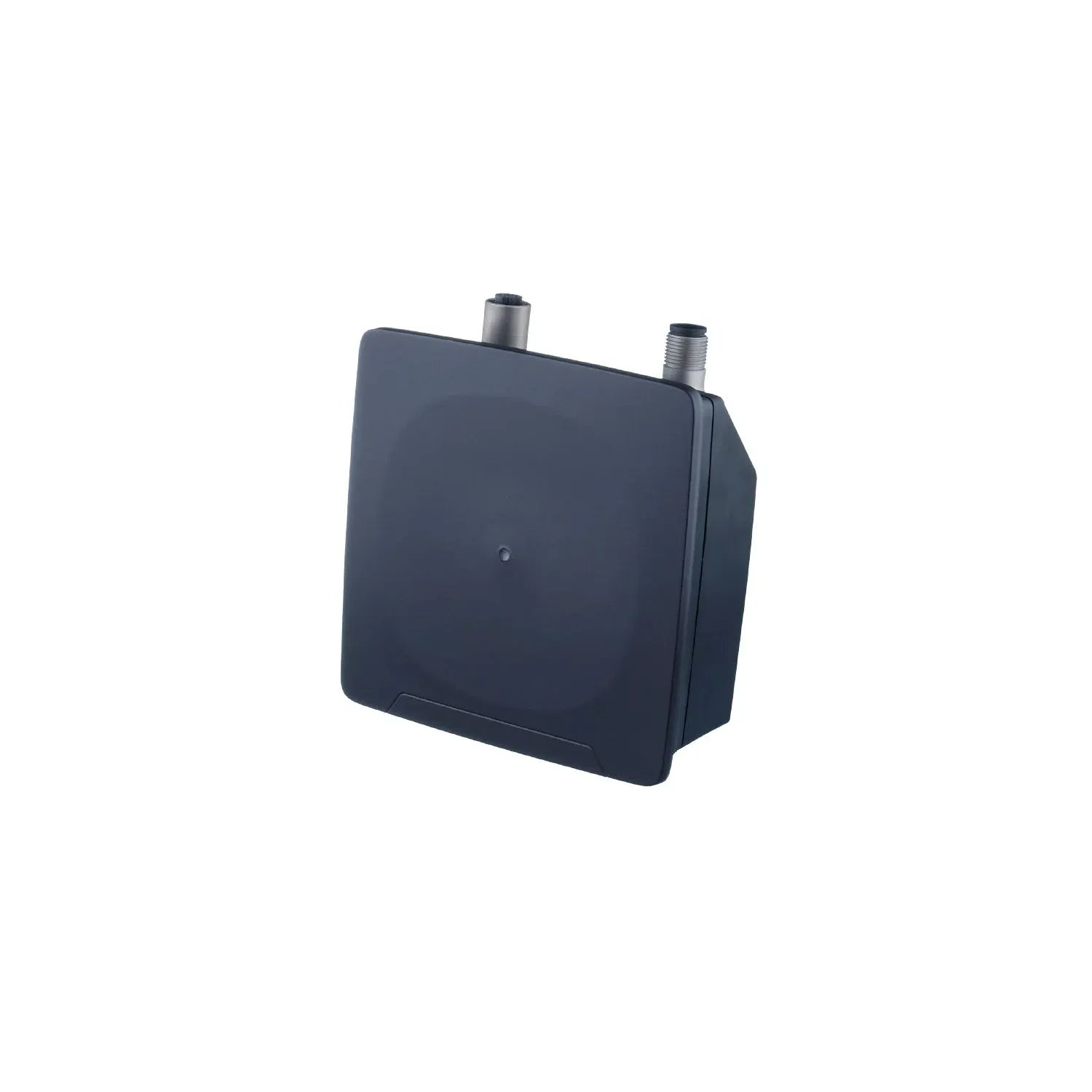

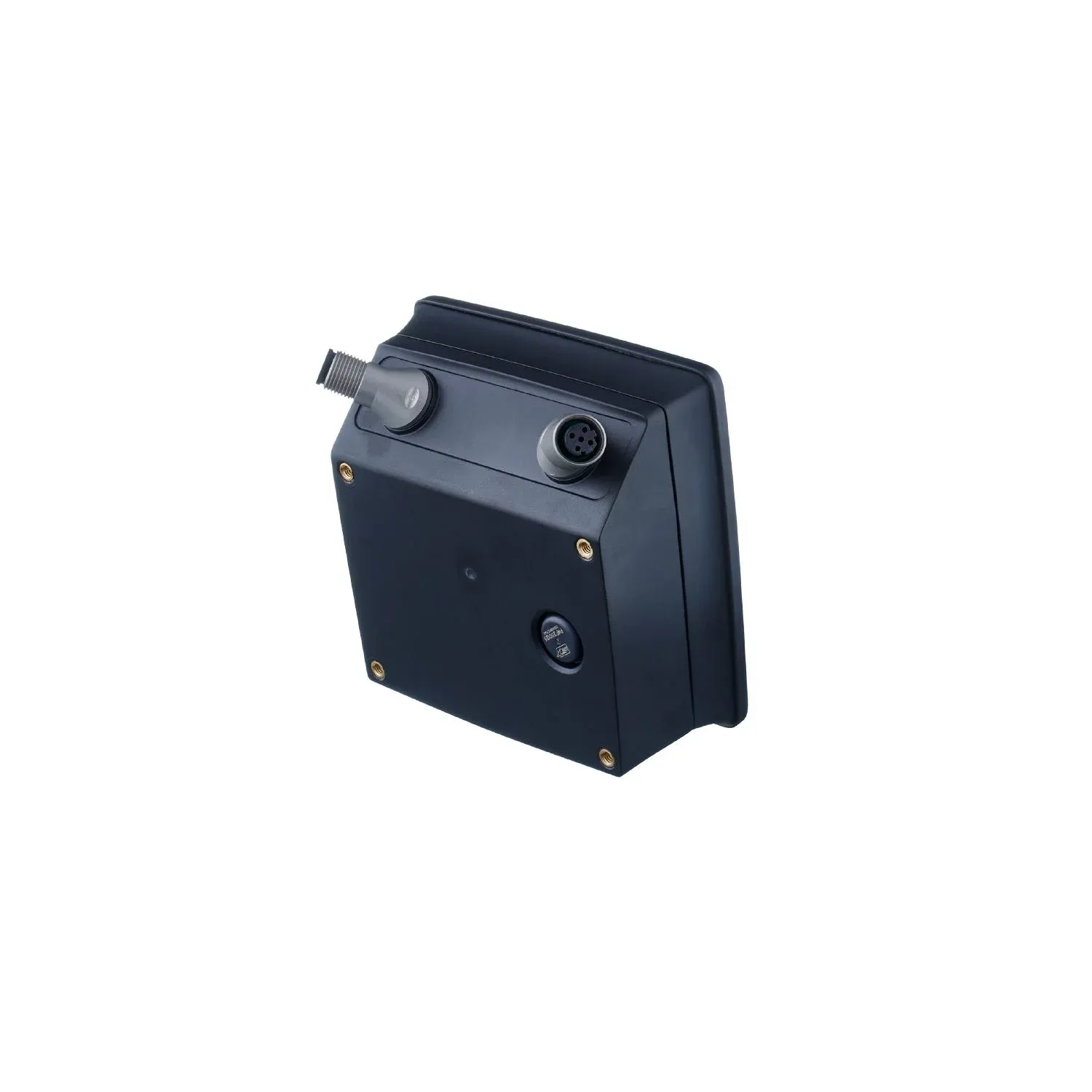

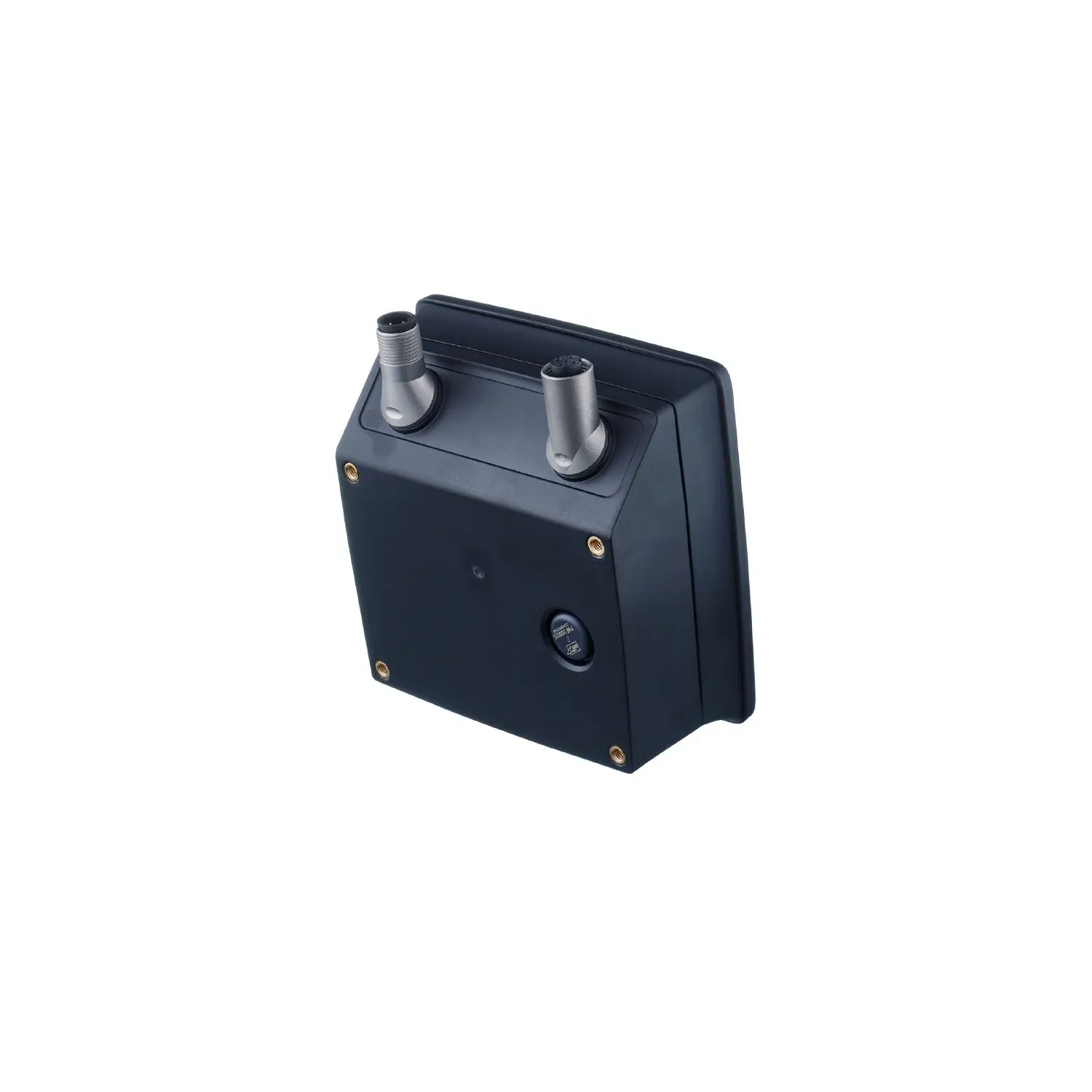

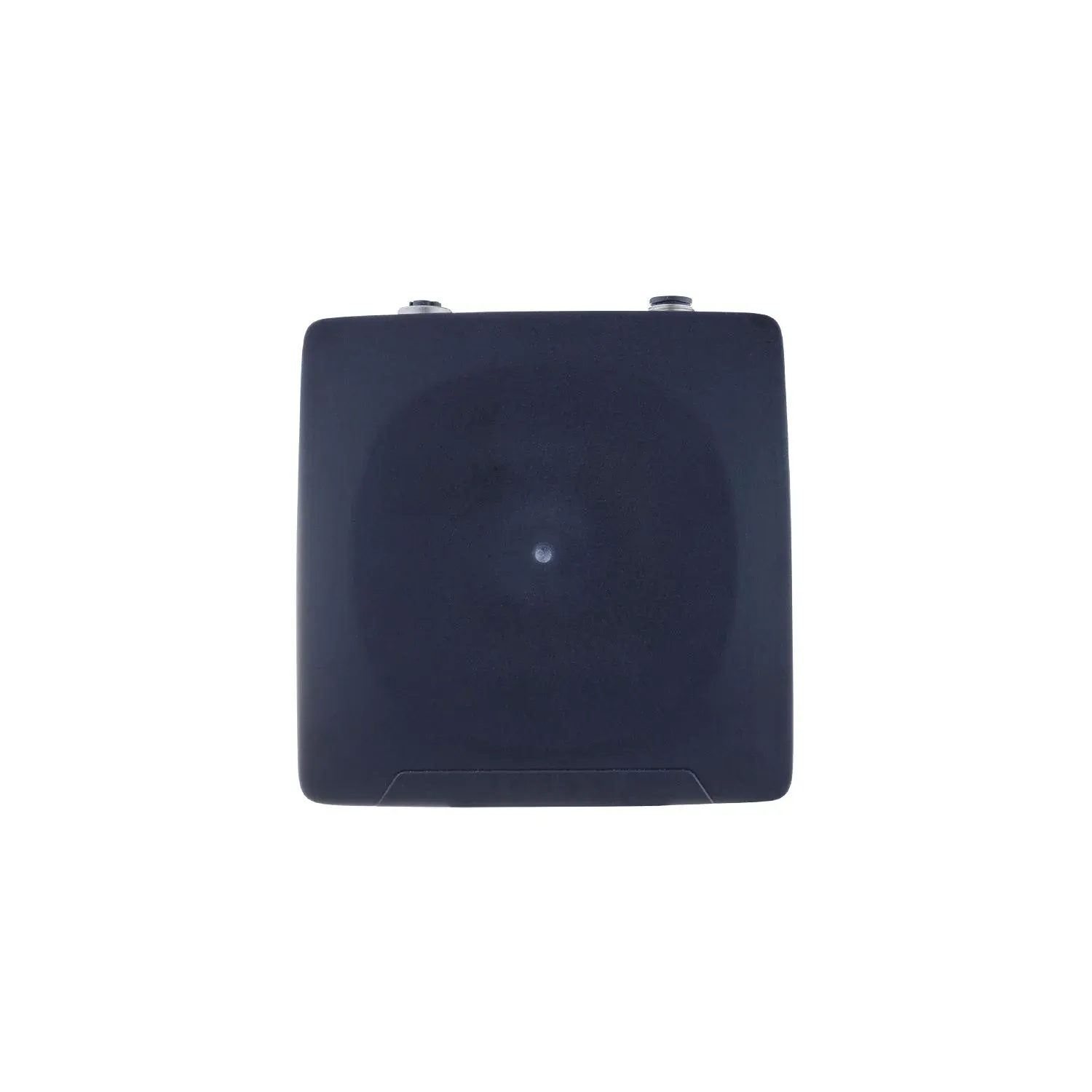

IFM EIO404
EIO404
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reading and writing of data at the connected IO-Link device via Bluetooth
Easy access to sensors via EIO344 adapter and free ifm moneo blue app
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | Base station for Bluetooth adapters. The data collected by the connected adapters can be retrieved via Ethernet using IoT Core; can be used with moneo Cloud in combination with moneo edgeGateway AE2100 or moneo on-premises (from version 1.15) |
| Radio approval for | EU/RED; Great Britain; USA; Canada; Japan; Namibia; Singapore; Australia; India; Vietnam; New Zealand; Indonesia; Malaysia; Thailand; Ukraine; Taiwan; Mexico; Argentina; Chile; South Korea; South Africa; China; Brazil |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (limitation due to ES1 and PS2) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | < 100 |
| Protection class | III |
| Reverse polarity protection | yes |
Interfaces
| Communication interface | Ethernet; Bluetooth |
|---|---|
| Transmission standard | 10Base-T; 100Base-TX |
| Frequency band | 2,4 GHZ |
| Transmission power[mW] [mW] | 10; (10 dBm) |
| Range | typ. 20 m |
| Transmission rate | 10; 100 |
| Protocol | MQTT JSON; IoT-Core |
| Factory settings | IP address: DHCP MAC address: see type label |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 40 g, 6 ms / bump 50 g, 11 ms / single shock |
| DIN EN 60068-2-27 | 40 g, 6 ms / bump |
| Vibration resistance | DIN EN 60068-2-6 2 g (10...150 Hz) |
| DIN EN 60068-2-6 | 2 g (10...150 Hz) |
| MTTF[years] [years] | 184 |
| UL approval | File number UL E537924 |
| File number UL | E537924 |
Mechanical data
| Weight[g] [g] | 469.4 |
|---|---|
| Materials | PBT; PC; stainless steel (316 / 1.4401); stainless steel (304CU/1.4567); brass; PU; PTFE; FKM |
Displays / operating elements
| Display | operation LED, green warning / fault LED, red Bluetooth LED, blue |
|---|---|
| operation | LED, green |
| warning / fault | LED, red |
| Bluetooth | LED, blue |
Remarks
| Pack quantity | 1 pcs. |
|---|
