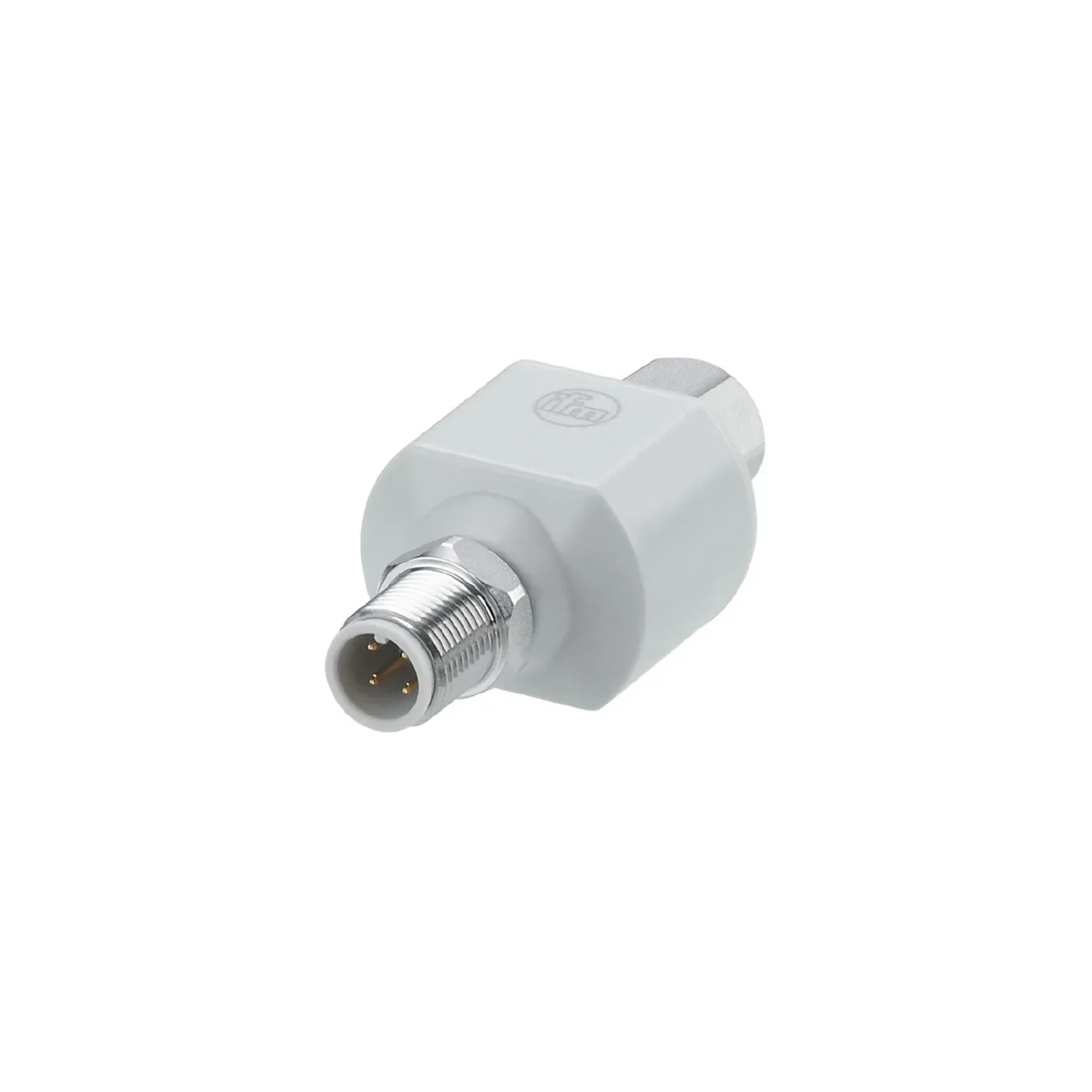

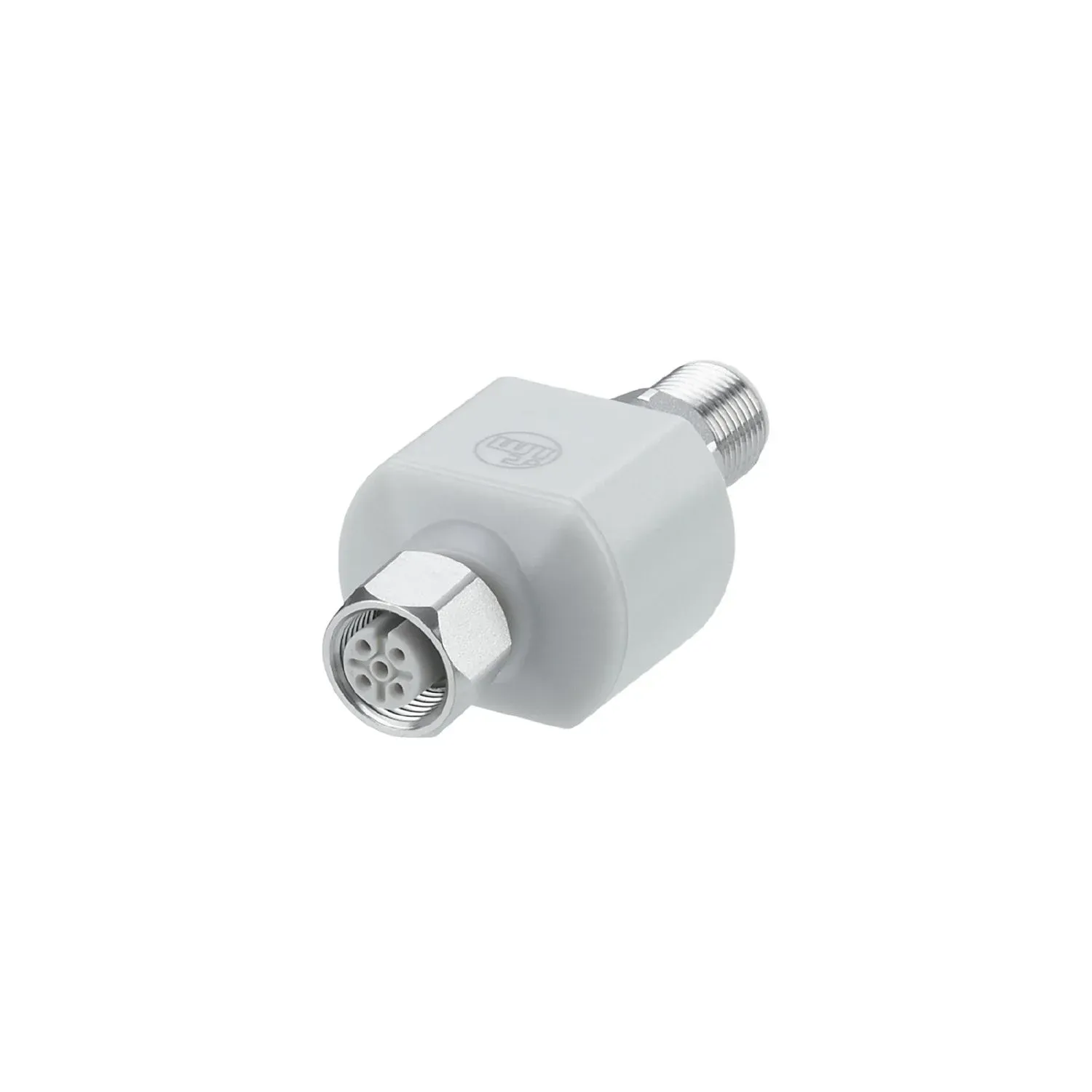

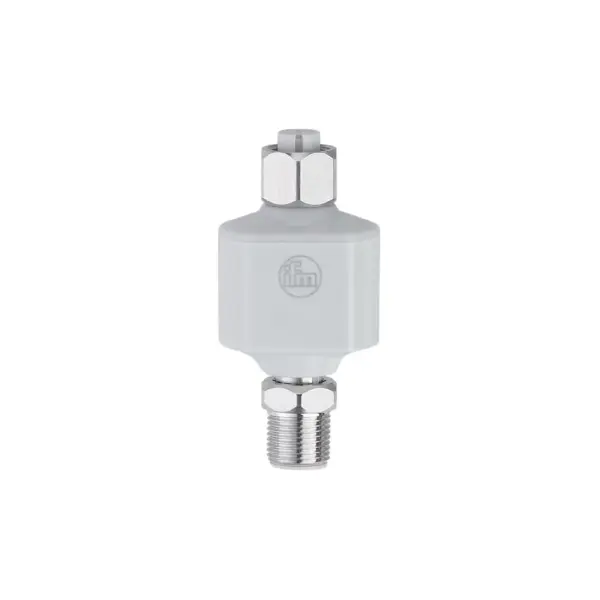

IFM EIO344
EIO344
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reading and writing of data at the connected IO-Link device via Bluetooth
Easy access to sensors via smartphone app ifm moneo blue
Flexible integration into existing systems
Quick and easy parameter setting of IO-Link sensors
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Application
| Special feature | Gold-plated contacts |
|---|---|
| Radio approval for | EU/RED; Great Britain; USA; Canada; Japan; Namibia; Singapore; Australia; India; Vietnam; New Zealand; Indonesia; Malaysia; Thailand; Ukraine; Taiwan; Argentina; Chile; South Korea; South Africa; Mexico; China; Brazil |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (limitation due to ES1 and PS2) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes; (supply side) |
| Max. current load total[A] [A] | 0.83 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Output signal | switching signal; IO-Link |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Type of short-circuit protection | pulsed |
| Short-circuit proof | yes |
| Overload protection | yes |
Interfaces
| Communication interface | IO-Link; Bluetooth |
|---|---|
| Supported DeviceIDs | IO-Link Device 1591 |
| IO-Link Device | 1591 |
| Transmission standard | BLE 5.0 |
| Frequency band | 2,4 GHZ |
| Transmission power[mW] [mW] | 10; (10 dBm) |
| Range | typ. 20 m |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.0; 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 4.4 |
| Number of ports | 1 |
| Unterstützte IO-Link Revision | 1.1 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 15 g (6 ms) |
| DIN EN 60068-2-27 | 15 g (6 ms) |
| Vibration resistance | DIN EN 60068-2-6 2 g (10...150 Hz) |
| DIN EN 60068-2-6 | 2 g (10...150 Hz) |
| MTTF[years] [years] | 218 |
| UL approval | File number UL E537924 |
| File number UL | E537924 |
Mechanical data
| Weight[g] [g] | 92.2 |
|---|---|
| Materials | PA; stainless steel (316L/1.4404); FKM |
Displays / operating elements
| Display | operation LED, green warning / fault LED, red Bluetooth LED, blue |
|---|---|
| operation | LED, green |
| warning / fault | LED, red |
| Bluetooth | LED, blue |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
Electrical connection - socket
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
