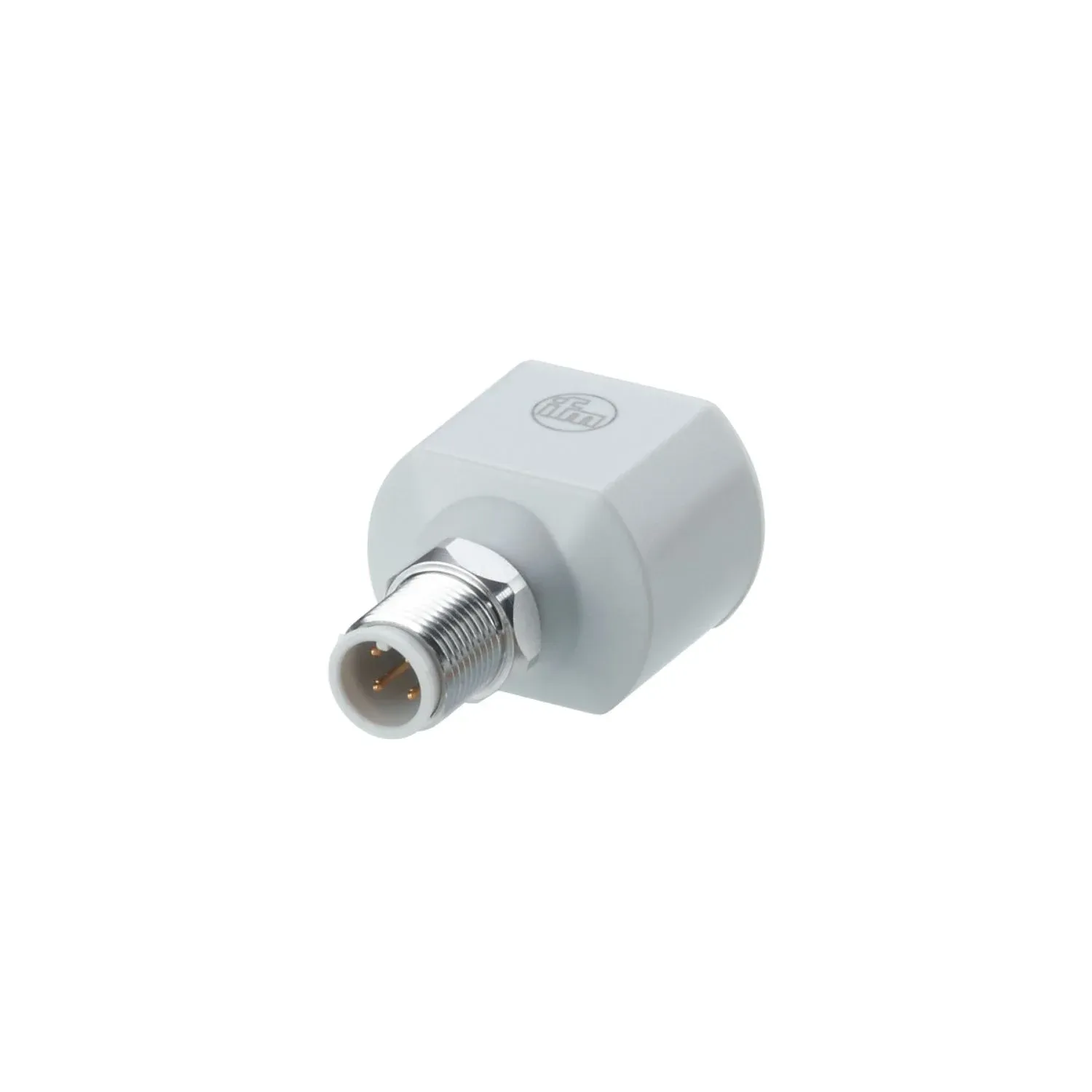

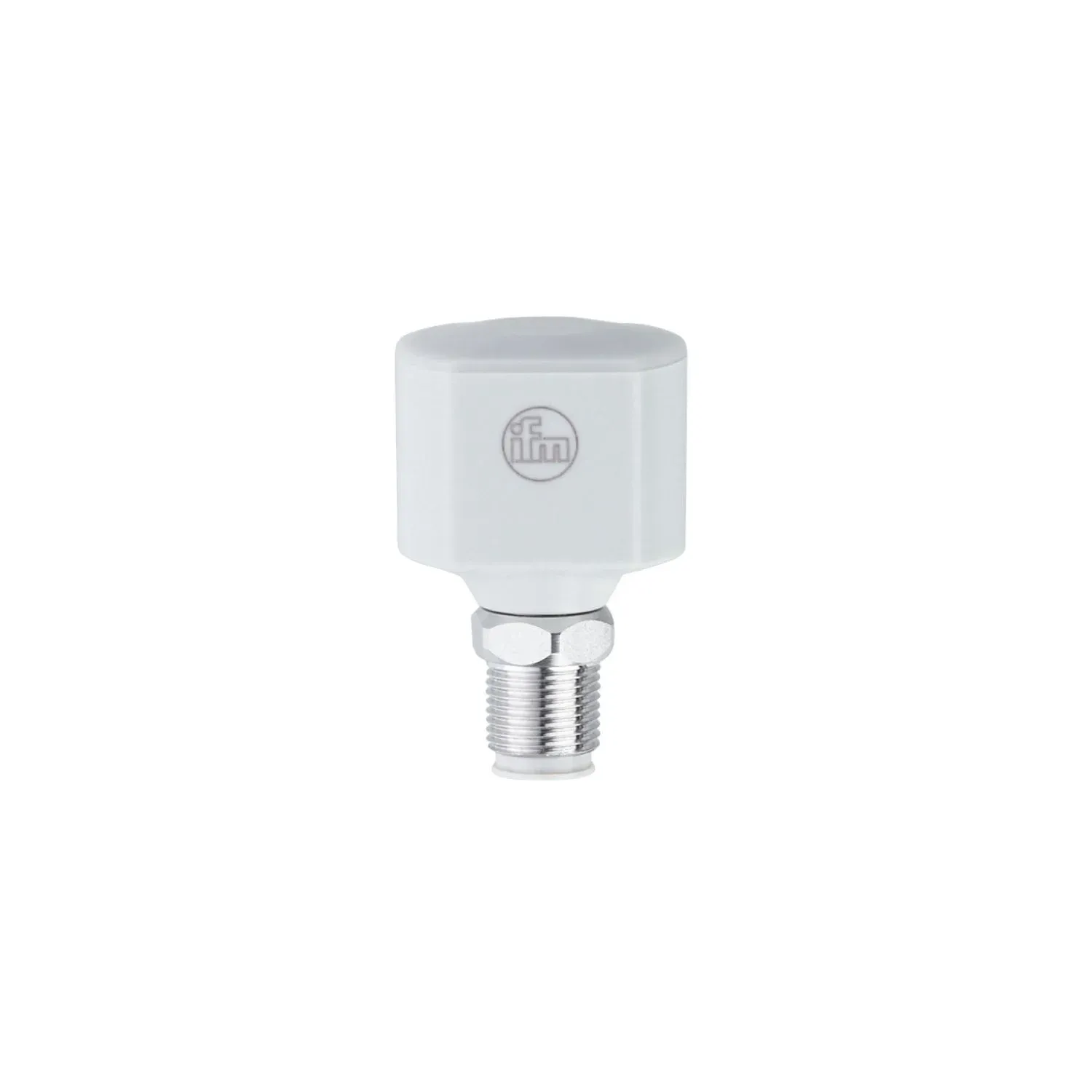

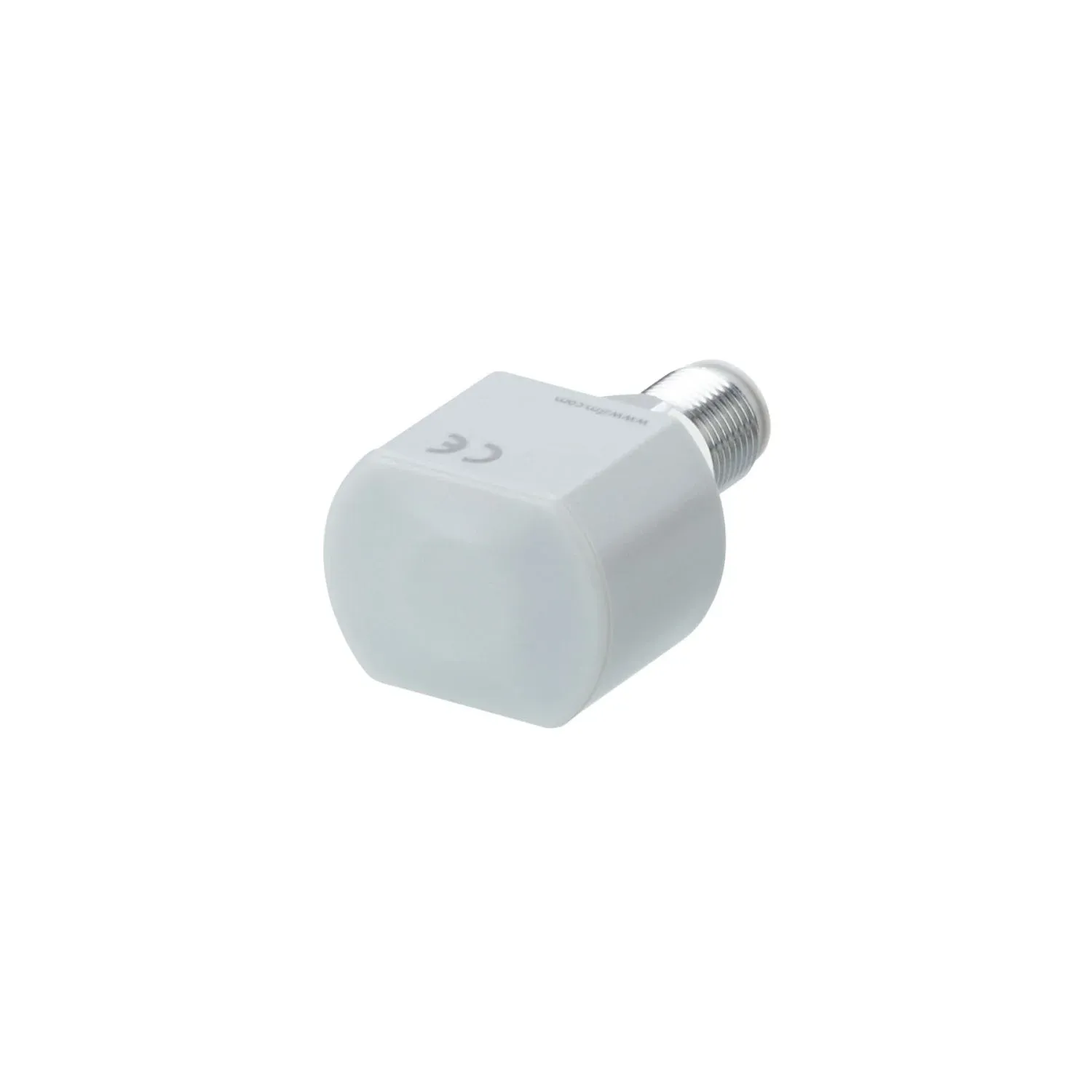

IFM EIO330
EIO330
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reading and writing of data at the connected IO-Link device via Bluetooth

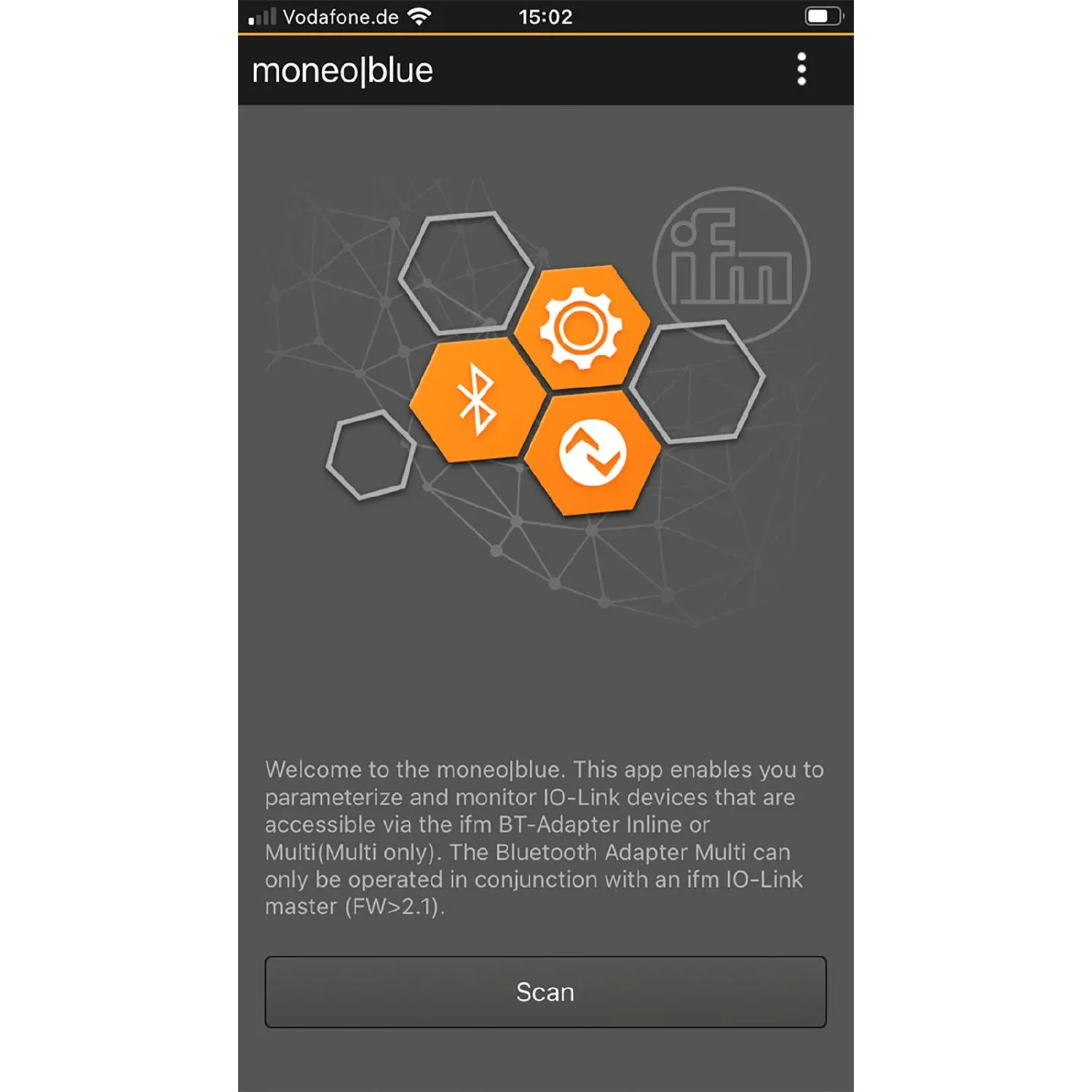

Easy access to sensors via smartphone app ifm moneo blue

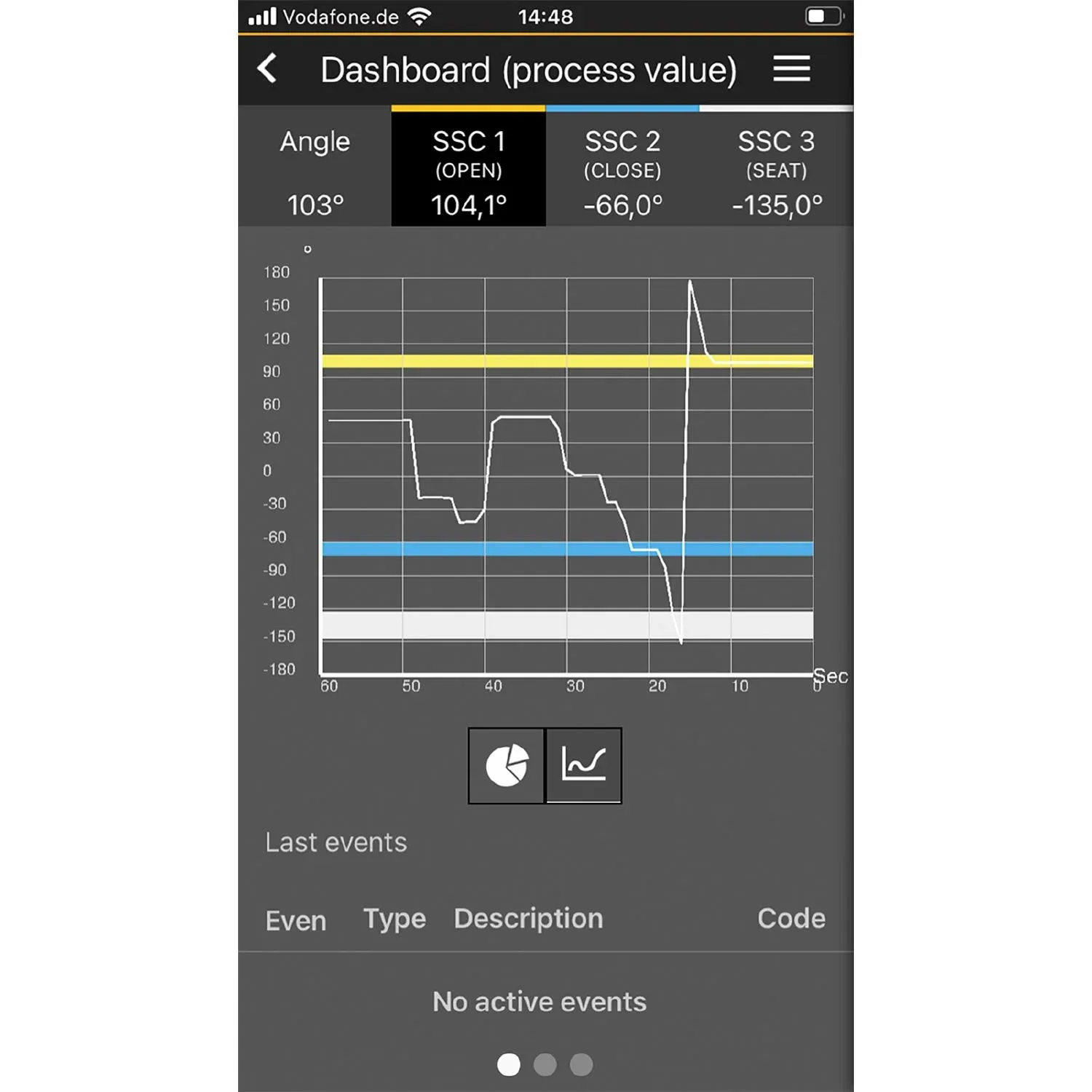

Transmission and recording of the process values of all IO-Link sensors connected to the master
Transmission of master information
ifm moneo blue free of charge for iOS and Android

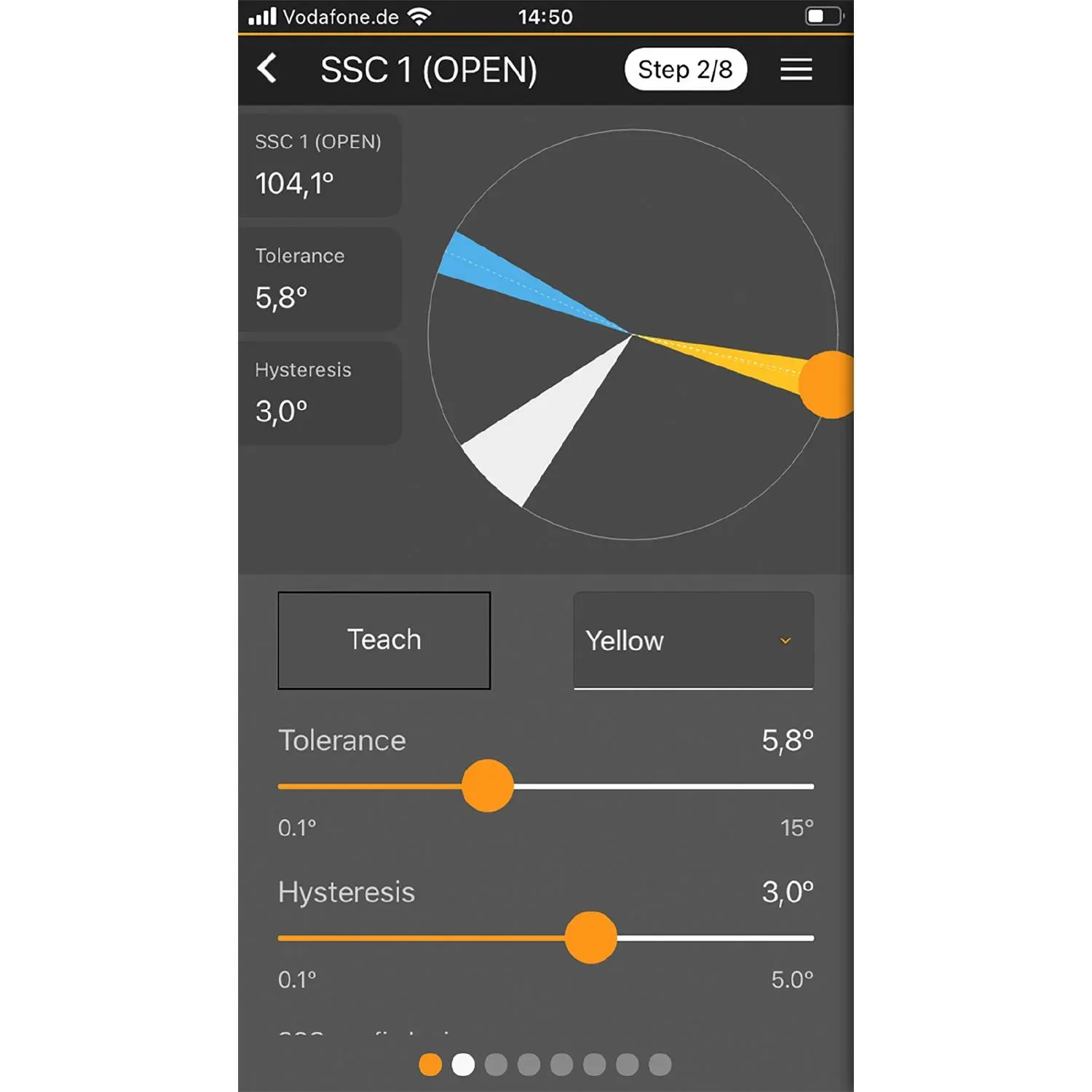

Quick and easy parameter setting of IO-Link sensors
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | display of all process values of the sensors connected to the same master; device setup and diagnosis; parameter setting and analysis of units; Nur funktionsfähig mit ifm IO-Link Master ab Firmware 2.1 |
| Radio approval for | EU/RED; Australia; USA; New Zealand; Canada; Japan; Brazil; China; South Africa; Argentina; Singapore; Mexico; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; India; Namibia; Indonesia |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.3 |
Software / programming
| Parameter setting options | process value recording |
|---|
Interfaces
| Communication interface | IO-Link; Bluetooth |
|---|---|
| Supported DeviceIDs | IO-Link Device 1313 |
| IO-Link Device | 1313 |
| Transmission standard | BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1 |
| Frequency band | 2,4 - 2,482 GHz |
| Transmission power[mW] [mW] | 10; (10 dBm) |
| Range | typ. 20 m |
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Function Device identification Function Device diagnosis Function Extended identification |
| Function | Extended identification |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 2.3 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...70 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank |
|---|---|
| DIN EN 61000-6-3 | in a closed metal tank |
| Shock resistance | DIN EN 60068-2-27 15 g (6 ms) |
| DIN EN 60068-2-27 | 15 g (6 ms) |
| Vibration resistance | DIN EN 60068-2-6 2 g (10...150 Hz) |
| DIN EN 60068-2-6 | 2 g (10...150 Hz) |
| MTTF[years] [years] | 281 |
| UL approval | Ta max. 55 °C Enclosure type Type 1 power supply Low Voltage / Limited Energy File number UL E205959 |
| Ta | max. 55 °C |
| Enclosure type | Type 1 |
| power supply | Low Voltage / Limited Energy |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 94 |
|---|---|
| Materials | stainless steel (316L/1.4404); PA; Sealing: FKM; |
Displays / operating elements
| Display | operation Bluetooth failure 1 x LED, three-colour |
|---|---|
| operation Bluetooth failure | 1 x LED, three-colour |
Remarks
| Remarks | the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
