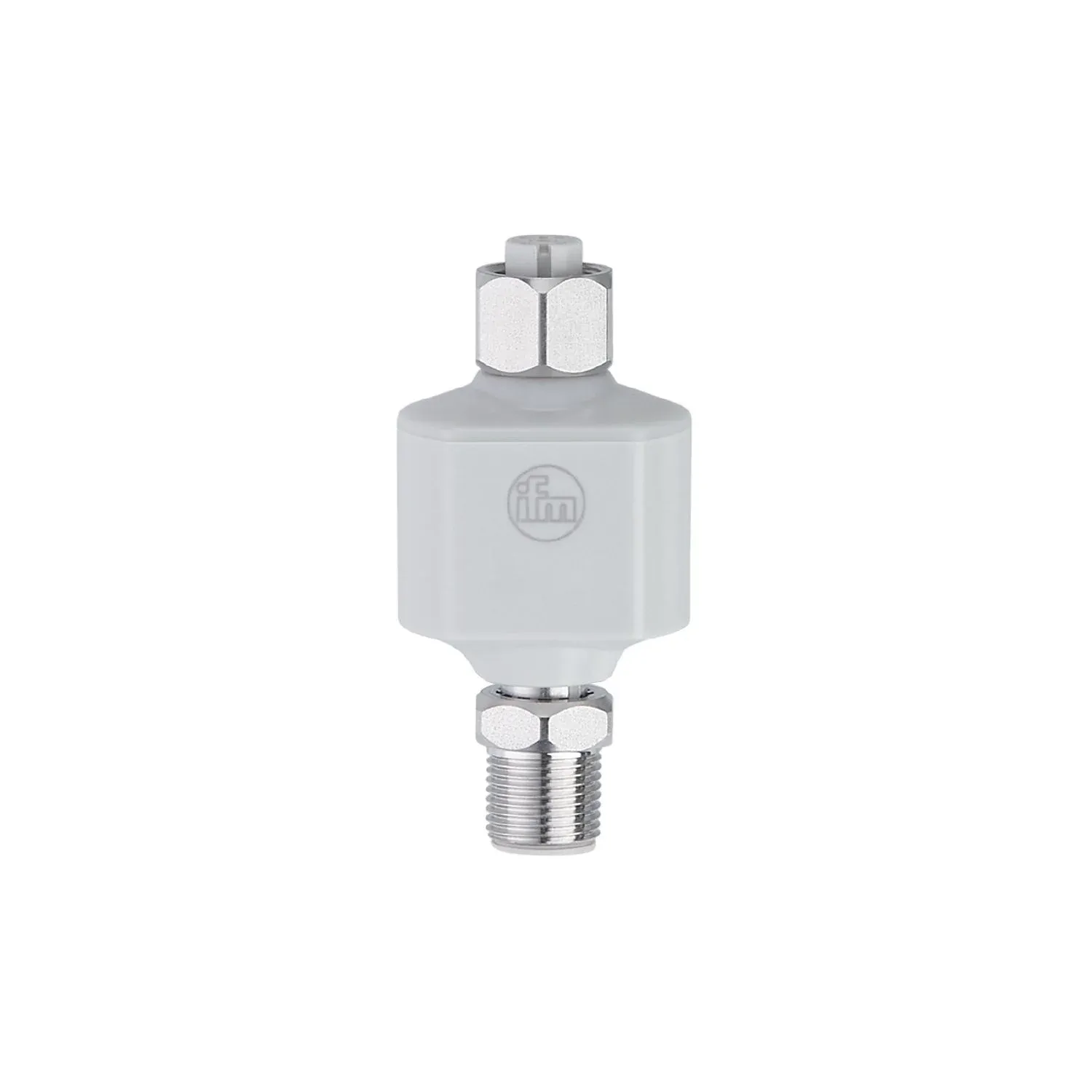

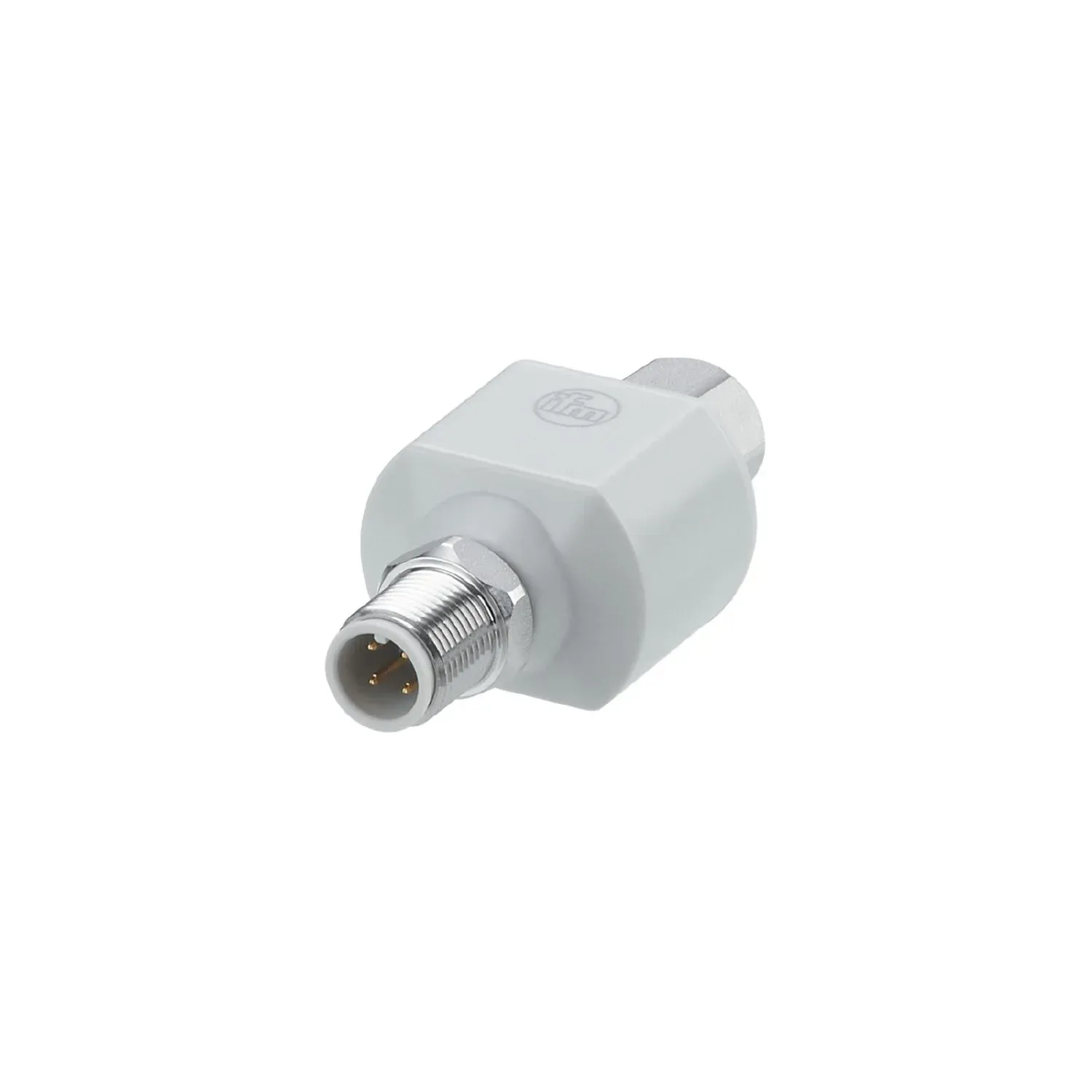

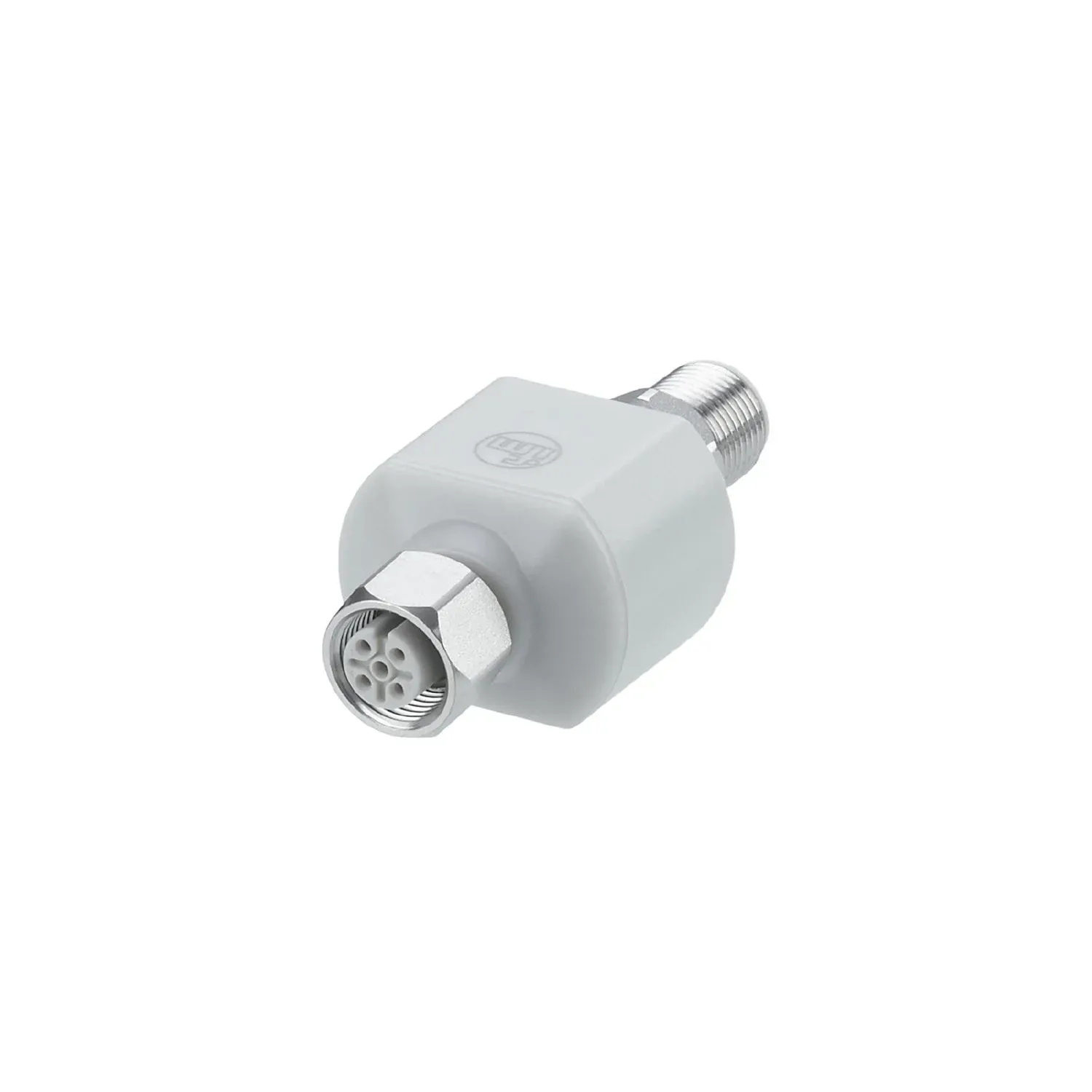

IFM EIO104
EIO104
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy set-up possible without any parameter setting
Compact design with high protection rating in hygienic applications
Parameter setting via IO-Link
Can only be used in combination with ifm products
Reliable signal conversion of measured IO-Link values into two analogue signals
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Application
| Design | integrated IO-Link master |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | < 30 |
| Max. current load total[A] [A] | 0.83 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Number of analogue outputs | 2 |
|---|---|
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
| Precision analogue output[%] [%] | 0,25 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 1 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| Min. process cycle time[ms] [ms] | 4.2 |
| Supported DeviceIDs | default 1398 |
| default | 1398 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...70 |
| Max. relative air humidity[%] [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Protection | IP 67; IP 69K |
Tests / approvals
| MTTF[years] [years] | 254 |
|---|---|
| UL approval | Ta max. 55 °C Enclosure type Type 1 power supply Low Voltage / Limited Energy File number UL E205959 |
| Ta | max. 55 °C |
| Enclosure type | Type 1 |
| power supply | Low Voltage / Limited Energy |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 91.45 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 62.7 x 30 x 23 |
| Materials | PA; stainless steel (316L/1.4404); FKM |
Displays / operating elements
| Display | status 1 x LED, red operation 1 x LED, green |
|---|---|
| status | 1 x LED, red |
| operation | 1 x LED, green |
Remarks
| Remarks | For further information please see the operating instructions. the device complies with overvoltage category II |
|---|---|
| Notes | This converter only works in combination with appropriately specified ifm sensors (see device catalogue under "Downloads") |
| Pack quantity | 1 pcs. |
