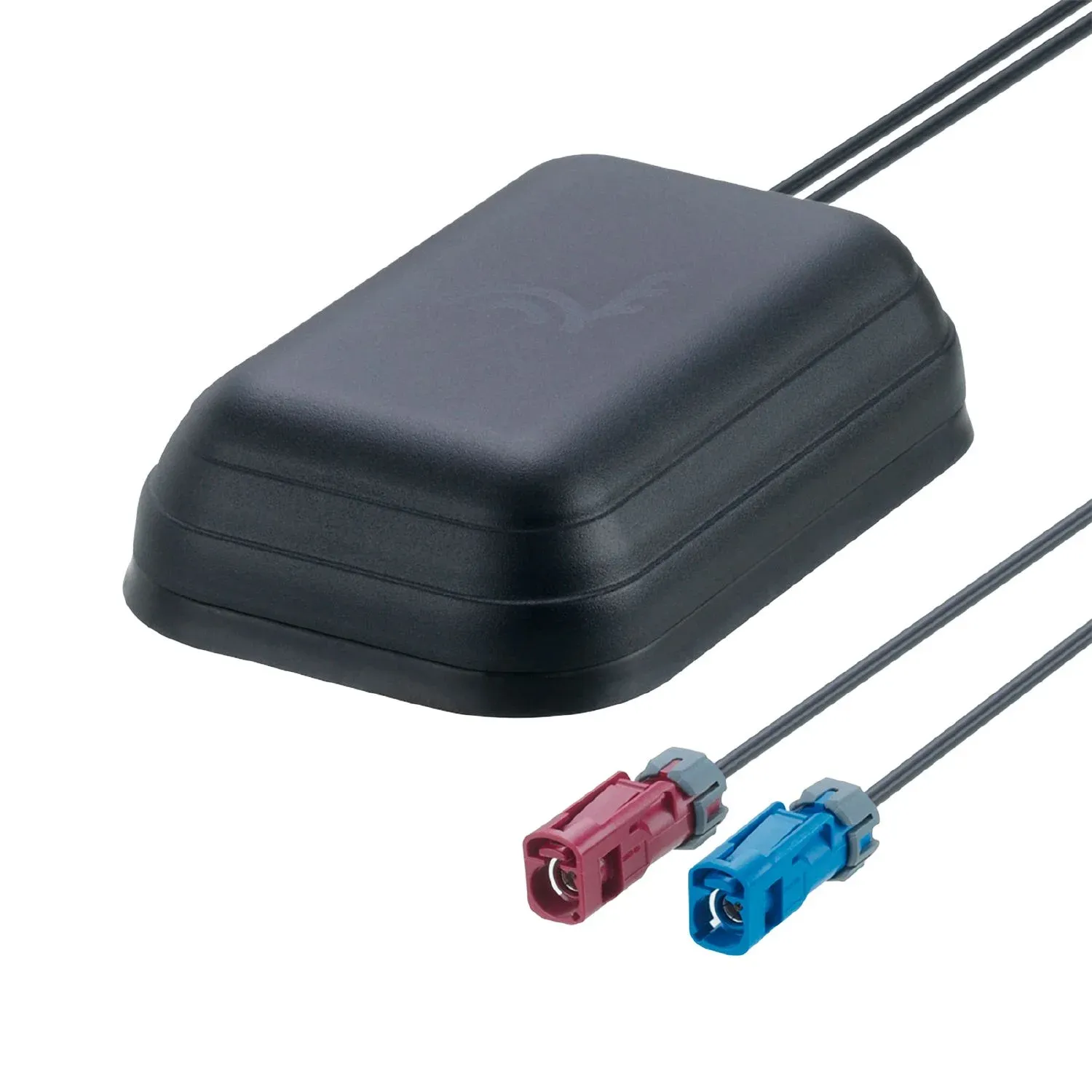

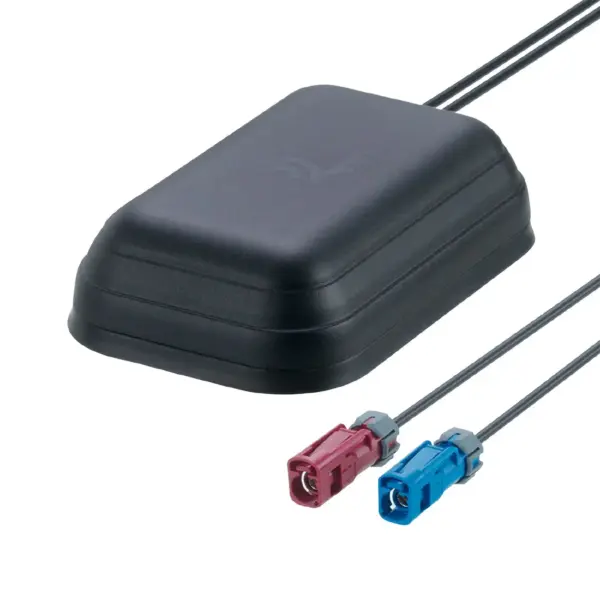

IFM EC3158
EC3158
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With integrated amplifier
Robust design for use in mobile machines
Flat housing for roof mounting on vehicles and mobile machines
Quick and easy mounting and fixing
For a reliable signal transmission
Specification
Electrical data
| Current consumption[mA] [mA] | < 24 |
|---|
Interfaces
| Frequency band | 698 ...960 MHz; 710...2170 MHz; 2300...2690 MHz |
|---|---|
| Note on interfaces | Impedance: 50 Ohm Polarisation: linear vertical |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 6K6 |
Mechanical data
| Weight[g] [g] | 366 |
|---|---|
| Type of mounting | Gewinde |
| Dimensions[mm] [mm] | 80 x 124 x 31 |
| Materials | PC black |
| Tightening torque[Nm] [Nm] | < 5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - GPS
| Cable | 3 m |
|---|---|
| Connector | 1 x FAKRA |
Electrical connection - GSM
| Cable | 3 m |
|---|---|
| Connector | 1 x FAKRA |
